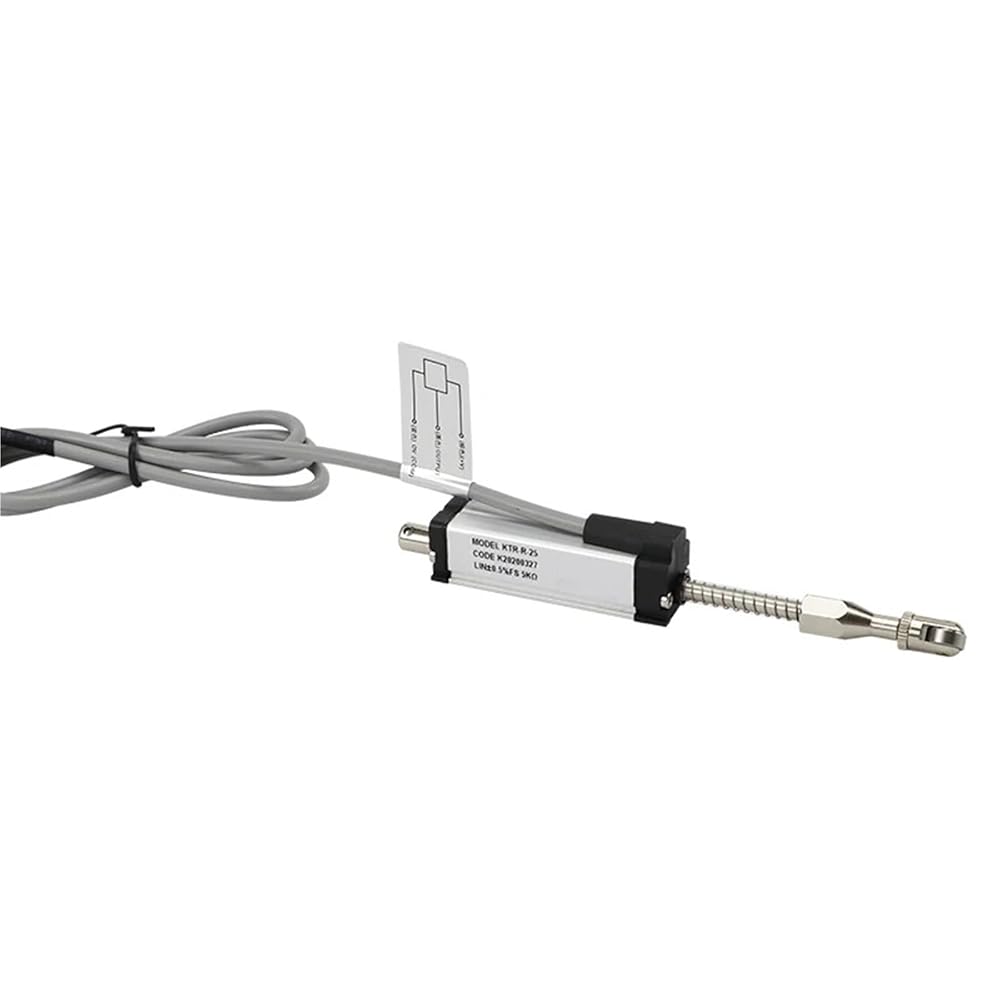

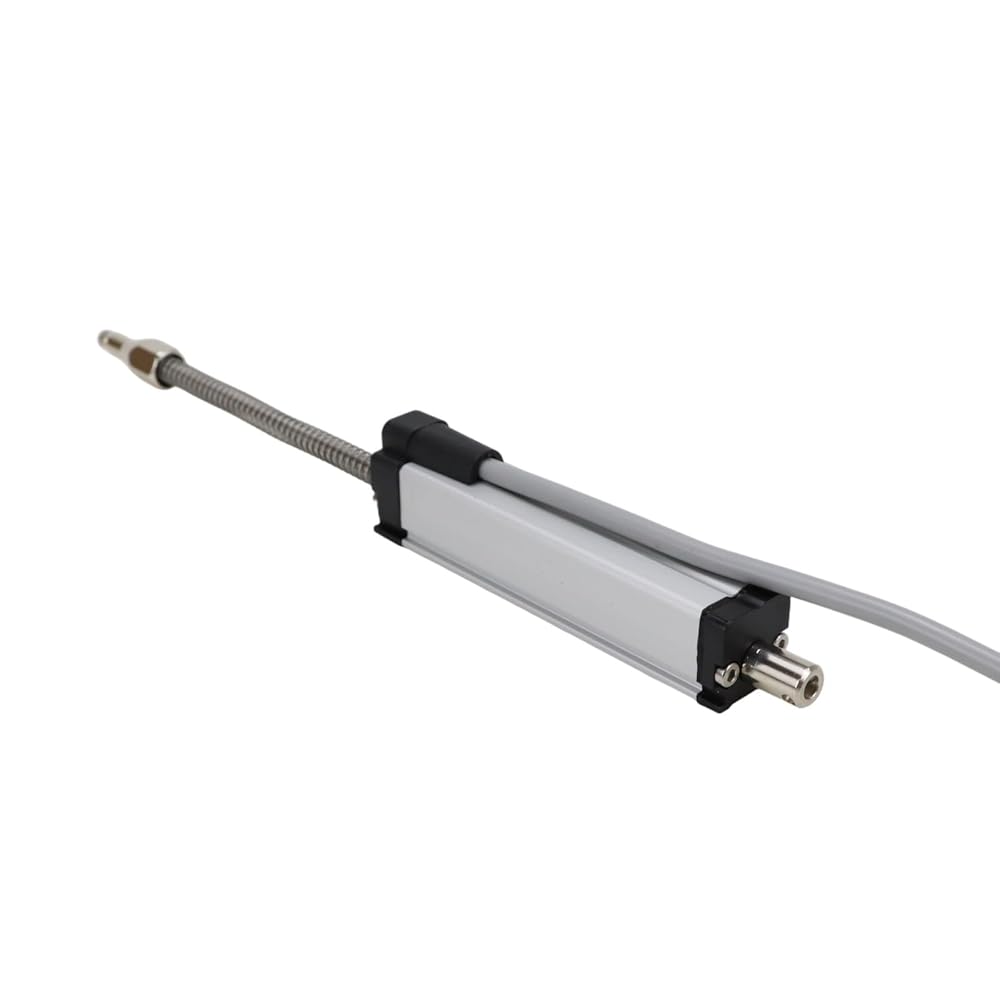

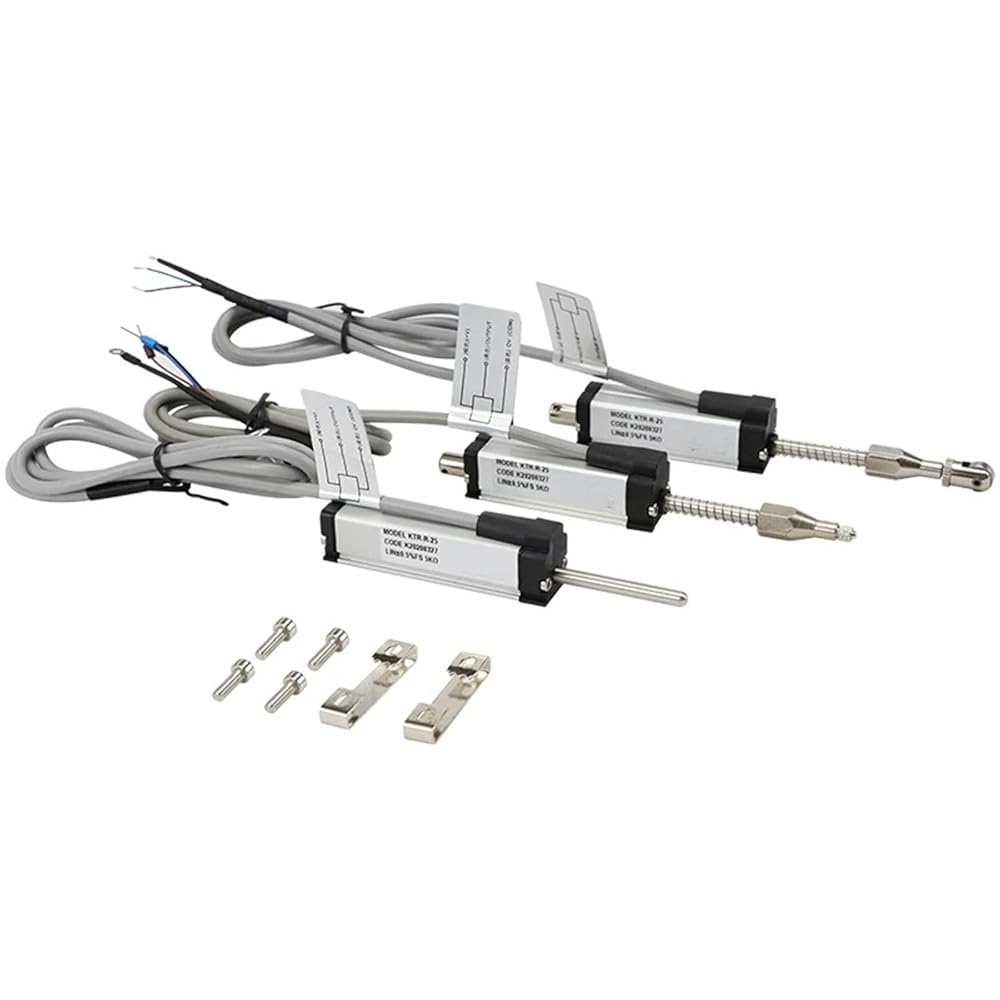

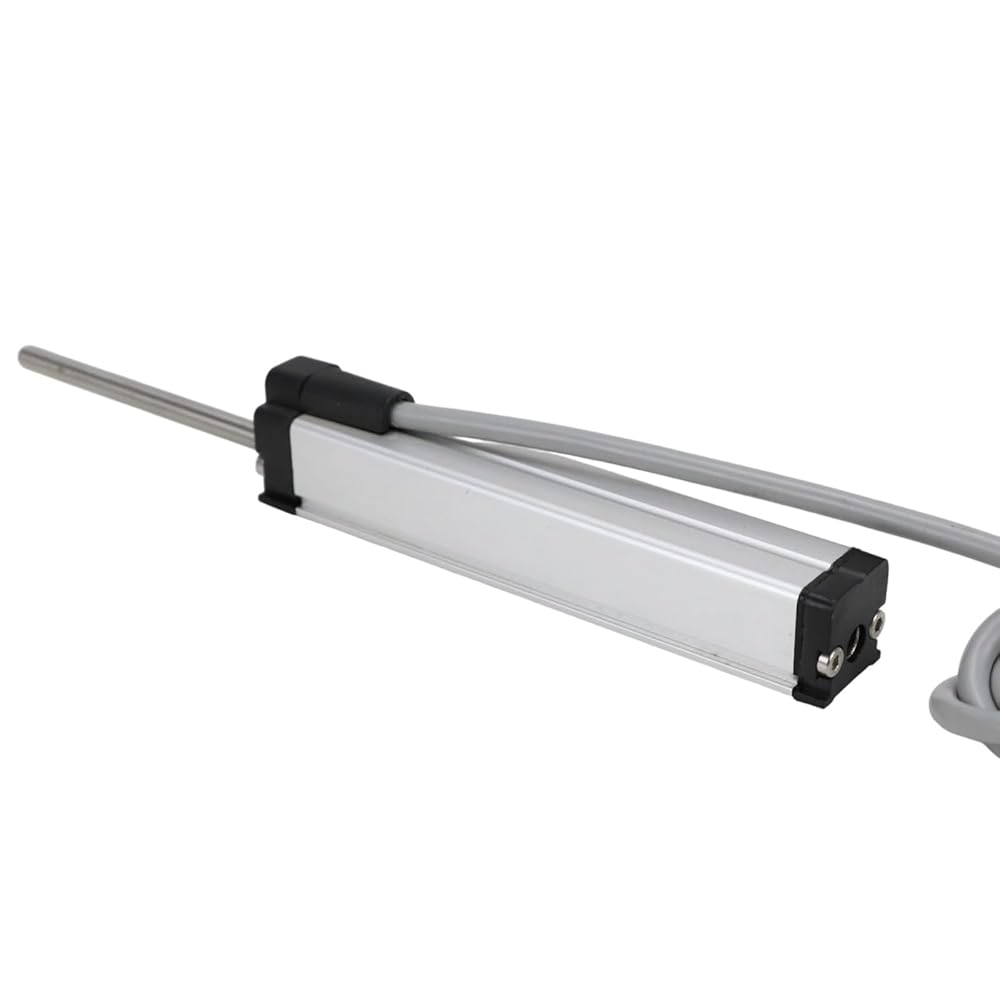

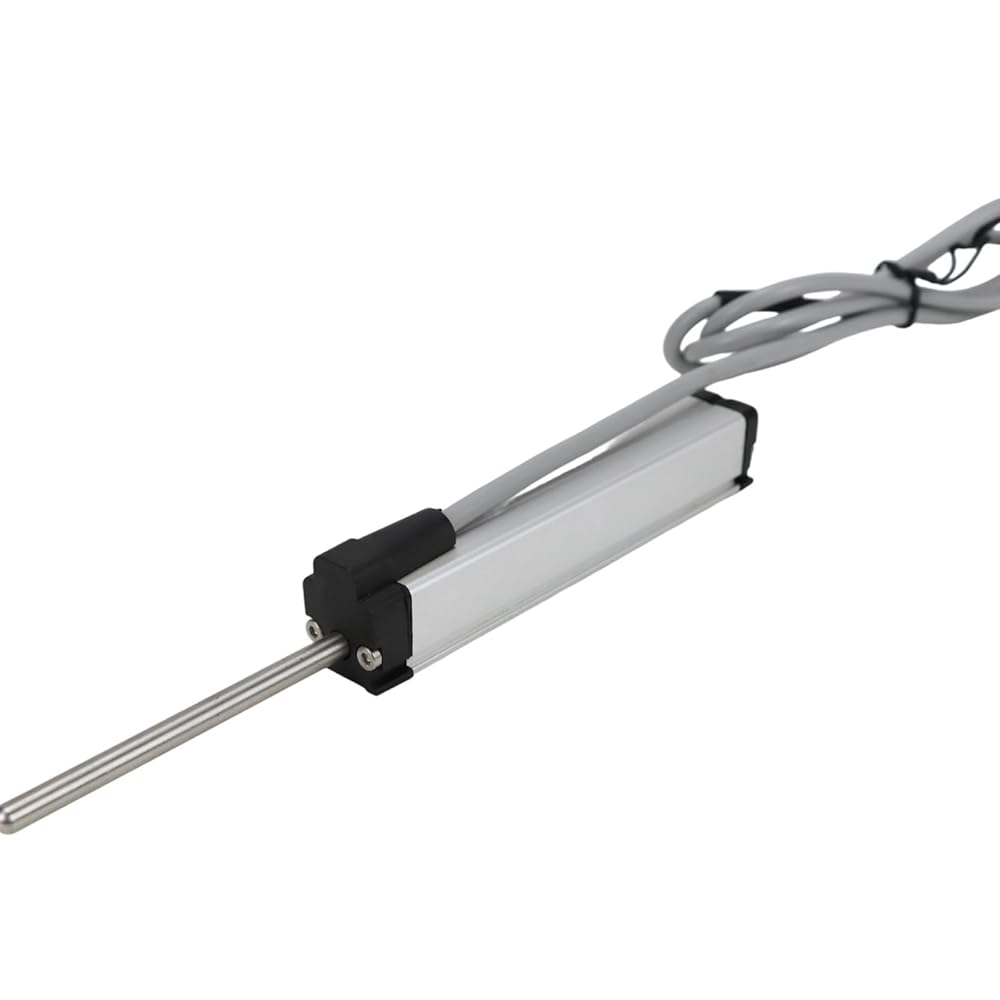

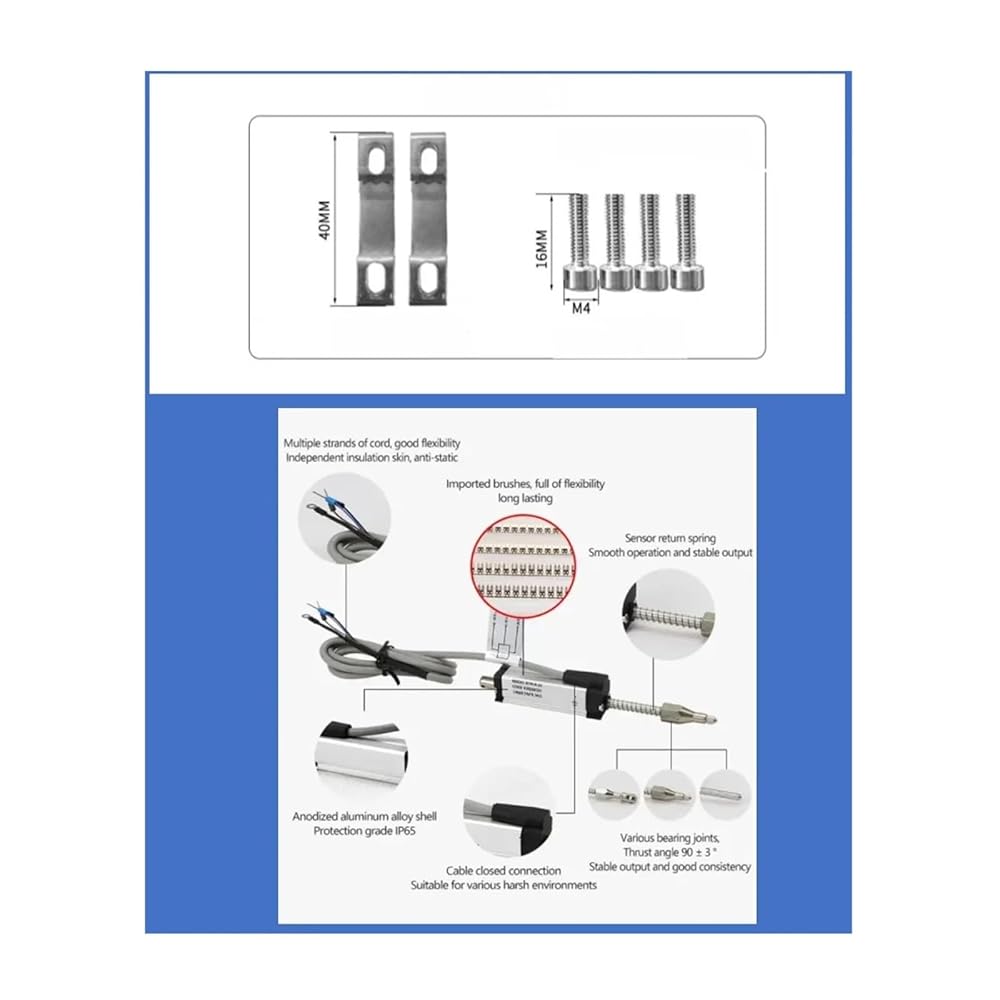

KTR Automatic Reset Type 50mm Linear Sensor, Electronic Ruler Miniature Spring Displacement Transduce, 1pc
Function:
Automatic locking screw machine, paper packaging machinery, printing equipment, automatic plate feeding
machine and cement block thickness, etc.
Measure Stroke: 5-100mm(150mm available also)
Output Module: 2K/5K (Default option)
4-20mA,0-5v/10v, RS485
Other output signals will have to add a transmitter to convert the corresponding signal.

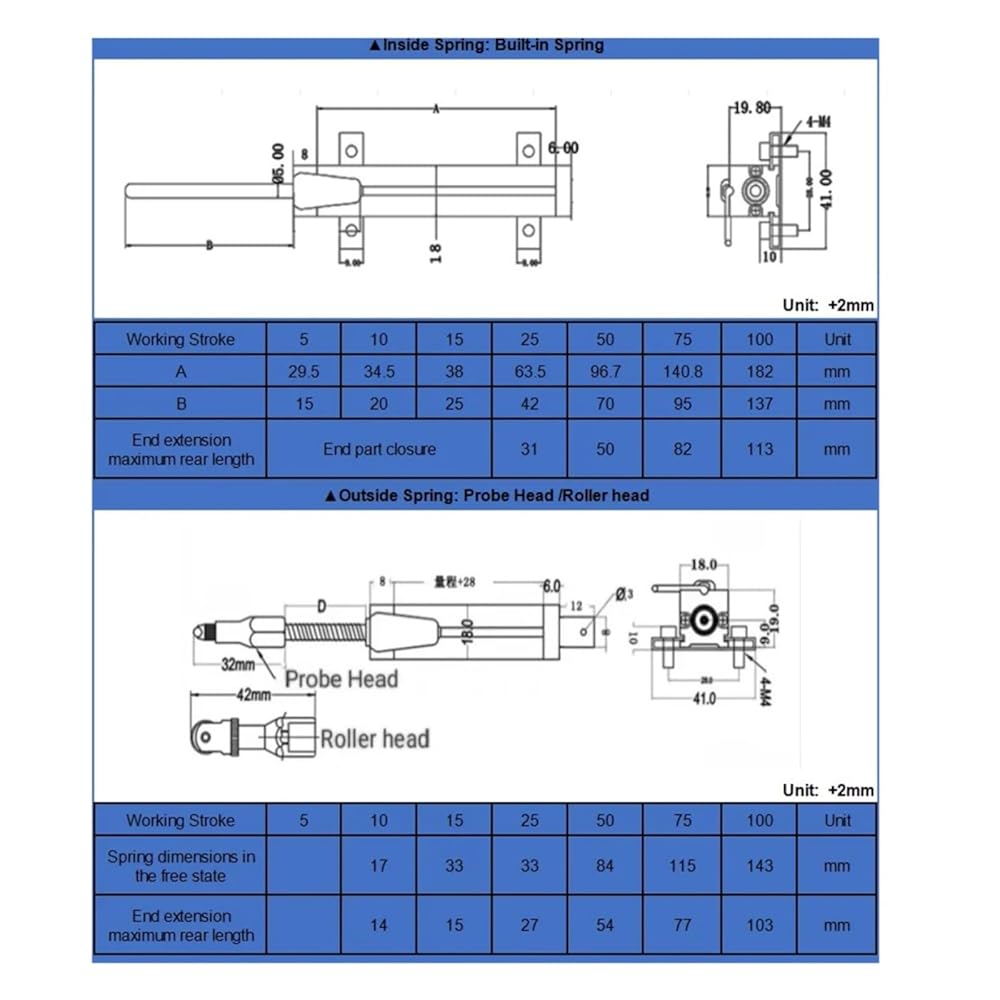

Inside Spring: Built-in Spring

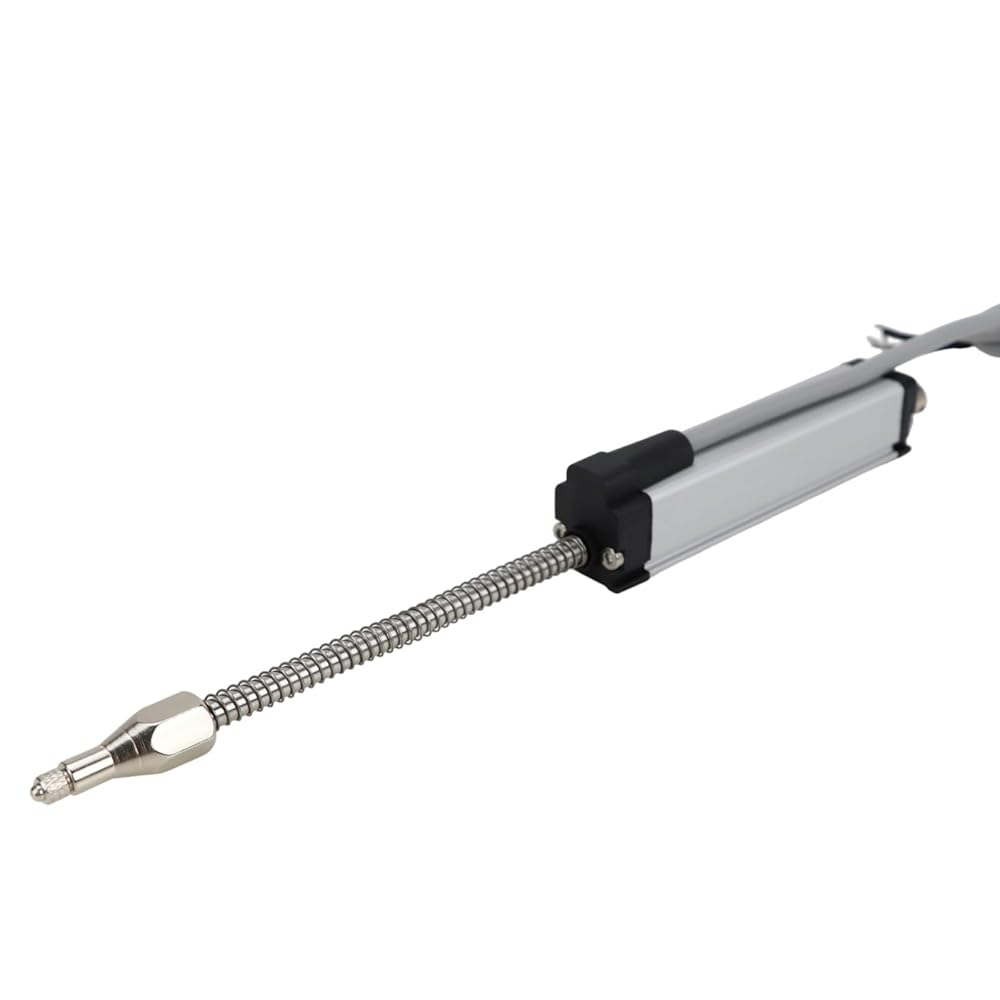

Outside Spring: Probe Head /Roller head
Shell is for anode, Can anti-corrosion. With automatic electrical grounding function.
Feature:
1.Volume Smaller
2.Usage Life ls Longer, Times Could Reach Thirty Million
3.Sensor with Back Spring
4.It is suitable for the equipment without installation and alignment of the push Rod
5.Din Standard Contact Point
6.Double Bearing Typebar
7.Don't Affect with An External impact And Vibration
8.Cable Type Connection
The sensor is applied to the automatic locking screw machine equipment to make an accurate positioning
for the equipment.
The sensor is used on the brake pedal of the simulated driver. When you step on the brake pedal, the sensor will
move accordingly to control the braking distance.
Battery Included : No
High-concerned chemical : None

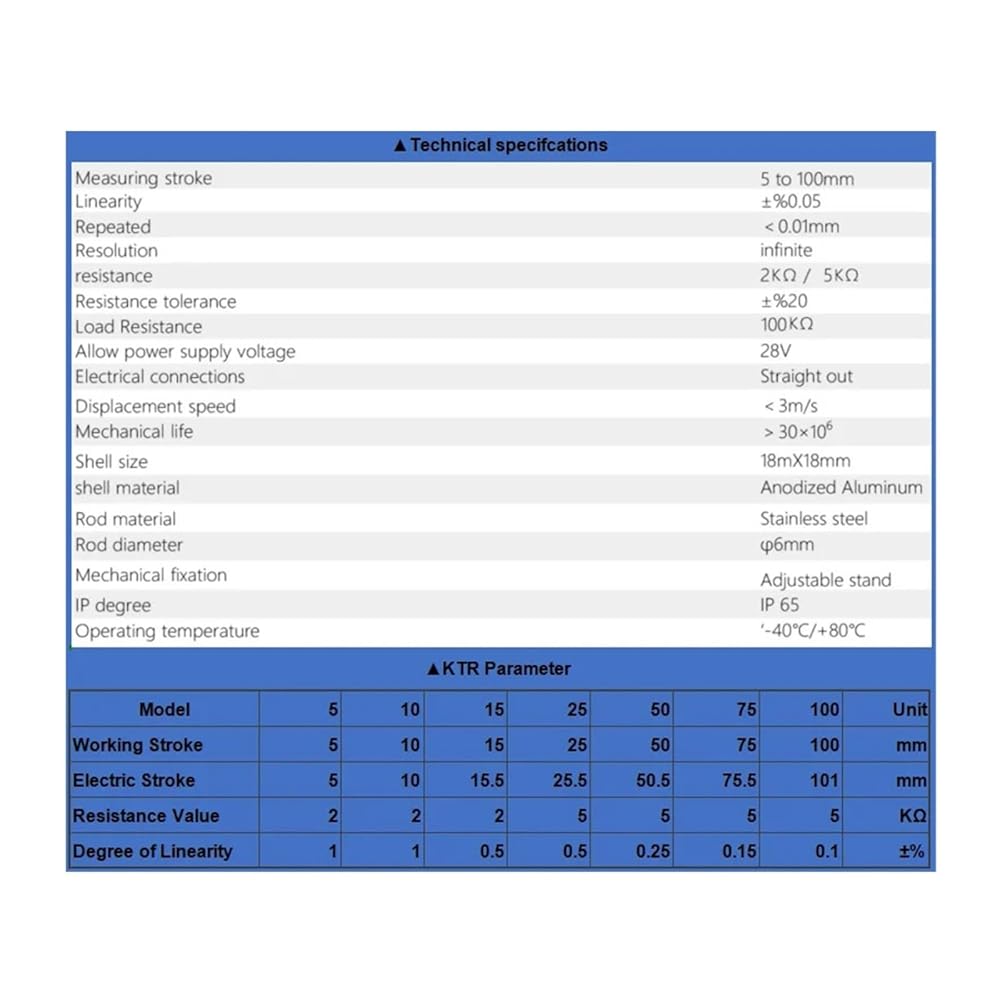

Model Number : KTR 5mm-50mm
Type : Position sensor
Stroke length : 50mm
Resistance : 5K
Linearity : 0.25%
