KA-500 220mm 5um Linear Sensors, Optical Encoder Grating Ruler Sensor, 1pc

SAR 1,519
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
ColorKA500-220mm-5um
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

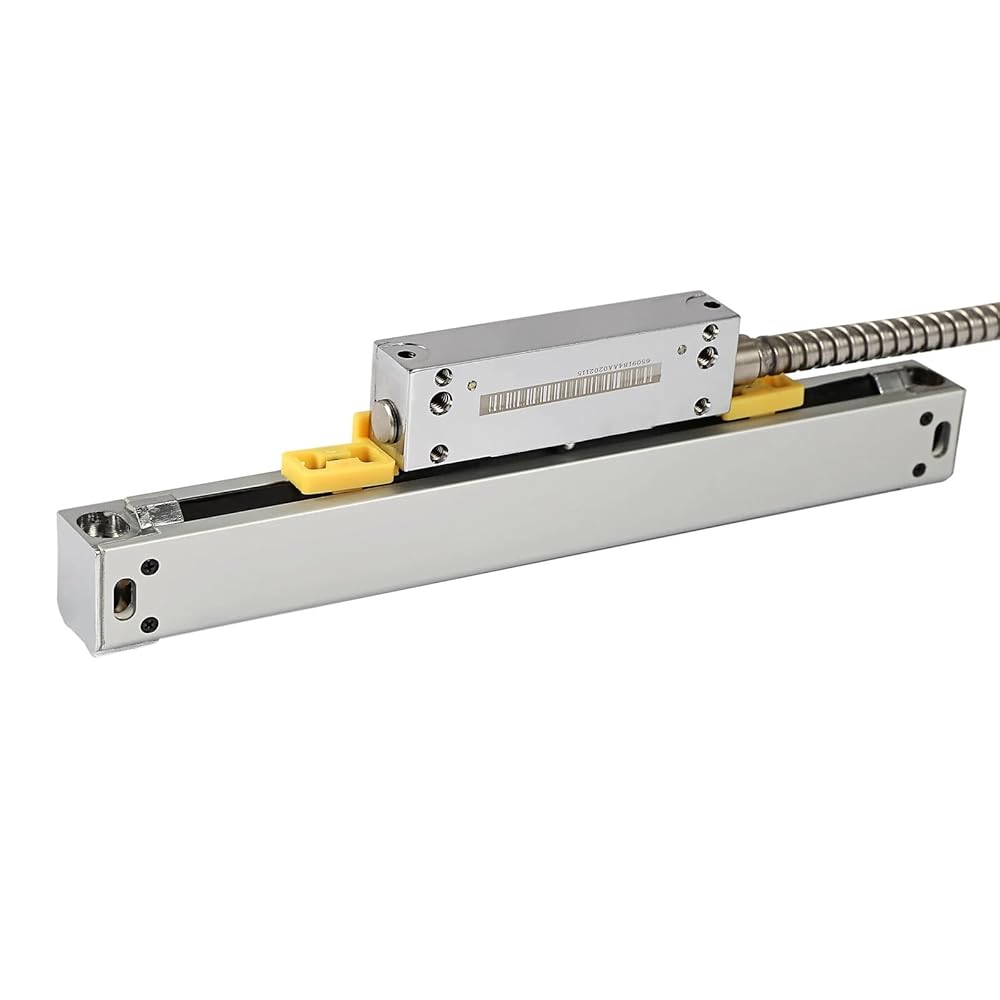

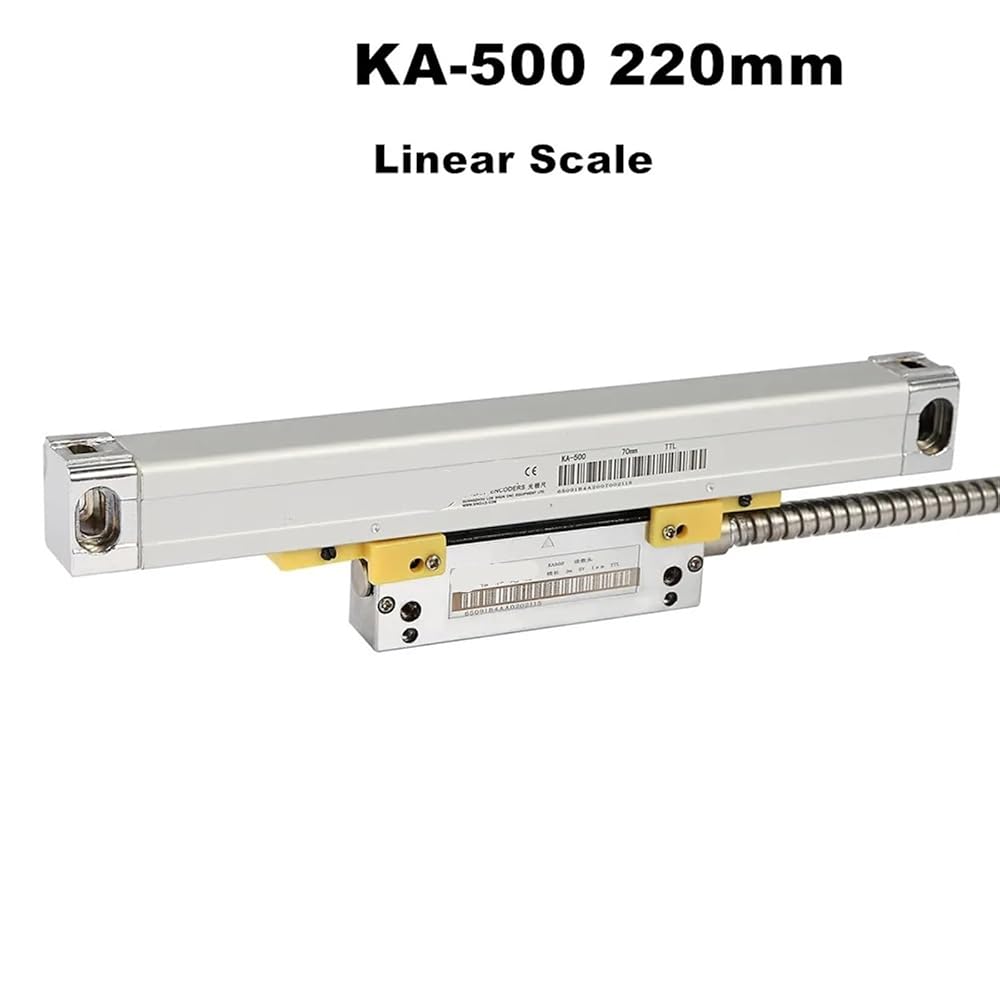

KA-500 220mm 5um Linear Sensors, 220mm Optical Encoder Grating Ruler Sensor, 1pc
Available Measrus Length: 70mm-520mm

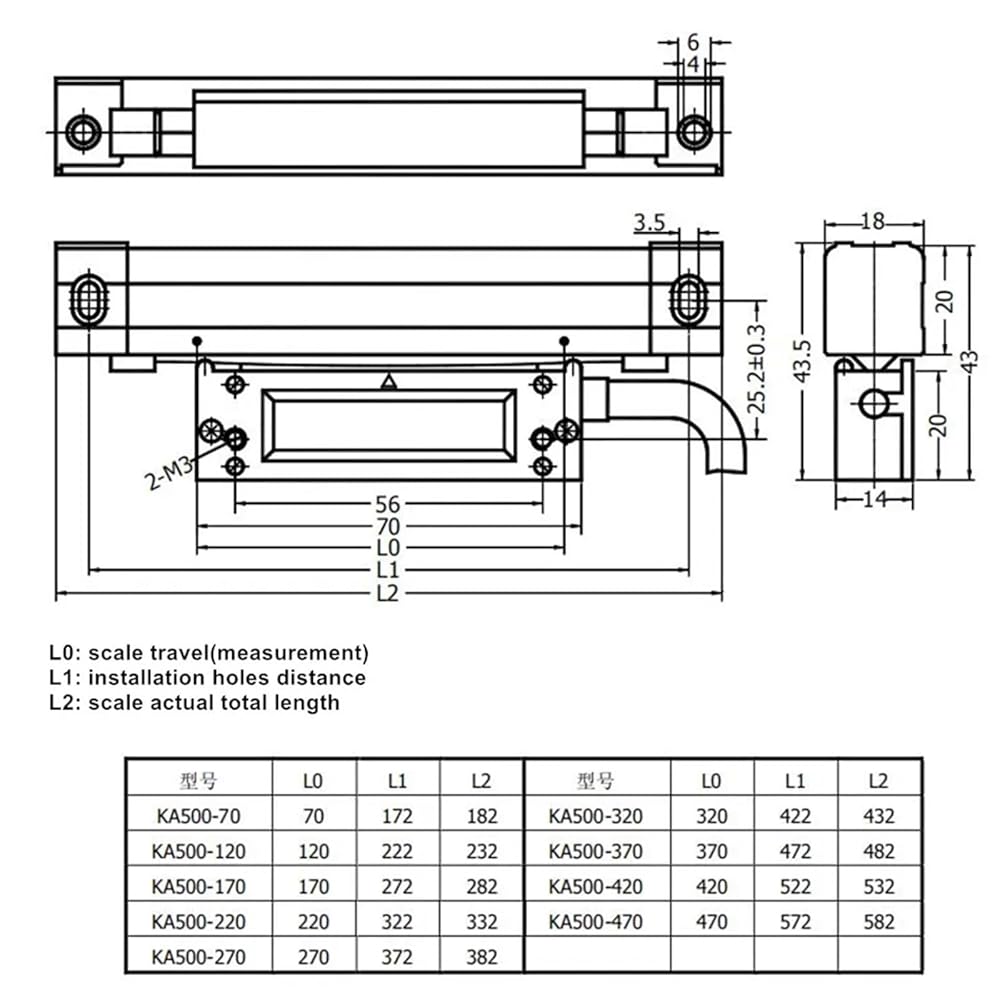

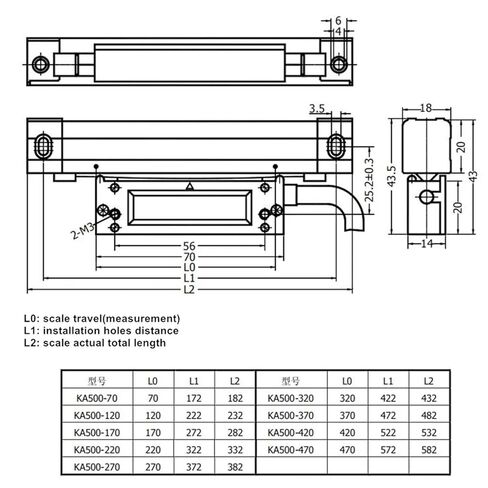

Cross Section: 18mm X 20mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Reference point: one unit per 50mm
Protection level: IP55
Resolution: 5um(0.005mm)
Output signal: TTL
Cable standard: 3 meters

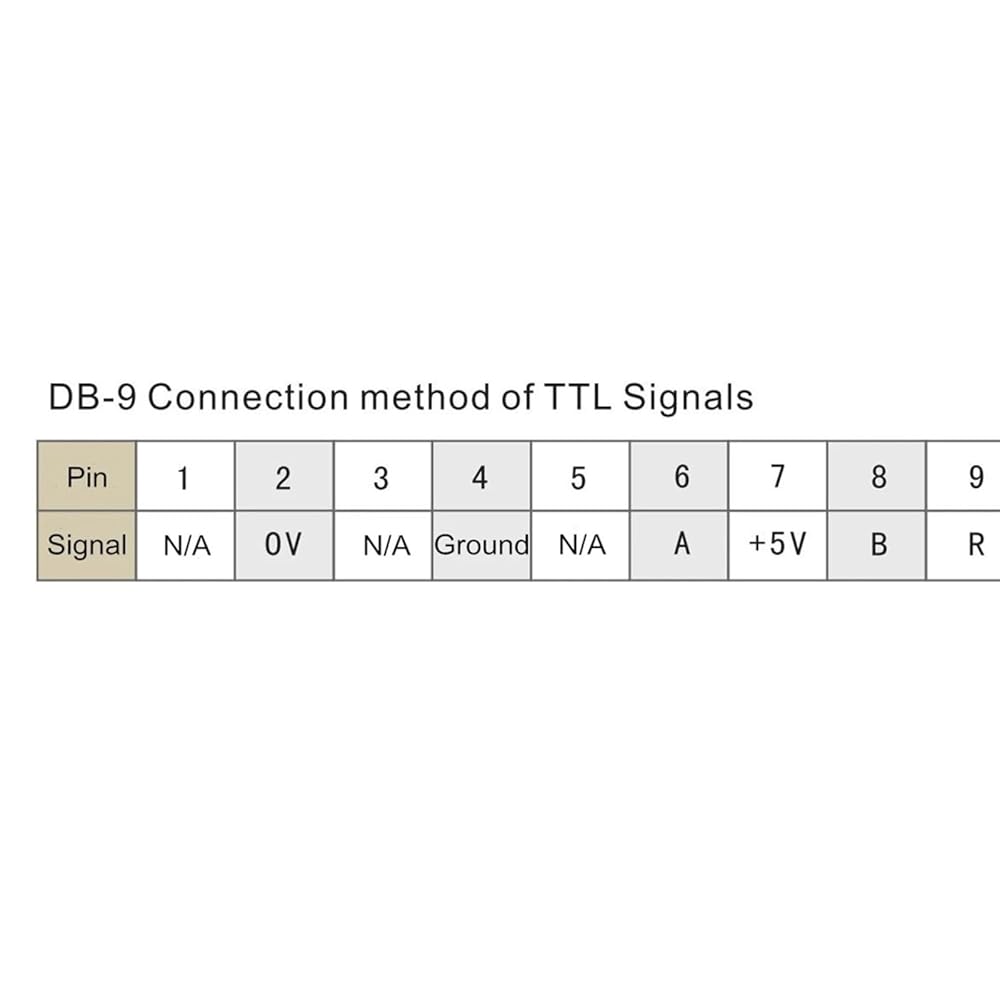

Connetor: 9 Pins
Battery Included : No
High-concerned chemical : None
Model Number : KA-500 linear scale
HYMSEANN Model : KA-500
Item name : sino KA500 linear scale
Available Measrus Length : 220mm
Cross Section Dimension : 18mm X 20mm
Resolution : 5um/ 5um(0.005mm/0.005mm)
Output signal : TTL / EIA-422-A
Accuracy : +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Reference Point : one unit per 50mm
Max of Measuring speed : 60m/min
