【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

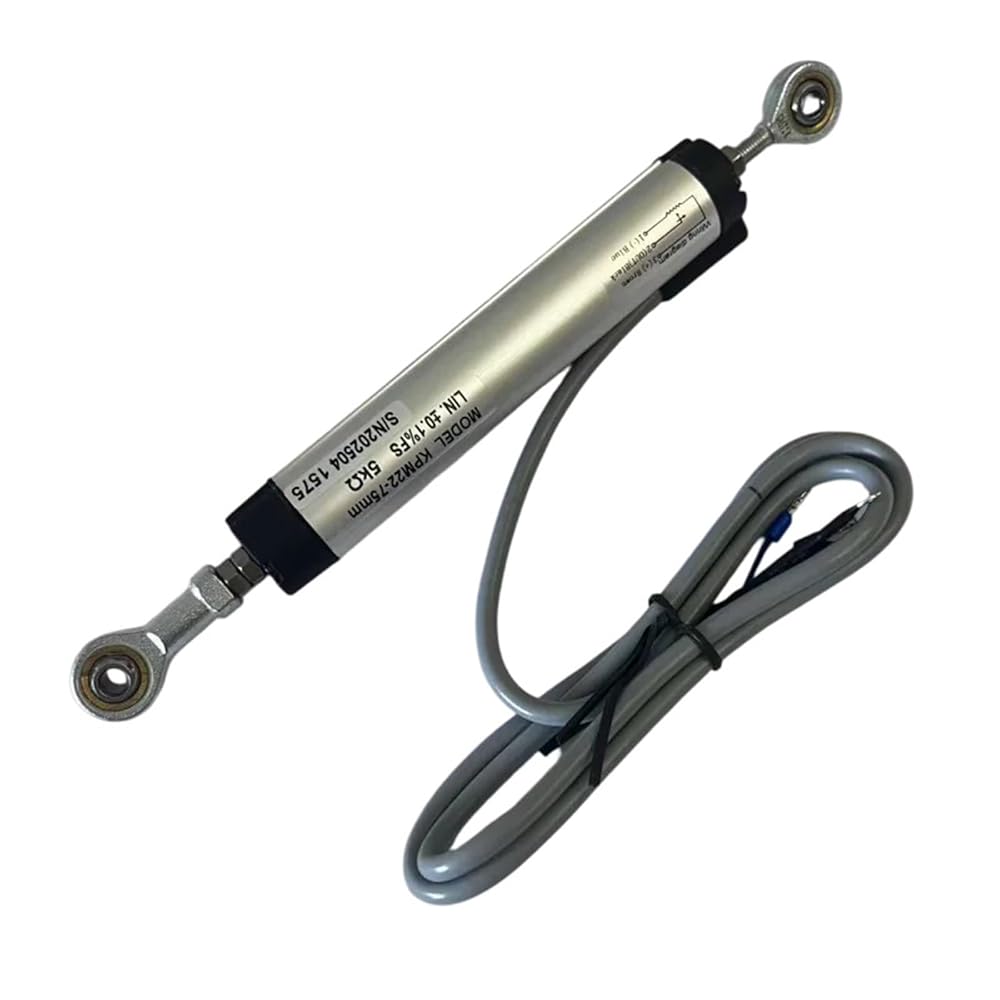

KPM22 Linear Position Sensor, 22mm Dia 0-150mm Stroke Industrial Dual Fisheye Ends, 1pc
Range: 15mm~300mm for option
KPM diameter is 22mm
Rod diameter: 5mm
Application for short range and swinging moments, such like: robots, brick machines, ceramic machines, sluice gate, footwear machines and so on
The sensor can monitor the size of the crack, fix the two joints on the wall, when the crack in the wall increases, the sensor bar will move accordingly, and the size of the crack can be measured sideways.
The sensor is used on the brake pedal of the simulated driver. When you step on the brake pedal, the sensor will move accordingly to control the braking distance.
Standard Technical Parameters
Electrical Principles
KPM Sensors are of absolute position measurement type, used for adjusting the system and measuring the displacement
and length directly, outputting DC voltage signals.
High-concerned chemical : None
Electronic : No
Material : Aluminium
Size : KPM22
Type : Linear Position Travel sensor
Model Number : KPM22
DIY Supplies : Electrical
Output Voltage : 24V
Diameter : 22mm
Power supply voltage : 0-24V
Resolution : Infinite uninterrupted parsing
Repeatability accuracy : 0.01mm
Mechanical fixation : Fisheye ball joints at both ends
Shell material : Anodized Aluminum
Rod material : Stainless steel
Electrical connections : 1M Cable
Protection Level : IP65
Operating temperature : -60/ +150
Maximum working speed : 5m/S
