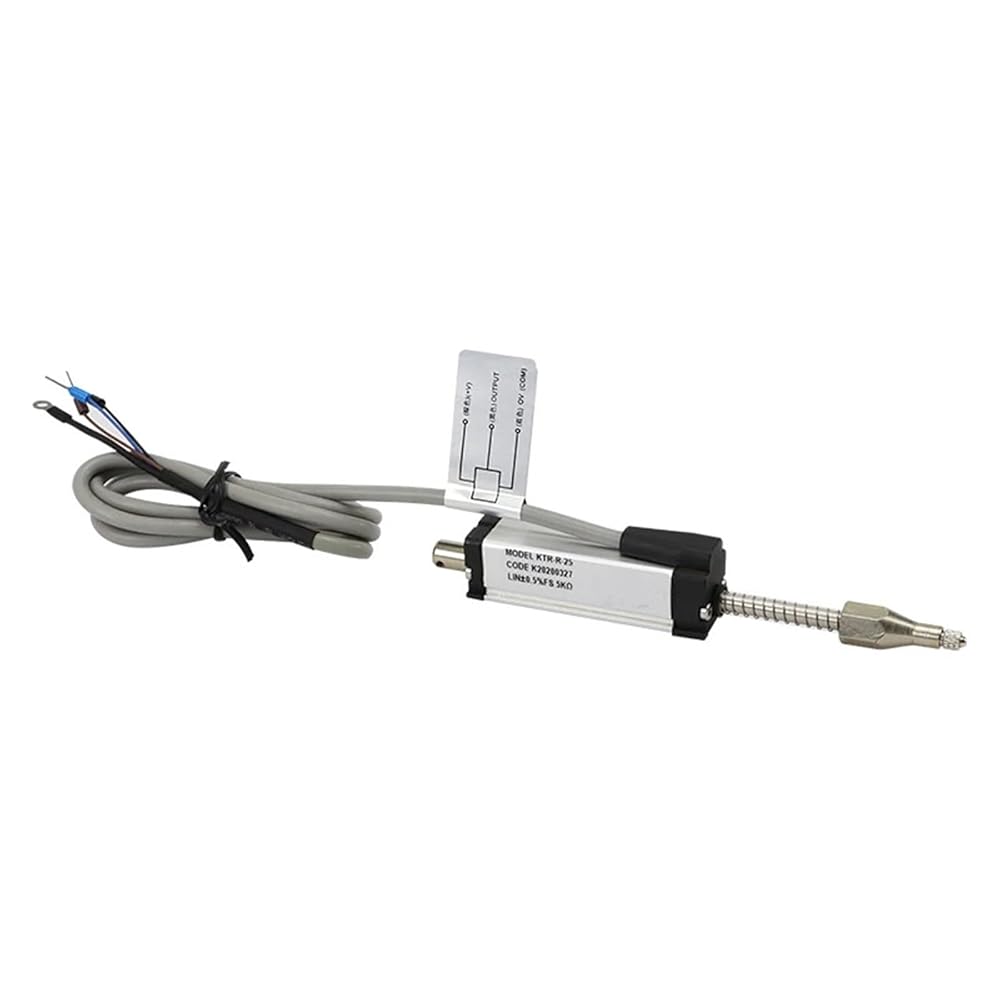

KTR 15-25mm Linear Position Sensor, Spring Self-return Displacement Transducer Accuracy, 1pc
Measure Stroke: 5-100mm(150mm available also)
Output Module: 2K/5K (Default option)
Other output signals will have to add a transmitter to convert the corresponding signal
4-20mA: A2 A3
V1:0-5v V2:0-10v
RS485
Inside Spring: Built-in Spring
Outside Spring: Probe Head /Roller head
Shell is for anode, Can anti-corrosion. With automatic electrical grounding function.
Feature:
1.Volume Smaller
2.Usage Life ls Longer, Times Could Reach Thirty Million
3.Sensor with Back Spring
4.It is suitable for the equipment without installation and alignment of the push Rod
5.Din Standard Contact Point
6.Double Bearing Typebar
7.Don't Affect with An External impact And Vibration
8.Cable Type Connection
The sensor is applied to the automatic locking screw machine equipment to make an accurate positioning for the equipment.
The sensor is used on the brake pedal of the simulated driver. When you step on the brake pedal,
the sensor will move accordingly to control the braking distance.
KTR is also used to measure fruit growth, trunk growth, and so on.
High-concerned chemical : None
Electronic : No
Size : 15mm-25mm
Type : Linear Position Sensor
Model Number : KTR
DIY Supplies : Electrical
Output Voltage : R 4-20mA V
