مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

Slim Linear Sensors 1um 5V TTL, 100 200 300 Optical Encoder Grating Ruler, for Grinder Lathe Industrial Grade, 1pc
Description

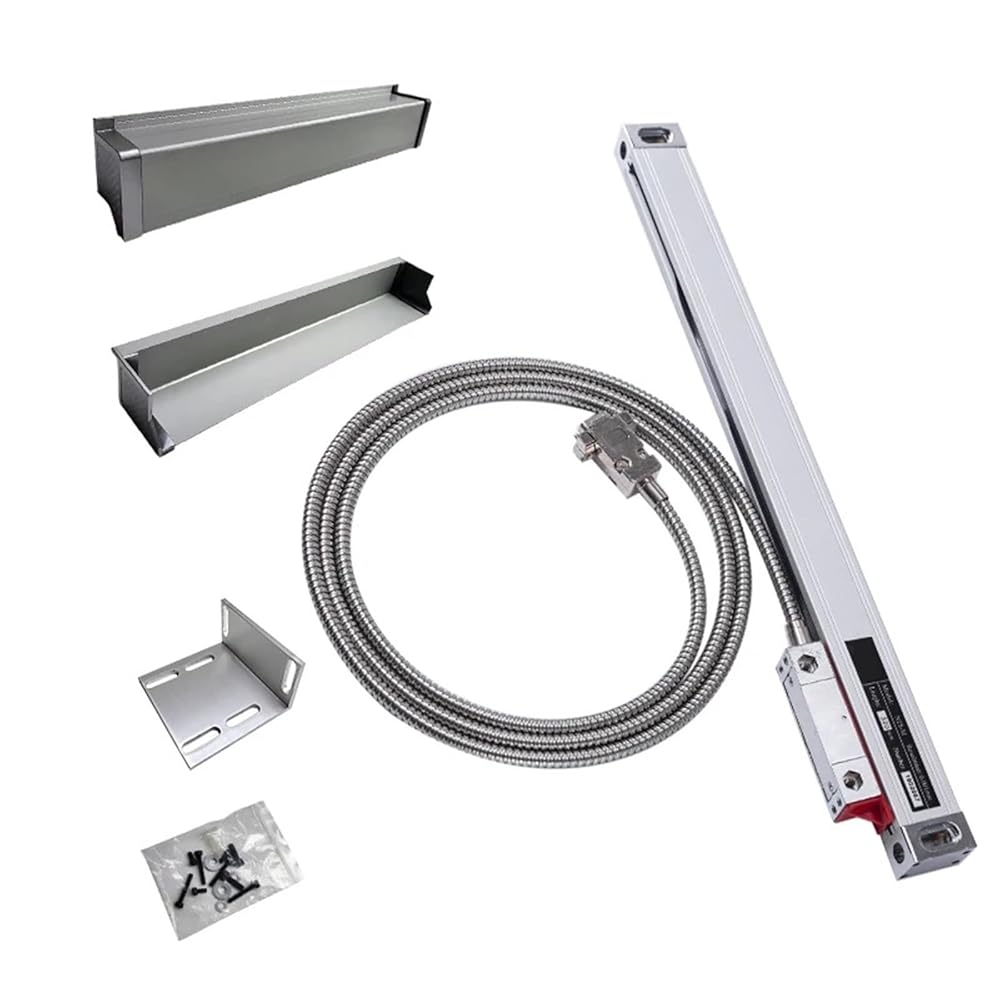

High Precision Slim Linear Glass Scale 1um 5V TTL 100 200 300 Optical Encoder Grating Ruler For Grinder Lathe Industrial grade
Parameter
Model: NT-S
Available measurement: 50mm to 400mm
Total length: measurement+142mm
Size cross section size: 20mmx28mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 1um/0.001mm
Cable length: 3meters
Battery Included : No
High-concerned chemical : None
Procut name : 0.001mm linear scale
Travel length : 50,100,150,200,250,300,350,400mm
Cross section size : 20mmx27mm
Scale overall length : Travel+142mm
Resolution : 0.001mm/1um
Installation holes distance : Travel+124mm
Output signal : TTL (R is a pulse signal, no reference point)
Interface Typ : 20um,DB9
Input voltage : 5VDC ±5% , 100mA
Cable length : 3 meters
Max of Measuring speed : 60m/min
Protection grade : IP54
Operating temperature : 0-50°c
Application : Mill, Lathe, Grinder, CNC Etc.
