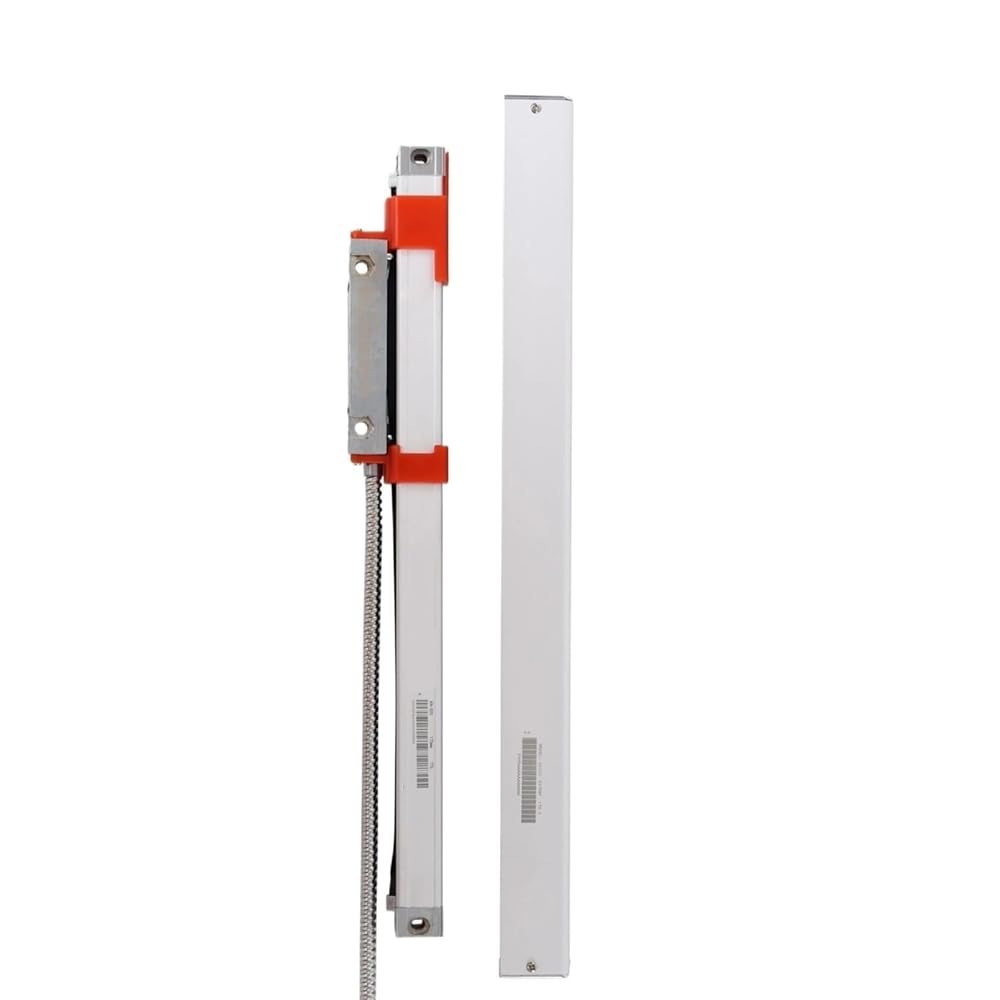

KA-200 210-290mm 16mm*16mm Slim Linear Sensors, Line Grating Ruler Sensor, for Mini Lathe Milling, 1pc(KA-200 260mm Travel) in Saudi Arabia KA-200 210-290mm 16mm*16mm Slim Linear Sensors, Line Grating Ruler Sensor, for Mini Lathe Milling, 1pc(KA-200 260mm Travel) in Saudi Arabia

KA-200 210-290mm 16mm*16mm Slim Linear Sensors, Line Grating Ruler Sensor, for Mini Lathe Milling, 1pc(KA-200 210mm Travel)

SAR 2,118
Brand
LOXNVUY
Category
Sensors
Weight
0.8 kg
ColorKA-200 210mm travel
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

KA-200 210-290mm 16mm*16mm Slim Linear Sensors, Line Grating Ruler Sensor, for Mini Lathe Milling, 1pc
KA-200 Parameter
Available Measrus Length: 30mm-360mm
Cross Section: 16mm X 16mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Reference Point: one unit per 50mm
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm)
Output signal: TTL
Cable standard: 2 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 egree centigrade
Connetor: 9 Pins
1. A, 2. 0V, 3. B, 4. Empty, 5. Z, 6. A, 7. +5V, 8. B, 9 .Z
Battery Included : No
High-concerned chemical : None
Model Number : KA-200
Procut name : KA200 Slim scale
Travel length : 30mm-360mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cross section size : 16mmx16mm
Cable length : 2 meters
Scale overall length : Travel+95m
Installation holes distance : Travel+103mm
