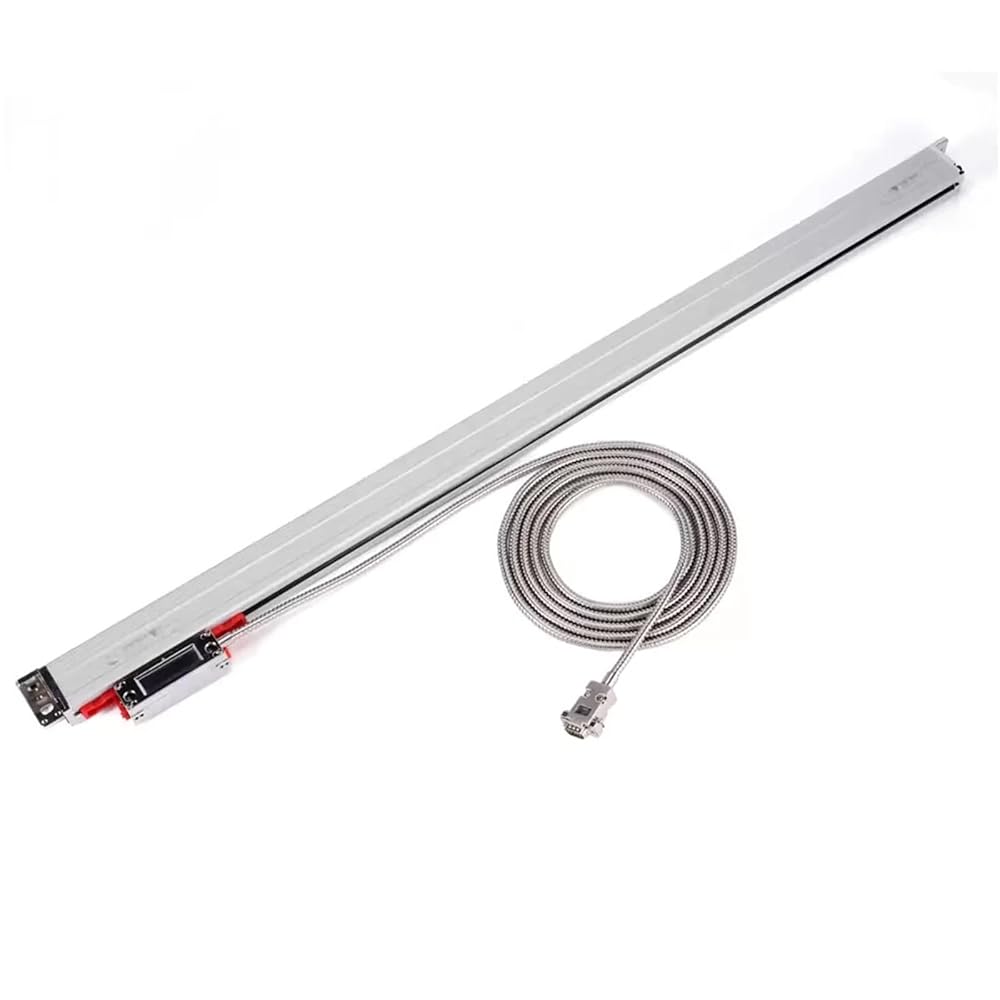

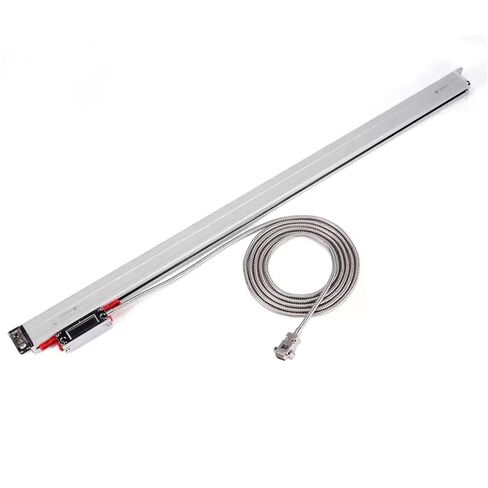

KA-600 1100 1200 1300 1400 1500mm 5um TTL DRO Linear Sensors, 0.005mm Optical Encoder for Milling Lathe, 1pc(KA600-1300mm-5um) in Saudi Arabia

KA-600 1100 1200 1300 1400 1500mm 5um TTL DRO Linear Sensors, 0.005mm Optical Encoder for Milling Lathe, 1pc(KA600-1000mm-5um)

SAR 1,675
Brand
LOXNVUY
Category
Sensors
Weight
301 g
ColorKA600-1000mm-5um
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

KA-600 1100 1200 1300 1400 1500mm 5um TTL DRO Linear Sensors, 0.005mm 1500mm Optical Encoder for Milling Lathe, 1pc
Product name: KA-600 Linear scale
Available Measrus Length: 1000mm, 1100mm, 1200mm, 1300mm, 1400mm, 1500mm
Cross Section: 30mm X 43mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm)
Output signal: TTL (RS422 option, cost extra $12 per piece)
Cable standard: 3 meters(longer option)
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Battery Included : No
High-concerned chemical : None
Model Number : KA600
Product name : KA600 Linear Encoder
Input voltage : 5VDC
Output signal : TTL (RS422 option cost extra)
Resolution : 5um/ 5um(0.005mm/0.005mm)
Accuracy : +/- 3,5,10 (20 degree,680 F 1000mm
Max of Measuring speed : 60m/min
Reference Mark : one unit per 50mm
Cross Section Dimension : 30mm X 43mm
Signal cable length : 3 meter
Rubber : Double rubber protection
Application : Milling lathe boring grinder machine etc
