مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

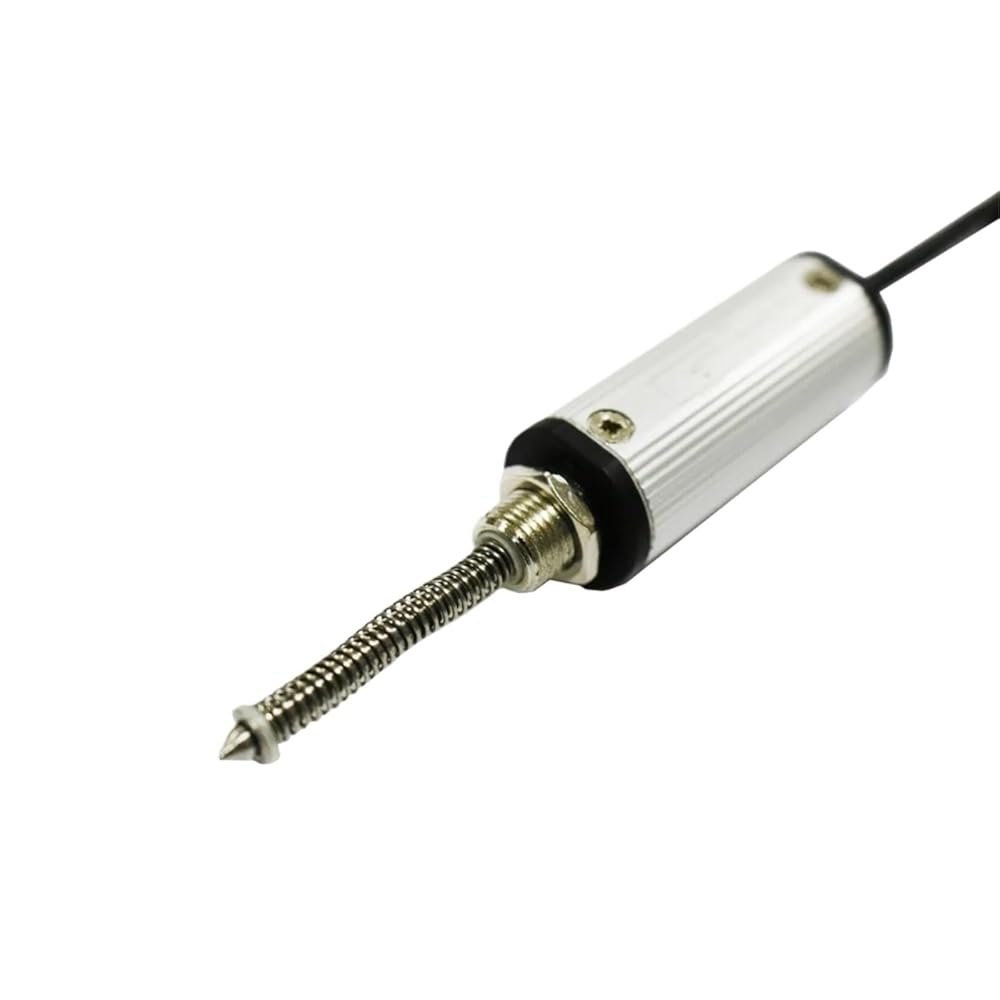

KSP 5-100mm Self Return Spring Linear Potentiometer, Position Sensor Displacement Transducer, 1pc
Specification
Technical Data
KSP Linear Position Sensor
5mm-25mm
30mm-100mm
Linear Precision (±%FS)
±0.1%~0.3%FS
Output signal
standard: 0~100% × input voltage (change with the movement of the rod)
optional: 0-5V/0-10V/4-20mA/RS485 output need an extra module
Mechanical stroke
range+3mm
Resolution
Infinite
Repeatability Precision
0.01mm
Recommended Temperature
0-80 ;-20~+100
Sensitivity
1
Temperature Drift
infinitesimal
Material for transducer case
Anodised aluminium
Material for pull shaft
Stainless steel
Protection level
IP65
Load Characteristic
10mA
Useful electrical stroke(mm)
5 10 15 20 25 30 50 55 60 75 100
Dimensions
Applications
KSP is a micro spring self-return type sensor ,square housing,which is based on the potentiometer principle. It is the best choice for small rooms.Widely used for microcontrol system.Such as servo control valve position detection and control,Medical Equipment,Leather Machinery,Clamping control,IT equipment,Paper machinery,textile machinery,Ship steering system and so on.
Theory : Resistance Sensor
Model Number : KSP
Material : Metal
Type : vibration sensor
Output : Analog Sensor
Use : Position Sensor
Effective Stroke Length : 5-100mm
Resistance : 2Kohm/5Kohm
Power Supply : 12-24VDC
Temperature : -40~+120
Precision : ±0.1%
Current : 1mA
Max Motion Speed : 5m/s
Resolution : Infinite
Movement Type : Self Return Spring
