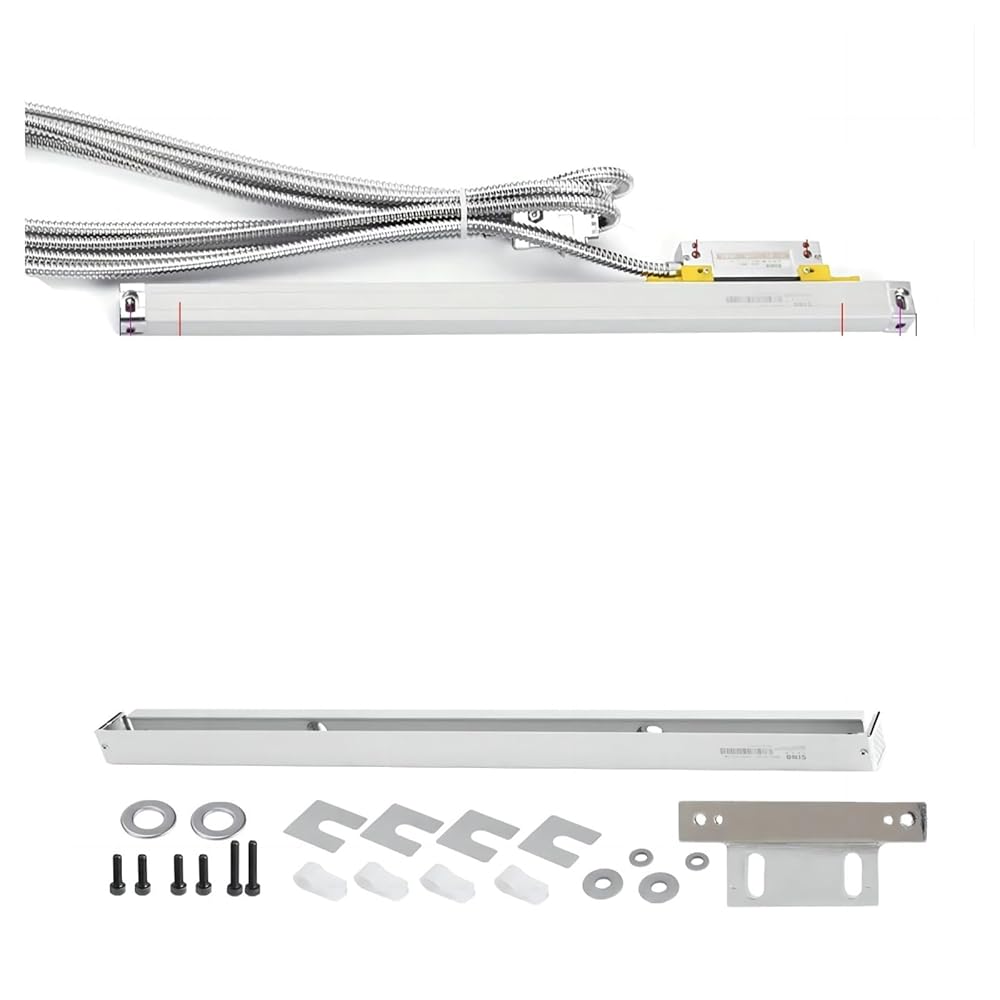

5um Slim Linear Scale Grating Thin Ruler Sensor 0.005mm Encoder for Lathe Digital Readout DRO Lathe Tools KA500(KA-500-520mm) in Saudi Arabia

5um Slim Linear Scale Grating Thin Ruler Sensor 0.005mm Encoder for Lathe Digital Readout DRO Lathe Tools KA500(KA-500-120mm)

SAR 1,341
Brand
GHsdfDG
Category
Sensors
Weight
499 g
ColorKA-500-120mm
– 1 +

Special Features

  • Compact and lightweight body, small size and light weight, saving equipment installation space
  • Multi interface full compatibility, compatible with mainstream industrial control systems such as PLC/CNC
  • No complex calibration required, ready to install and use, even beginners can quickly install and debug
  • Anti vibration and anti impact, the machine tool operates without damage
  • Long service life, contactless design, with a lifespan of over 10 ^ 9 cycles for measurement
  • Low power and energy-saving design, compatible with battery/mains dual power supply, suitable for portable devices

Description

==========
Hign-concerned Chemical : No
Model Number : KA-500
SINO Model : KA-500
Certification : CE
Origin : China
Model Number : KA-500
Operating temperature : 0-50°c
Output mode : TTL
Protection grade : IP54
Interface Typ : DB9
Resolution : 5um/0.005mm
Application : Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 20mm* 18mm
Matchable DRO : the most of China DRO
Scale overall length : Travel+112mm
Installation holes distance : Travel+102mm
Cable length : 3 meters
Procut name : linear scale ruler
KA500 available travel length : 70mm-520mm
