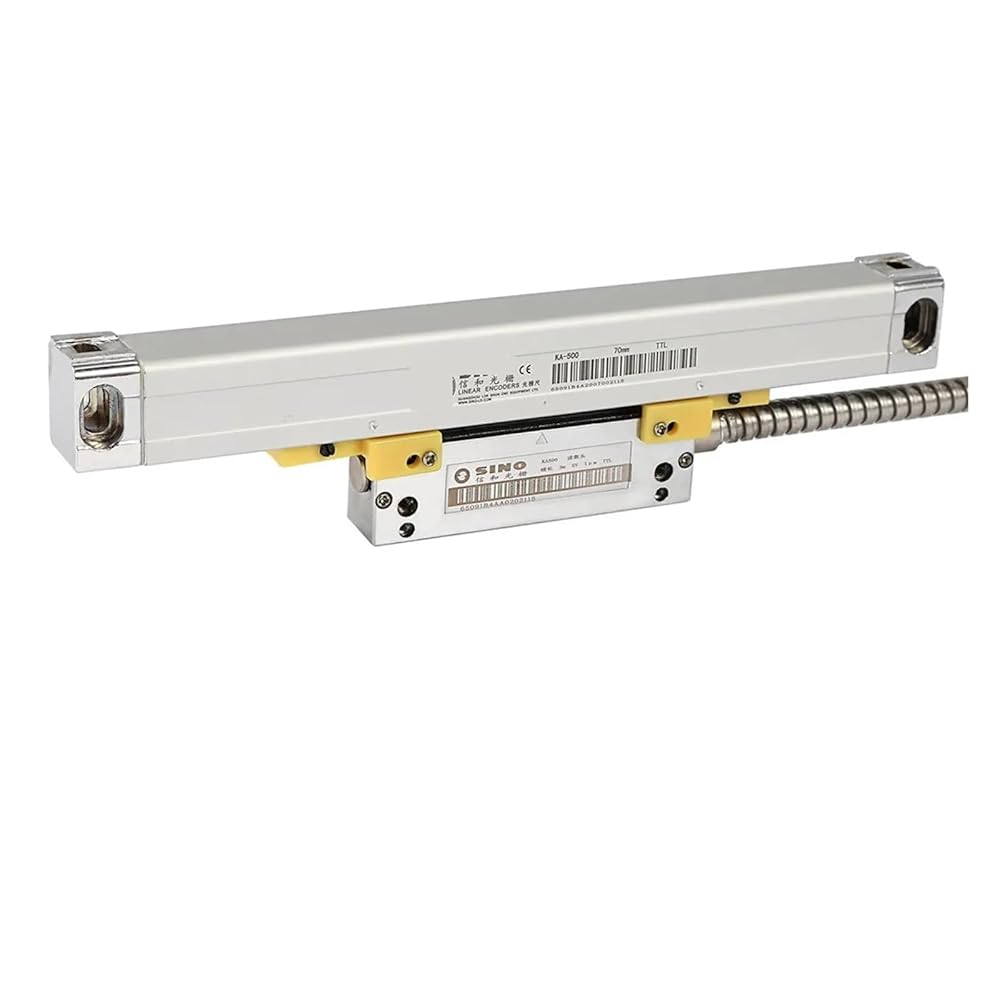

Name: Hot Lathe Mill DRO Senso Sino KA500 70 120 170 220 270 320 370 420 470 520mm Slim Scale 0.005mm KA-500 Small Thin Linear Encoder(KA500-5um-70mm)
Brand: GHsdfDG
Availability: InStock

Special Features

Compact and lightweight body, small size and light weight, saving equipment installation space
Multi interface full compatibility, compatible with mainstream industrial control systems such as PLC/CNC
No complex calibration required, ready to install and use, even beginners can quickly install and debug
Anti vibration and anti impact, the machine tool operates without damage
Long service life, contactless design, with a lifespan of over 10 ^ 9 cycles for measurement
Low power and energy-saving design, compatible with battery/mains dual power supply, suitable for portable devices

Description

==========
Battery Included : No
Hign-concerned Chemical : No
Model Number : KA-500
HYMSEANN Model : KA-500
Certification : CE
Origin : China
Procut name : KA500 linear scale
Travel length : 70mm-520mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cross section size : 18mmx20mm
Cable length : 3 meters
Scale overall length : Travel+110mm
Installation holes distance : Travel+100mm
Matchable DRO : All China DRO
