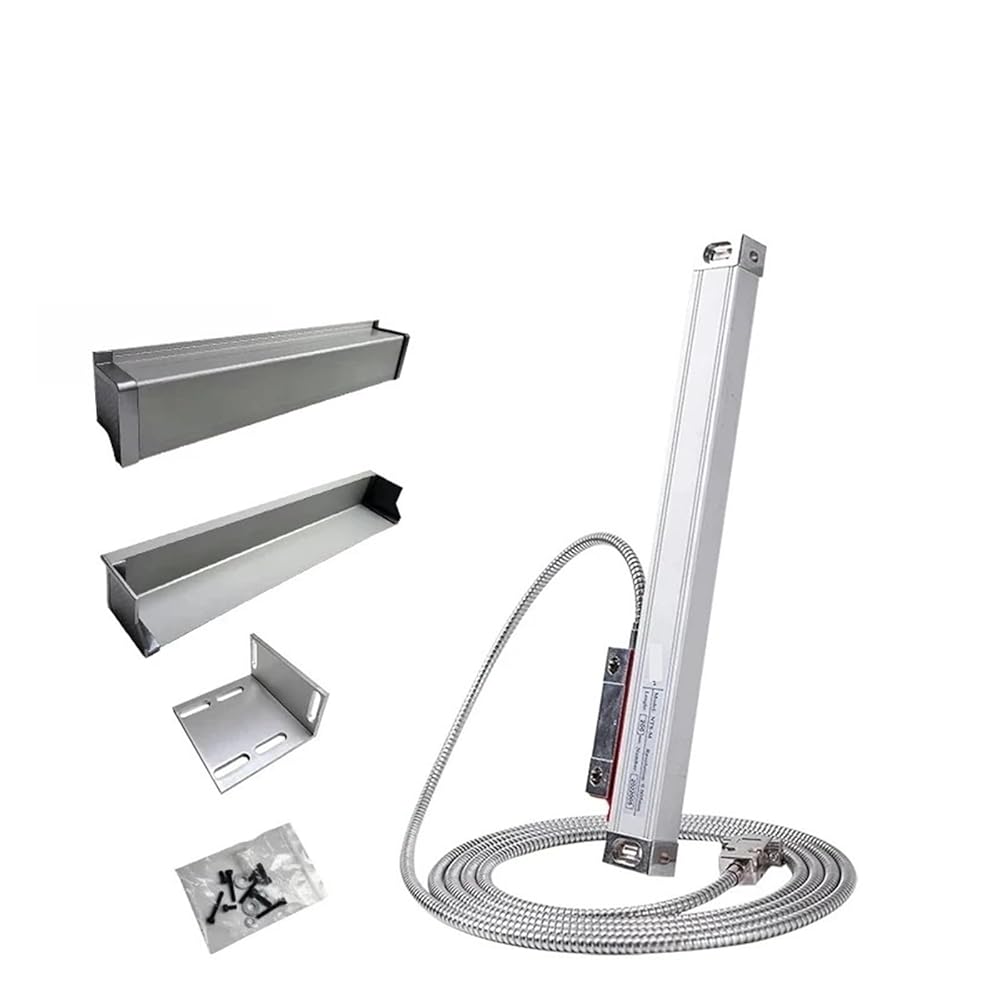

NT-M 0.005mm Electronic Ruler High Accuracy TTL DRO 450-800mm Linear Scale 1micron Optical Encoder Optical Grating Ruler(450mm Travel)
Special Features
- Compact and lightweight body, small size and light weight, saving equipment installation space
- Multi interface full compatibility, compatible with mainstream industrial control systems such as PLC/CNC
- No complex calibration required, ready to install and use, even beginners can quickly install and debug
- Anti vibration and anti impact, the machine tool operates without damage
- Long service life, contactless design, with a lifespan of over 10 ^ 9 cycles for measurement
- Low power and energy-saving design, compatible with battery/mains dual power supply, suitable for portable devices
Description
==========
Battery Included : No
Hign-concerned Chemical : No
Model Number : NT-M
Certification : CE
Origin : China
Procut name : 0.005mm linear scale
Scale travel : 450 500 550 600 650 700 750 800mm
Cross section size : 21.5mmx33.5mm
Scale overall length : Travel+142mm
Output signal : TTL / (EIA-422 option)
Installation holes distance : Travel+124mm
Resolution : 0.005mm/5um
Input voltage : 5VDC ±5% , 100mA
Interface Typ : 20um,DB9
Cable length : 3 meters
Max of Measuring speed : 60m/min
Protection grade : IP54
Operating temperature : 0-50°c
Matchable DRO : All China DRO
If include accessories : Yes(with scale cover, screws and accessories)
Application : Mill, Lathe, Grinder, CNC Etc.
