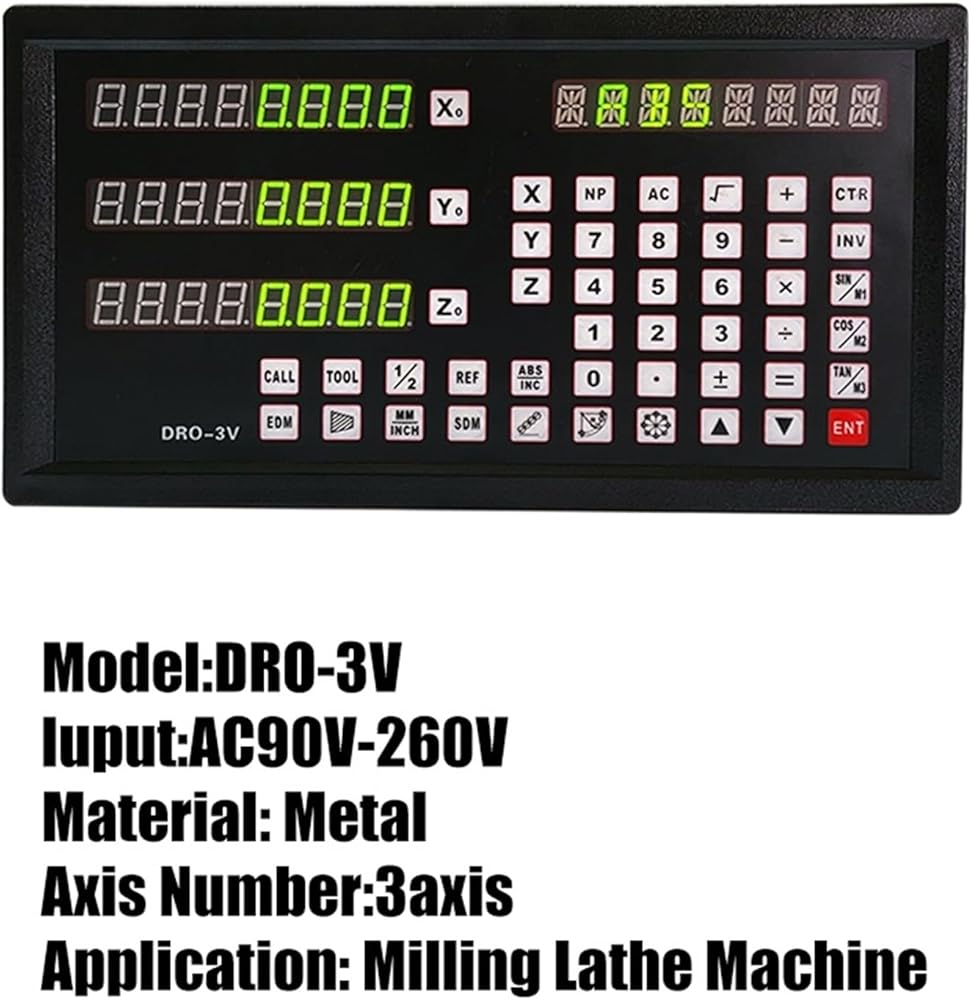

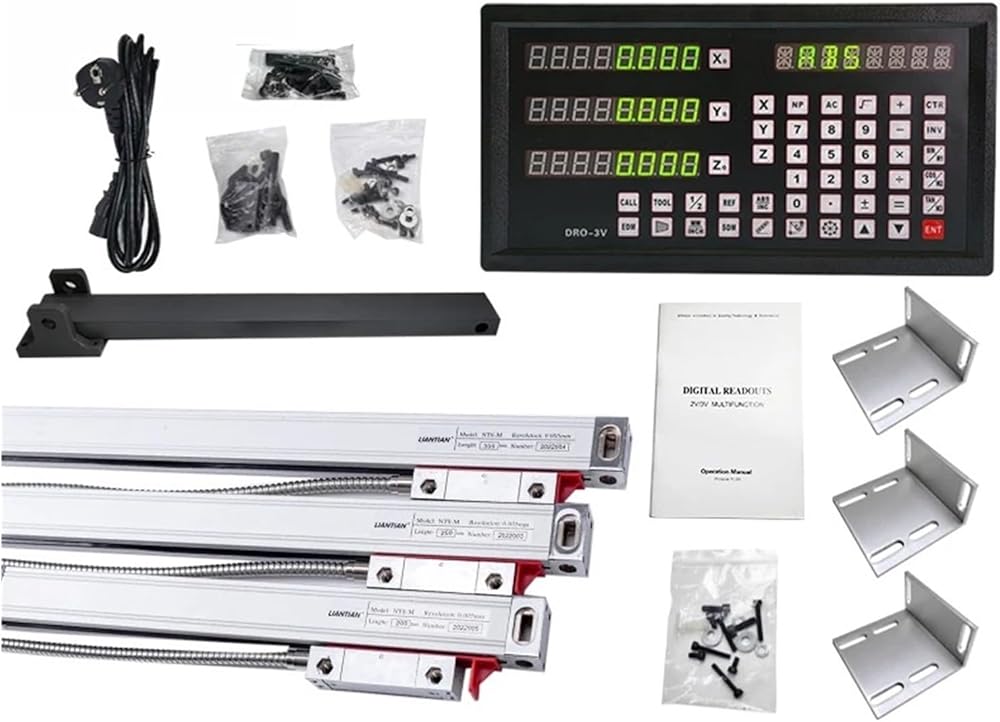

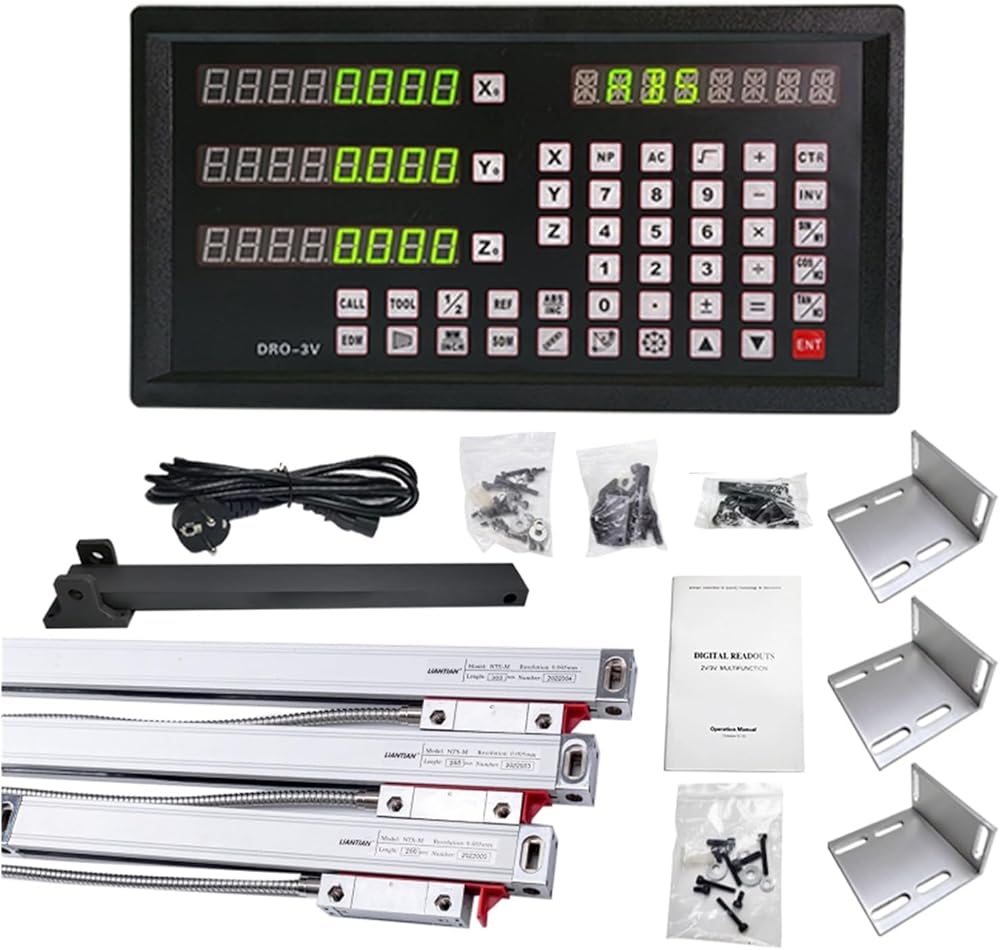

Package Contents
-1pc -3V display, display cover, mounting bracket, screw bag, user manual
-3pcs 50mm-1000mm travel linear scale, scale cover, mounting bracket, screw bag
Function

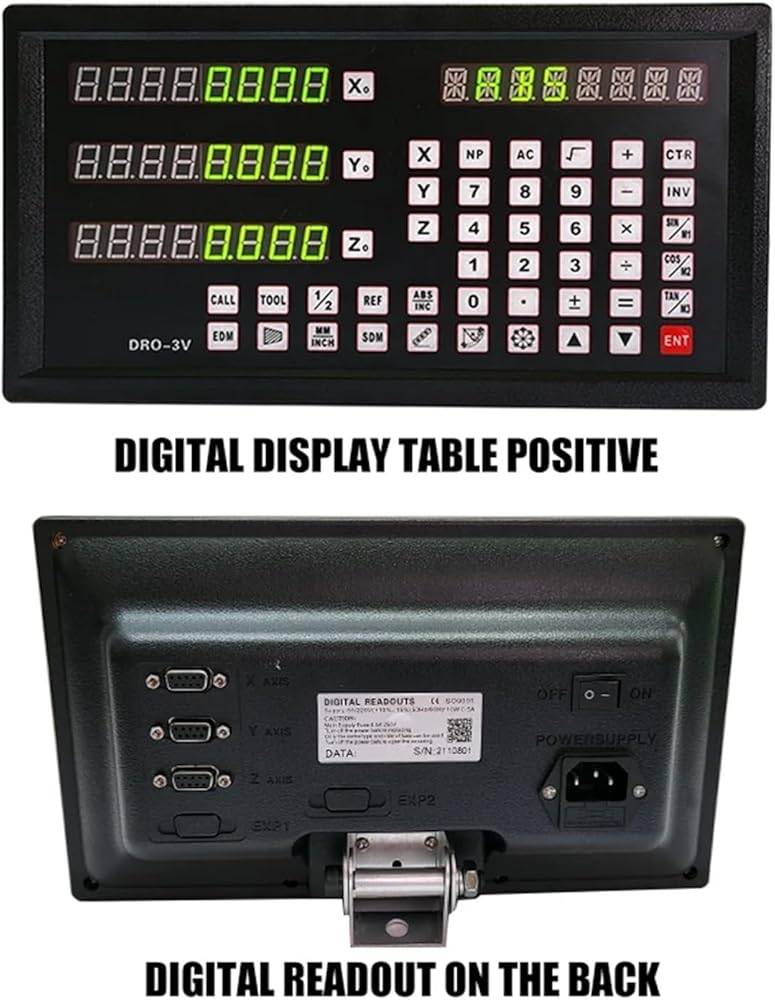

Digital Readout Parameters
1. Voltage Range: AC 90V~260V/50HZ~60HZ
2. Acceptable Signal: TTL Square Wave/EIA-442
3. interface: DB9
4. Acceptable Resolution: 10um, 5um, 2um, 1um, 0.5um
Advantages 1. Fully functional, can be widely used in milling machines, lathes, drilling machines, boring machines, wire cutting and EDM machines
2 Wide voltage can be widely used all over the world
3. If necessary, we provide different types of interface kits for different countries such as the United States, Australia, the European Union and the United Kingdom.
4. It can match grating rulers of Sino, Rational, Easson and domestic brands, and is easy to operate.

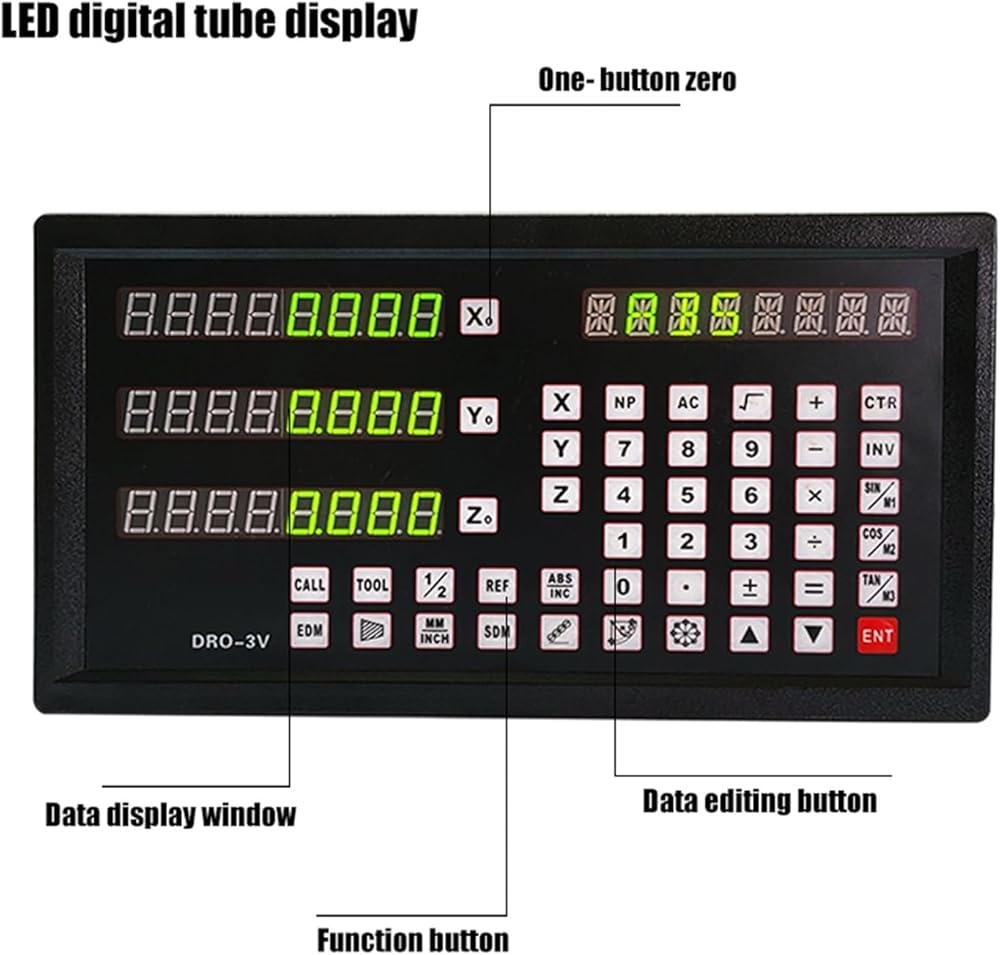

Function 1: Clear
2: Reset
3: mm/inch mode
4: ABS/INC coordinate conversion
5: 200 sets of secondary data
6: Power-off memory;
7: 1/2 center
8: Linear error compensation
9: Sleep mode
10: Clear 200 sets of Sdm data;
11: ABS/INC mode
12: Calculator
13: Circular drilling
14: Oblique line drilling
15: Inclined surface processing
16: Arc processing
17: Lathe function
18: Rectangular cavity progressive processing
19: Digital filtering
20: Vibration filtering
21: Lathe function
22: Diameter/radius function
23.Y+Z function
24.RS232
25.EDM

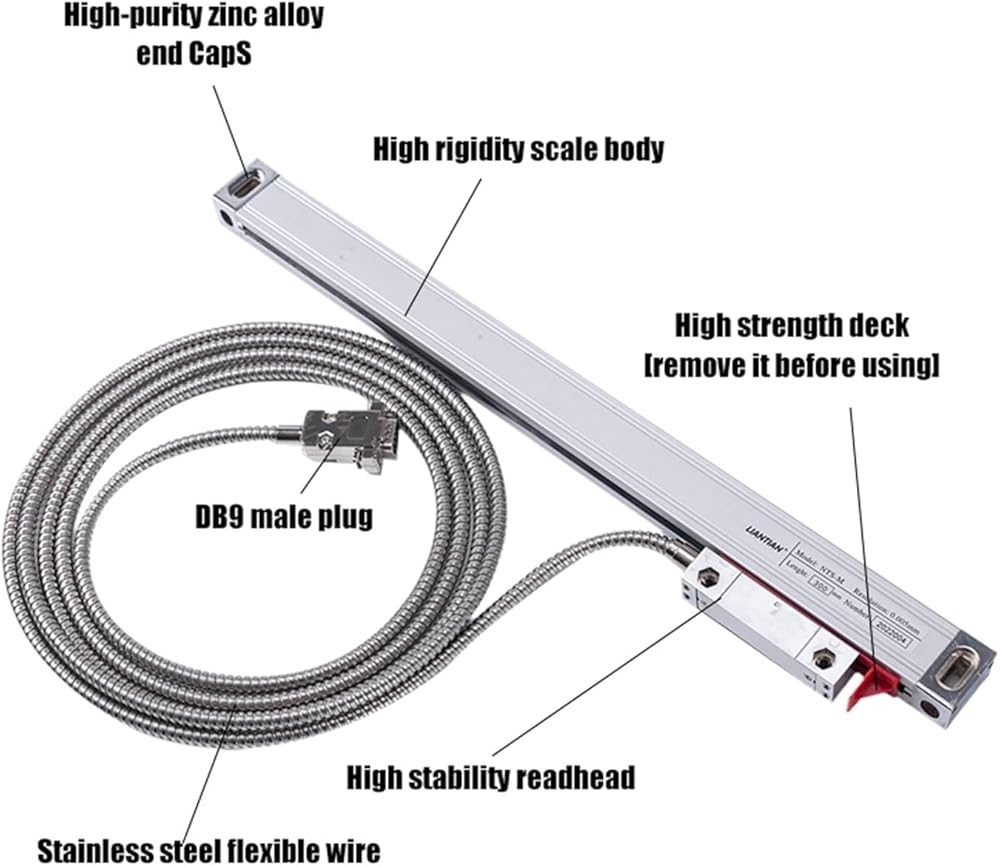

Ruler function
Parameters
Model: NTS-S, NTS-M
Available measurement: 50mm to 1000mm
Total length: measured value + 142mm
Dimensions Cross-sectional dimensions: 21.5mmx33.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm
Cable length: 3 meters
