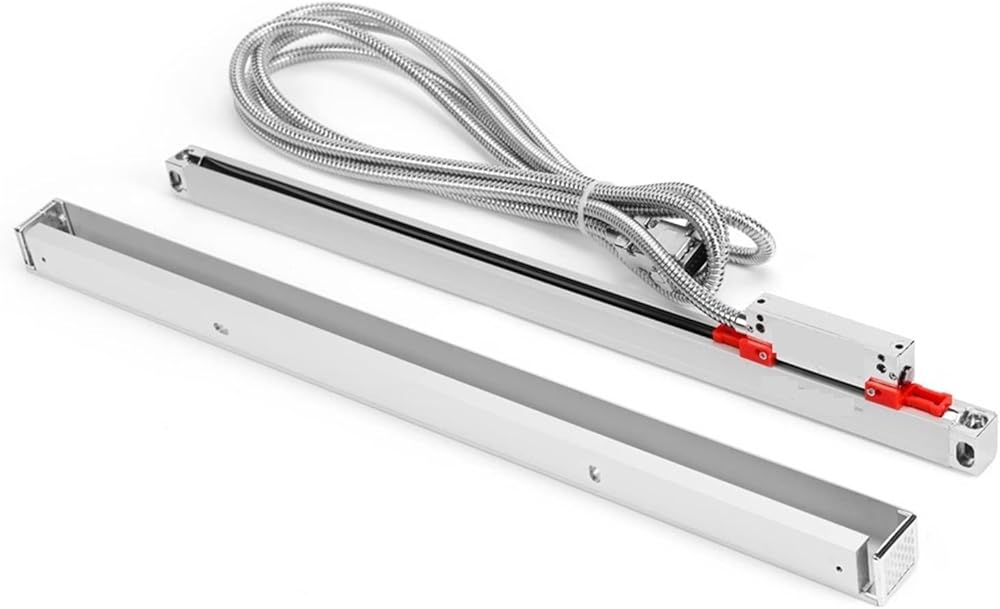

KA500 Linear Encoder Slim Linear Scale for Lathe Mill CNC Machines 70 120 170 220 270 320 370 420 470 520 570mm

Slim KA500 5u Linear Scale/Linear Encoder/Linear Sensor/Linear RulerParameter
1. Travel length: 0-520mm
2. : DB9
3. Resolution: 0.005mm
4. Input voltage: 5V
5. Grating pitch: 0.02mm
6. Cable length: 3 Meter
7. Slim size: About 18*20 Slim Size

Signal of 5uKA500 Slim Linear optical ruler/Linear glass scales/Linear encoder/Linear sensor
Pin 2 Black 0V
Pin 6 Green A
Pin 7 Red 5V
Pin 8 White B

Package includes
1 pcs linear scale
1 pcs scale cover
1 pcs L connecting bracket
1 pcs screw bag

1.Eliminate machine tool position errors caused by thermal expansion, deformation of the drive mechanics, pitch issues and more.
2.High long-term speed stability.
3.Sturdy construction and high resistance to vibration.
4.Finer signal periods offer highest interpolation accuracy.
5.Compact, lightweight and easy to install.
6. and dependable-functions properly even after many years of operation.
7.Sealed or enclosed linear designs available.
