مميزات خاصة

High-precision measurement: Resolution of 5μm ensures accuracy and improves processing quality in applications such as milling machines and grinders
Wide application: The N-TINTNNT-S scale is suitable for lathes, milling machines, boring machines, wire cutting machines and CNC equipment, and is flexible to meet different processing needs
Universal compatibility: Designed to be compatible with a variety of systems, it is easy for users to integrate into existing equipment
Slim design: The 20mm x 27mm size is suitable for small lathes and milling machines, and is easy to install in space-constrained environments

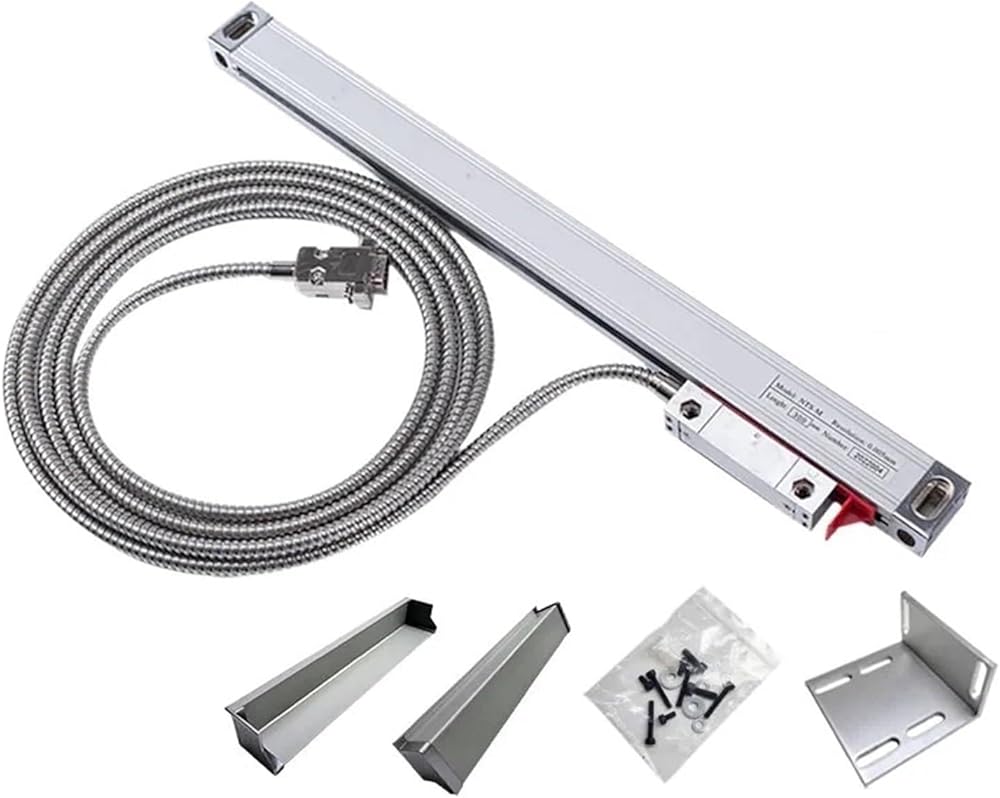

Complete accessory package: Contains scale, scale cover, mounting bracket and screw bag, providing a one-stop solution to simplify the installation process

وصف

Procut name : 0.005mm linear scale
Output signal : TTL/EIA422A
Resolution : 0.005mm/5um
Travel length : 50,100,150,200,250,300,350,400mm
Cross section size : 20mmx27mm
Scale overall length : Travel+142mm
Installation holes distance : Travel+124mm
Input voltage : 5VDC ±5% , 100mA
Cable length : 3 meters
Interface Typ : 20um,DB9
Max of Measuring speed : 60m/min
Protection grade : IP54
Operating temperature : 0-50°c
If include accessories : Yes
Application : Mill, Lathe, Grinder, CNC Etc.
