شبكة خطية، مقياس خطي نحيف 0.005 مم عالي الدقة TTL 50 100 150 200 250 300 350 400 مم 20 × 28 مم مستشعر مسطرة تشفير خطي صغير، 100 مم سفر-1 in Saudi Arabia

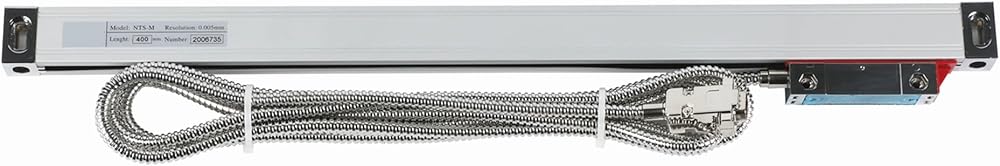

شبكة خطية، مقياس خطي نحيف 0.005 مم عالي الدقة TTL 50 100 150 200 250 300 350 400 مم 20 × 28 مم مستشعر مسطرة تشفير خطي صغير، 100 مم سفر-1

SAR 959
اللون100 ملم السفر
مقاس1
– 1 +

مميزات خاصة

  • High-precision measurement: The resolution reaches 5μm , ensuring excellent measurement accuracy during the processing
  • Wide application: Suitable for lathes, milling machines, boring machines, wire cutting machines and CNC equipment, meeting a variety of processing needs
  • Ultra-thin design: The ultra-thin size of 20mm x 28mm is very suitable for small lathes and CNC machines, and is easy to install
  • Flexible measurement range: The optional measurement length ranges from 50mm to 400mm to adapt to different equipment and application scenarios
  • Complete accessory package: Including scale, scale cover, mounting bracket and screw bag, providing a one-stop solution to simplify the installation process

وصف

What in package
-1 piece scale, scale cover, mounting bracket, screw bag
Scale fufures
Parameter
Model: NTS-S
Available measurement: 50mm to 400mm
Total length: measurement+142mm
Size cross section size: 20mmx28mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm
Cable length: 3eters
Scale wiring diagram
Scale drawing
L means scale travel length
