Linear Scale, Display 5um Milling Lathe 2 Axis DRO Digital Readout and 0.005mm TTL Linear Scale Encoder Sensor in Saudi Arabia Linear Scale, Display 5um Milling Lathe 2 Axis DRO Digital Readout and 0.005mm TTL Linear Scale Encoder Sensor in Saudi Arabia Linear Scale, Display 5um Milling Lathe 2 Axis DRO Digital Readout and 0.005mm TTL Linear Scale Encoder Sensor in Saudi Arabia Linear Scale, Display 5um Milling Lathe 2 Axis DRO Digital Readout and 0.005mm TTL Linear Scale Encoder Sensor in Saudi Arabia

Linear Scale, Display 5um Milling Lathe 2 Axis DRO Digital Readout and 0.005mm TTL Linear Scale Encoder Sensor

SAR 2,395
Brand
GFAZXDS
Category
Sensors
– 1 +

Special Features

  • Professional design, beautiful appearance generous, counts the frequency response is fast and powerful.
  • Die-casting alloy shell, the surface electric pensu processing, dustproof wear-resisting, good shielding.
  • Professional design, independent power supply, to adapt to the range, high stability, strong anti-jamming capability.
  • Power supply and signal anti-interference ability, and panel of buttons, change is simple and convenient.
  • Directly on the digital table for functional operation functions such as sine, cosine, tangent function, convenient

Description

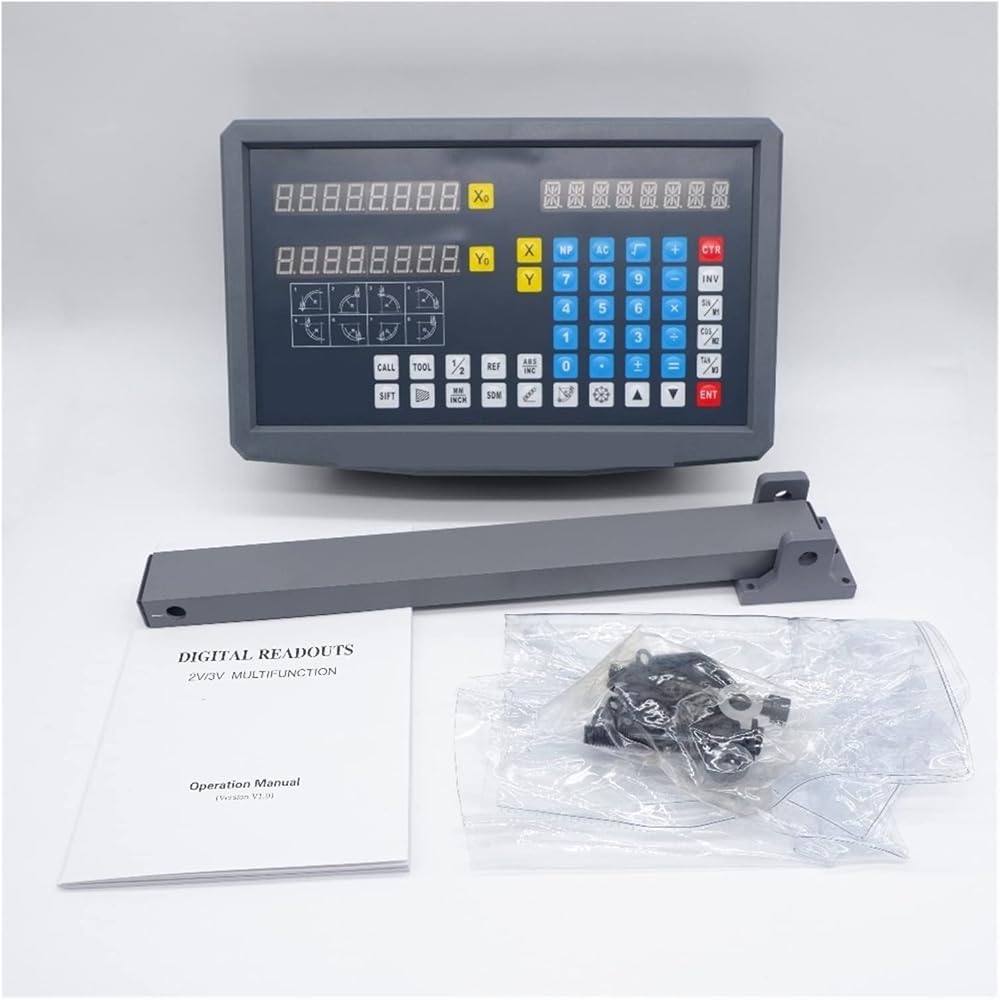

Package includes
-1pcs * 2V digital readout, mounting bracket
-2pcs * 0.005mm travel length scales, scale covers
-1 set * screw bag

Function
1:zero clearing
2:reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5: 200sets sub datum
6:power off Memory;
7:center of1/2
8:liner error compensation
9:sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:calculator
13:drilling of circumference
14:drilling of oblique line
15:machining of inclined plane
16:machining of circular arc
17:lathe function(match)
18:Rectangular lumen gradual processing
19:digital filtering
20:vibration filtering
21:R/D fucntion
Techincal Parameters
1.Voltage range:AC 85V-250V/50Hz-60hZ
2.Power consumption:25VA
3.Coordinates:1/2/3/4
4.Display:8-bits digits display
5.Input signal: TTL square
6.Input signal frequency: 100KHZ
7.Reading resolution: 10um,5um,2um,1um,0.5um

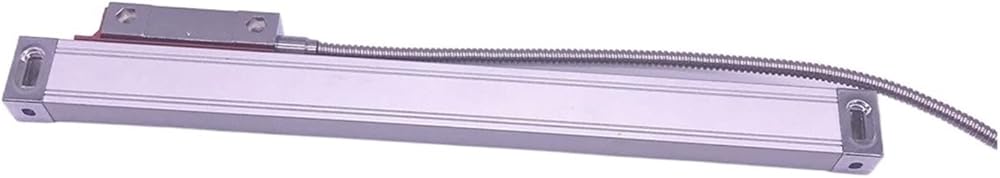

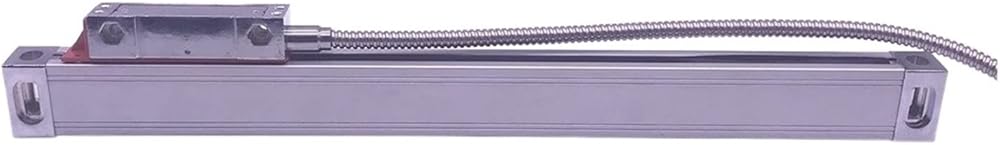

Linear Scale Specification
Parameter
Product name:precision glass grating lenear transducer
Model:NTS-M
Resolution:5um(0.0002")
Output signal:TTL
Input voltage:DC 5V ±5%
Available measuring distance:0-1000mm
Overall length: available measuring distance + 142mm
Working speed:60m/min
Working temprature:0-50
Cable length:2.5m-3m(longer option)
Accessories:aluminum protective cover/L connection board/screws bag
