Axis Dro Set Digital Readout System Display SDS2MS and 2 PCS 5u linear optical ruler dimension 70-1020 for lathe/mill machine

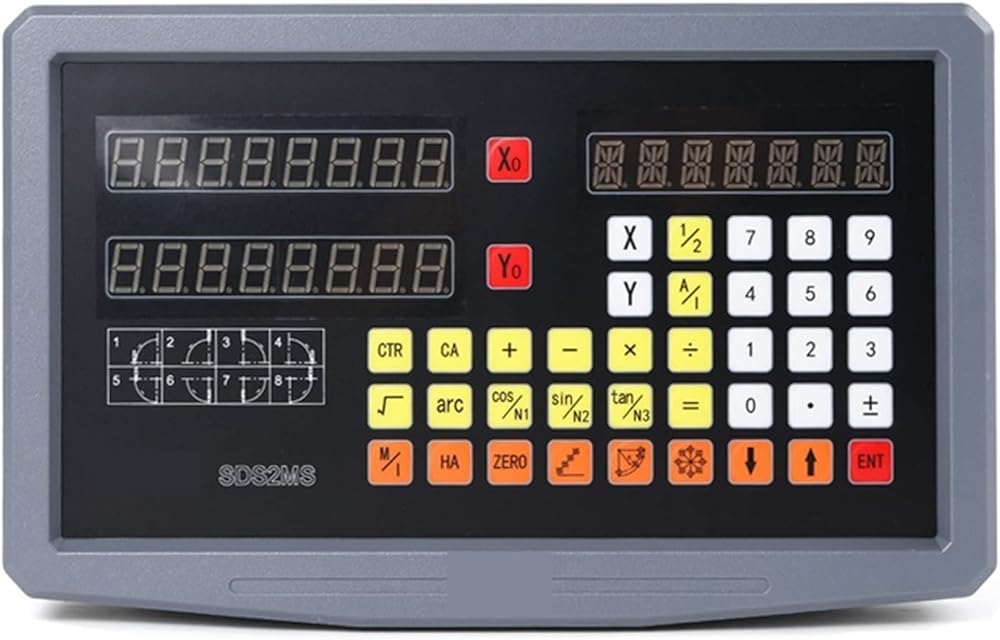

SDS2MS Dro digital readout display system functions
1:Zero clearing
2:Reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5:200sets sub datum
6:Power off Memory;
7:Center of1/2
8:Liner error compensation
9:Sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:Calculator
13:Drilling of circumference
14:Drilling of oblique line
15:Machining of inclined plane
16:Machining of circular arc
17:Lathe function(match)
18:Rectangular lumen gradual processing
19:Digital filtering
20:Vibration filtering
21:Radius /Diameter fucntion
22:Lathe function

SDS2MS Dro digital readout display system Parameter
1.Voltage Range: AC 50HZ~60HZ
2.Acceptable Signal: TTL
3. : DB9
4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um

2 Axis Dro Metal SDS2MS Advantage
It is new 2 axis dro SDS2MS,smaller, better performance. Take less space on your machines.

5U KA300 Linear scals/Linear encoder/Linear sensor/Linear rulerParameters
1. Travel (measuring) length: 0-1020mm
2. : DB9
3. Resolution: 0.005mm(5u)
4. Input voltage: 5V
5. Grating pitch: 0.02mm (50LP/min)
6. Cable length: 3 Meter
7. Normal size: About 34.5*25
8. KA-300grating ruler is a kind of grating ruler which is widely used. It has reasonable structure, the shape design is beautiful, good rigidity, can meet the majority of general machine tool users use, use longDegree in 70~1020mm.
9. Moving speed: high speed ruler 120 m/min,Ordinary ruler 60m/min.
10. Power supply: +5V + 5%, 80mA.
11. Working temperature: 0~45
The Signal of KA300 Linear optical ruler/Linear glass scales/Linear encoder/Linear sensor
Pin 2 Black 0V
Pin 6 Green A
Pin 7 Red 5V
