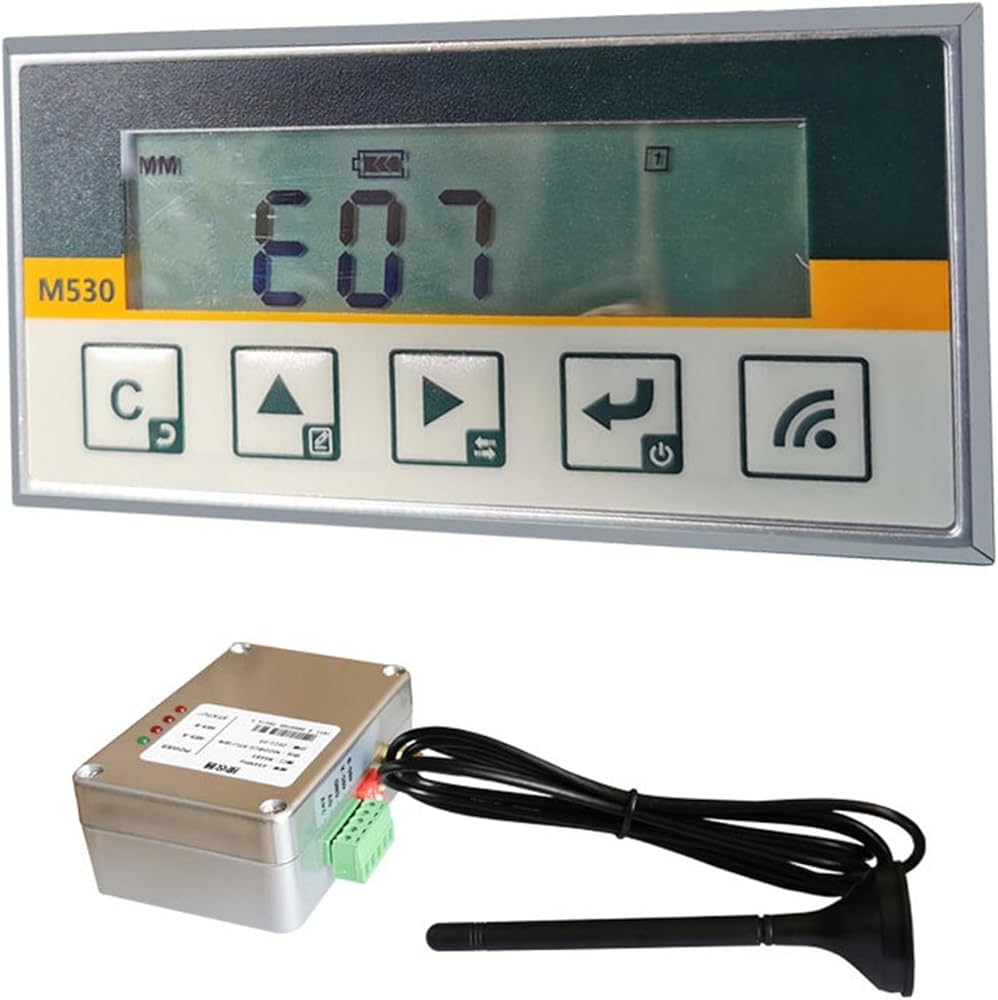

Magnetic Linear Measurement System Grating Ruler Head Angle Sensor Encoder,M530-2000mm in Saudi Arabia

Magnetic Linear Measurement System Grating Ruler Head Angle Sensor Encoder,M530-1000mm

SAR 2,007
Brand
GFAZXDS
Category
Sensors
ColorM530
Size1000mm
– 1 +

Special Features

  • Compact and Embedded Design: Features an embedded suite shell structure with overall dimensions of 100 * 52mm, making it for space-constrained applications
  • High Precision and Versatile Measurement: Provides a maximum sensor/scale reading distance of 2.5mm (1.3-mm recommended) and a wide display range of -1999999 to 1999999, ensuring accurate and versatile measurements
  • Low Power Consumption: Operates with a low current consumption of ≤700μA, ensuring energy efficiency. It also supports an external input of DC 24V, offering flexibility in power sources
  • Robust and Customizable: The sensor length is customizable from 0.15 to 6m (default: 1M), providing flexibility for different applications. The IP40 protection class ensures durability in various environments
  • Wireless Communication Option: Supports optional wireless transmission operation and RS485 communication function, enabling robust and reliable data transmission for enhanced connectivity

Description

Mechanical Parameters
Shell structure: Embedded suite
Sensor/scale reading distance: Max. 2.5mm, 1.3-mm recommended
Overall dimensions: 100 * 52mm
Opening size: Matching scale 90 * 42mm MS50
Sensor length: 0.15... 6m (Default: 1M)
Weight: 240g (1M sensor length)
Electrical Parameters
Working voltage: DC 2.7.. 3.3V DC 24V (External input)
Current consumption: ≤700μA, 20... 35mA
Display Range: -1999999...1999999
Remarks:
Working voltage: 2pcs AA 5 battery 1.5V DC; Display operation 3.3V DC; transmission operation optional
