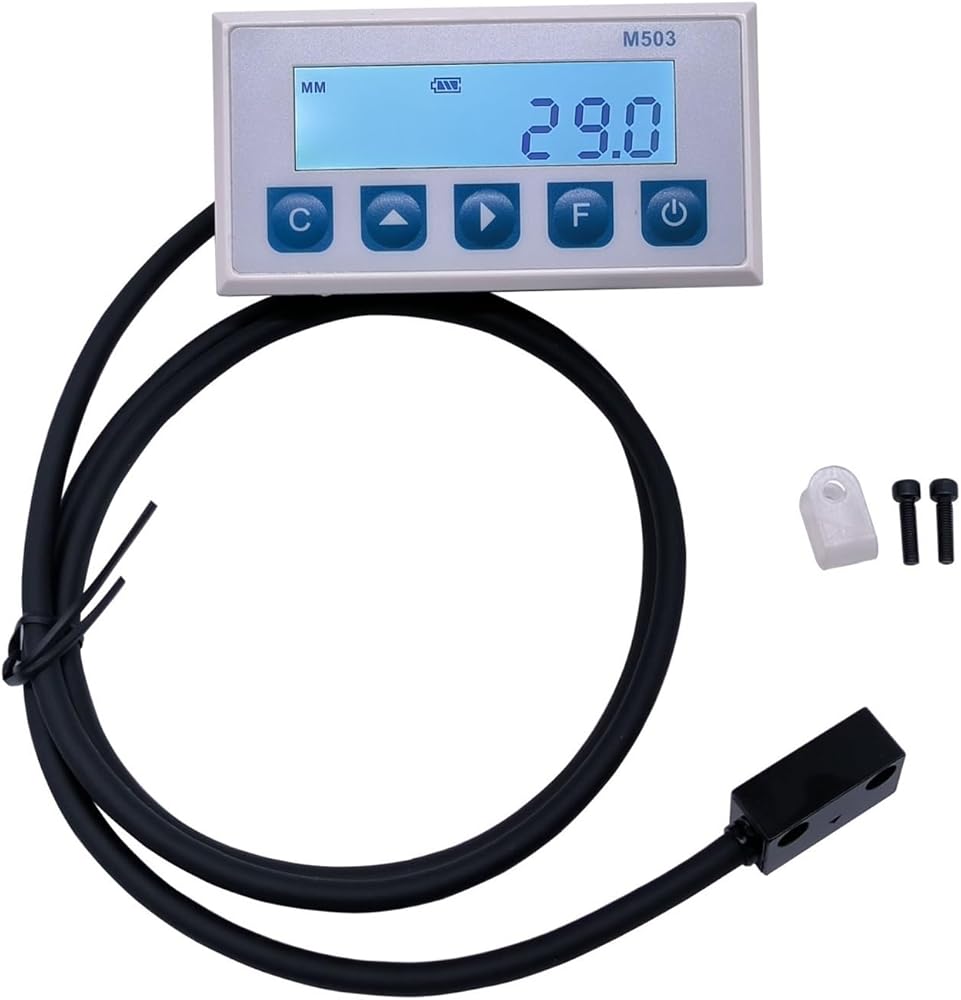

Linear Scale, M503 Magnetic Scale DRO Integrated Embedded Magnet Measurement System Tape with Stain Belt Profile Woodworking for Mill Machine,M503 Display Sensor-1 in Saudi Arabia

M503 2000mm tape

SAR 715
Brand
GFAZXDS
Category
Sensors
ColorM503
Size2000mm tape
– 1 +

Special Features

  • Ultra-miniature design: With a cross-section of just 16mm x 16mm, the KA200 is suitable for use in confined spaces and is easy to install
  • High-precision measurement: Each KA series linear encoder undergoes rigorous quality control to ensure accuracy meets standards before leaving the factory.
  • Dynamic Control: Using advanced dynamic control technology to improve measurement accuracy and reliability.
  • Compatible with special measuring instruments: Suitable for a variety of special measuring instruments to meet the needs of a variety of industrial applications
  • Easy to install: Simple design allows for flexible installation in tight spaces and improves ease of use.

Description

Parameter
System accuracy: + (0.03+0.01*L) mm
Repeatability: Max. + 0.01mm
range: -1999999-9999999
Consumption current: Max.500UA (backlight not opened)
Power supply: two batteries No. 5 (AA)
Operating temperature: 0 degrees ℃ -60 degrees ℃
Storage temperature: -10 degrees ℃ -70 degrees ℃
Outline size: 100*52*30mm
Opening size: 92*42mm
Read line length: 1m customizable (2M 3 5M 6M).
e speed: Max.5m/s
Read gap: Max.2.5mm, recommended 1.5mm
Matching magnetic stripe: FT50
Waterproof grade: digital IP40, read head IP60
Weight: Max.150g
Basic datasheet
Resolution: 0.01mm /0.1mm / 1mm
mode:MM / INCH
Measuring: Length / Angle
