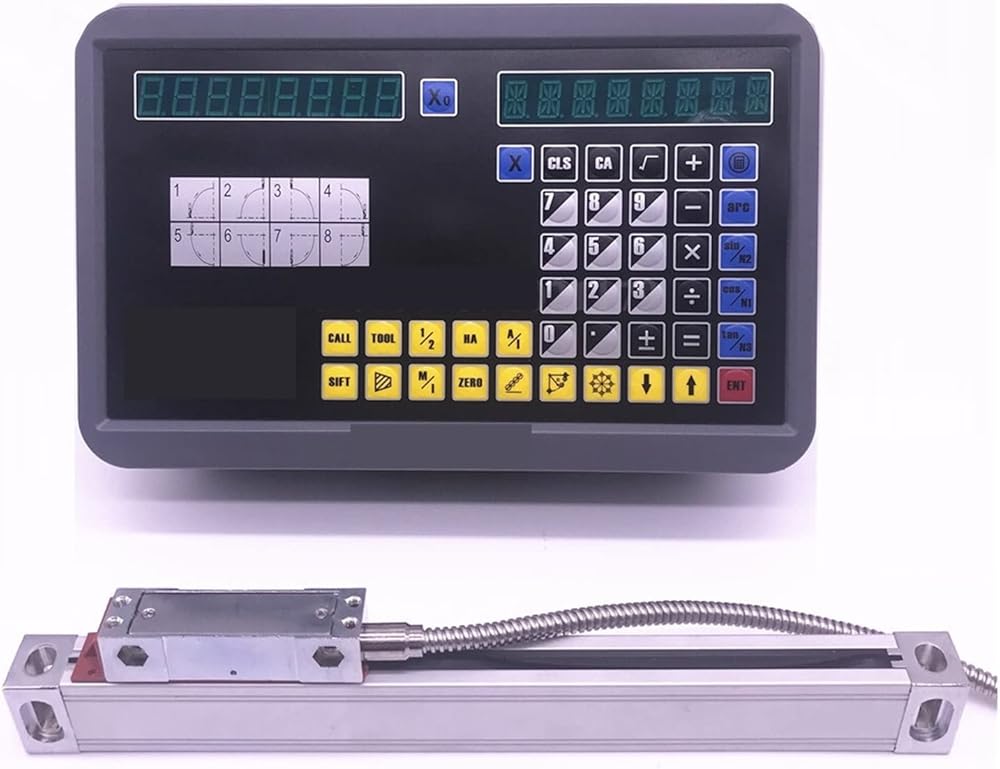

DRO kit 1 Axis DRO Digital Readout With 0-1000mm 0.001mm 0.005mm TTL 5VDC Linear Scale Linear Encoder Sensor

Package includes:
) 0.005mm complete kit
1. 1 piece GCS900-1D 1 axis display(with user manual, mounting arm, screw bag)
2. 1 piece 0.005mm linear scales (with covers, mounting bracket, screw bag)
) 0.001mm complete kit
1. 1 piece GCS900-1D display(with user manual, mounting arm, screw bag)
2. 1 piece 0.001mm linear scales (with covers, mounting bracket, screw bag)
) GCS900-1D display
1. 1 piece GCS900-1D 1 axis display(with user manual, mounting arm, screw bag)

DRO Specification

The digital readout(DRO)in GCS series is a high precision instrument that can be used on lathe,grinding machine,milling machine,boring machine,EDM etc.

Product Features

Self-motion middle parted function

Metric/imperial conversion function

Absolute/relative counting transformation function

1000 groups of zero memory function

Function calculator operation function

Arc surface processing function

PCD function

Cant processing function

PLD function

Machine tool error compensation function

EDM function(option with extra)

Function

1.zero clearing

2.reset

3.mm/inch mode

4.ABS/INC coordinate conversion

5.200sets sub datum

6.power off Memory;

7.center of 1/2

8.liner error compensation

9.sleepping mode

10.Clear 200 sets Sdm datum;

11.ABS/INC mode

12.calculator

13.drilling of circumference

14.drilling of oblique line

15.machining of inclined plane

16.machining of circular arc

18.Rectangular lumen gradual processing

19.digital filtering

20.vibration filtering
