مميزات خاصة

Flexible measurement range: supports 0-450mm (0-17.8 inches) stroke length, suitable for a variety of industrial applications to meet different needs
Compact overall design: The total length is the stroke length plus 140mm, which is convenient for installation in equipment with limited space and optimizes the layout
High resolution: With a high resolution of 0.005mm, it ensures accurate measurement and is suitable for occasions with high precision requirements
Easy connection and compatibility: Equipped with DB9 interface, it is easy to connect with various devices and has strong adaptability
cable and structure: The cable length of 3 meters (about 9 feet) and compact size (about 22*34mm) provide flexible installation options to adapt to different working environments

وصف

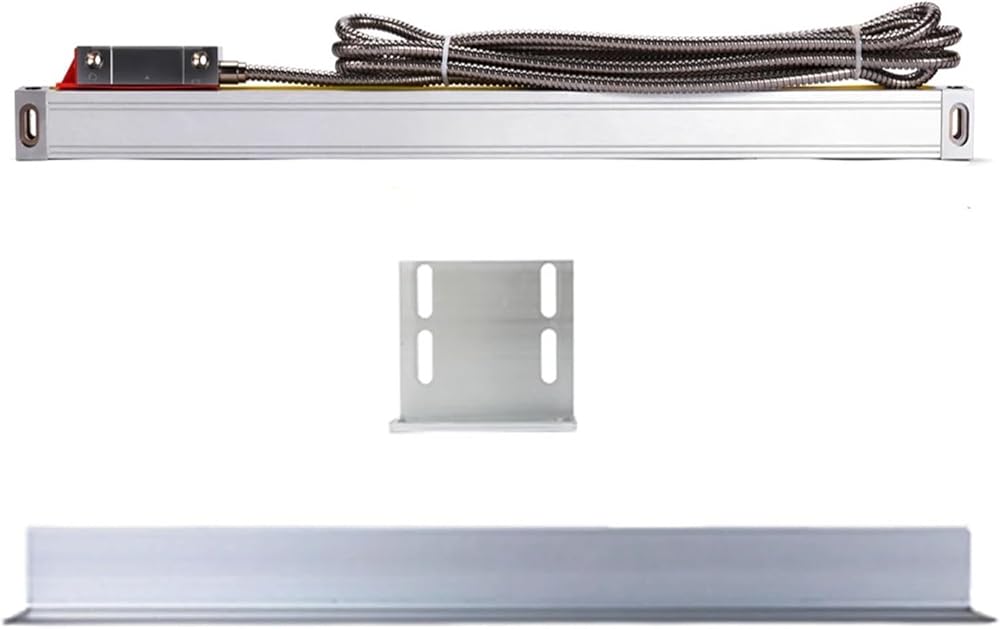

1. The order isone piece 5u(0.005mm)linear glass scales/linear encoder/linear sensor,travel length are100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, you canchoose one pieceamong them.
2. If you choosetravel length is 200mm, the total length are 340mm, hoping you can know that, thanks.

5u Linear Scale/Linear Encoder/Linear Sensor/Linear RulerParameter
1. Travel (measuring) length: 0-450mm / 0-17.8inch
2. Total (overall) length: Travel length + 140mm
3. interface: DB9
4. Resolution: 0.005mm
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 3 Meter (about 9 feet)
8. Normal size: About 22*34
The Signal of 5uLinear optical ruler/Linear glass scales/Linear encoder/Linear sensor
Pin 2 Black 0V
Pin 6 Green A
Pin 7 Red 5V
Pin 8 White B
