مميزات خاصة

【Professional】--- This is a high accuracy linear scale.
【Practical and Reliable】--- Slide part adopts of reliable and 5 bearing system design.
【Stable Performance】--- The repeated positioning measurement is accurate and stable.
【Exquisite Workmanship】--- Signal cable uses multilayer shielded wire steel and metal shell protection.
【Long Service Life】--- The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance.

وصف

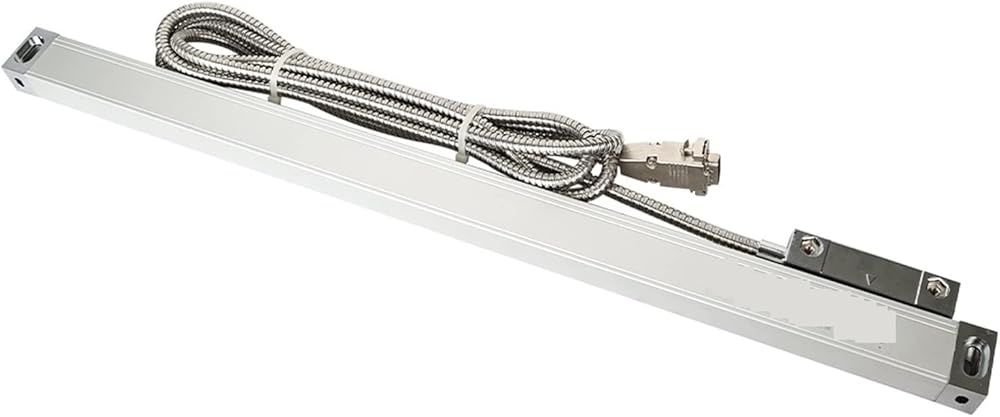

High precision milling machine grinder DRO linear glass scale 50mm-350mm TTL 5um 5VDC grating ruler encoder sensor displacement

RS232 signal definition for our ruler:
1 pin red line 5v
2-pin white wire 0V
3-pin black line A signal
4-pin yellow line B signal

packing list
-1 piece scale, scale cover, mounting bracket, screw bag
Specification
Model: JC800
Application: machine tool/PLC/various types of mechanical precision instruments
Working voltage: 5V
Working speed: 2.5m/S (5um)
Acceleration: 60m/s
Working temperature: -10-70
Working humidity: 90RH
Signal mode: TTL.
Infrared wavelength: 940mm
Overall length: measurements +142mm
Size Section size: 21.5mmx33.5mm
Resolution: 5um/0.005mm
Cable length: 3 meters
