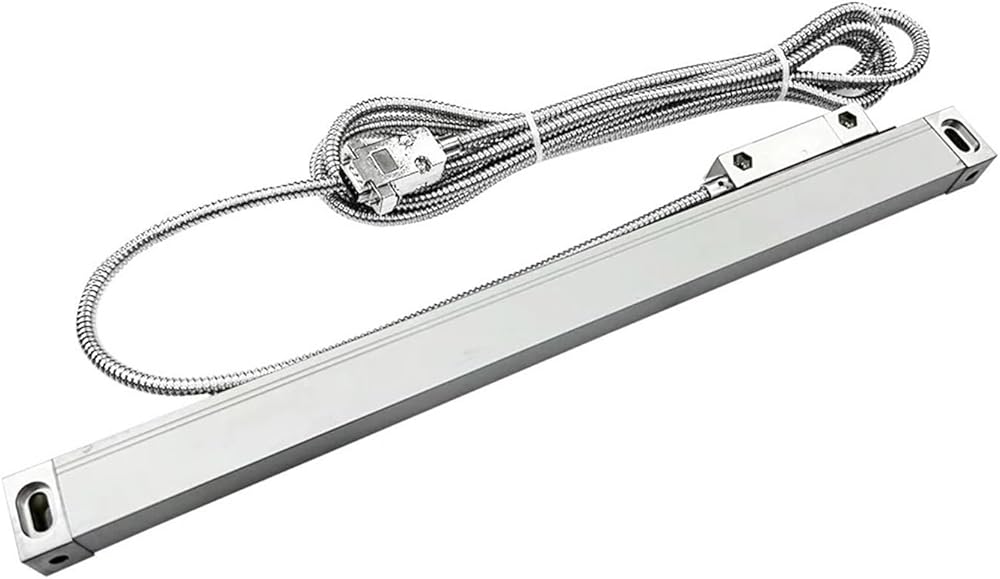

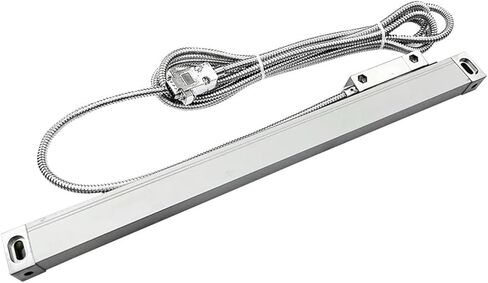

5um Grating Ruler Sensor Encoder 0.005mm Linear TTL 750~1000mm for Digital Readout Display Milling Tools KA3(850mm Travel) in Saudi Arabia

800mm travel

SAR 2,694
Brand
ONTYLTFP
Category
Sensors
Weight
349 g
Size800mm travel
– 1 +

Special Features

  • Sensors
  • Widely used and it has stable performance
  • Vertical five bearings sliding system smooth and accurate movement
  • High integration makes the performance be stable
  • The product has a large detection range
  • Industrial Standard Output Signal Interface

Description

Sensors
Model Number : KA35- 750 800 850 900 950 1000
Model : KA35
Certification : CE
Model Number : KA35- 750 800 850 900 950 1000
Operating temperature : 0-50°c
Output mode : TTL
Protection grade : IP54
Interface Typ : DB9
Resolution : 5um/0.005mm
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 20mm* 18mm
overall length : Travel+112mm
Installation holes distance : Travel+102mm
Cable length : 3 meters
