Sensors
KA-500parameter
AvailableMeasrusLength:70mm-520mm
CrossSection:18mmX20mm
Accuracy:+/-3 5 10(20degree 680F1000mm)
MaxofMeasuringspeed:60m/min
Referencepoint:oneunitper50mm
Protectionlevel:IP55
Resolution:1um(0.001mm)
Outputsignal:TTL/EIA-422-A
Cablestandard:3meters
Connetor:9Pins
==========

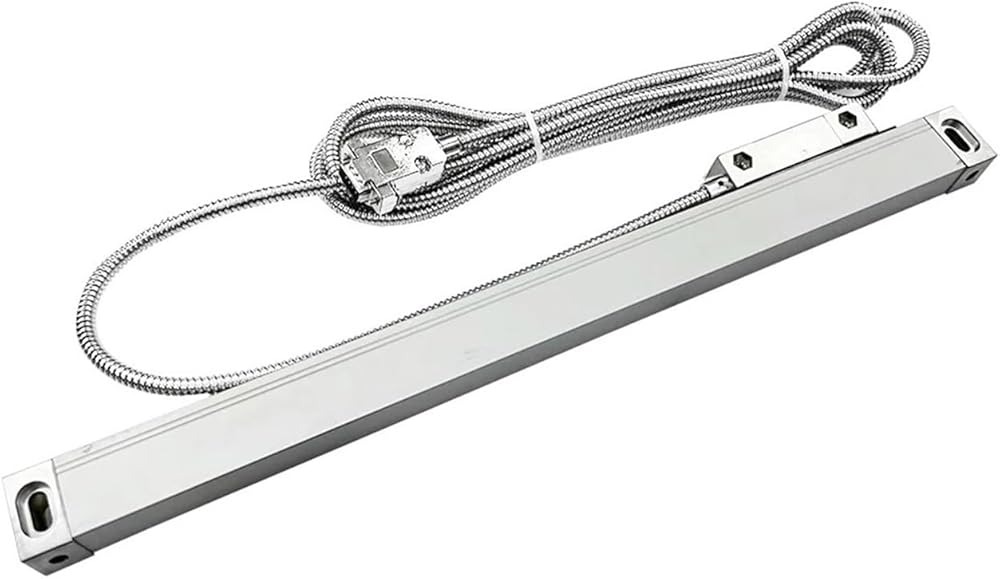

Model Number : KA-500
SINO Model : KA-500
Certification : CE
Model Number : KA-500
Operating temperature : 0-50°c
Output mode : TTL
Protection grade : IP54
Interface Typ : 20um DB9
Resolution : 1um/0.001mm
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 20mm* 18mm
overall length : Travel+112mm
Installation holes distance : Travel+102mm
Cable length : 3 meters
