مميزات خاصة

Multi-Parameter : Supports a single row digital tube with multi-parameter capability, allowing users to view various measurements simultaneously
Data Integrity: Features power-off data retention, ensuring current data is saved even during power outages, along with an initial value reset function for easy calibration
Versatile Measurement Options: Offers options for millimeters/inches, straight line/angle measurements, and multi-segment linear compensation, catering to diverse measurement needs
Robust Communication: Customized 485 communication with RS485 MODBUS protocol, enabling reliable two-wire communication and seamless integration into existing systems
Compact and Design: With a compact size (96 * 72 * 65mm), IP40 waterproof grade, and max current consumption of 65mA, this meter is designed for durability and efficiency in various industrial environments

وصف

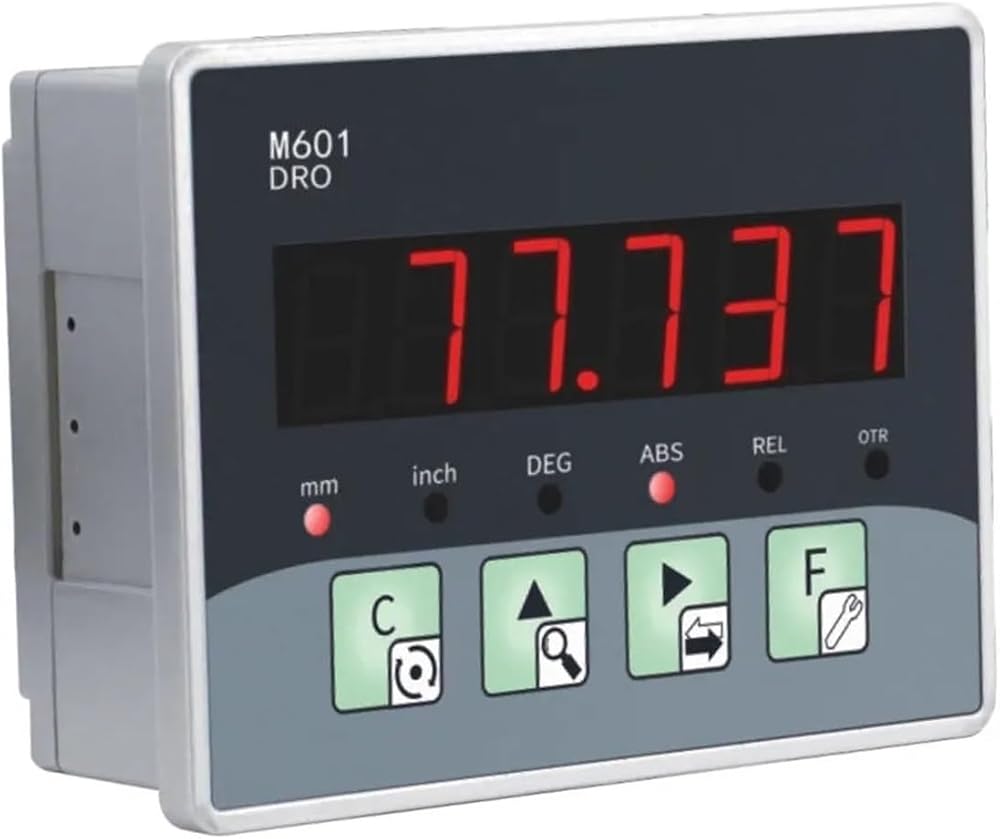

Single row digital tube
Multi parameter
Power off to save current data
Initial value reset function ("reset")
Optional millimeters/inches
Optional straight line measurement/angle measurement
Multi segment linear compensation
Customized 485 communication
Resolution (mm) 0.001, 0.002, 0.005, 0.01, 0.02, 0.025, 0.05, 0.1 Dimensions 96 * 72 * 65mm
range -299.999-1999999
Opening size 91.6 * 66mm
External power supply: 9-24V
Waterproof grade IP40
Consumption current Max.65mA
Weight Max.300g
Input interface TTL
Operating temperature 0 -+60
Communication instructions for M601 digital meter RS485 MODBUS(note that if 485 communication function is required, - M601-485 must be selected)
1. Communication method:
RS485 two wire communication, ModBus RTU protocol;
8-bit data;
1 stop bit;
No verification;
2. Wiring instructions:
A+connected to RS485A; B+to RS485B; 0V within the RS485 range is not connected by default. If there is communication interference, it needs to be grounded (shared with the instrument)
