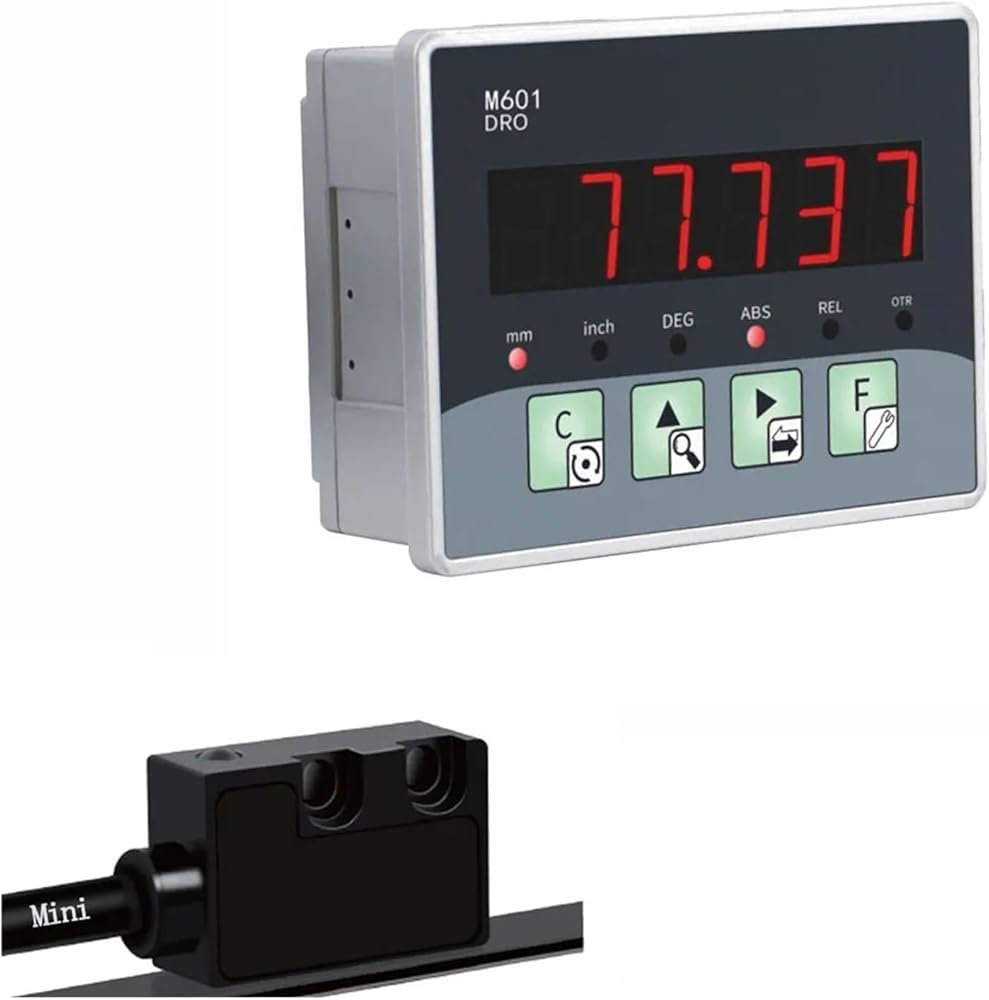

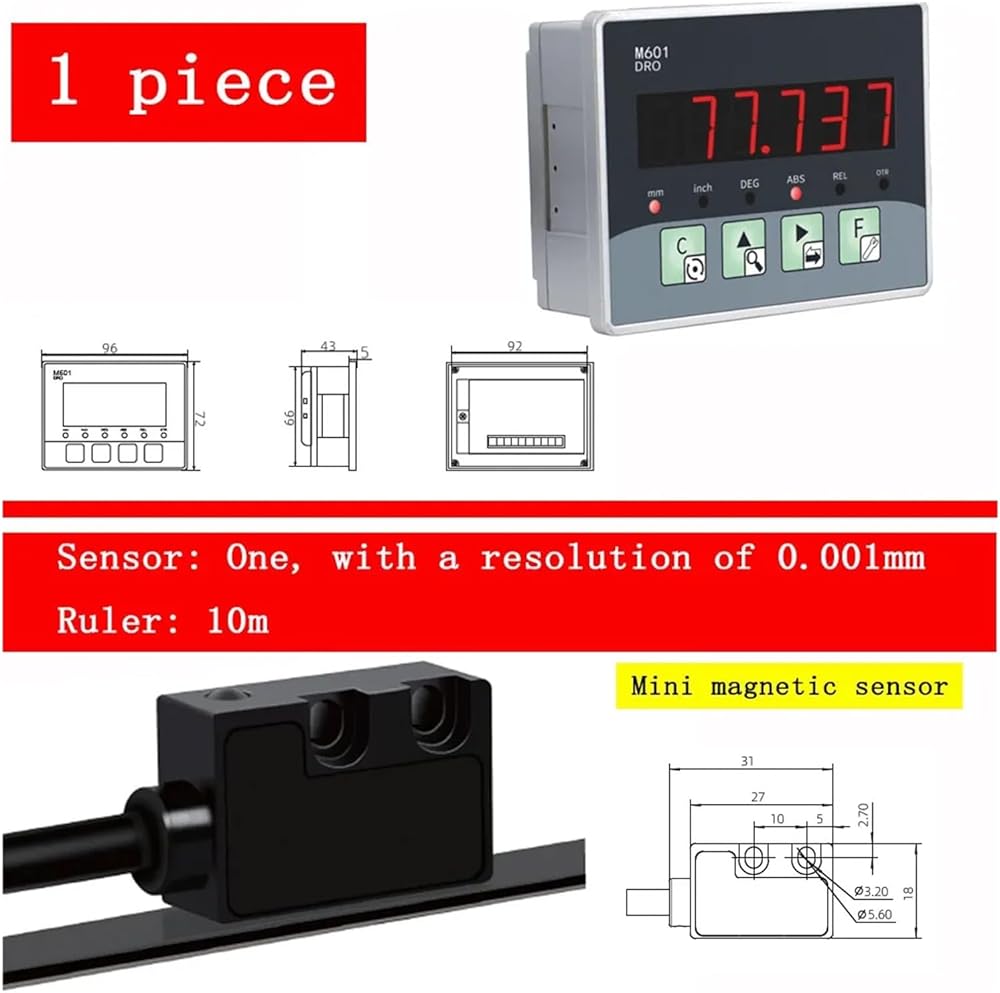

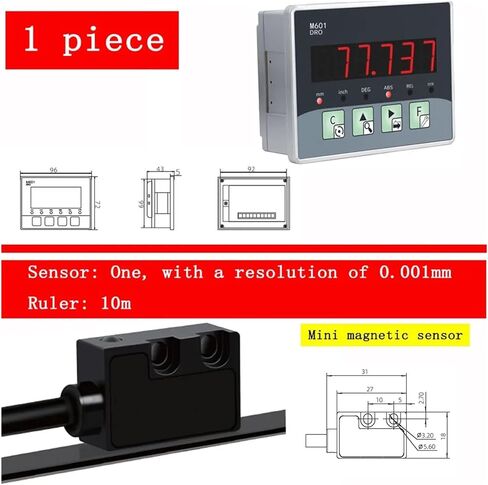

Note: This sensor is in micro mini size

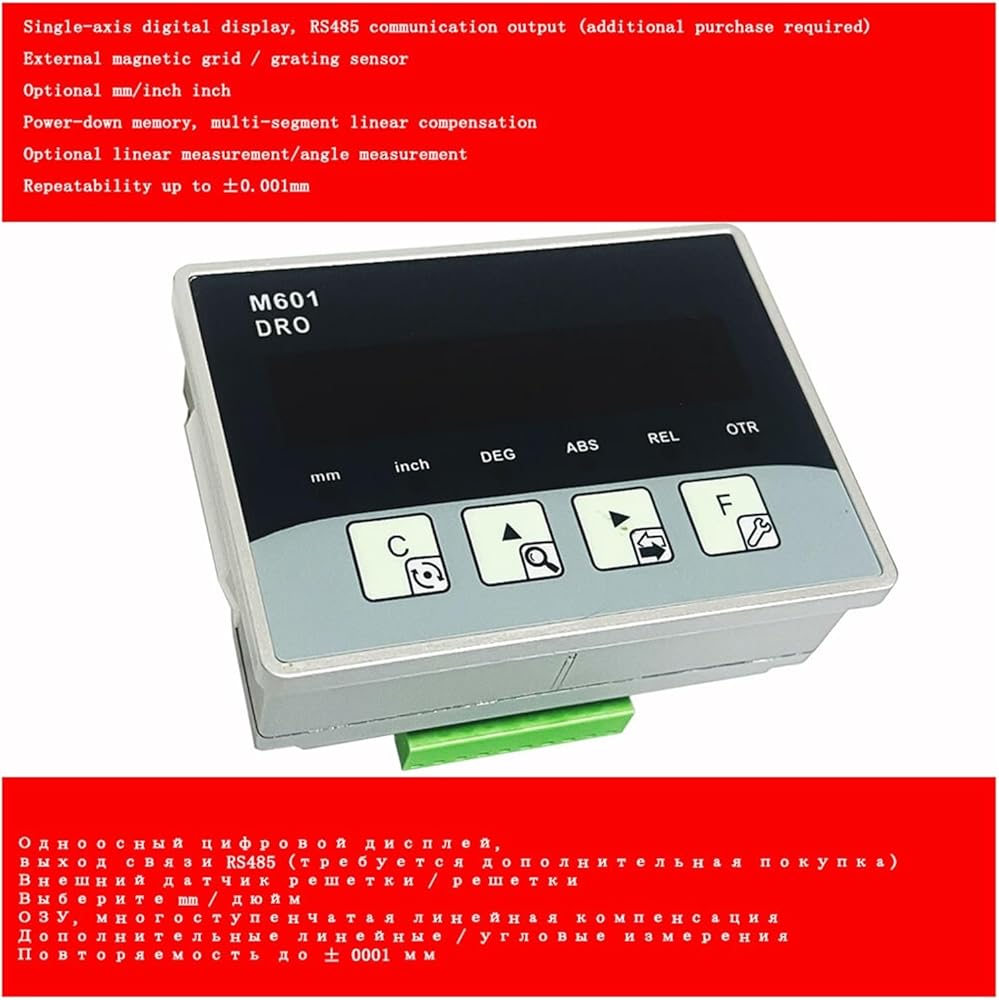

Single row digital tube display
Multi parameter display
Power off to save current data
Initial value reset function ("reset")
Optional millimeters/inches
Optional straight line measurement/angle measurement
Multi segment linear compensation
Customized 485 communication(Configuring non-standard 485 communication products requires contacting the seller to increase the price)

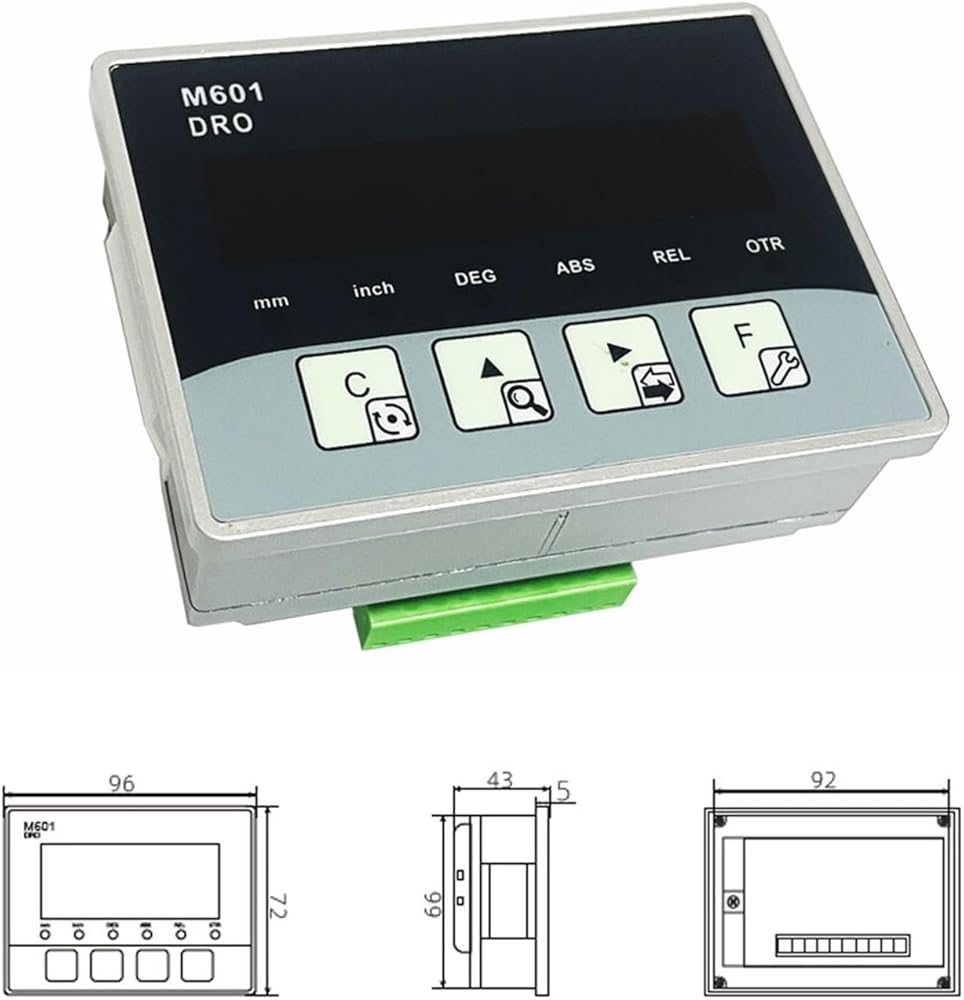

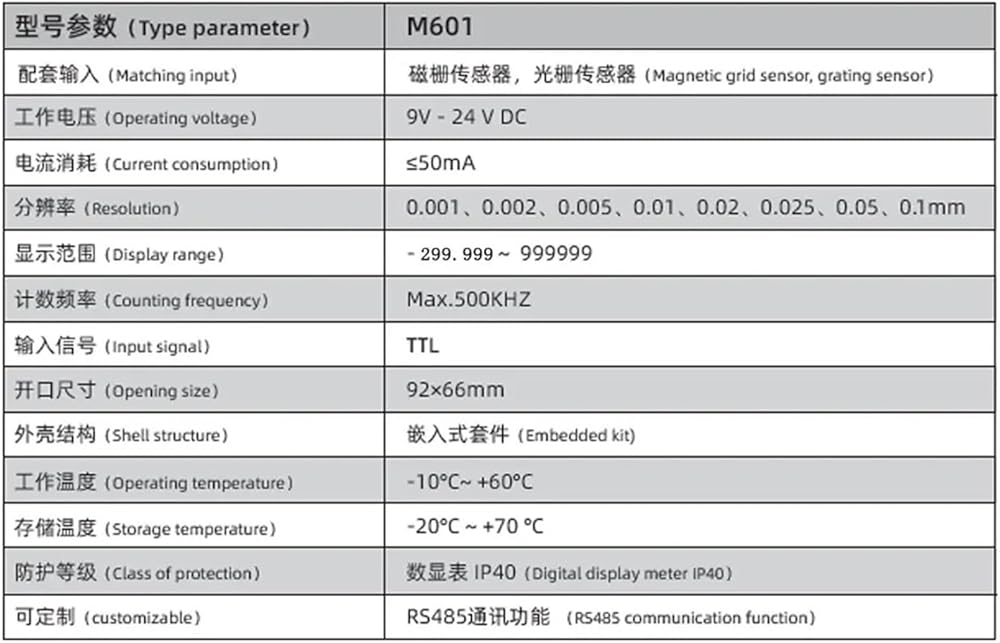

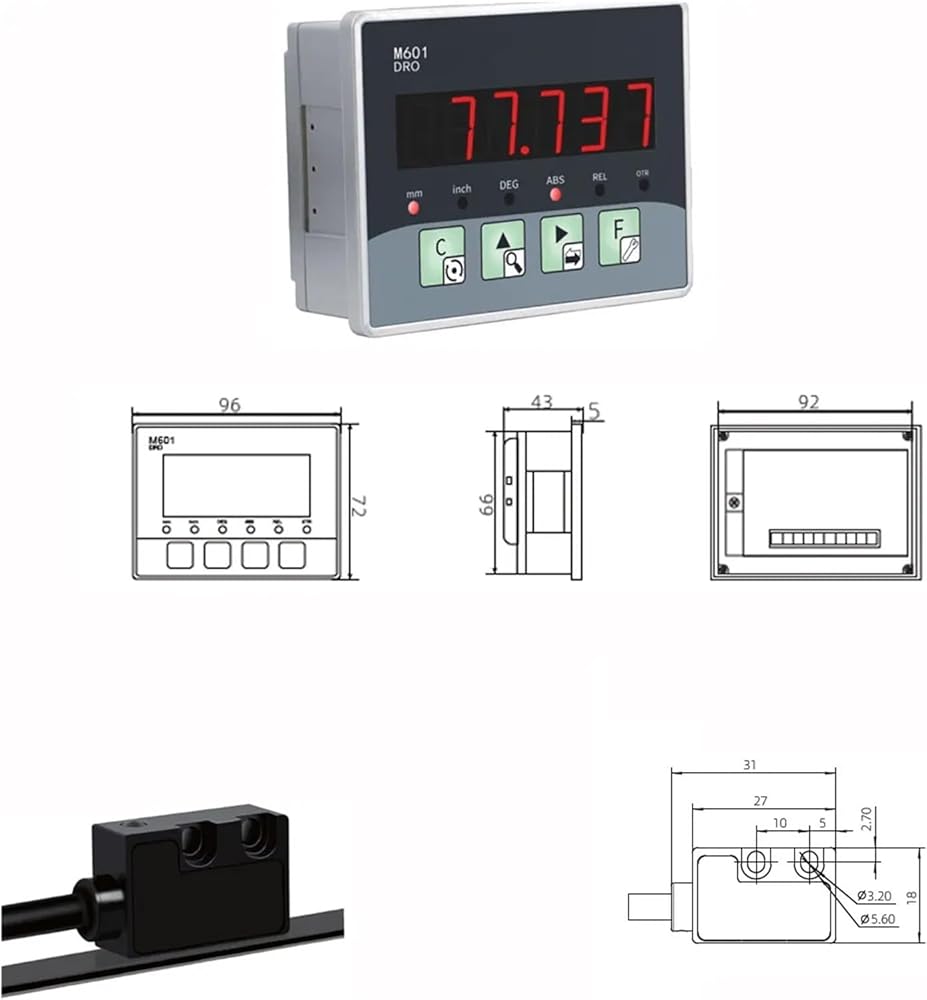

Resolution (mm) 0.001, 0.002, 0.005, 0.01, 0.02, 0.025, 0.05, 0.1 Dimensions 96 * 72 * 65mm
Display range -299.999-1999999
Opening size 91.6 * 66mm
External power supply: DC9-24V
Waterproof grade IP40
Consumption current Max.65mA
Weight Max.300g
Input interface TTL
Operating temperature 0 -+60
1. Communication method:
RS485 two wire communication, ModBus RTU protocol;
8-bit data;
1 stop bit;
No verification;

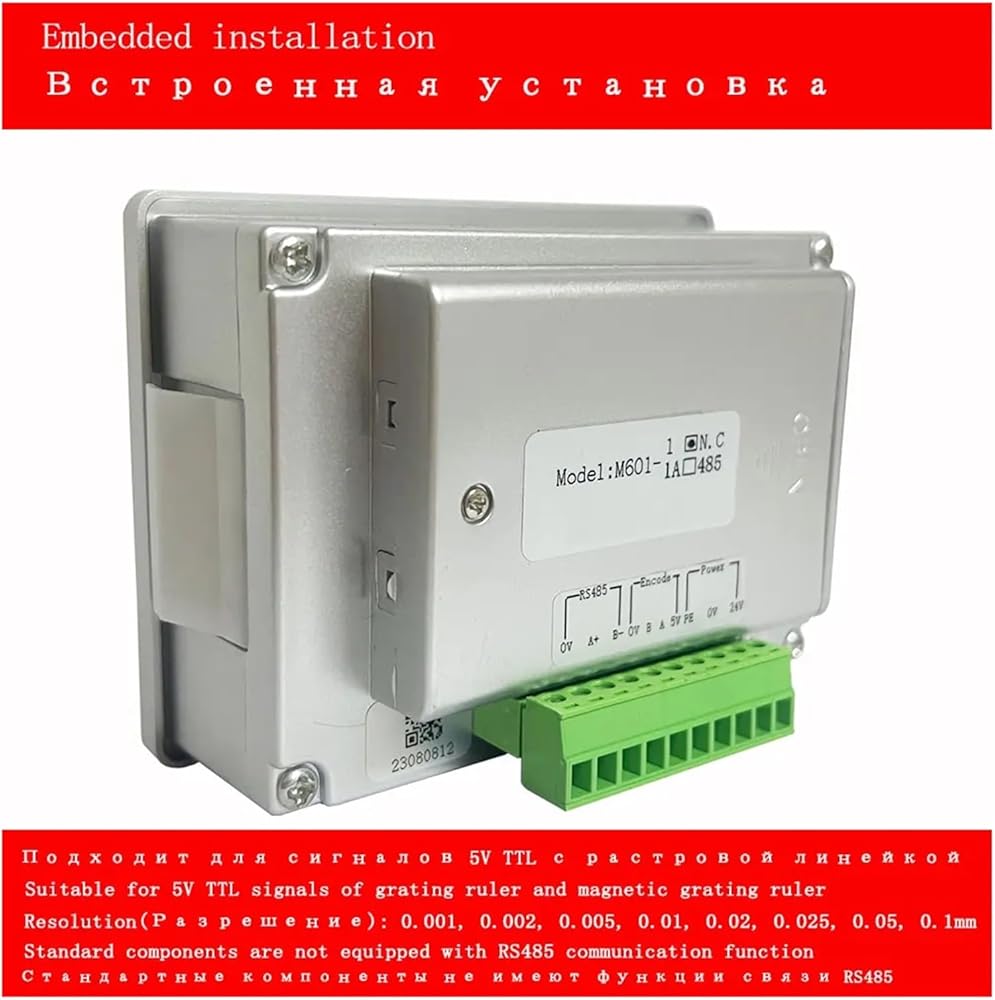

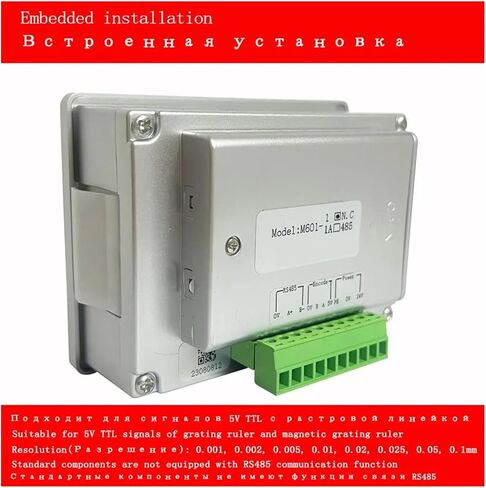

2. Wiring instructions:
A+connected to RS485A; B+to RS485B; 0V within the RS485 range is not connected by default. If there is communication interference, it needs to be grounded (shared with the instrument)
