-2 axis digital display
-Multi-function menu, can be set parameter on demands
-High brightness, 7 digit digital tube display
-Length / angle, absolute / relative, mm / inch adjustable
-High-precision all-metal read head
-Initial value customization function
-Multi-segment linear compensation
-Non-contact measurement, zero wear
-RS485 MODBUS- RTU communication(Customized, cost extra)
-Quasi-absolute measurement
-Initial Reset Function ("clear")

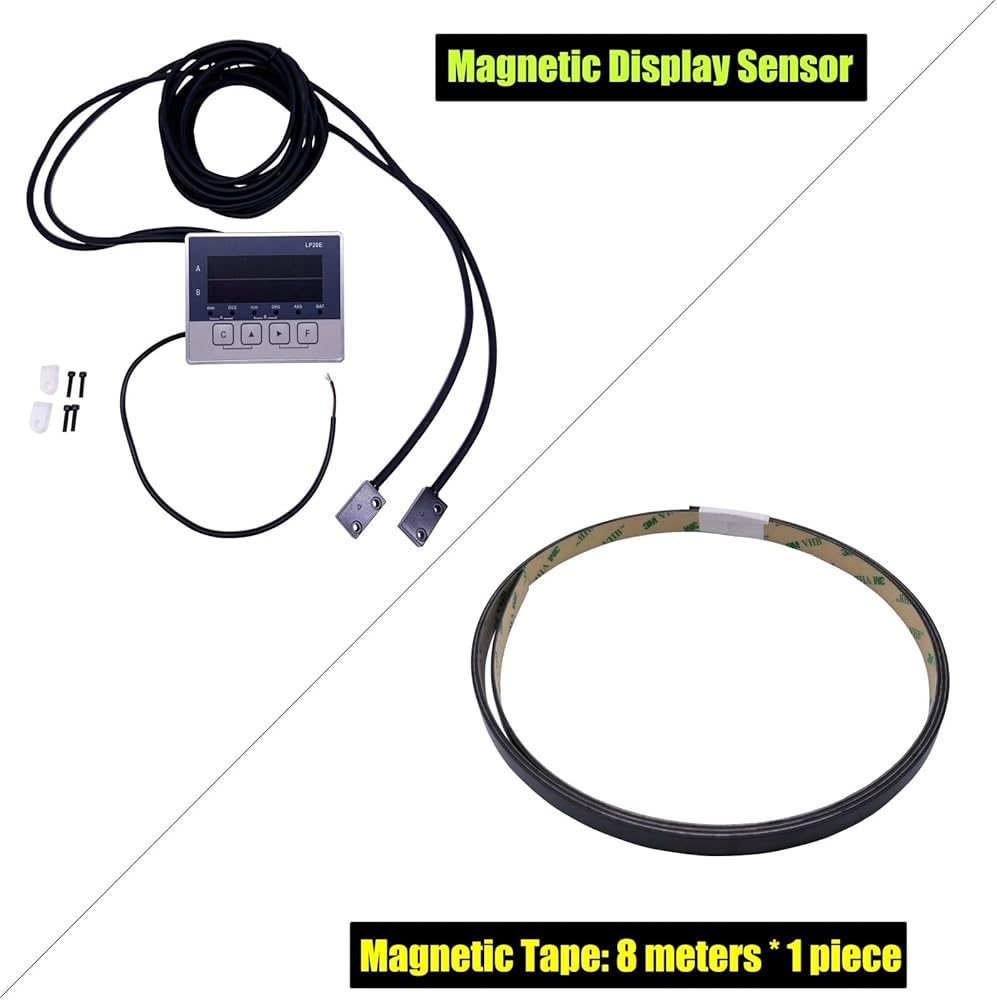

Package content

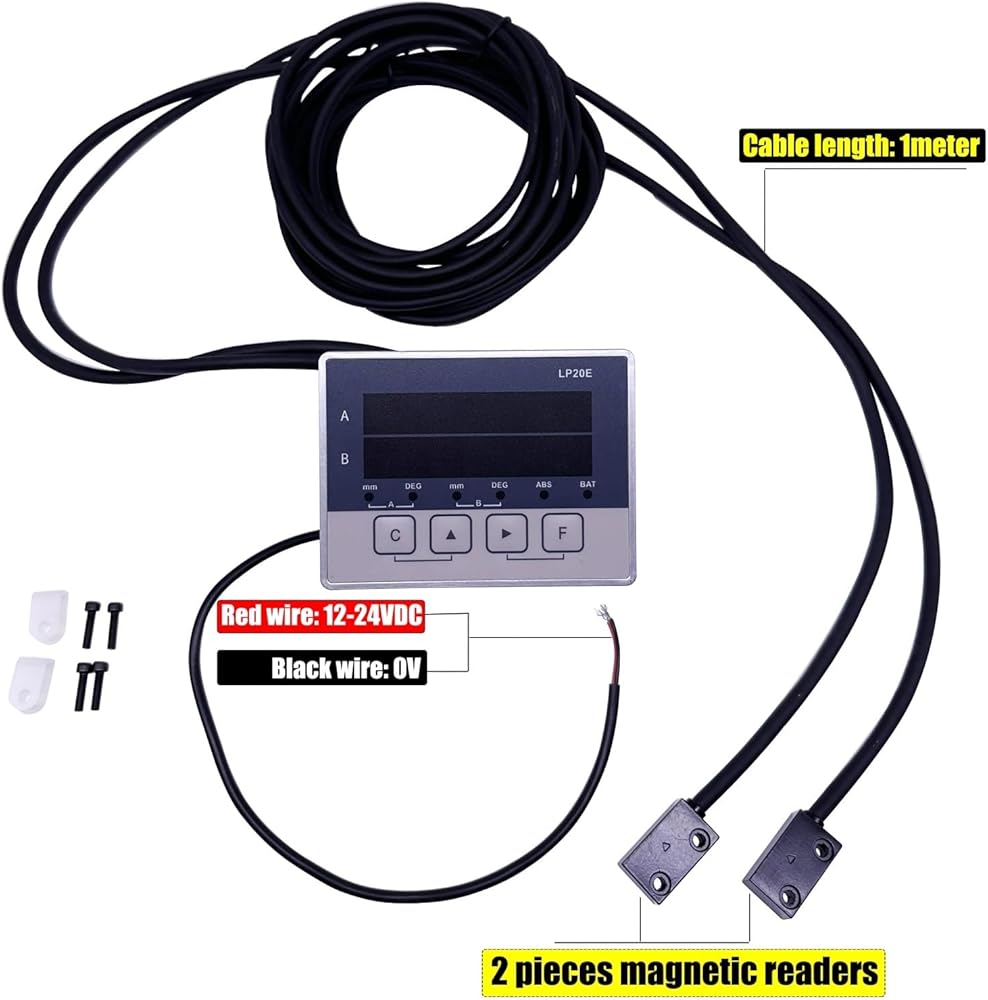

LP20E display sensor

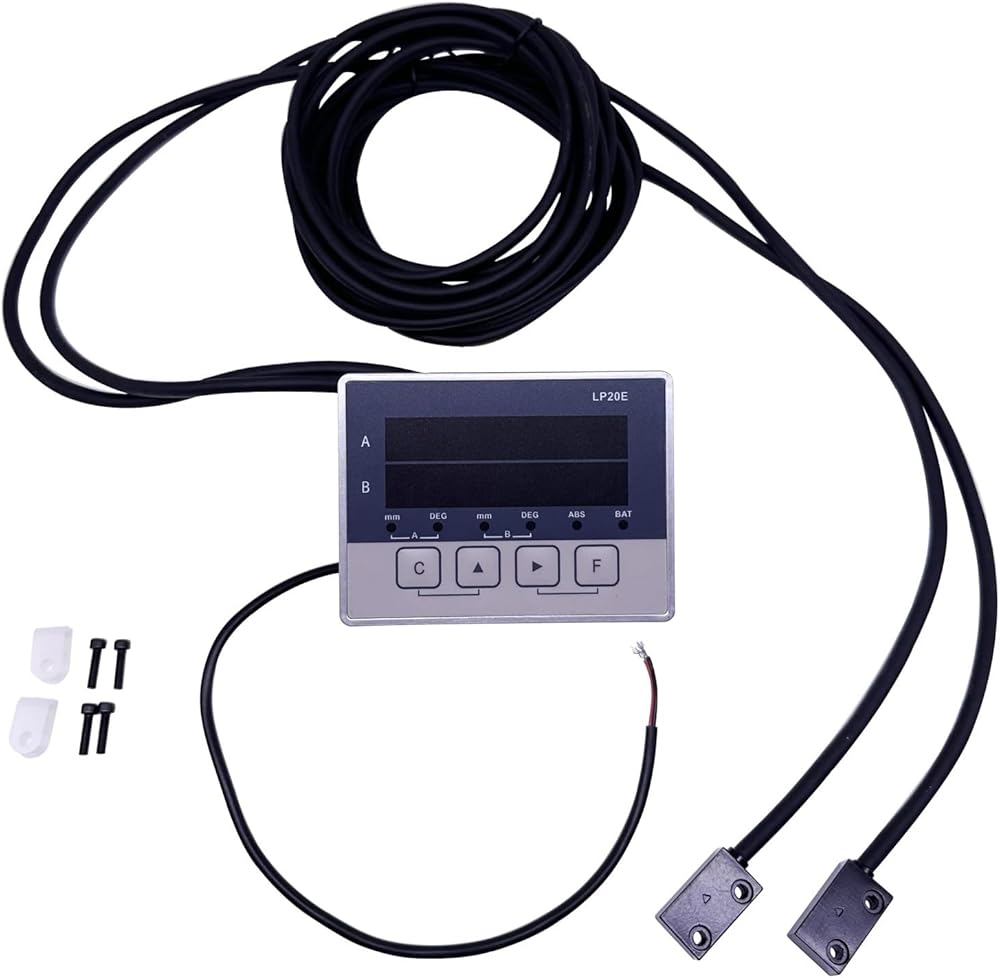

1 piece *LP20E display with 2 pieces magnetic sensors,
LP20E-XXXmm tape
1 piece *LP20E display with 2 pieces magnetic sensors
1 piece * XXXmm magnetic tape
(For example: LP20E-1000mm taple option, it includes 1 piece LP20E display with 2 pieces magnetic sensors And 1 piece 1000mm magnetic tape. So if you need 2pieces 1000mm tape, please order LP20E - 2000mm tape)
LP20E display sensor specification
System accuracy: + (0.03+0.01*L) mm L unit: 1meter
Repeatability: Max. + 0.01mm
Display range: -1999999-9999999
Consumption current: Max.500UA (backlight not opened)
Power supply: 3pieces batteries No. 5 (AA)(storage) / DC(for working)
Operating temperature: 0 degrees ℃ -60 degrees ℃
Storage temperature: -10 degrees ℃ -70 degrees ℃

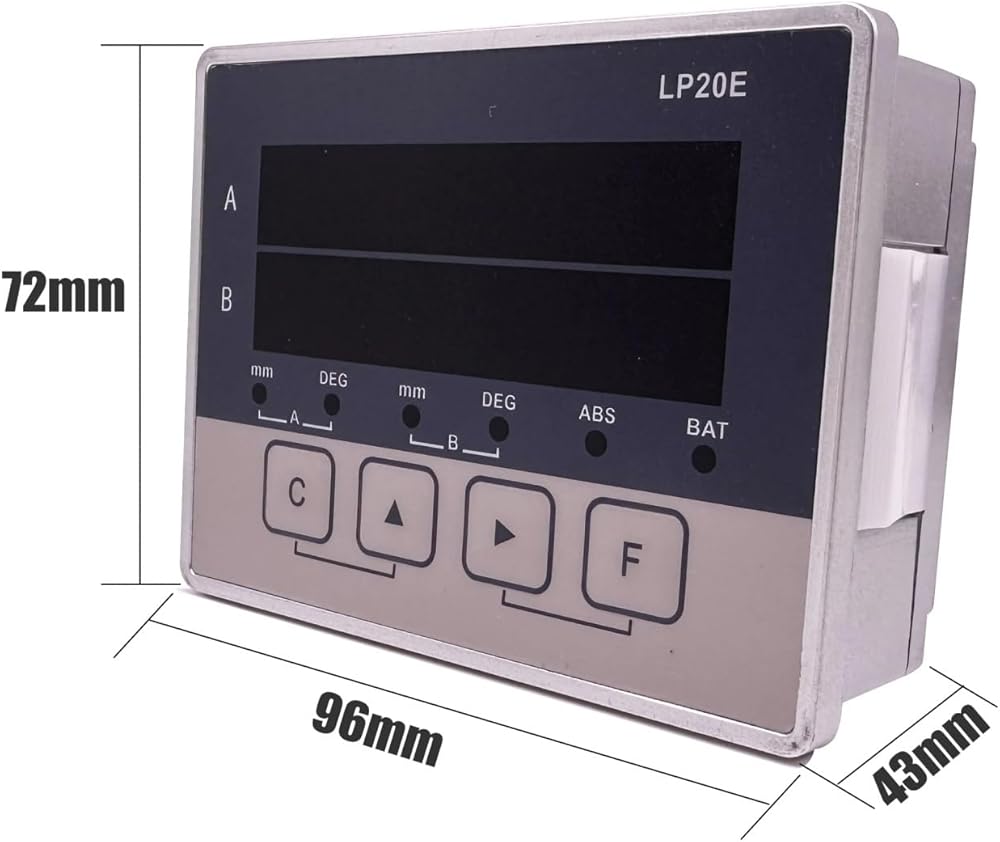

Outline size: 96*72*43mm
Read line length: 1m (2M 3 5M 6M customized).
e speed: Max.4m/s
Read gap: Max.2.5mm, recommended 1.5mm
Matching magnetic stripe: TR50
Waterproof grade: digital display IP40, read head IP60
Weight: Max.300g
Magnetic tape: 2 pieces
Basic datasheet
Resolution: 0.01mm /0.1mm / 1mm
Display mode:MM / INCH
Measuring: Length / Angle

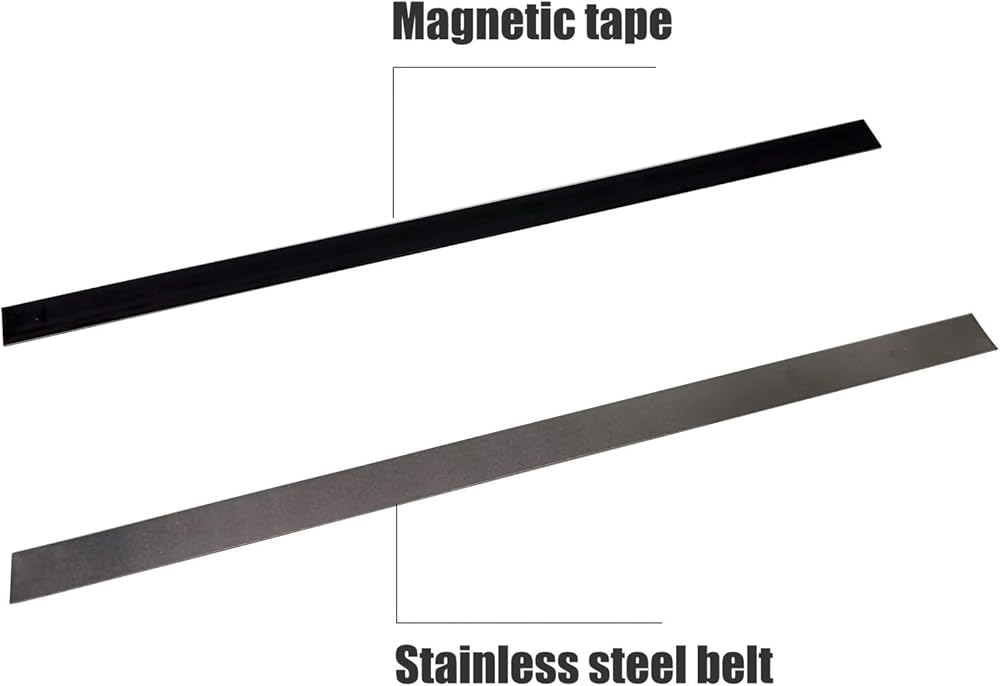

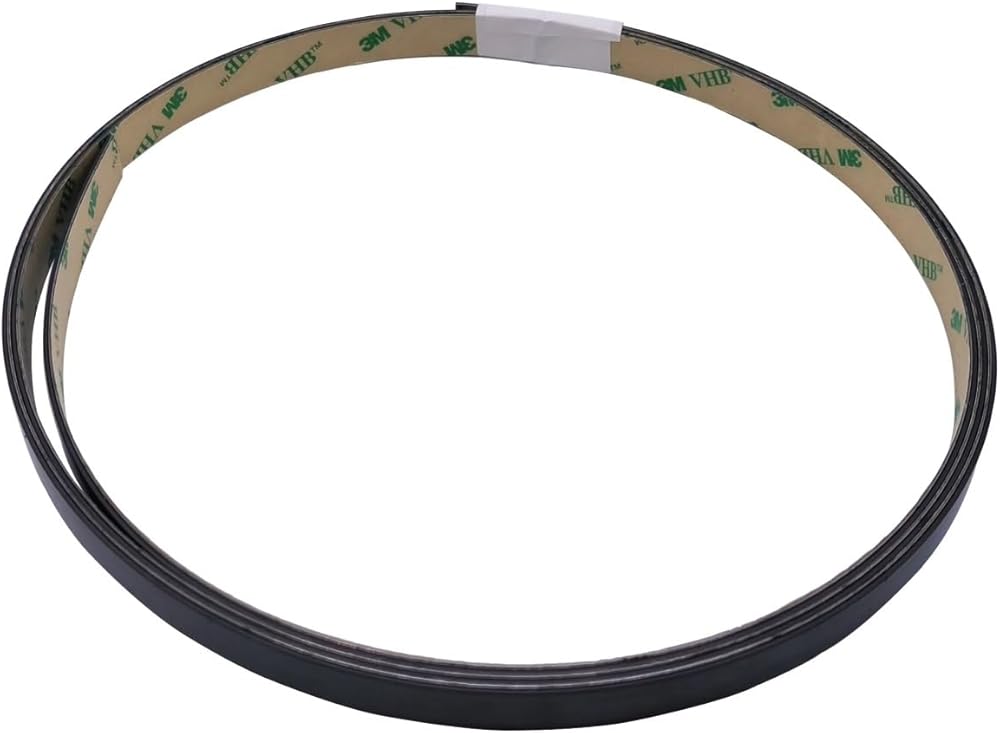

Mageneitc tape specification
Poles Pitch: 5mm/ 5+ 5mm
WidthxHeight:10x1.2mm
Working Temperature: -20- +70°C
Storage Temperature: -30- +80°C
Length: Customized,max 50 meter in a roll
Matched Magnetic Sensor: 5
