Product Description

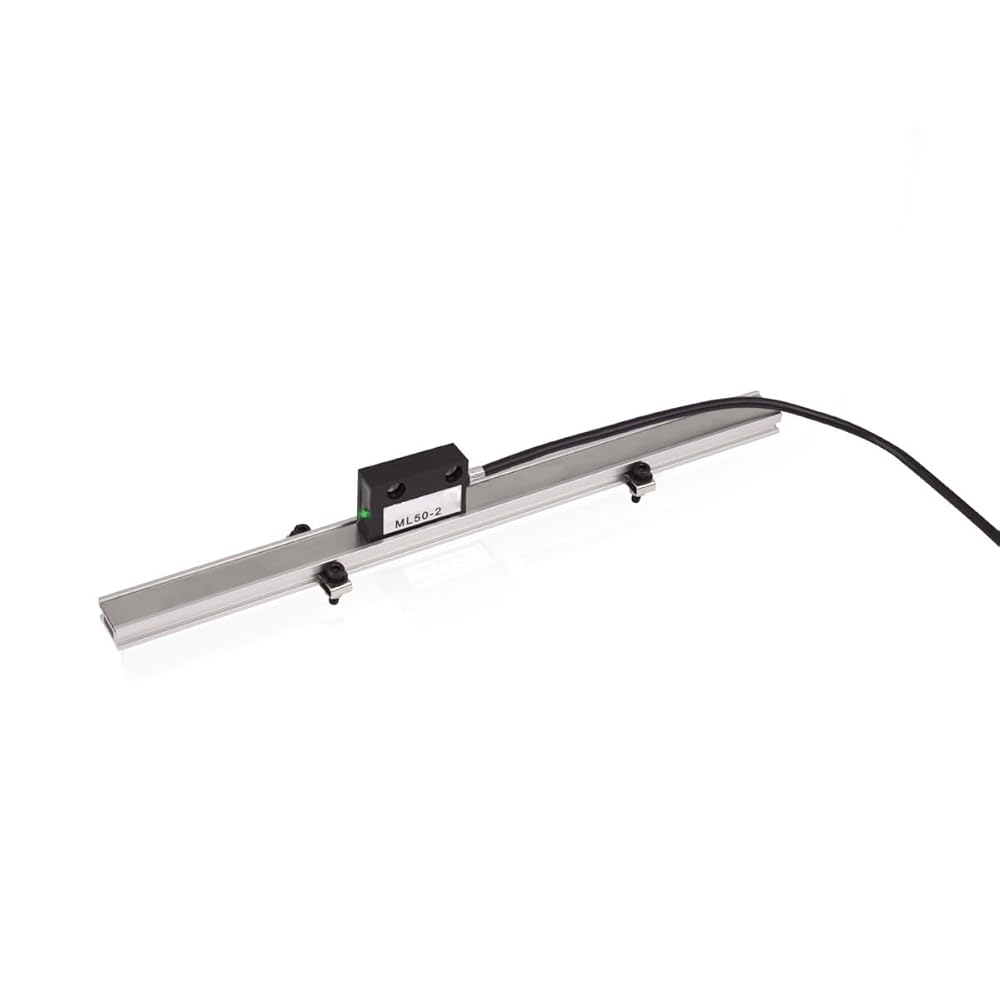

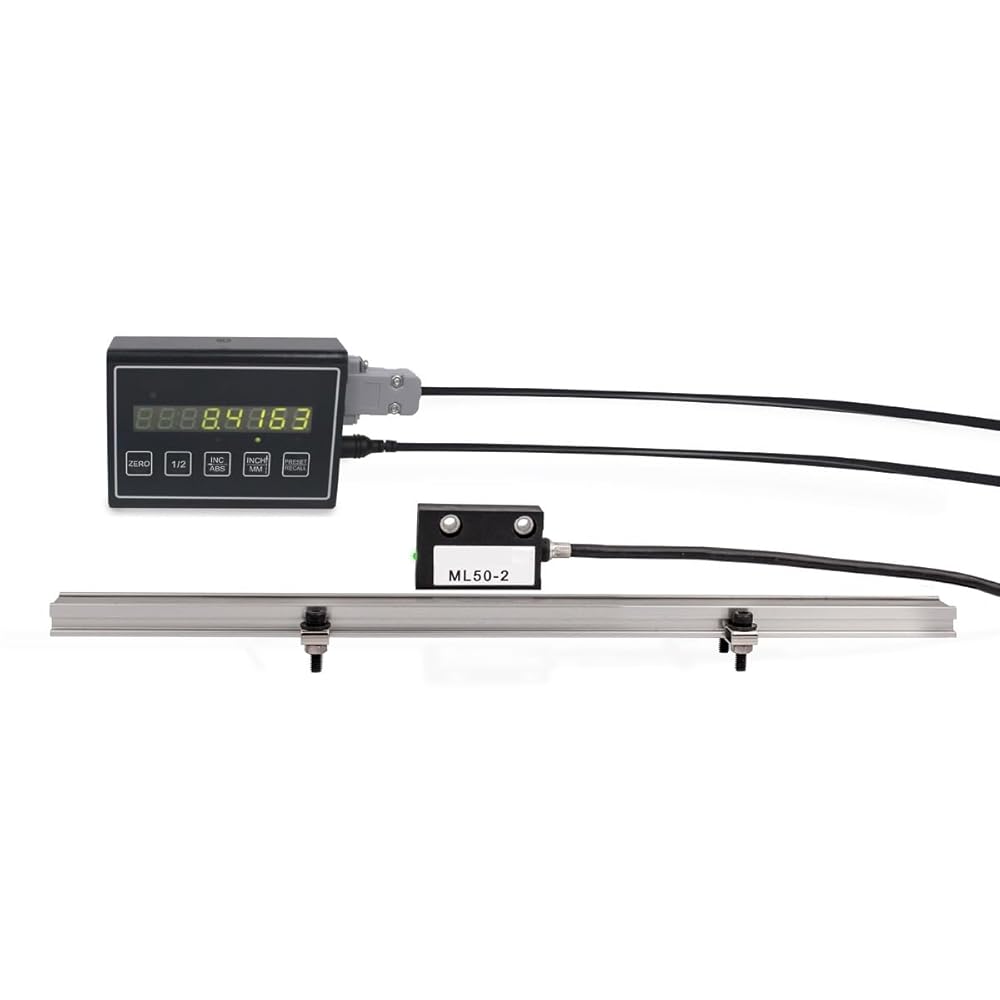

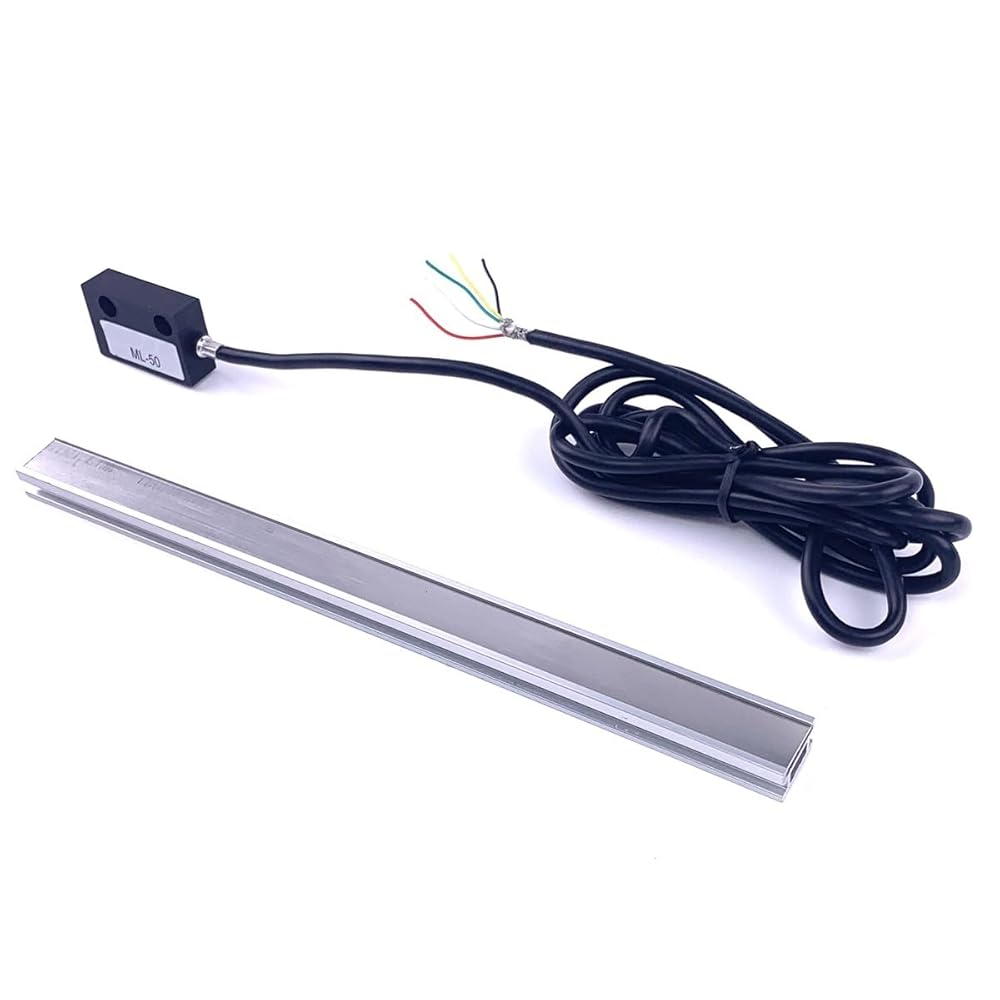

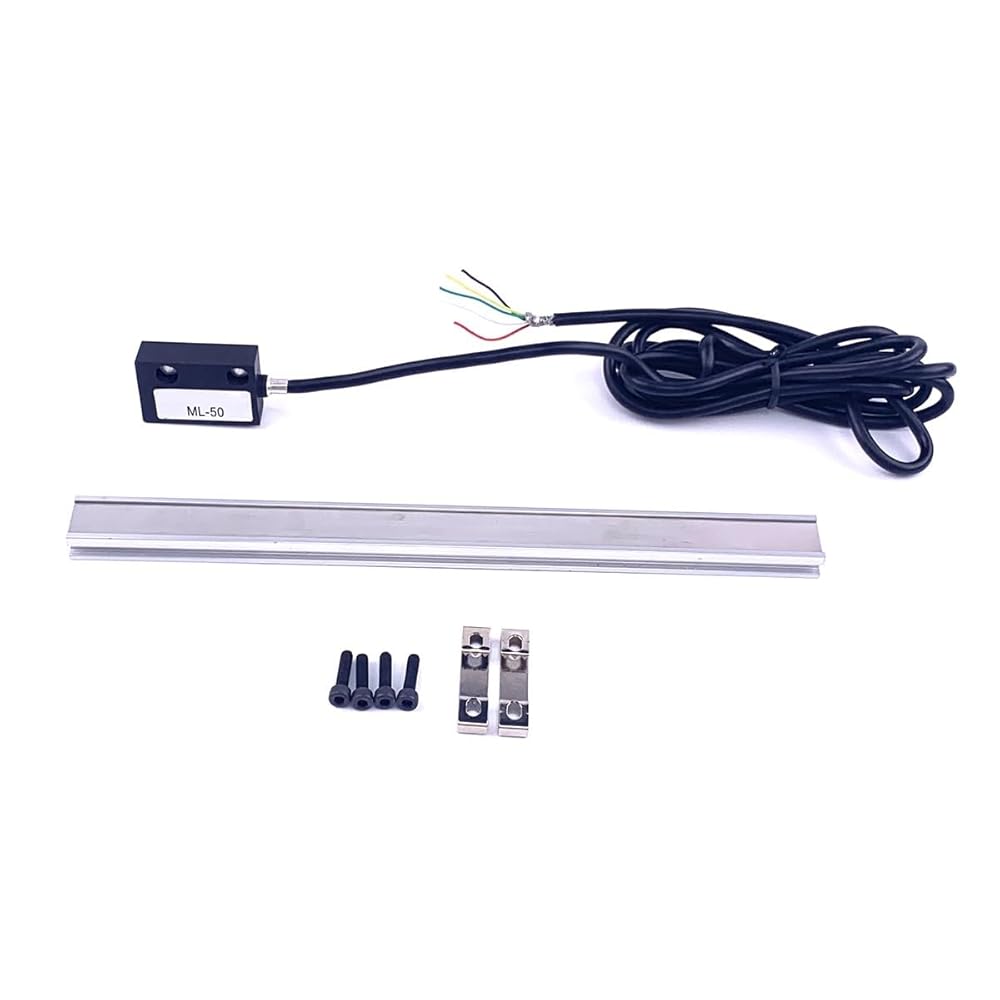

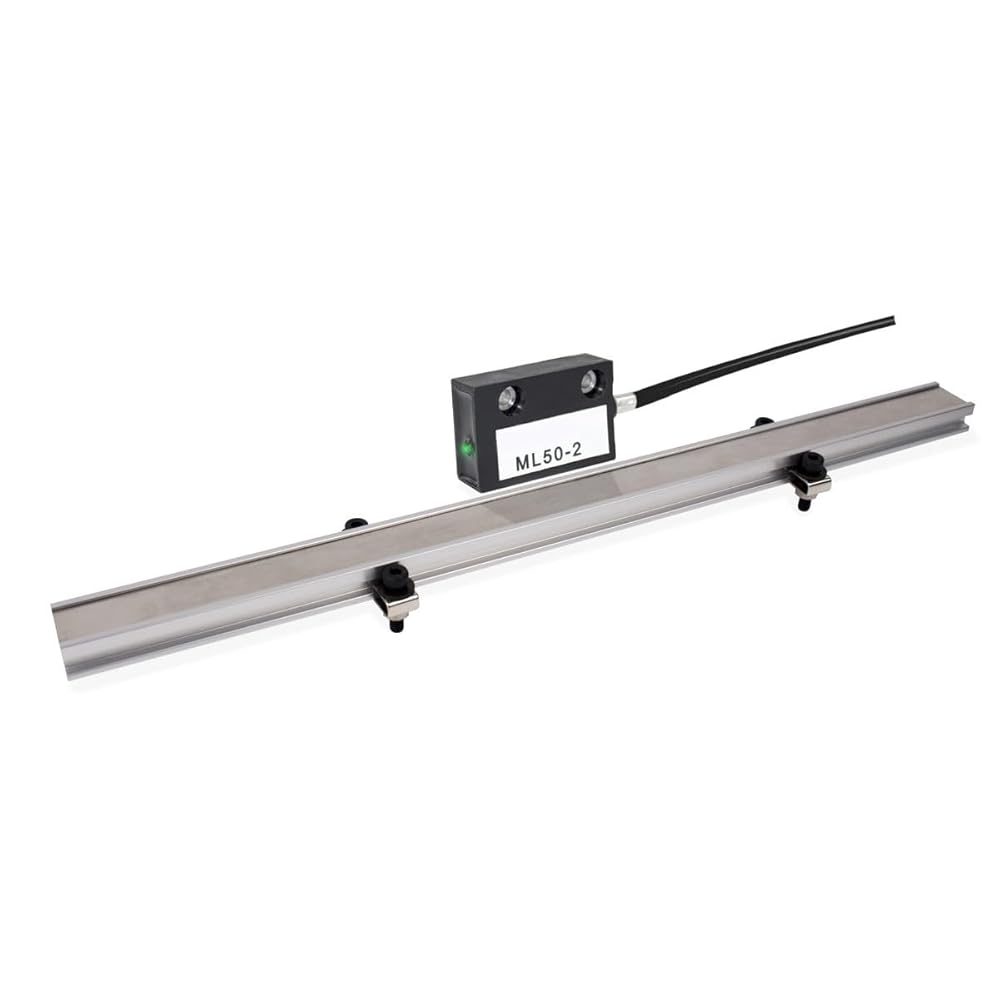

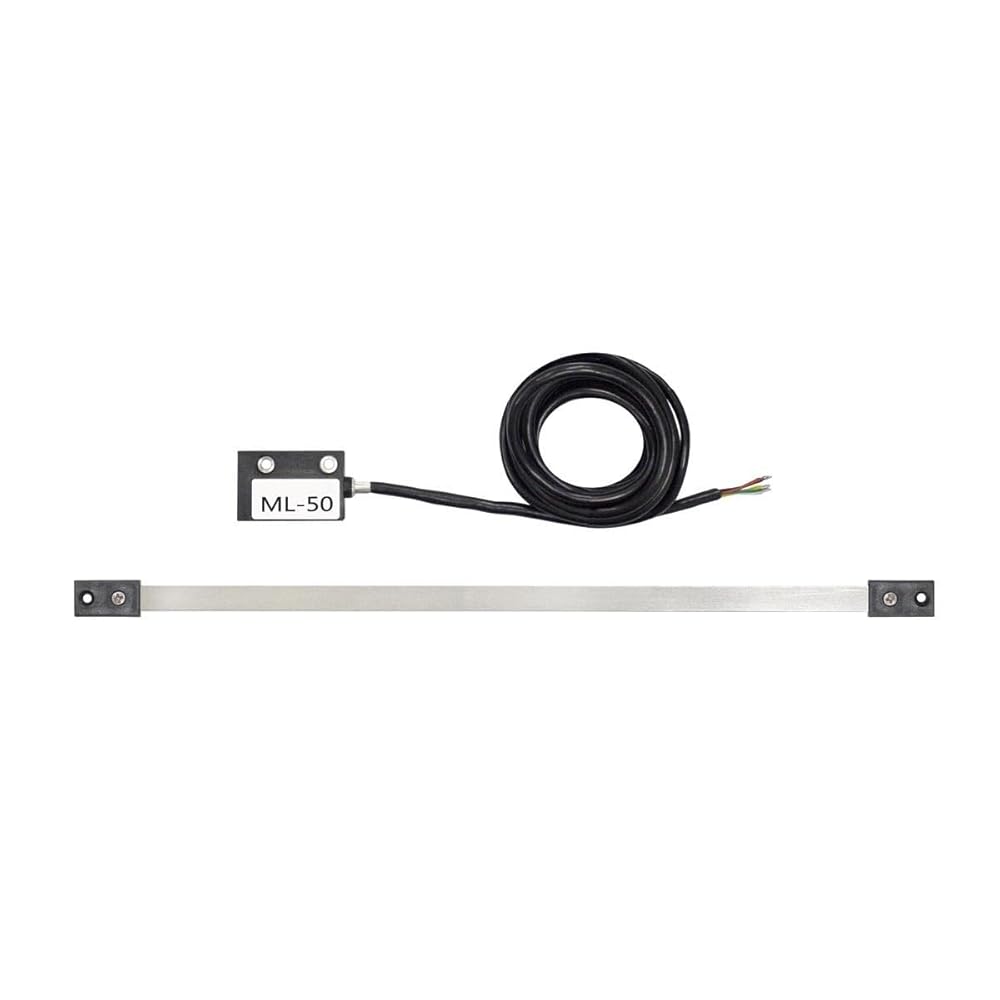

This MR50-2m magnetic read head and MSS50-1000mm magnetic scale kit is a high-precision linear encoder system designed for industrial measurement and automation.
It uses non-contact magnetic induction technology to deliver high-speed position feedback up to 25m/s, with 5μm resolution and ±50μm/m linear accuracy.
The IP68 protection rating ensures strong resistance to oil, dust, and extreme temperatures (-20°C~+85°C), making it suitable for harsh workshop environments.
The easy installation design allows max 2.5mm gap tolerance and ±3° angle adjustment, while the built-in LED indicator provides clear operation status.
Widely used in woodworking, metal cutting, textile, printing, and automation systems, it offers reliable linear position measurement for diverse industrial applications.

Specifications
Product Name: MR50-2m + MSS50-1000mm Magnetic Linear Encoder Kit
Read Head Model: MR50-2m
Magnetic Scale Model: MSS50-1000mm (with aluminum holder)
Resolution: 5μm
Working Voltage: 5~30V DC
Output Signal: A/B/Z
Accuracy (20°C): ±50μm/m
Repeat Accuracy: Max. ±1 resolution unit (unidirectional)
Max. Installation Gap: 2.5mm
Max. Moving Speed: 25m/s
Working Temperature: -20°C ~ +85°C
Core Features: Non-contact measurement, high speed, IP68 protection, easy installation, LED status indicator
Application: Woodworking, metal cutting, textile, printing, packaging, automation systems, cutting equipment
