Product Description

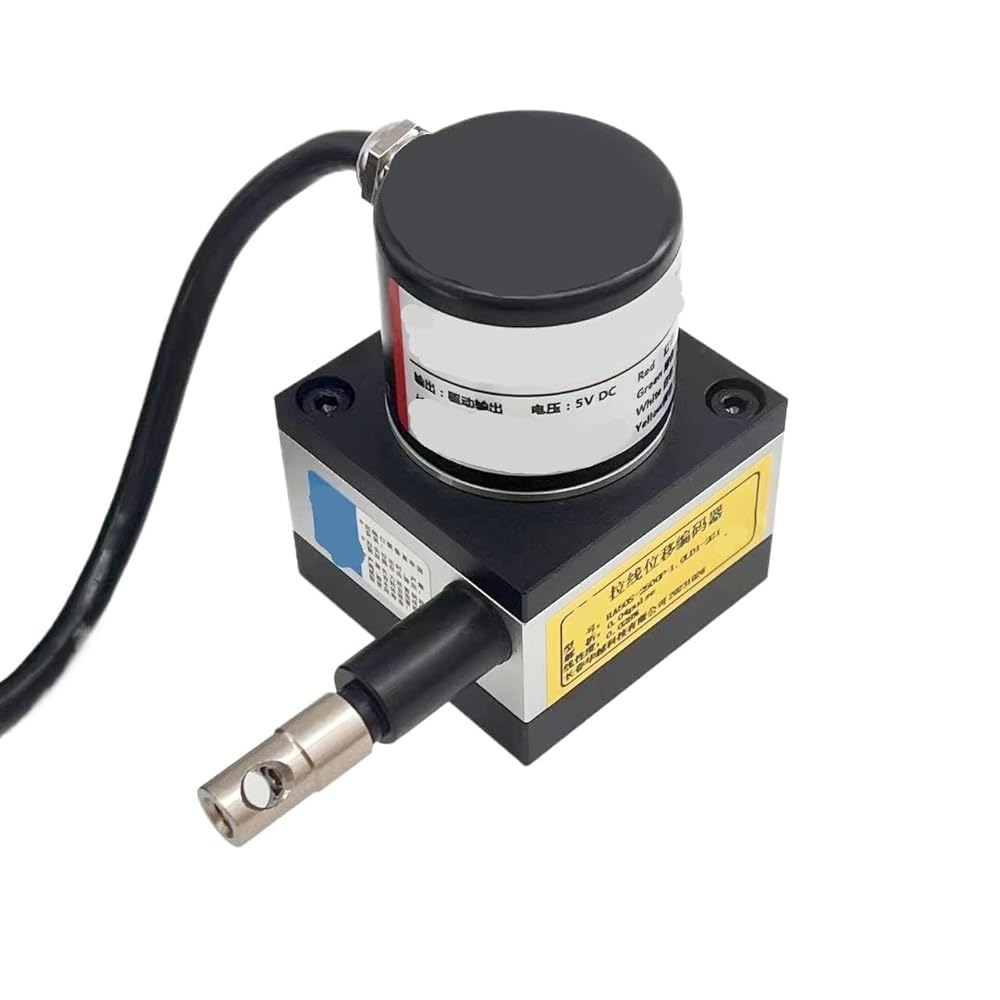

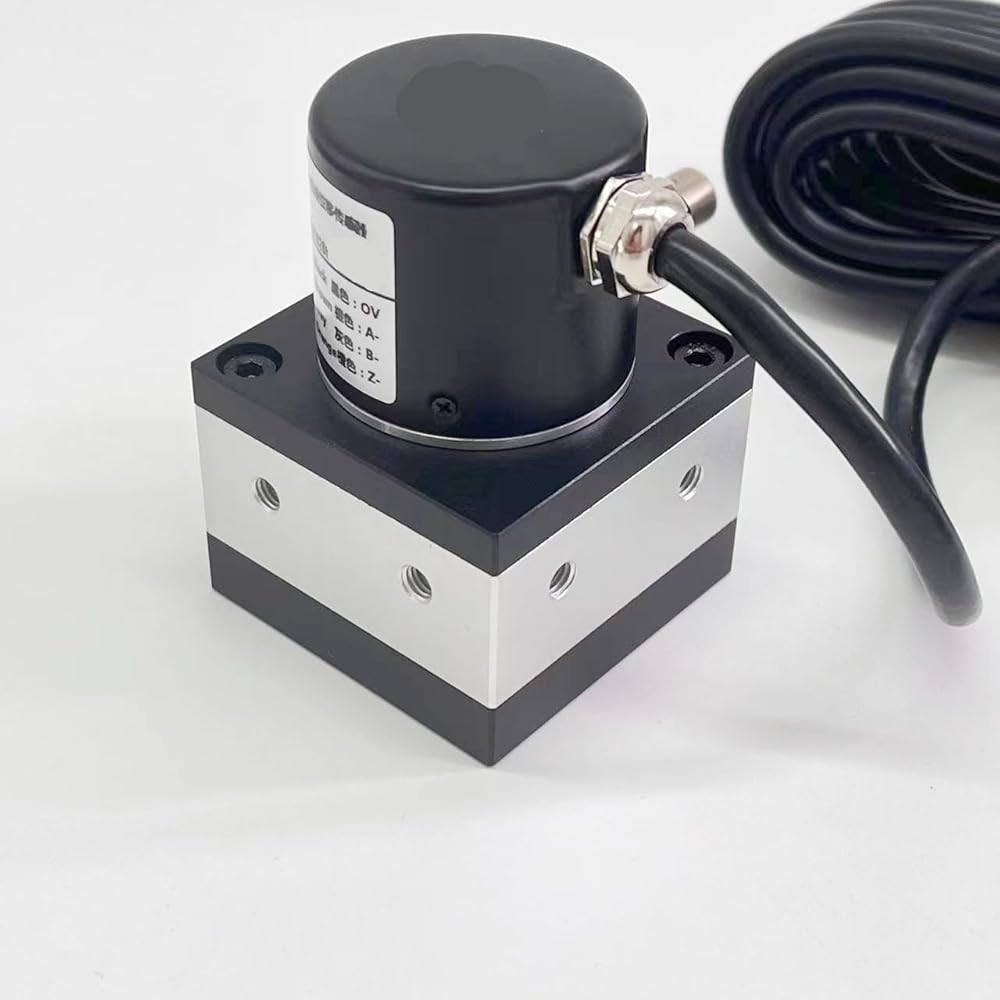

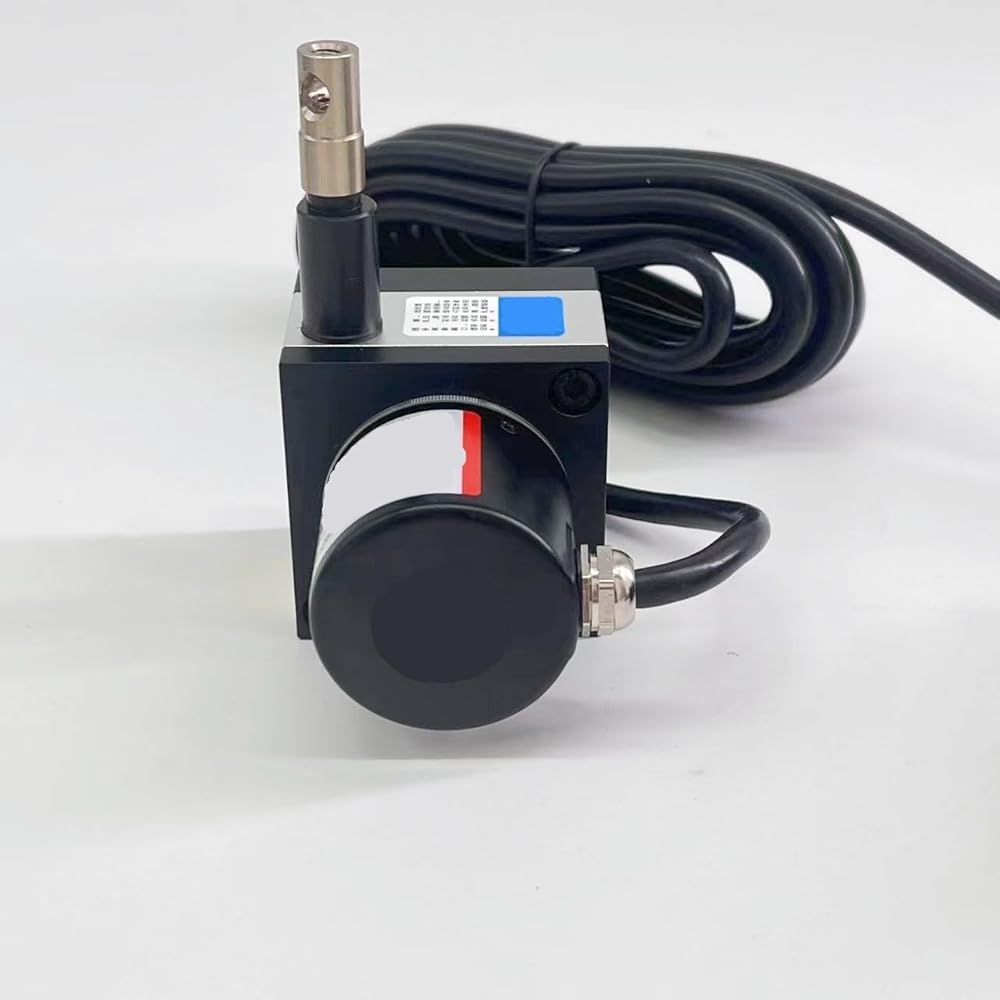

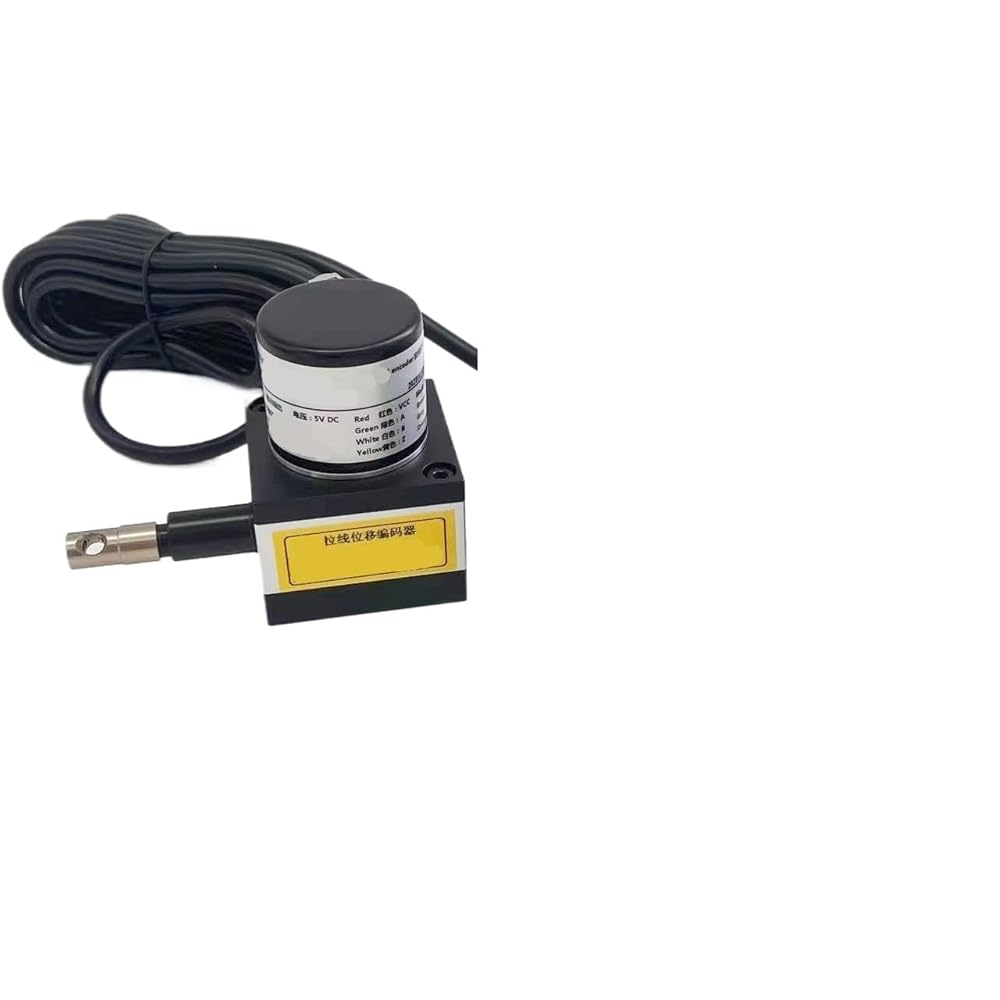

This 1500mm absolute value draw wire encoder is a high-performance linear displacement sensor designed for industrial automation and machinery.
It provides reliable linear position detection with 0-1500mm measuring range, high precision, and stable signal output for long-stroke equipment.
The sensor features a compact structure with aluminum alloy housing, offering excellent resistance to oxidation, high temperature, and impact, adapting to harsh industrial environments.
The high-flex steel wire rope with ceramic interface ensures smooth retraction, no jamming, and long service life, while imported chips deliver stable anti-interference digital pulse signals.
With multiple output modes and easy installation, it is widely used in hydraulic machinery, engineering equipment, and industrial automation control systems.

Specifications
Product Name: 1500mm Draw Wire Displacement Sensor (Absolute Value Encoder)
Measuring Range: 0-1500mm
Linear Accuracy: ±0.1%~0.5% F.S
Resolution: Better than 0.01% F.S
Output Modes: NPN open collector, PNP, push-pull, drive, RS485 (optional)
Cable: 0.6mm high-flex imported steel wire rope with ceramic interface
Housing Material: Aluminum alloy (anti-oxidation, high temperature resistant, impact resistant)
Working Environment: Industrial workshop, hydraulic machinery, engineering equipment
Core Features: Absolute value output, high precision, anti-interference, wrong-connection protection, easy installation
