3-Axis High Precision Digital Readout Kit with 3 Linear Scale Encoder, Industrial Grade Display for Milling, Lathe, Grinding & Sawing Machines

SAR 4,702
Brand
ACE4U
Category
Sensors
Weight
4 kg
– 1 +

Special Features

  • 【precise Positioning】Delivers 5μm resolution with ±0.005mm accuracy at 20°C, ensuring reliable measurements for precision milling, lathe, and grinding operations.
  • 【Flexible Axis Configuration】Supports 1/2/3-axis operation, with linear scales available in 50-1000mm lengths to match diverse machining stroke requirements.
  • 【High-speed Signal Processing】Features 100kHz input signal frequency and TTL square wave/EIA-422 compatibility for stable, high-speed data transmission during fast machining.

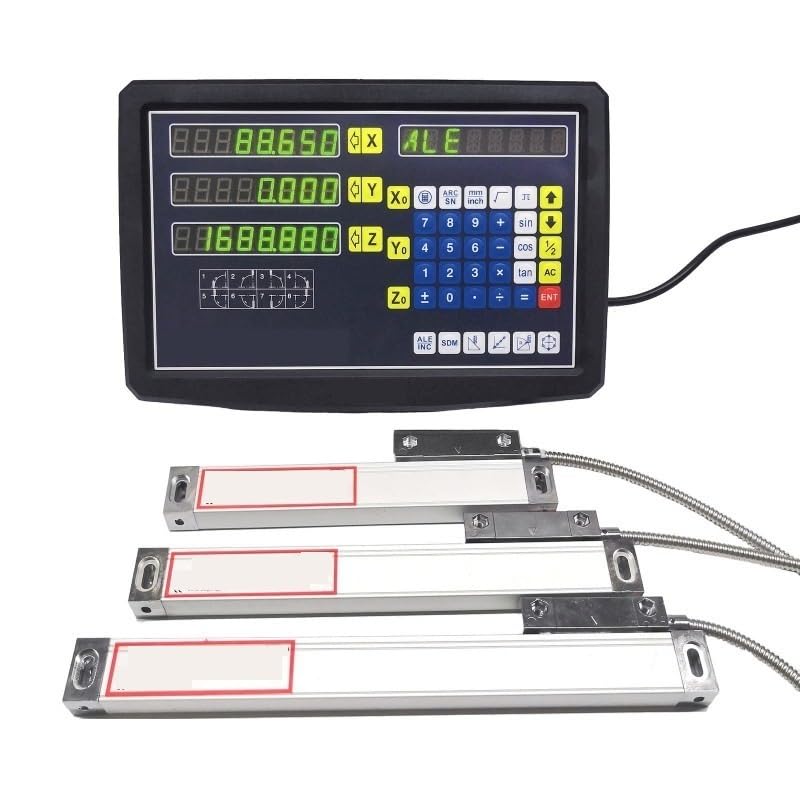

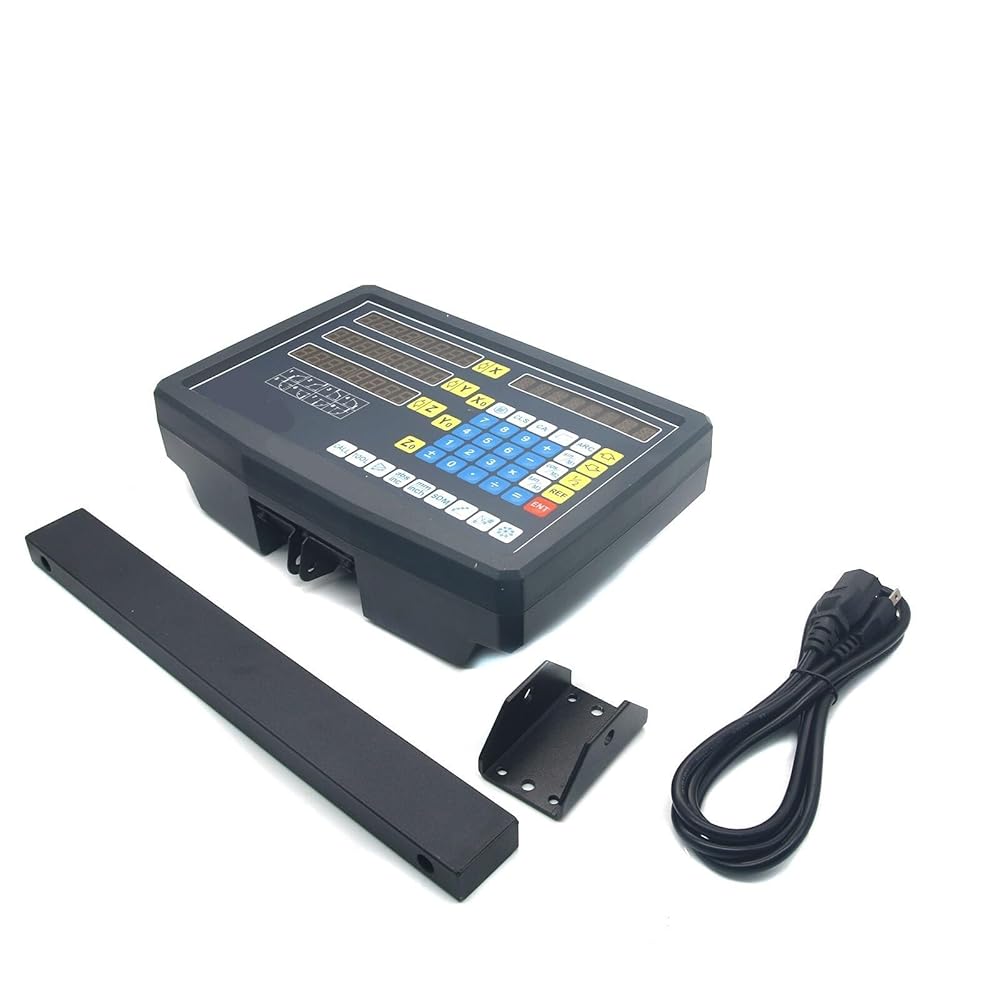

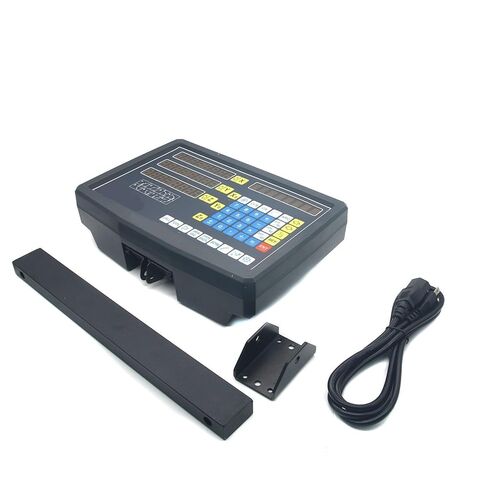

  • 【All-in-one Complete Kit】Includes 3 linear scale encoders and a 3-axis DRO controller with all installation accessories, providing a hassle-free setup solution.
  • 【 & Safe Design】Built with ABS plastic and pressure-sensitive keyboard, weighing 7.5kg for stable performance.
  • Welcome and I wish you a happy life, my friend.

Description

Specifications
Product Name: 3-Axis DRO Kit with Linear Scale Encoders

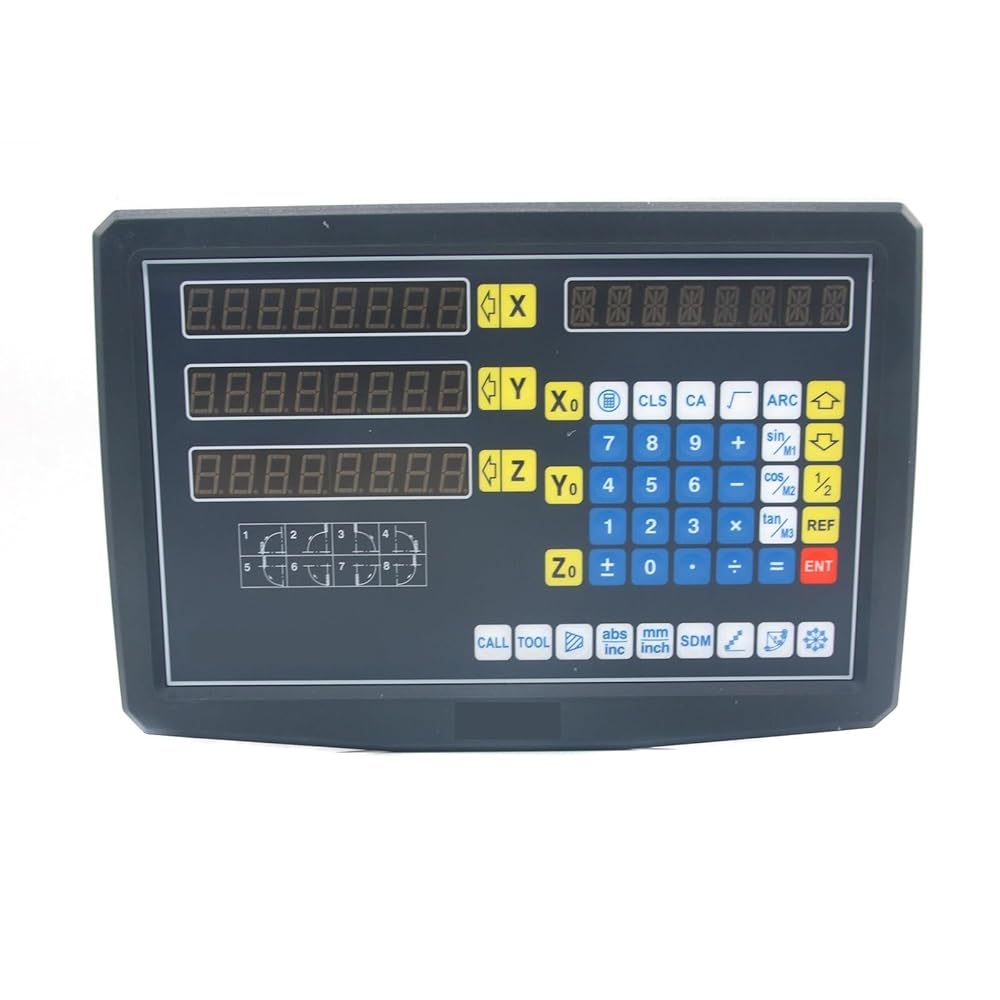

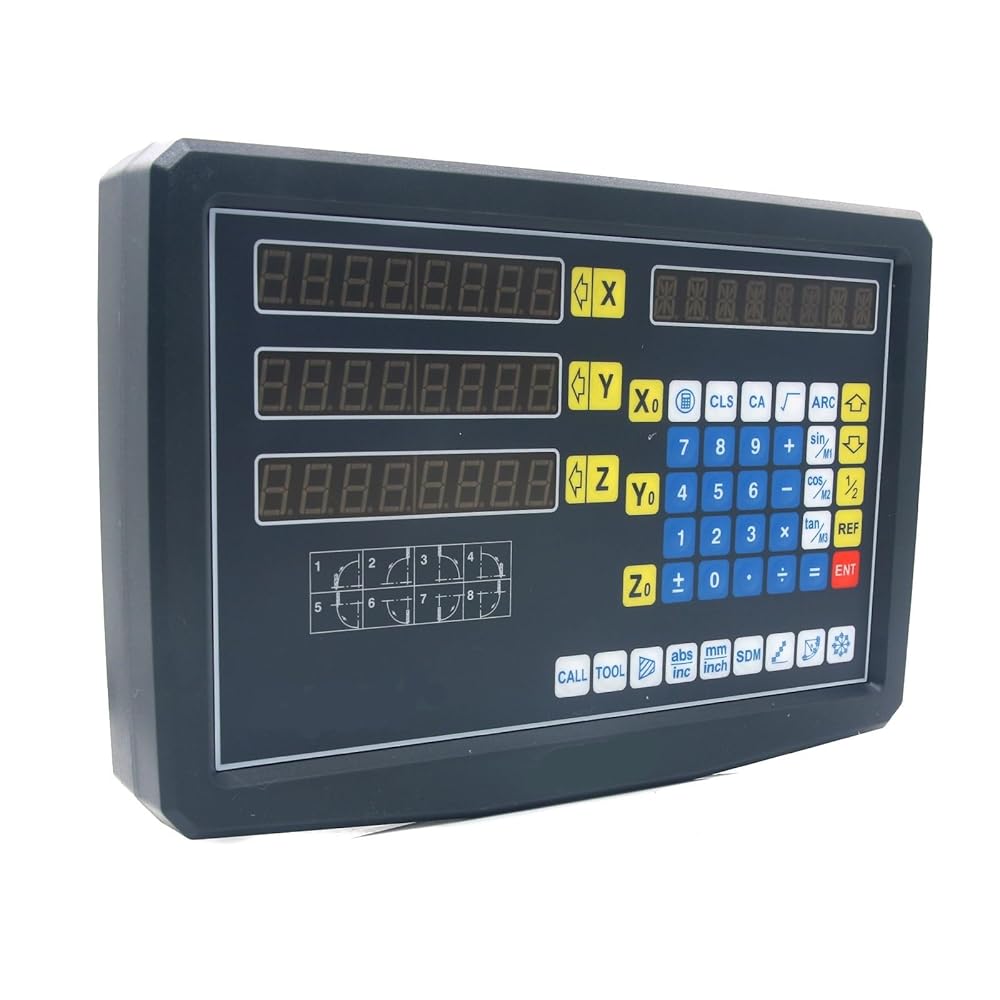

Display: 8-digit digital display
Input Signal: TTL square wave/EIA-422
Input Frequency: 100kHz
Power Consumption: 25VA

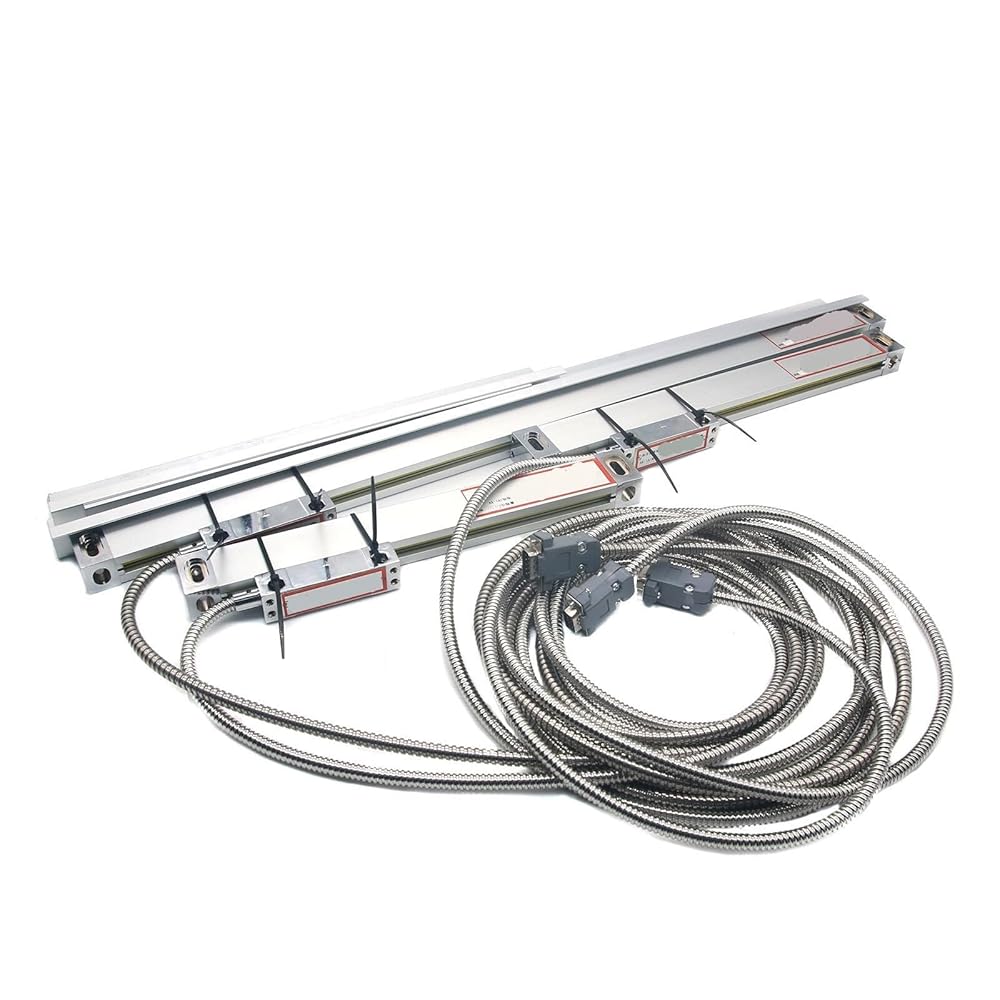

Linear Scale Parameters:
Resolution: 5μm (0.005mm)
Grating Pitch: 0.02mm (50LP/min)
Accuracy: ±0.005mm (at 20°C)
Response Speed: 60m/min (40in/sec)
Cable Length: 3 meters
Scale Length Options: 50-1000mm (selectable)
Application: Milling machines, lathes, grinding machines, sawing machines, industrial precision position detection
