Product Description
This 2-axis digital readout (DRO) kit is a professional industrial measurement solution designed for precision machine tools.
The adjustable resolution (1-50μm) ensures high-precision position detection, while the aluminum alloy shell provides electromagnetic interference protection and efficient heat dissipation.
The large dual-layer 3-M operation panel with 1 million-k buttons delivers a and user-friendly interface for intuitive machine control.
With wide voltage input (AC85-250V) and compatibility with ball grid/ grid sensors, it is an upgrade for milling, lathe, and grinding machines.

Specifications

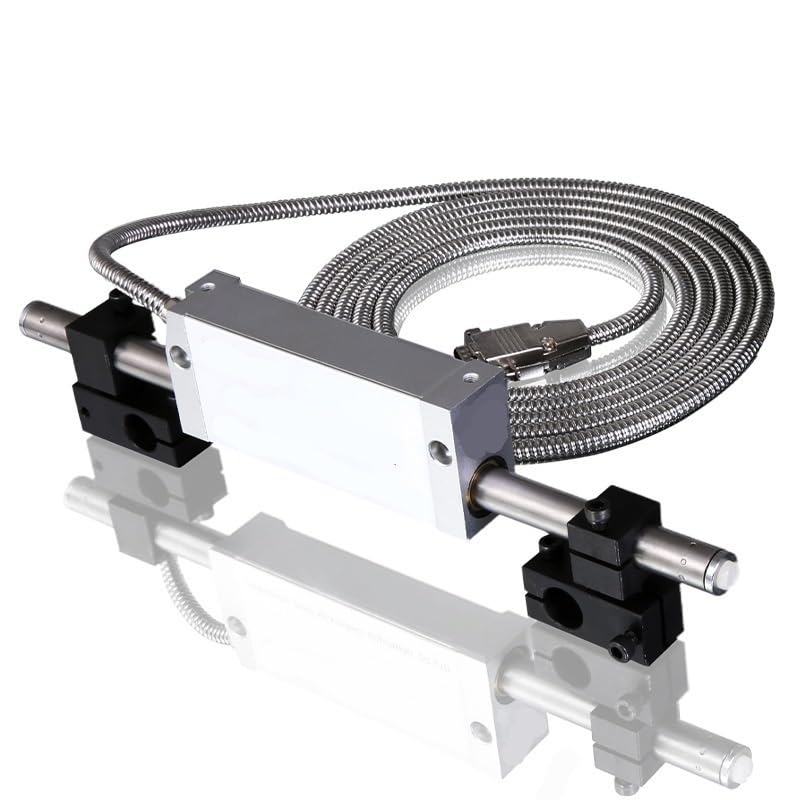

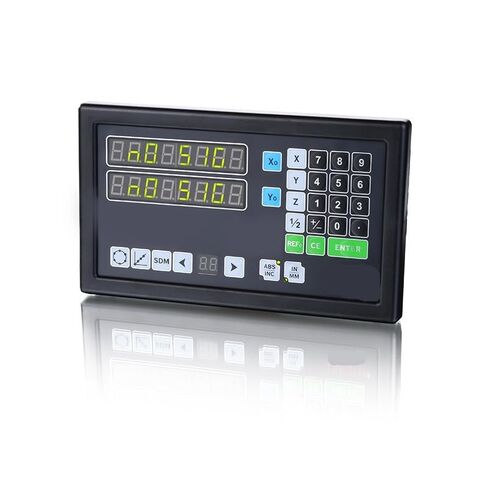

Product Name: 2-Axis Digital Readout (DRO) with Linear Encoder
Axis Count: 2-axis

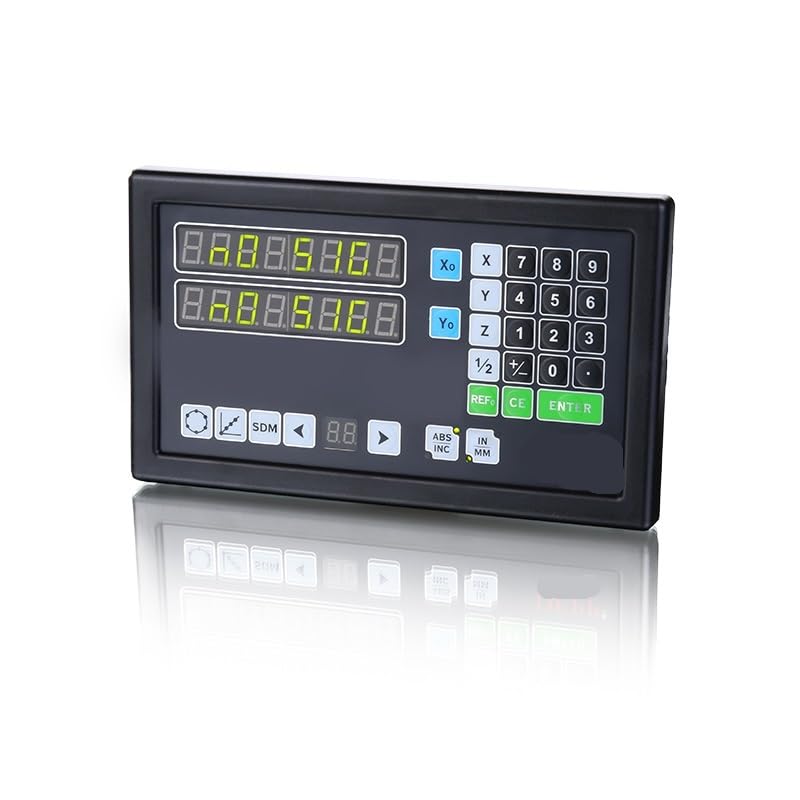

Display: Large dual-layer 3-M operation panel
Resolution Options: Ball grid: 5/10/20/50μm; grid: 1/2/5/10μm
Protection Level: IP67 (oil proof, waterproof, iron filings proof)

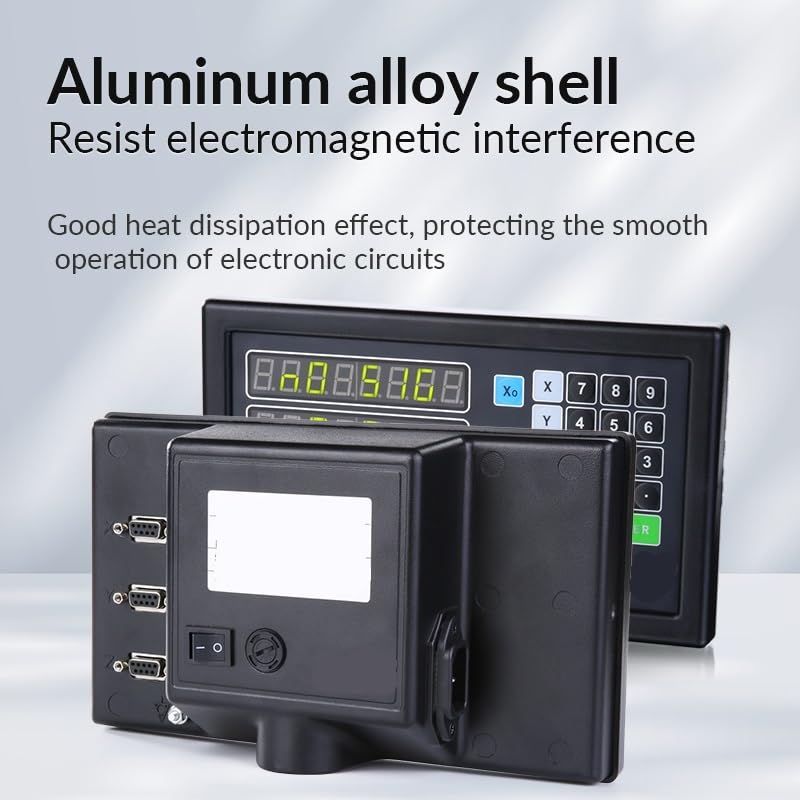

Shell Material: Aluminum alloy (anti-electromagnetic interference, good heat dissipation)
Input Voltage: AC85-250V 50-60Hz
Power Consumption: 15W max
Working Temperature: 0~40°C
Storage Temperature: -20~50°C
Size: 240×140×75mm (W×H×D)
Weight: 2.5kg
Interface: DB9 (ball grid scale)
Application: Milling machines, lathes, grinding machines, industrial linear displacement measurement
