Product Description
This 3-axis digital readout (DRO) system is a professional industrial tool designed for precision machining. It features a 7-inch LCD display and adjustable resolution from 0.1μm to 10μm, delivering ultra-accurate position feedback for milling, lathe, grinding, and EDM machines.
With a wide 80-260V voltage range and -10°C to 60°C operating temperature, it adapts to global industrial environments. The plastic casing and mechanical keyboard ensure durability, while the ≤4MHz input signal frequency handles high-speed machining.

Specifications
Product Name: 3-Axis DRO with Linear Scale

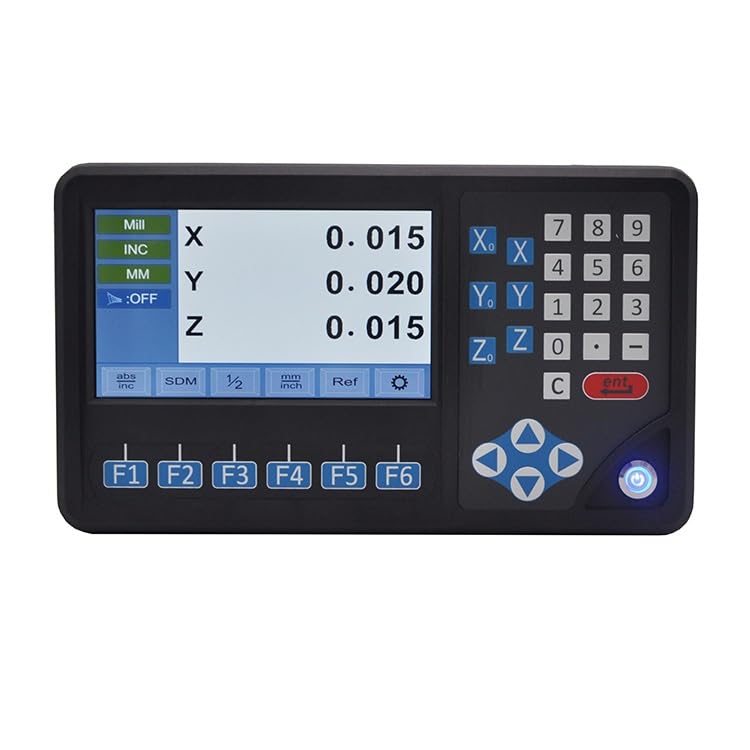

Display: 7-inch super LCD
Axis Input: Up to 3-axis
Resolution: 0.1μm, 0.2μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm (adjustable)
Input Signal Frequency: ≤4MHz
Power Supply: AC 80~260V (50~60Hz)
Power Consumption: 15W
Operating Temperature: -10~60°C
Keyboard: Mechanical keyboard
Casing Material: Plastic
Application: Milling machines, lathes, grinding machines, EDM machines
