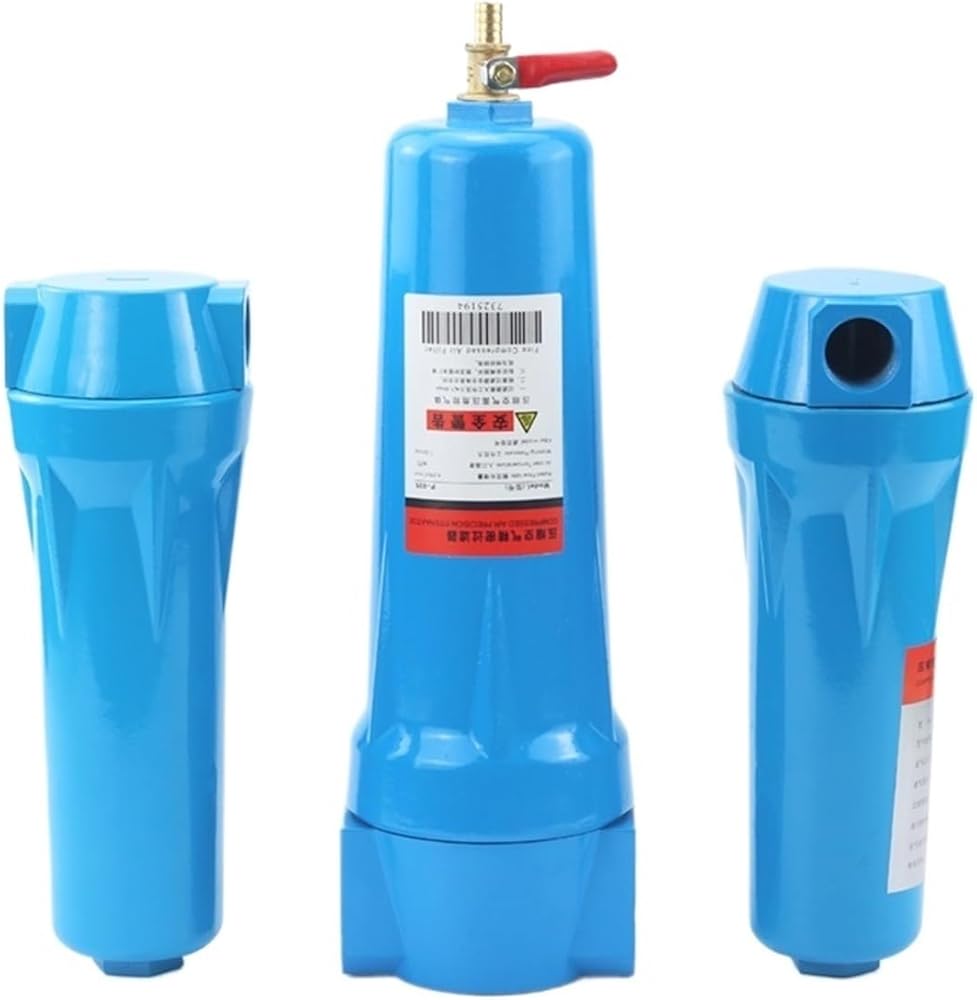

3/4" 1-1/2" Oil Water Separator 015/024/035 Q/P/S/C Compressor Accessories Compressed Air Precision Filter Dryer QPSC
Grade Q represents dust filtering,
grade P represents water mist filtering,
grade s represents oil mist filtering
grade C represents filtering odor
Q- main pipe filters are used to protect the entire system before the air compressor, the rear cooler, or the freeze dryer and other filters. A large number of liquid and more than 3 microns of solid particles can be filtered out to achieve the minimum residual oil content of only 5PPMW/W.
P- air piping filters are removed from the equipment, machinery, motors, cylinders, and a class of ultra high efficiency oil removal filters before or after an adsorption dryer to remove moisture and particles. Can filter out small to 1 micron liquid and solid particles, to achieve the minimum residual oil content is only 0.5PPMW/W
S- ultra high efficiency oil removal filter is usually used upstream of an adsorption dryer or a refrigeration dryer to ensure that the air used in the system is completely oil-free. Can filter out small to 0.01 micron liquid and solid particles, to achieve the minimum residual oil content is only 0.01PPMW/W, equipped with air pipe filters in the upstream to protect P.
C - Activated carbon filter element,mainly used for oil & odor removal
Note this filter is low pressure filter, 10 kg air pressure can be used. More than 10 kilograms of air pressure, must use high pressure filter, otherwise there will be dangerous!
