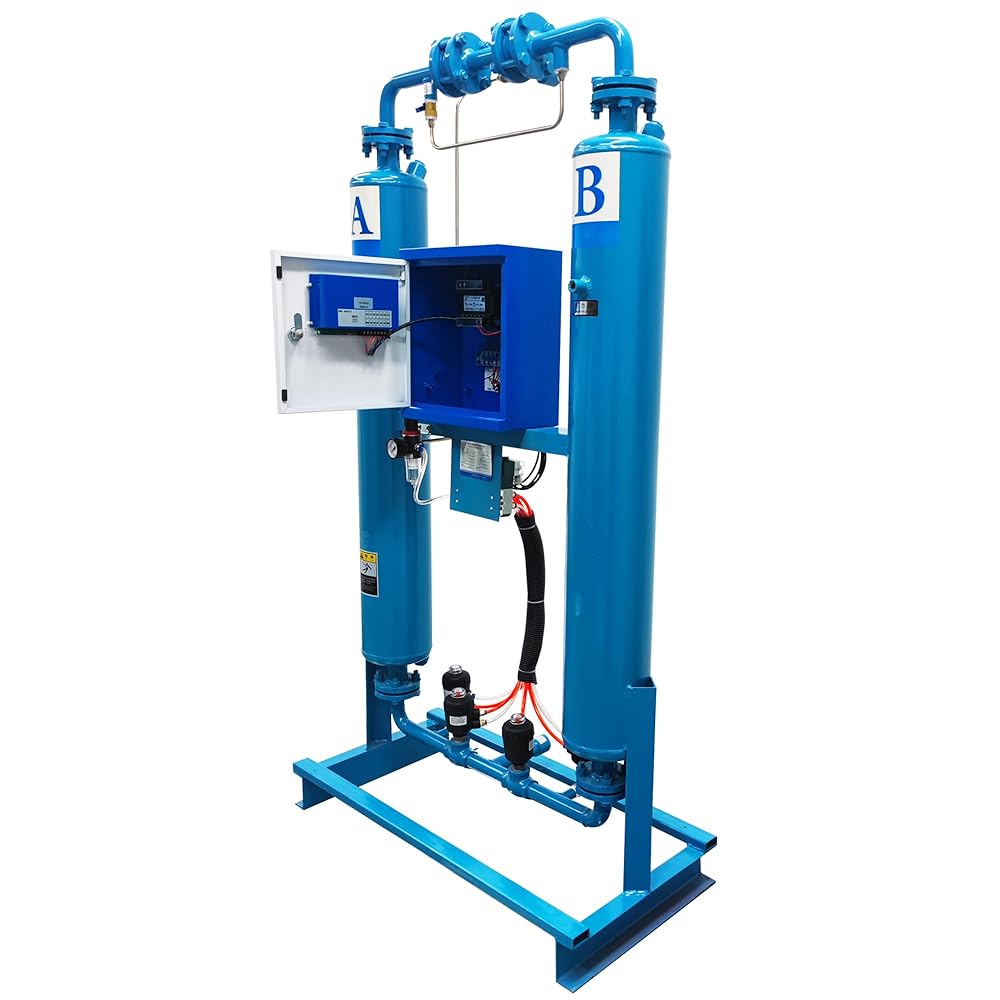

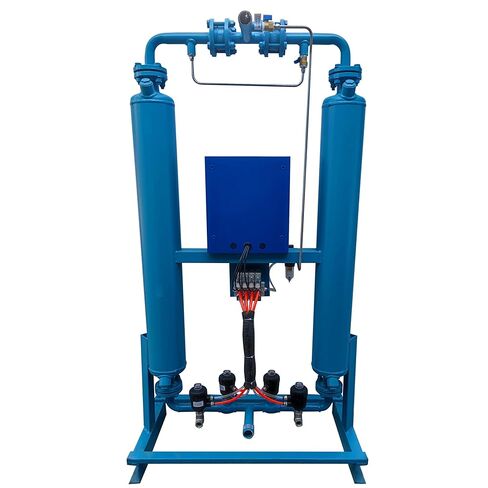

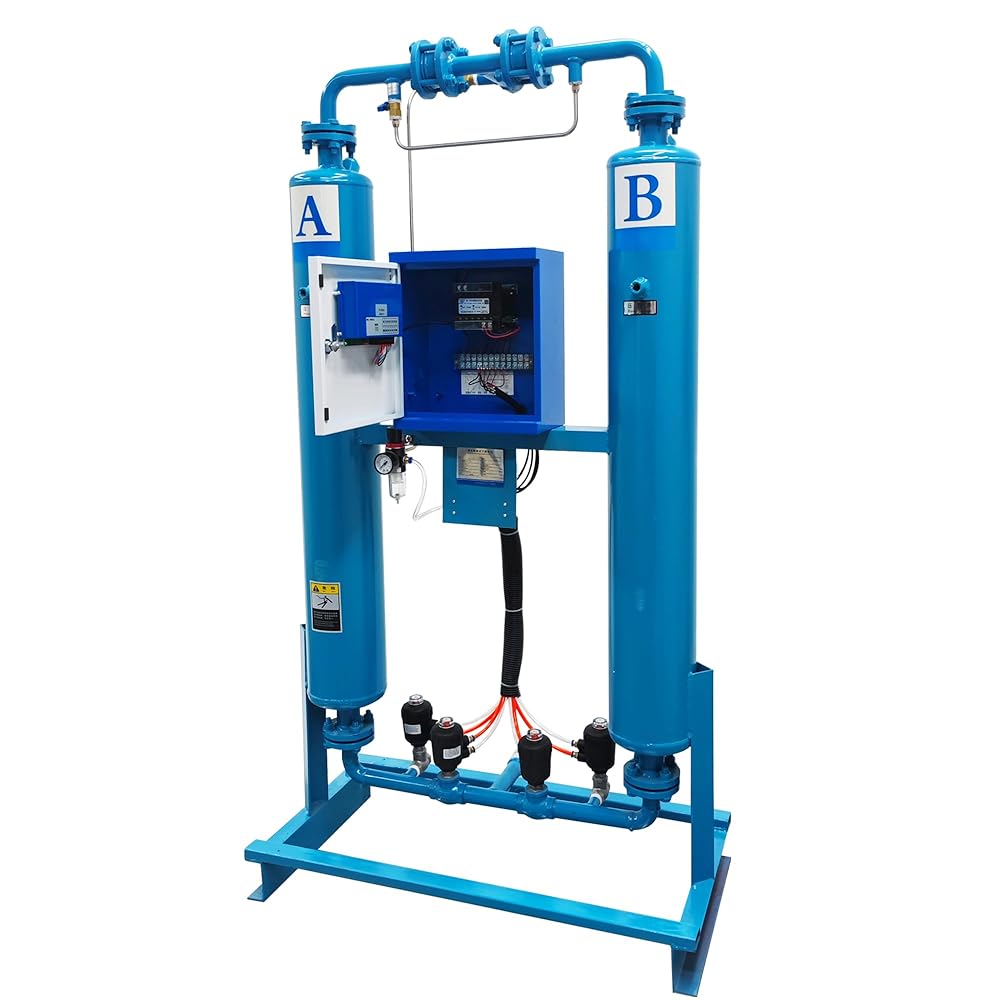

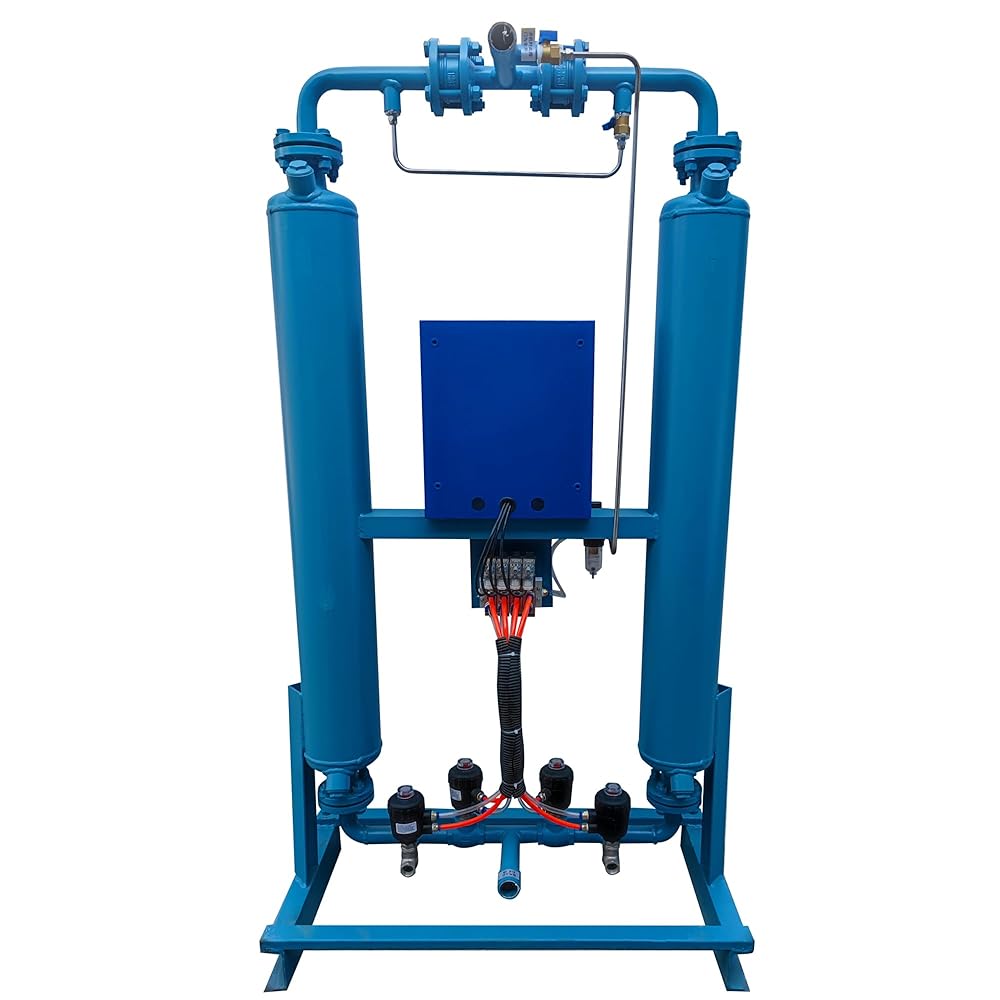

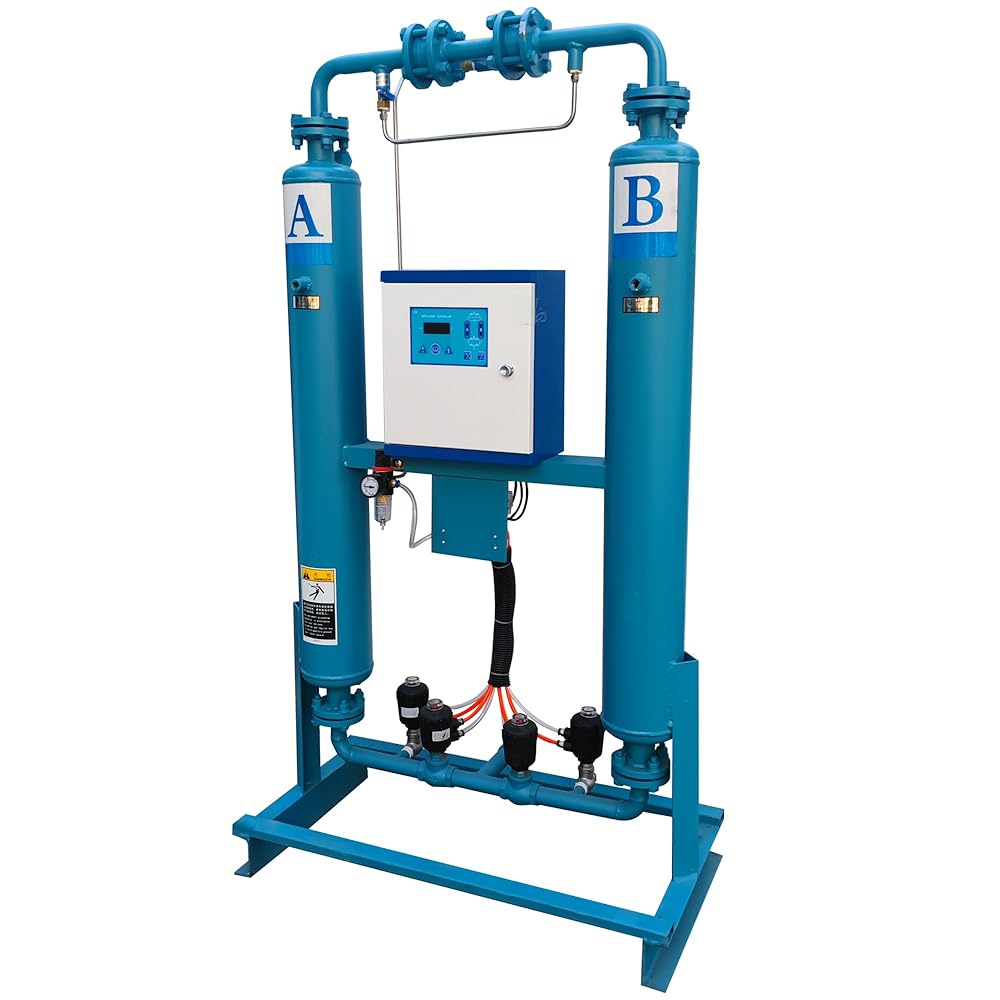

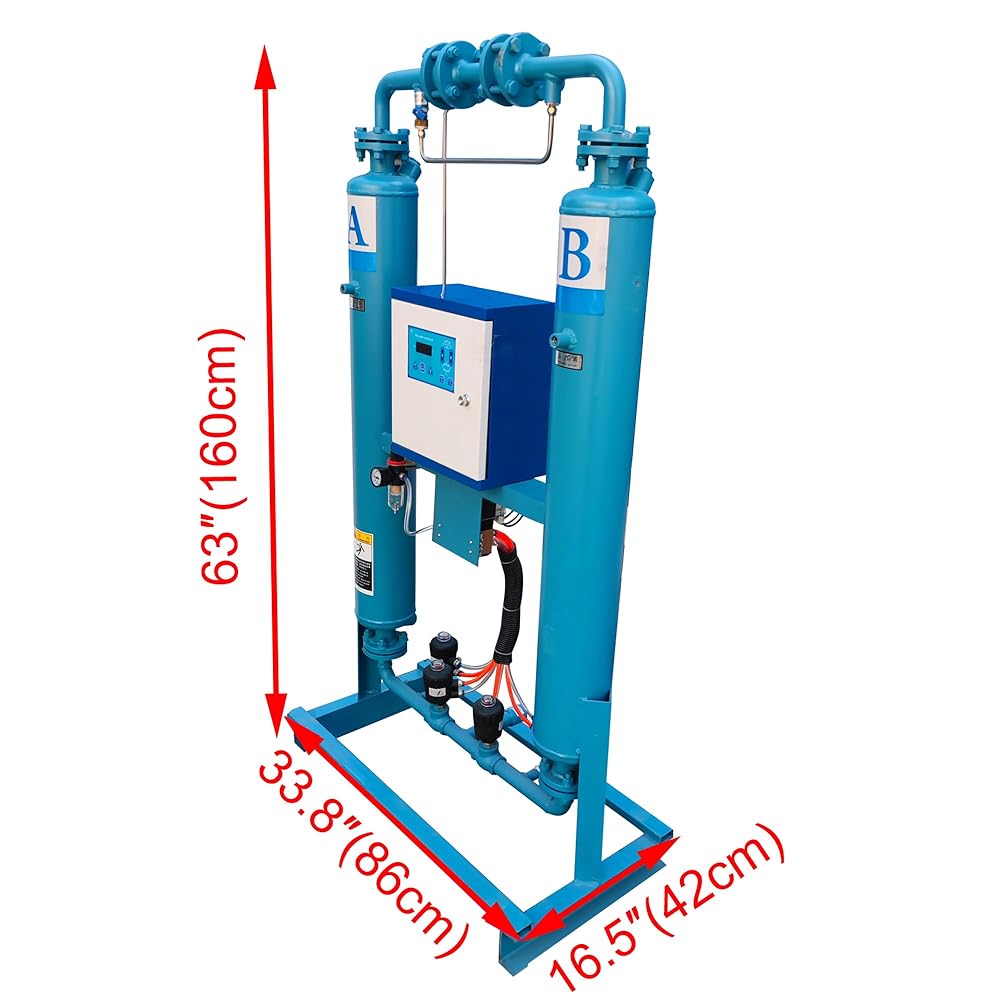

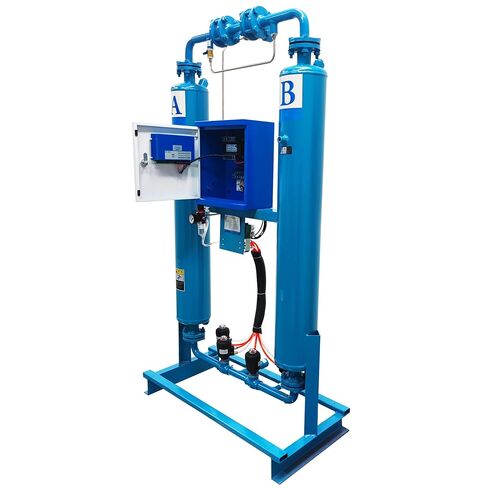

20FW Adsorption Air Dryer Thermal-Free Adsorption Drying System 1.5m³/min Treated Air Volume with 7.5-15KW Air Compressors

SAR 9,878
Brand
HQHAOTWU
Weight
142.9 kg
– 1 +

Special Features

  • [Application]: The Thermal-free adsorption compressed air dryer is used for drying compressed air according to the principle of pressure change adsorption. 3-5mm Aluminium oxide is used as the adsorbent for removing moisture, oil and particle impurities from compressed air.
  • [High Quality]: Adopts thickened high-pressure resistant adsorption cylinder with large capacity design, efficient water removal, which is not easy to be corroded by sand blasting.
  • [Excellent Performance]: The treated air volume is 2.5 m3/min. Adopt high quality nylon hose, which pressure is 1.0MPa (40℃). Mobile pipe connection is more convenient. Good safety and easy maintenance.

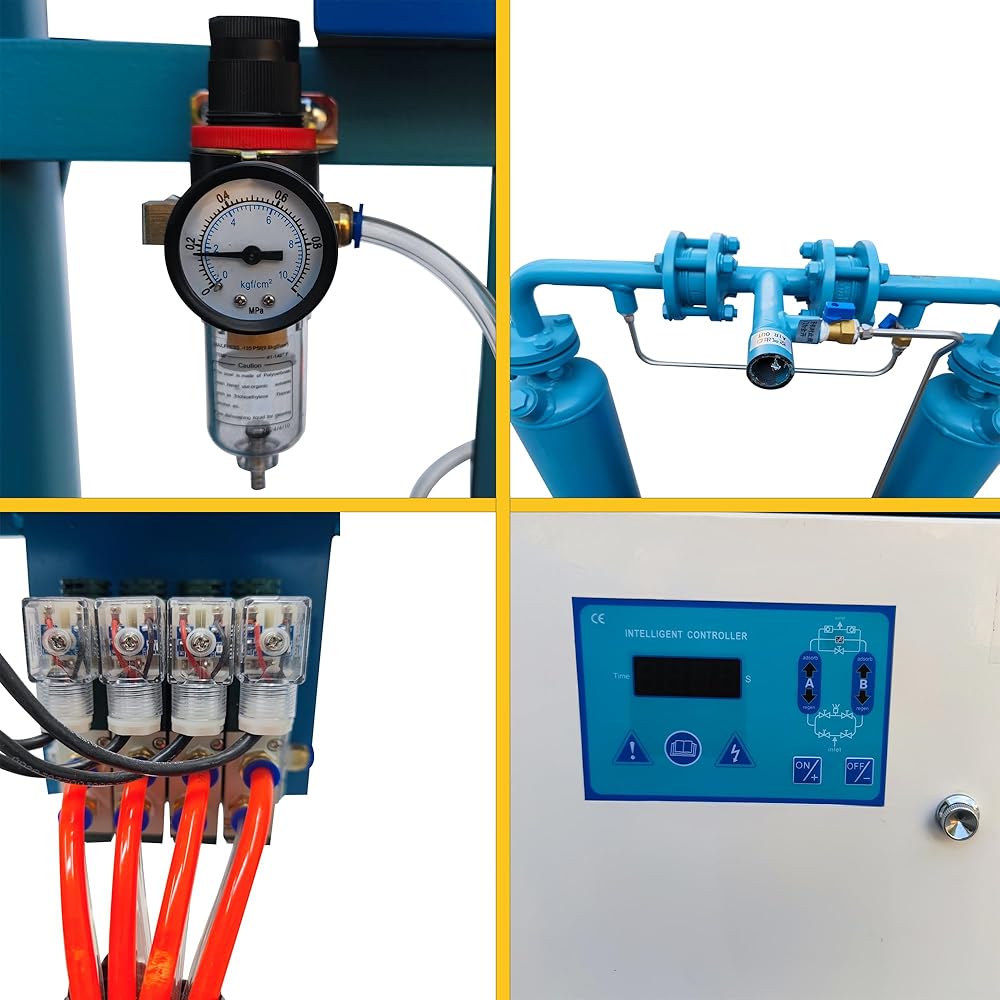

  • [Intelligent Controller]: The air drying process is automatically controlled by the YX intelligent controller using advanced microcomputer technology to improve the air purification efficiency and reduce the power loss.
  • [Attention of Installation]: According to the foundation drawing to install it. Pay attention to the verticality of the cylinder. Need to be fastened and tightened the equipment after a period of use. Connecting inlet and exhaust pipes, filter and efficient oil remover should be as close as possible.non-safe voltage electrical parts shall be effectively grounded to ensure safety. The muffler shall be connected to the outside room.

Description

Product parameter:
Treated air volume: 2.5 m3/min
Inlet and outlet dimensions:1 inch threaded pipe
Bobbin size: 159mm*1080mm
Individual barrel volume: 0.022m³
Power: 100W
No thermal gross weight: 264LBS (120KG)
Adsorbent weight: 88LBS (40KG)
Air consumption: ≈12％
Voltage: 110V
Withstand voltage: 1.0Mpa
Working pressure: 0.4-1.0Mpa
System pressure drop: ≤0.03Mpa
Adsorbent: Aluminium oxide（3-5mm）
Dew point temperature: -20℃ to -40℃
Switching cycle: 300S（adjustable）
Control mode: PLC
Intake temperature: ≤45℃
Intake oil content:≤0.1PPM
Suppressor:2PCS of XY-05
Diffuser: 4PCS of DN25

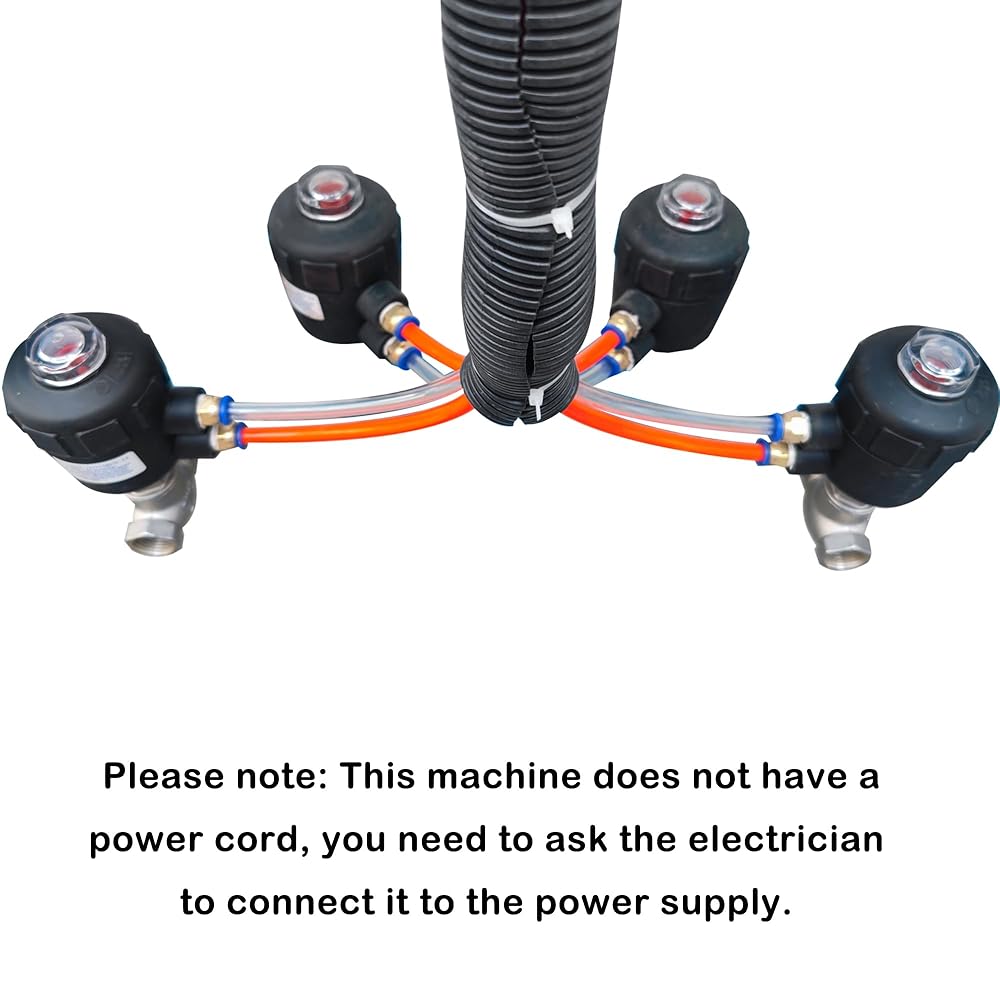

Normally open valve: Pneumatic valve of DN25
Normally closed valve: Pneumatic valve of DN25
