مميزات خاصة

Input Voltage: 12V DC ; Peak Force :1800N Holding Force : 1350N Duty-cycle : 50%; Electric time:Less than 7 minutes ; Thread Size :M8*1.25; Material: Pure Iron
Overall Size :100 x 40 mm /3.9 x 1.6 inch(Dia. *T); Lead Length : 24cm/9. 5 inch
Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
Use PA66GF30 nylon plastic for framework; high temperature resistance

وصف

Feature:

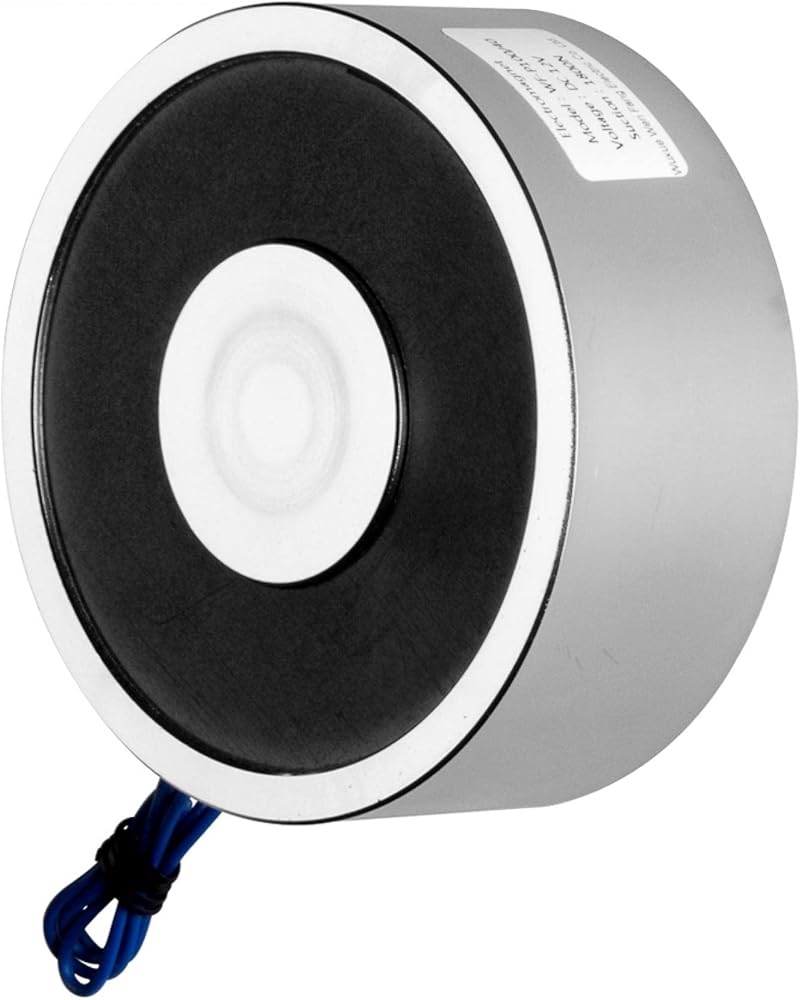

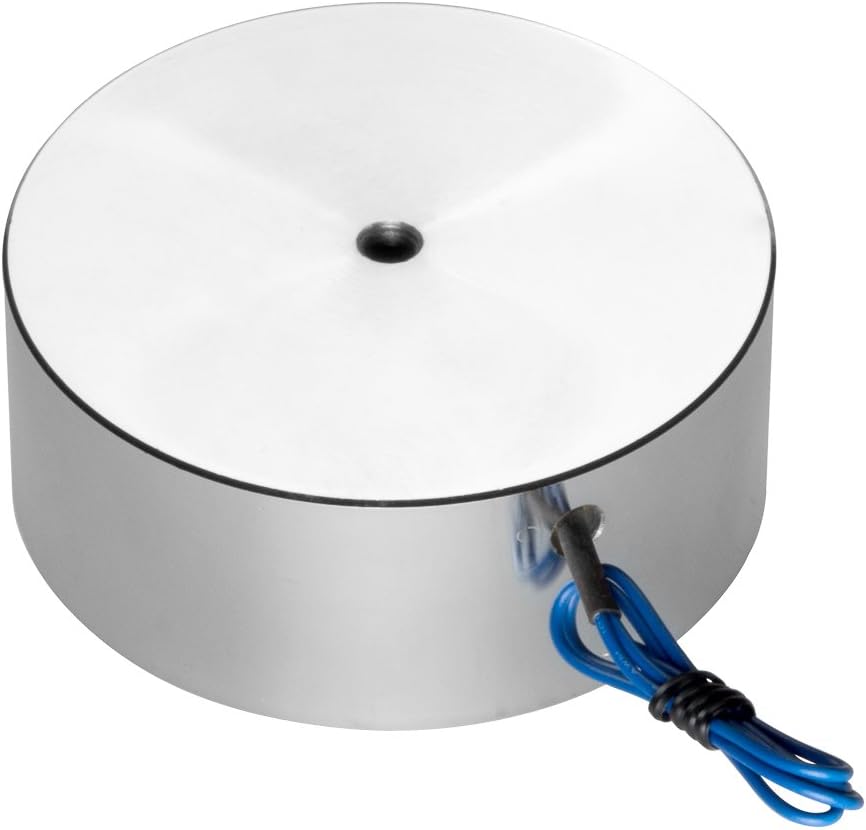

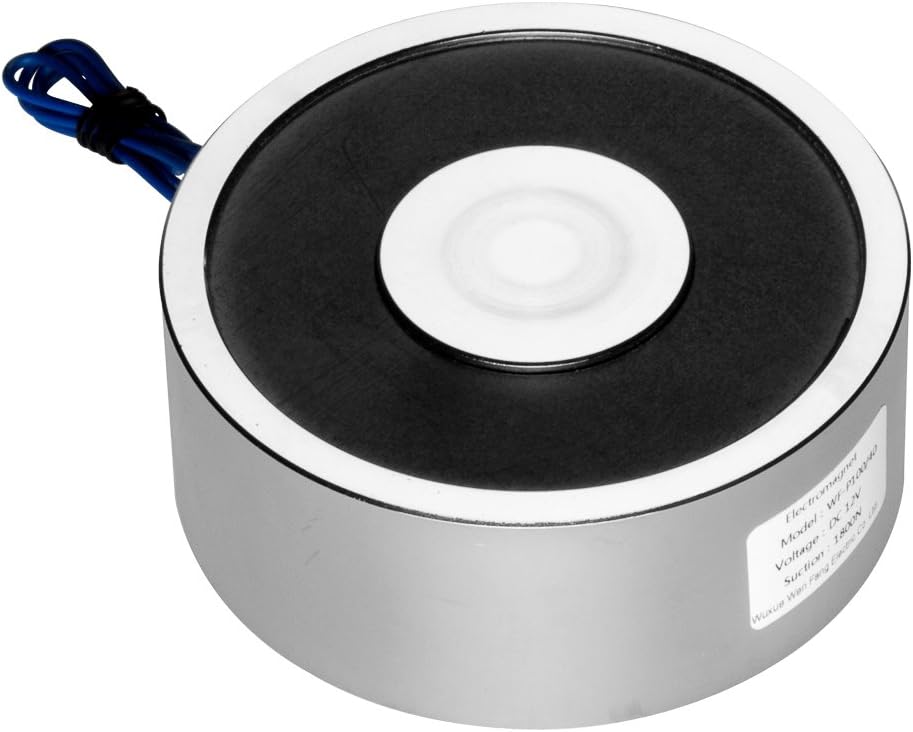

Electric lifting magnet
Powerful and compact
Smooth and flat surface
Low consumption and reliable
Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc
Note:The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.
It is recommended that the actual force is less than 80% of the sucked force on the name plate.

Specification:Material: Metal
Input Voltage: 12V DC
Peak Force :1800N
Holding Force : 1350N
Duty-cycle : 50%;
Electric time:Less than 7 minutes ;
Overall Size :100 x 40 mm /3.9 x 1.6 inch(Dia. *T)
Thread DIA : 8mm

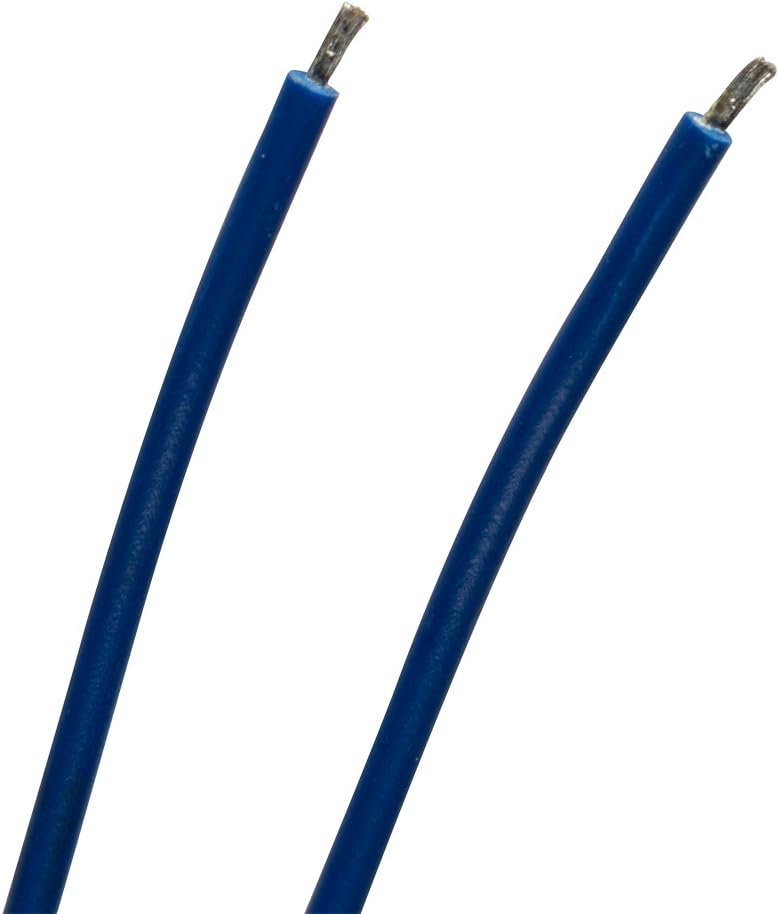

Lead Length : 24cm/9. 5 inch

Package Includes:
1 x Holding Electromagnet
