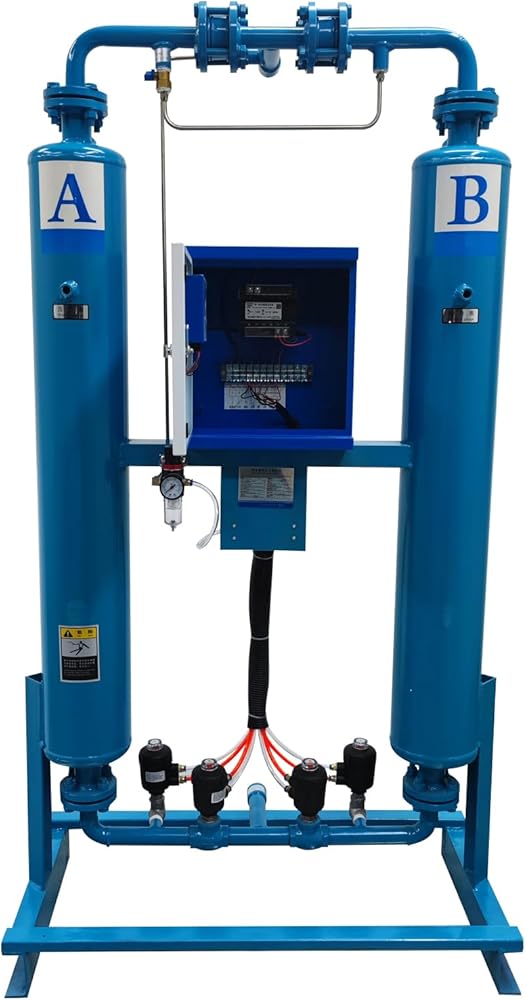

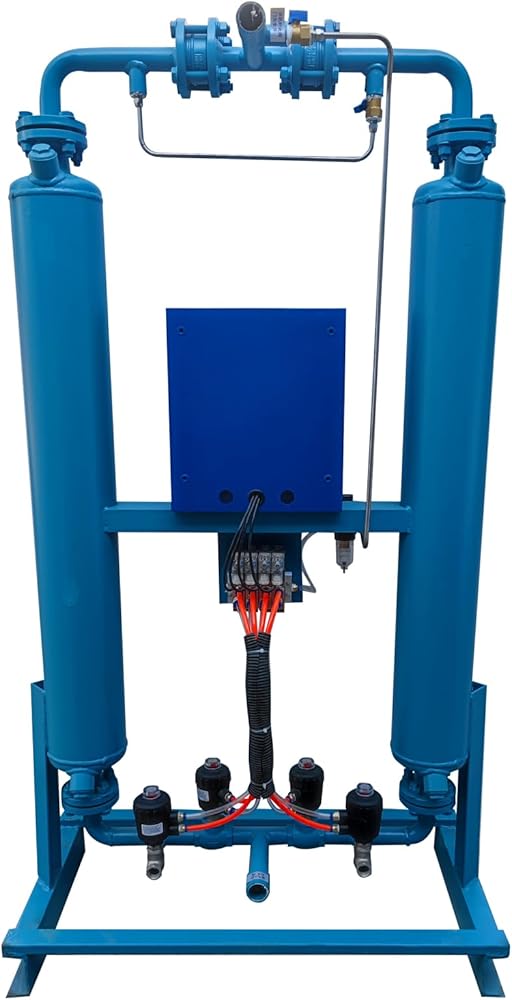

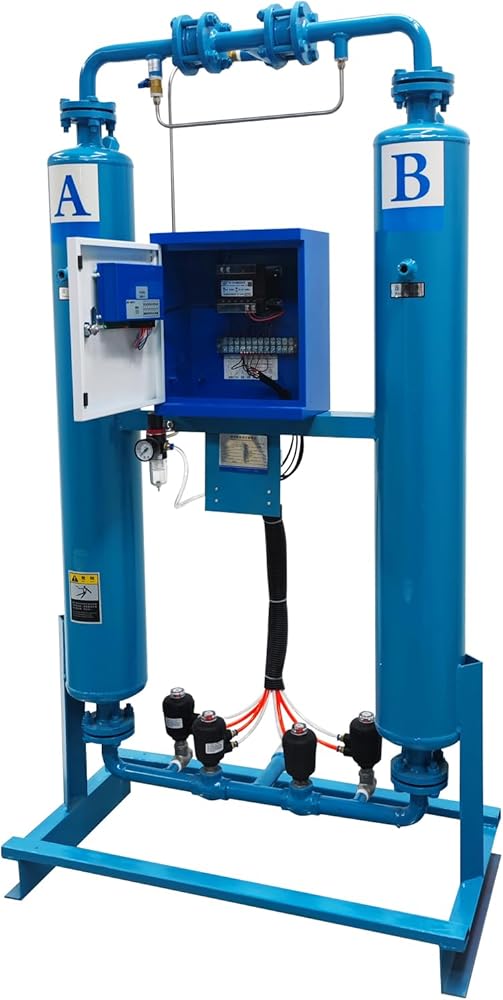

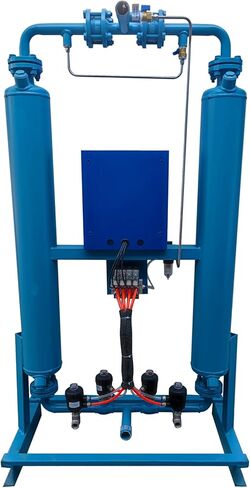

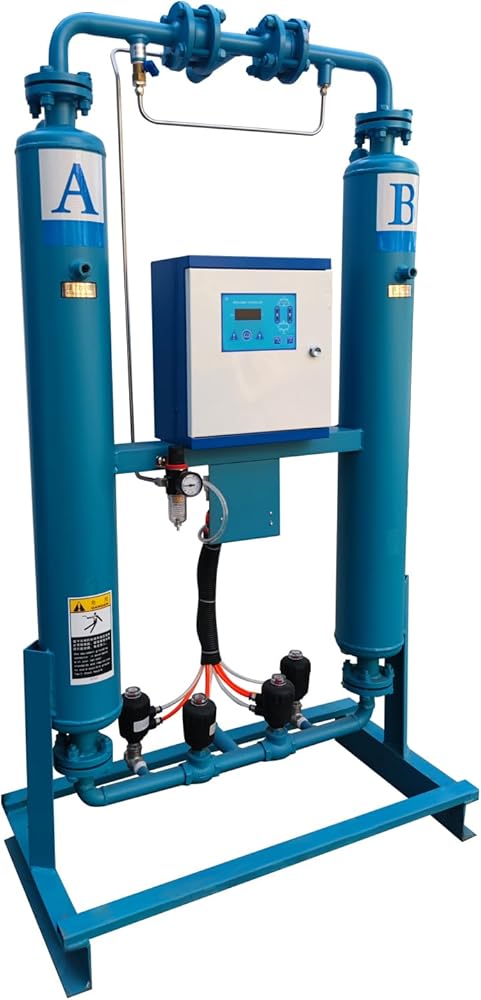

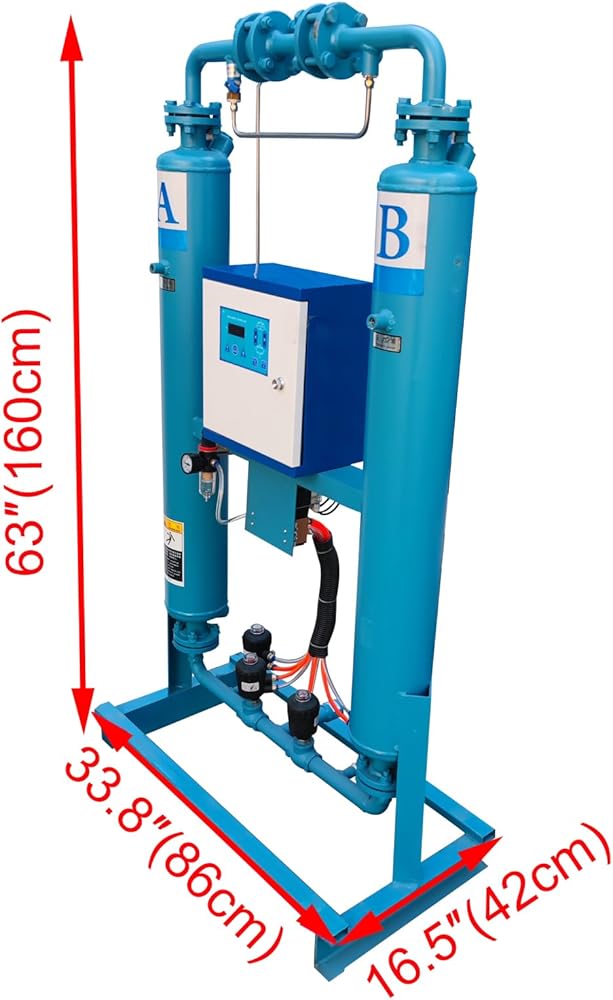

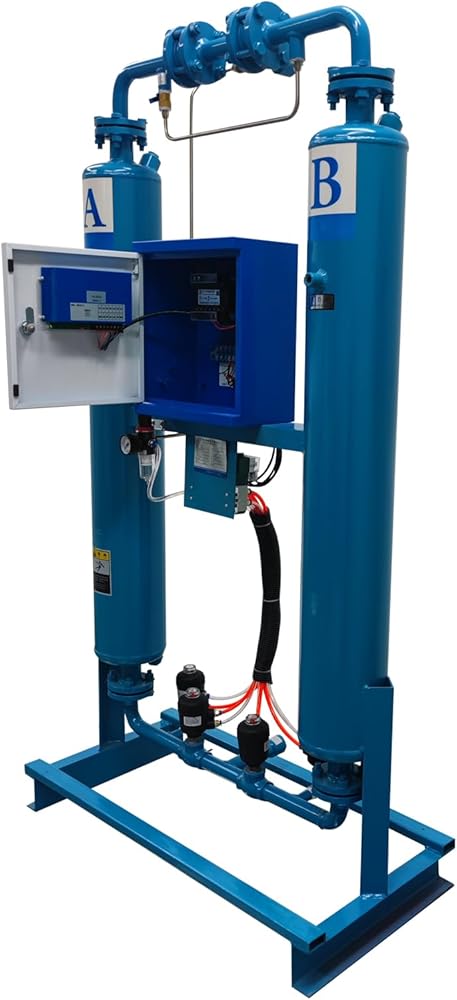

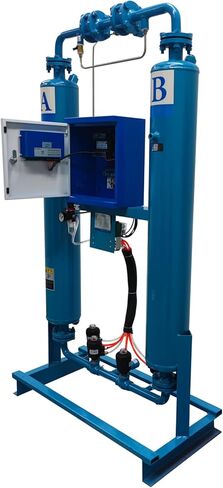

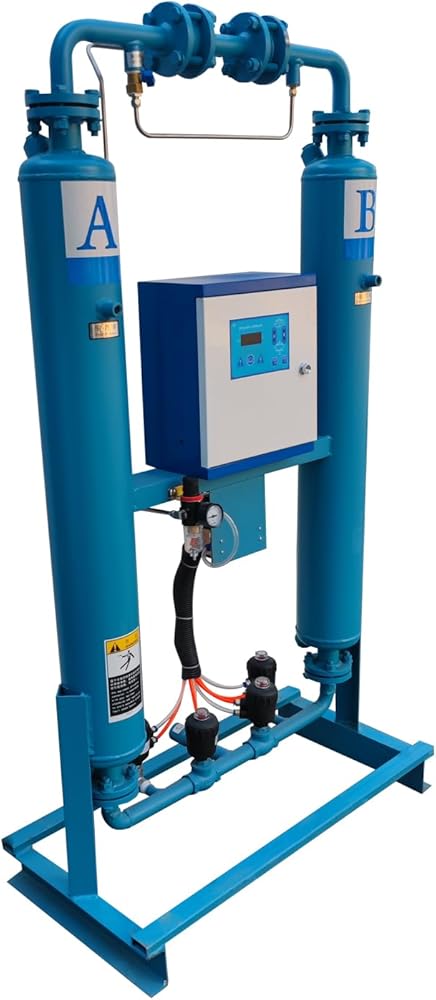

20FW Thermal-free Adsorption Air Compressor Dryer 110V 100W Inlet and Outlet Ports Threaded Pipe Size 1'' For 7.5-15KW Air Compressor

SAR 9,450
– 1 +

Special Features

  • Industrial Performance: This 110V adsorption dryer provides industrial performance with 2.5 m³/min treated air volume and -20°C to -40°C dew point temperature. Features 88lbs adsorbent weight and adjustable 300S switching cycle. Ideal for wide applications in electronics, food processing, and medical industries. etc
  • Smart PLC Control System: The air drying process is automatically controlled by the YX intelligent controller using advanced microcomputer technology to improve the air purification efficiency and reduce the power loss
  • Heavy-Duty Industrial Construction: Built with 1" threaded pipe, 159mm*1080mm bobbin, and 1.0MPa (40℃) nylon hoses. Includes 2 suppressors, 4 diffusers, pneumatic valves, and all necessary connections
  • Installation Tips: Construct and install according to the foundation drawing, ensuring the cylinder's verticality. Fasten and tighten equipment after initial use. Keep inlet/exhaust pipes, filters, and oil removers close together. Ground non-safe voltage parts for safety, and connect the muffler outside the room
  • Please note: This machine does not have a power cord, you need to ask the electrician to connect it to the power supply

Description

Product parameter:
Treated air volume: 2.5 m3/min
Inlet and outlet dimensions: 1 inch threaded pipe
Bobbin size: 159mm*1080mm
Individual barrel volume: 0.022m³
Power: 100W
No thermal gross weight: 264LBS (120KG)
Adsorbent weight: 88LBS (40KG)
Air consumption: ≈12％
Voltage: 110V
Withstand voltage: 1.0Mpa
Working pressure: 0.4-1.0Mpa
System pressure drop: ≤0.03Mpa
Adsorbent: Aluminium oxide（3-5mm）
Dew point temperature: -20℃ to -40℃
Switching cycle: 300S（adjustable）
Control mode: PLC
Intake temperature: ≤45℃
Intake oil content: ≤0.1PPM
Suppressor: 2PCS of XY-05
Diffuser: 4PCS of DN25
Normally open valve: Pneumatic valve of DN25
Normally closed valve: Pneumatic valve of DN25
Please note:
This machine does not have a power cord, you need to ask the electrician to connect it to the power supply.
