Installation:
1.Users shall construct and install it according to the foundation drawing.
2.Pay attention to the verticality of the cylinder when installing the equipment.
3.The equipment shall be fastened and tightened after a period of use.
4.Connecting inlet and exhaust pipes, filter and efficient oil remover should be as close as possible.
5 In order to ensure safety, non-safe voltage electrical parts shall be effectively grounded.6 The muffler shall be connected to the outside room.
Product parameter:
Treated air volume:1.5 m3/min
Inlet and outlet dimensions:1 inch threaded pipe
Bobbin size:140mm*1000mm
Individual barrel volume:0.015m³
No thermal gross weight:198LBS (90KG)
Adsorbent weight:48.4LBS (22KG)
Air consumption:≈12％
Withstand voltage:1.0Mpa
Working pressure:0.4-1.0Mpa
System pressure drop:≤0.03Mpa
Adsorbent:Aluminium oxide（3-5mm）
Dew point temperature:-20℃ to -40℃
Switching cycle:300S（adjustable）

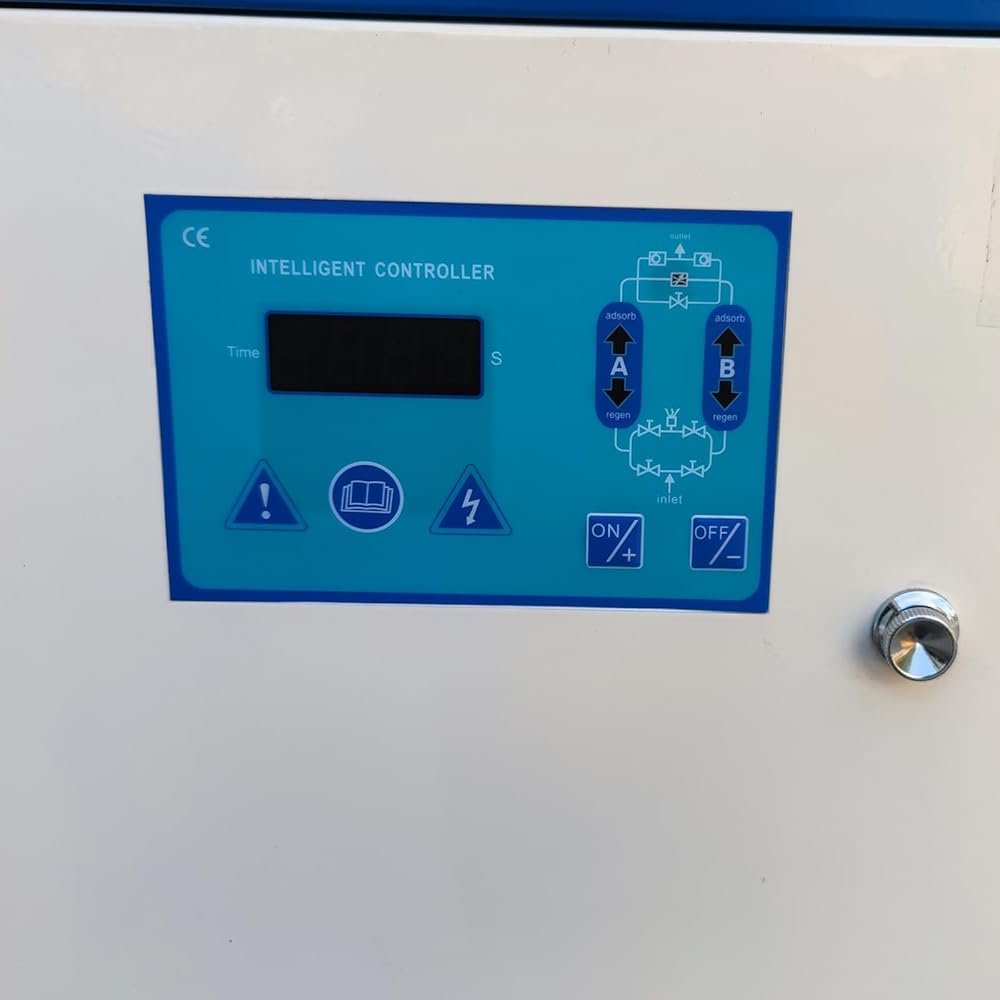

Control mode:PLC
Intake temperature≤45℃
Intake oil content≤0.1PPM

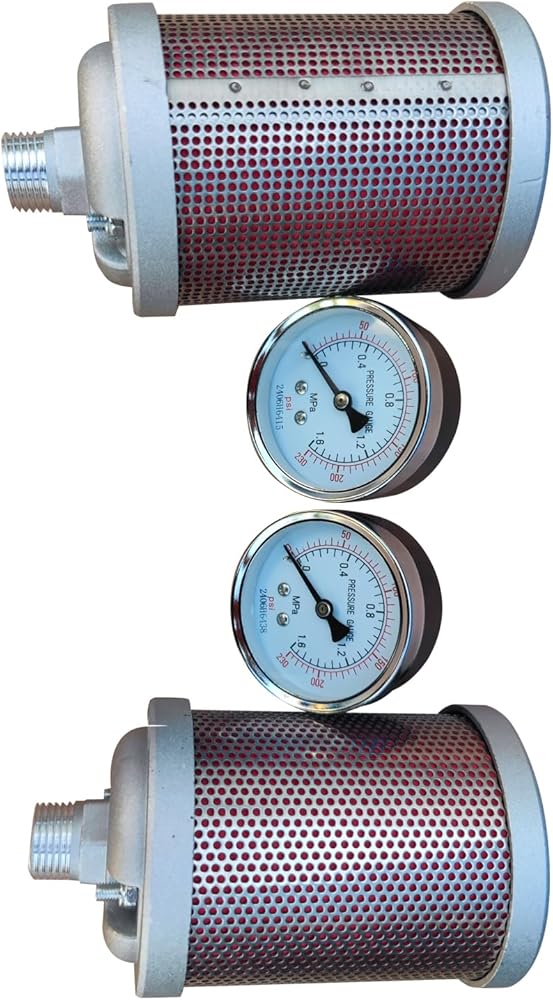

Suppressor:2PCS of XY-05 Diffuser4PCS of DN25
Normally open/closed valve:Pneumatic valve of DN25
