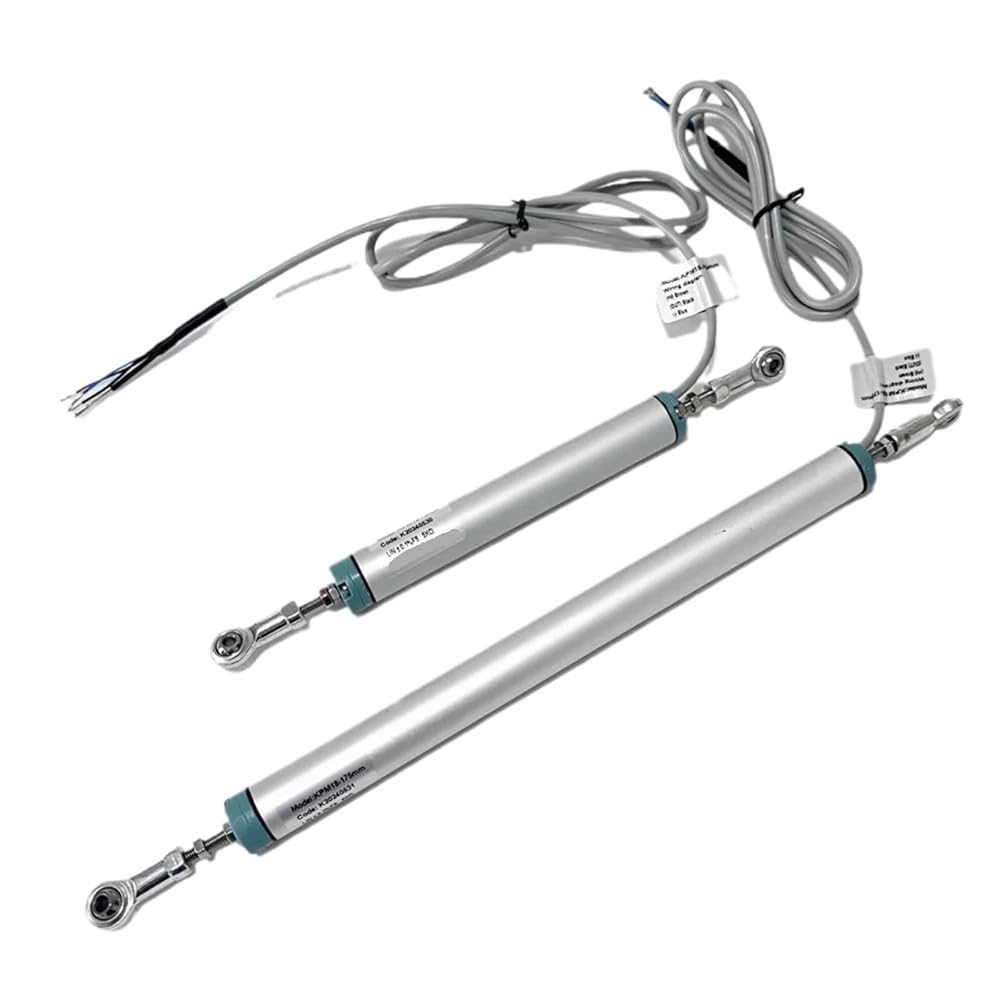

1PCS 25 50 75 100 125 150 175 200 300mm Dual-Joint Linear Sensor Linear Position Travel Sensor with Eye Rod KPM18
Rod Eye End Linear Actuated Position Travel Sensor
Range: 10mm~600mm for option
KPM18 diameter is 18mm
Rod diameter: 5mm
Application for short range and swinging moments, such like: robots, brick machines, ceramic machines, sluice gate,footwear machines and so on
The sensor can monitor the size of the crack, fix the two joints on the wall, when the crack in the wall increases, the sensor bar will move accordingly, and the size of the crack can be measured sideways.
The sensor is used on the brake pedal of the simulated driver. When you step on the brake pedal, the sensor will move accordingly to control the braking distance.
Data parameters
Integrated signal converter
Voltage and Current Module
A2
A3 V1 V2

Size : 18mm
Type : Linear Position Travel sensor
Model Number : KPM18
DIY Supplies : Electrical
Style : Green
Diameter : 18mm
Allow power supply voltage : 28V
Resolution : Infinite
Repeatability Precision : 0.01mm
Mechanical fixation : Fisheye ball joints at both ends
Shell material : Anodized Aluminum
Rod material : Stainless steel
Electrical connections : 1M Cable
Protection Level : IP65
Operating temperature : -40/ +80
