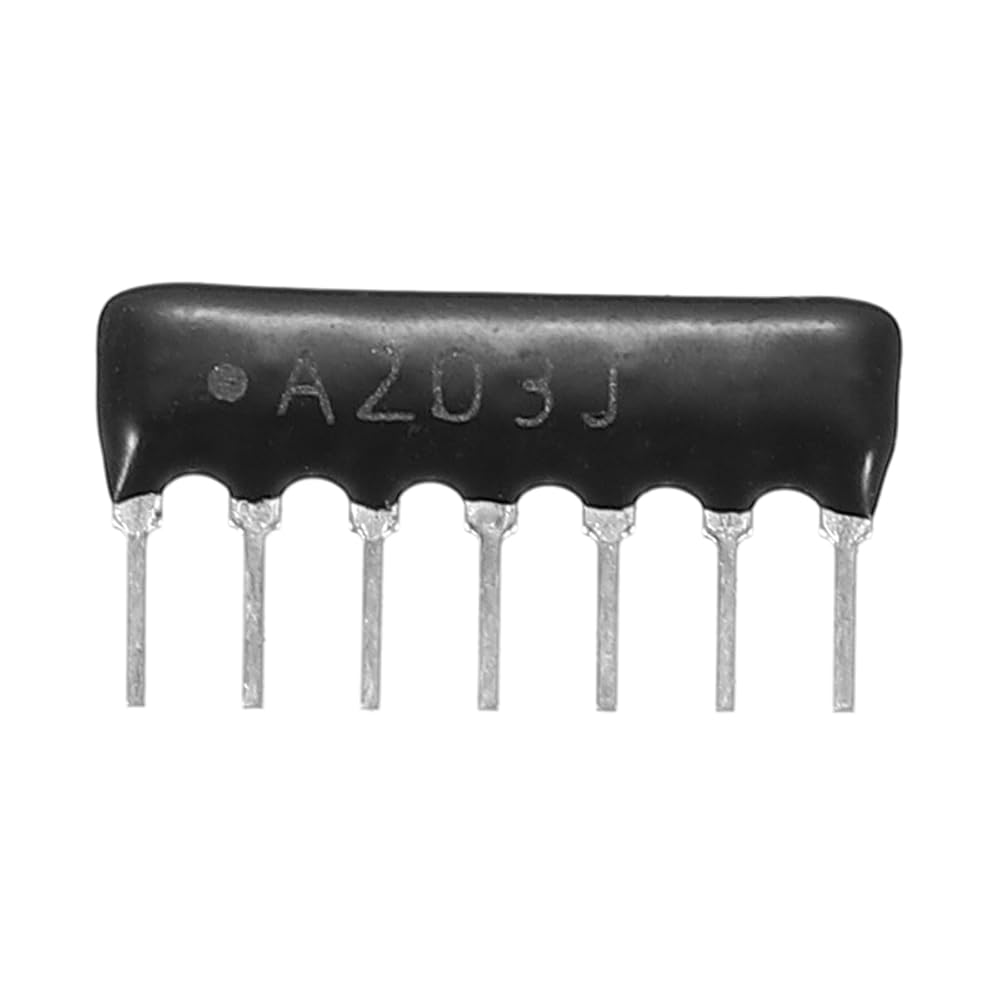

MECCANIXITY 20Pack 20K Ohm Resistor Network Array, 1/8W SIP-7 2.54mm Pitch Thick Film Network Resistor Assortment Kit, 5% Tolerance Bussed Type 7P, Black

SAR 0
Brand
MECCANIXITY
Weight
14 g
– 1 +

Special Features

  • A thick-film resistor array is a combination of several resistors. One end of all resistors shares a common connection. Bus-type configuration is commonly used for pull-up, pull-down, or logic signal interrupt termination.
  • Model No.: A203J; Resistance: 20K Ohm; Tolerance: ±5% (J); Rated Power: 1/8W; Max. Working Voltage: 200V; Pin Type & Pin Pitch: SIP-7 & 2.54mm; Size: 17.5 x 2.2 x 9mm (0.69" x 0.09" x 0.35"); In the package of: 20Pack x 20K Ohm Resistor Network Array
  • High-DensityIntegrationand Reliable Design— 5 resistors on a single chip, supporting miniaturization and high-density integration, reducing the need for PCB traces.Provides stable electrical performance and high reliability, suitable for long-term use. Versatile And User-Friendly— Helps simplify circuit design and PCB layout, a practical tool for electronics enthusiasts and engineers.
  • The working principle of a resistor array is based on the series and parallel connection of resistors. Through internal connections, a resistor array can achieve different combinations of resistors to meet different resistance value requirements in a circuit.
  • Before purchasing, please ensure that the size and specifications are suitable for your equipment.

Description

What is this?

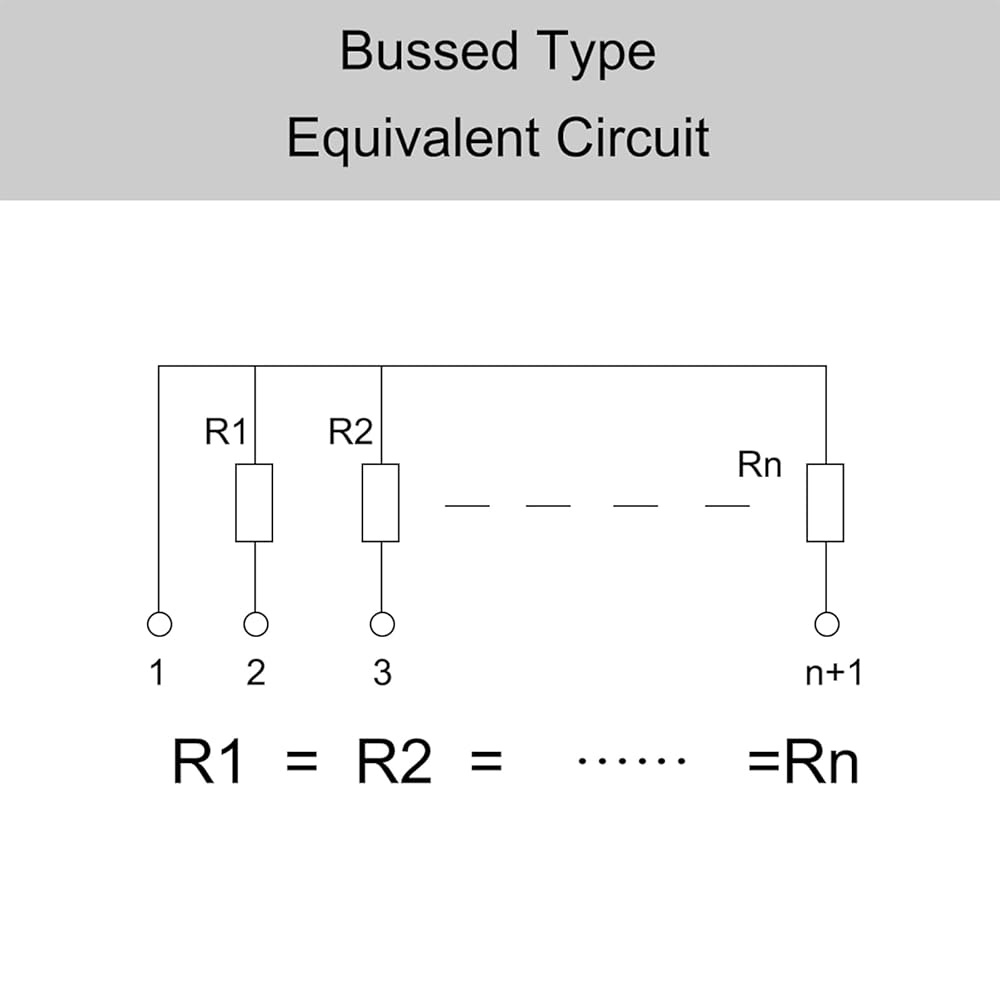

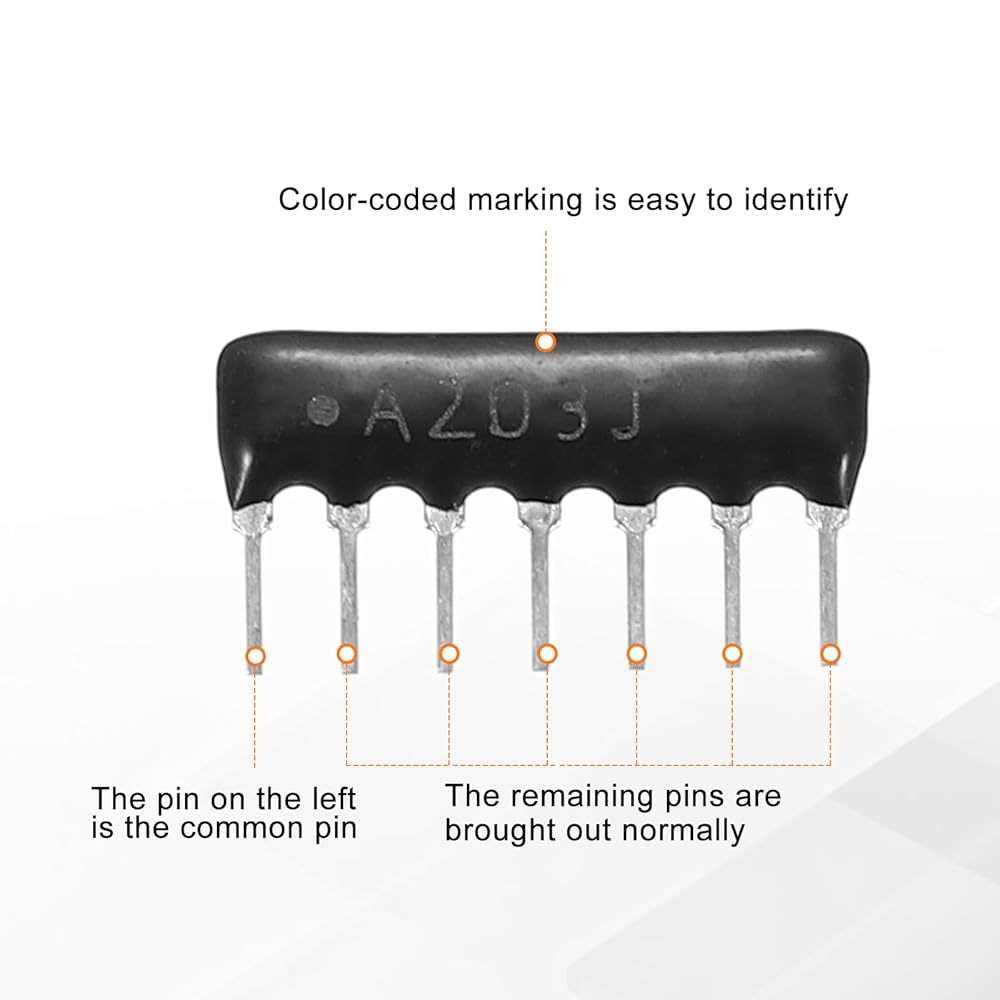

A thick-film resistor array is a combination of several resistors. One end of all resistors shares a common connection. Bus-type configuration is commonly used for pull-up, pull-down, or logic signal interrupt termination.

What will I get?

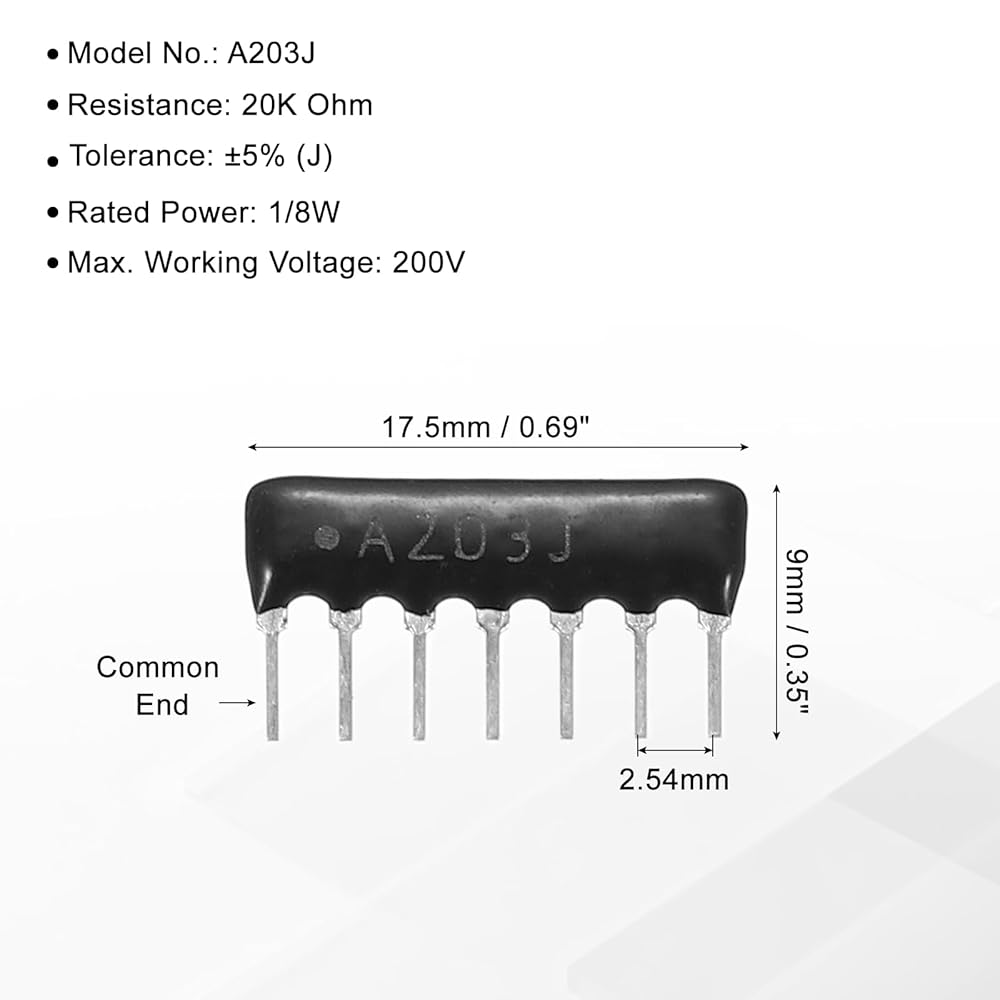

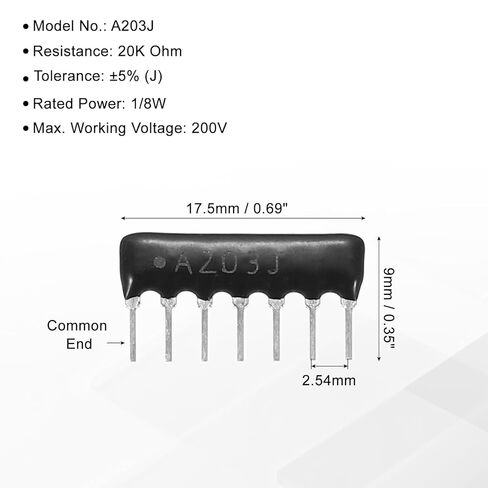

Model No.: A203J
Resistance: 20K Ohm
Tolerance: ±5% (J)
Rated Power: 1/8W
Max. Working Voltage: 200V
Pin Type & Pin Pitch: SIP-7 & 2.54mm
Size: 17.5 x 2.2 x 9mm (0.69" x 0.09" x 0.35")

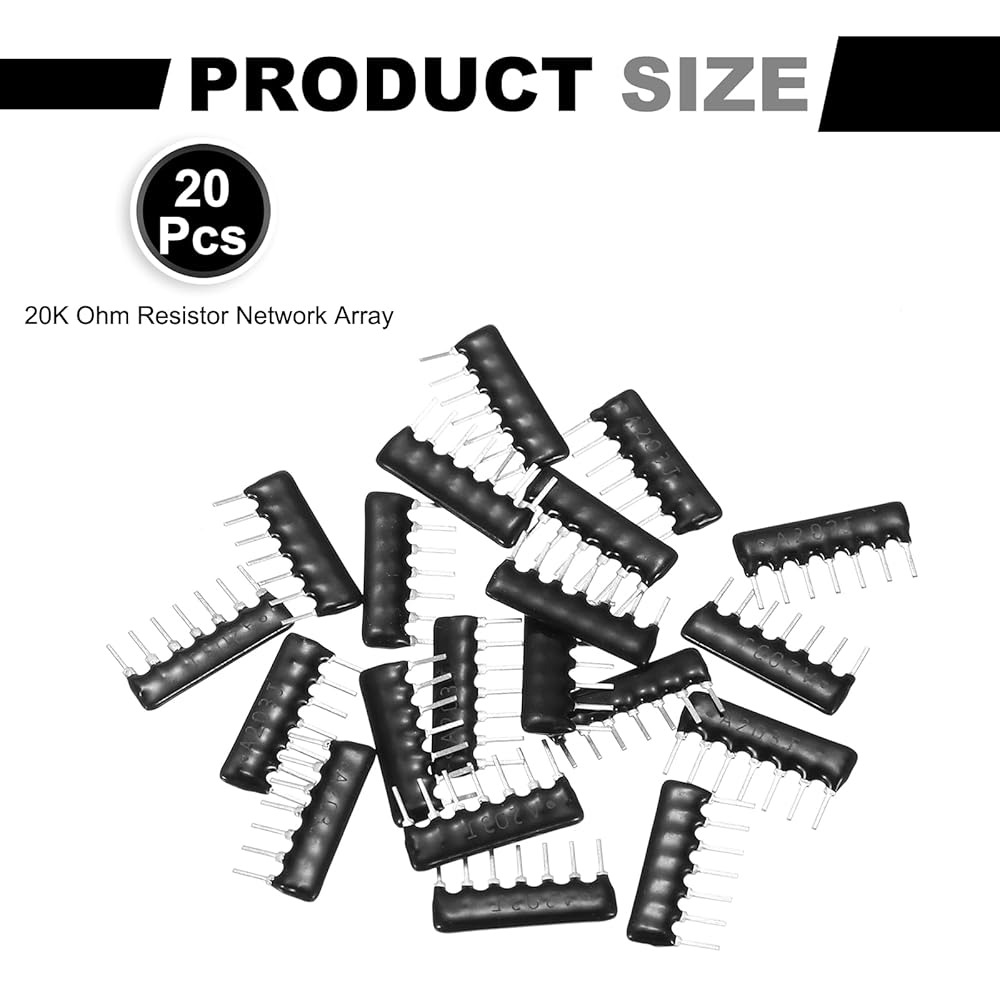

In the package of: 20Pack x 20K Ohm Resistor Network Array

Is there any advantages of the product?
High-DensityIntegrationand Reliable Design— 5 resistors on a single chip, supporting miniaturization and high-density integration, reducing the need for PCB traces.Provides stable electrical performance and high reliability, suitable for long-term use.
Versatile And User-Friendly— Helps simplify circuit design and PCB layout, a practical tool for electronics enthusiasts and engineers.

How to use it?
The working principle of a resistor array is based on the series and parallel connection of resistors. Through internal connections, a resistor array can achieve different combinations of resistors to meet different resistance value requirements in a circuit.

What should I notice?
Before purchasing, please ensure that the size and specifications are suitable for your equipment.
