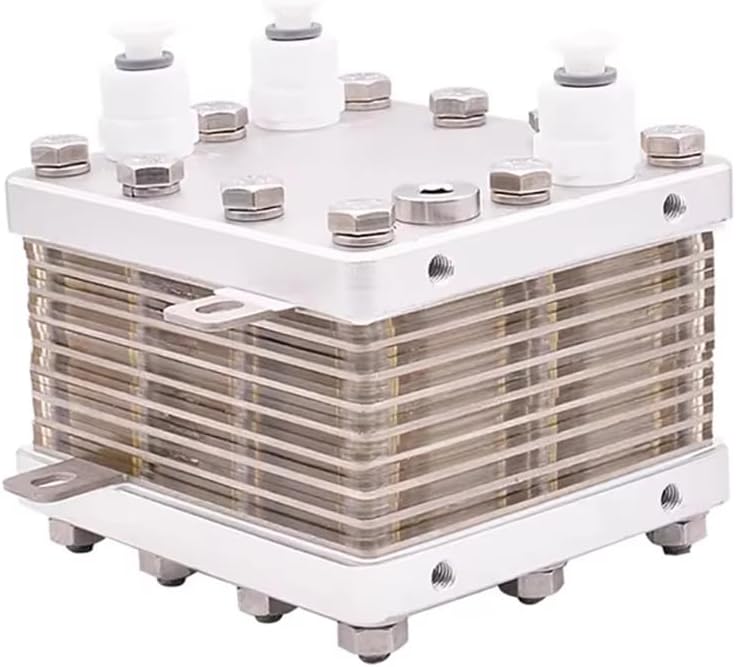

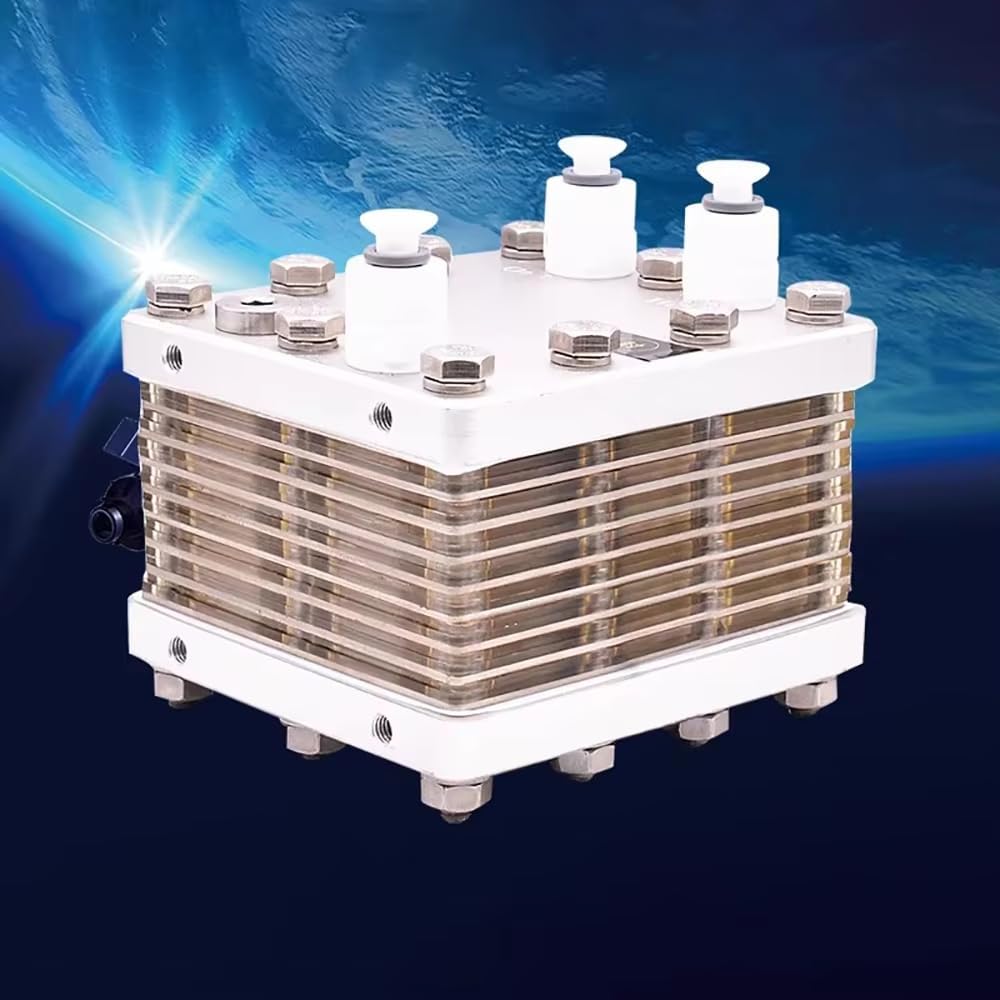

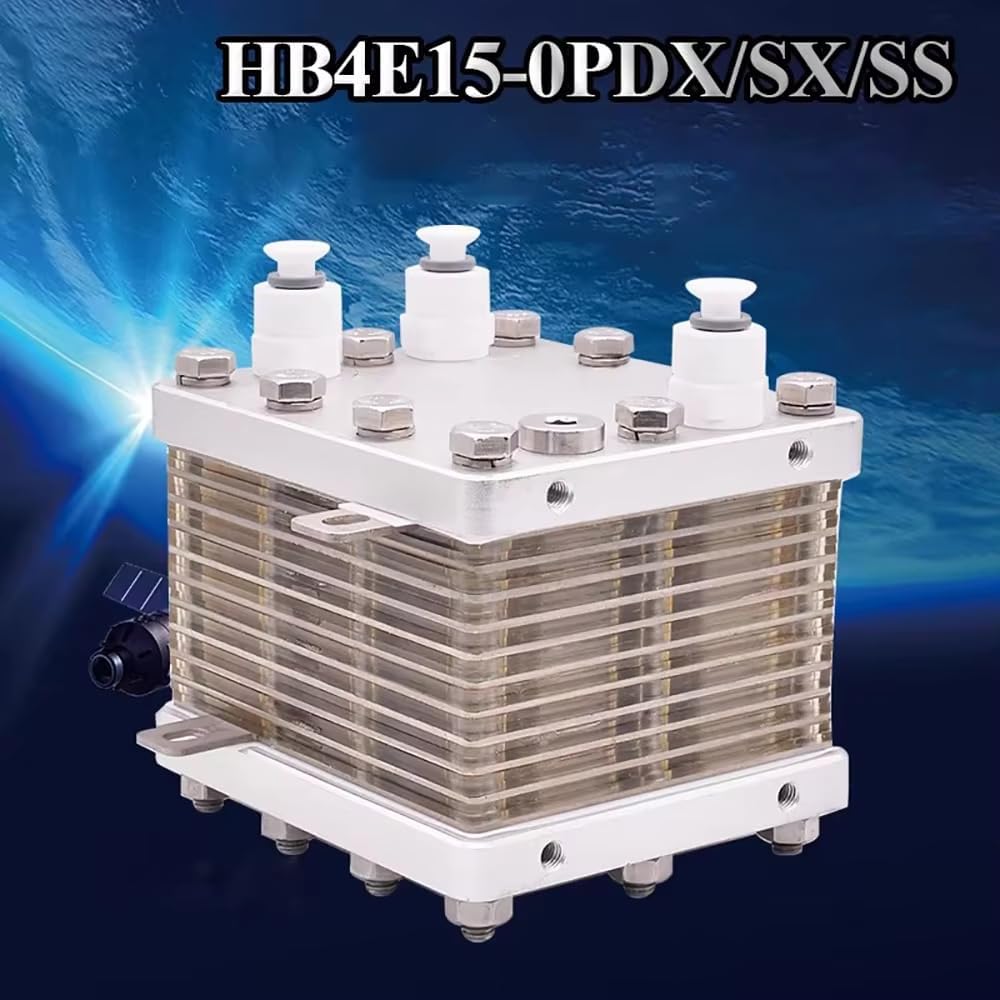

1600ML/MIN PEM Water Electrolyzer Cell, Hydrogen Generator Module for Pure Water Electrolysis, Hydrogen Inhalation & Water Machine
Specification:
Product Name: PEM Electrolyzer Cell
Hydrogen Production: 1600 ML/MIN
Oxygen Production: 800 ML/MIN
Water Consumption: ≯85 ML/H
Circulation Mode: Gravity Circulation
Electrolysis Method: Pure Water Electrolysis
Max Operating Pressure: 1.0 MPA
Water Quality Requirement (TDS): ≤10 PPM
Rated Current: 25A
Output Voltage: 24-32V DC
Port Size: 1/4 Inch

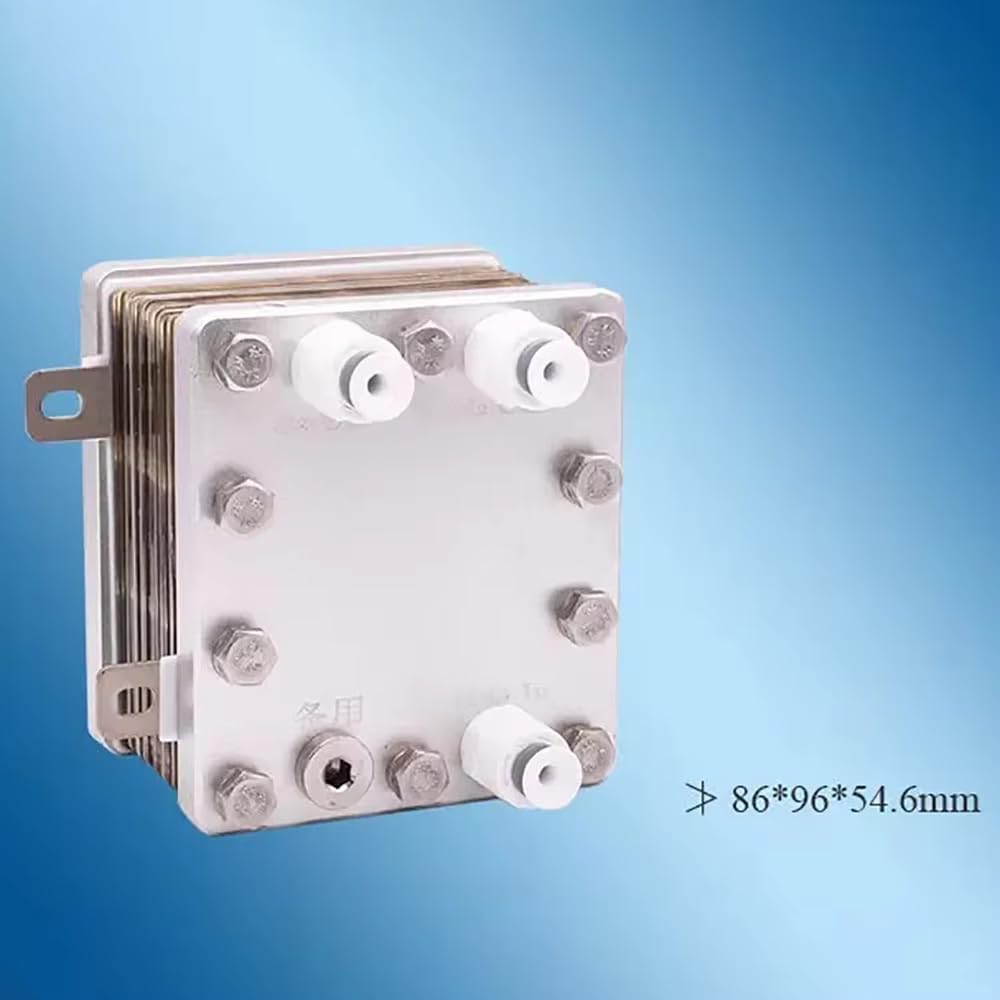

Product Dimensions: 86 x 96 x 54.6 MM
Net Weight: 1.1 KG
Features:
Advanced PEM Technology: Utilizes a high-performance Proton Exchange Membrane (PEM) with pure water as the electrolyte.
High Purity Output: Produces high-purity hydrogen and oxygen. No harmful by-products such as ozone or chlorine gas.
Compact & Robust Design: High current density (>0.6A/cm²) allows for a compact size (86x96x54.6mm) and low center of gravity.
Reliable & Durable: Long operational life. Under proper water quality, temperature, and system design, it can operate continuously for 6,000+ hours (at 8-24 hours per day).
Stable Performance: Delivers a stable hydrogen output with slow(slow degradation rate).
Optimized Internal Structure: Designed for smooth water flow and efficient gravity circulation, eliminating the need for an external water pump.
Package included:
1 x PEM Electrolyzer Cell
