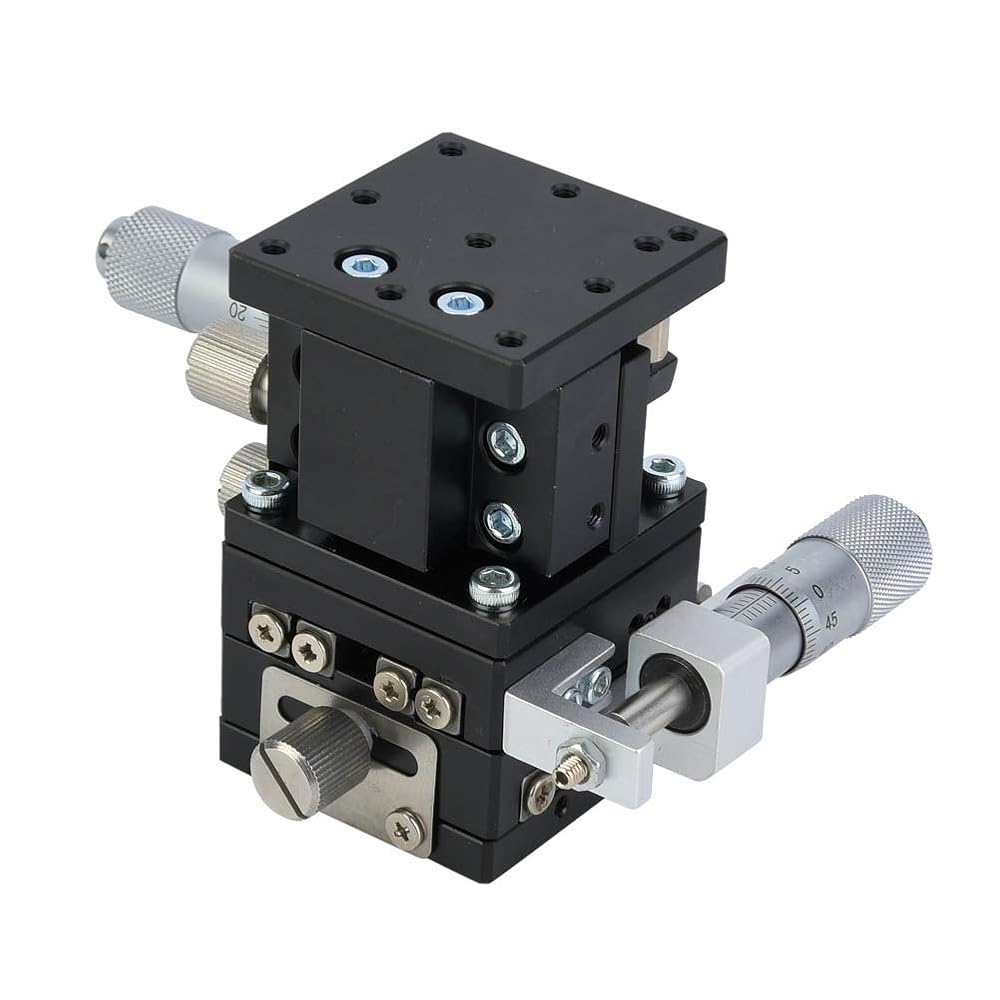

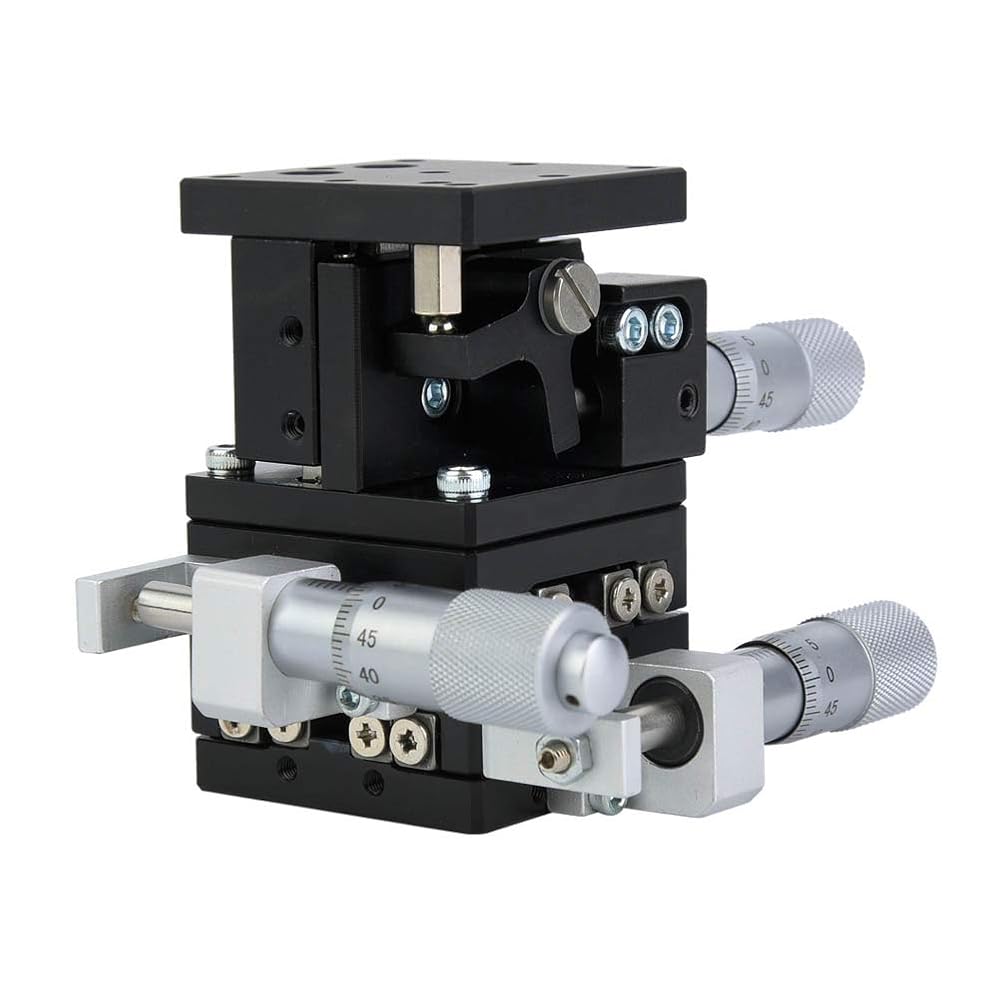

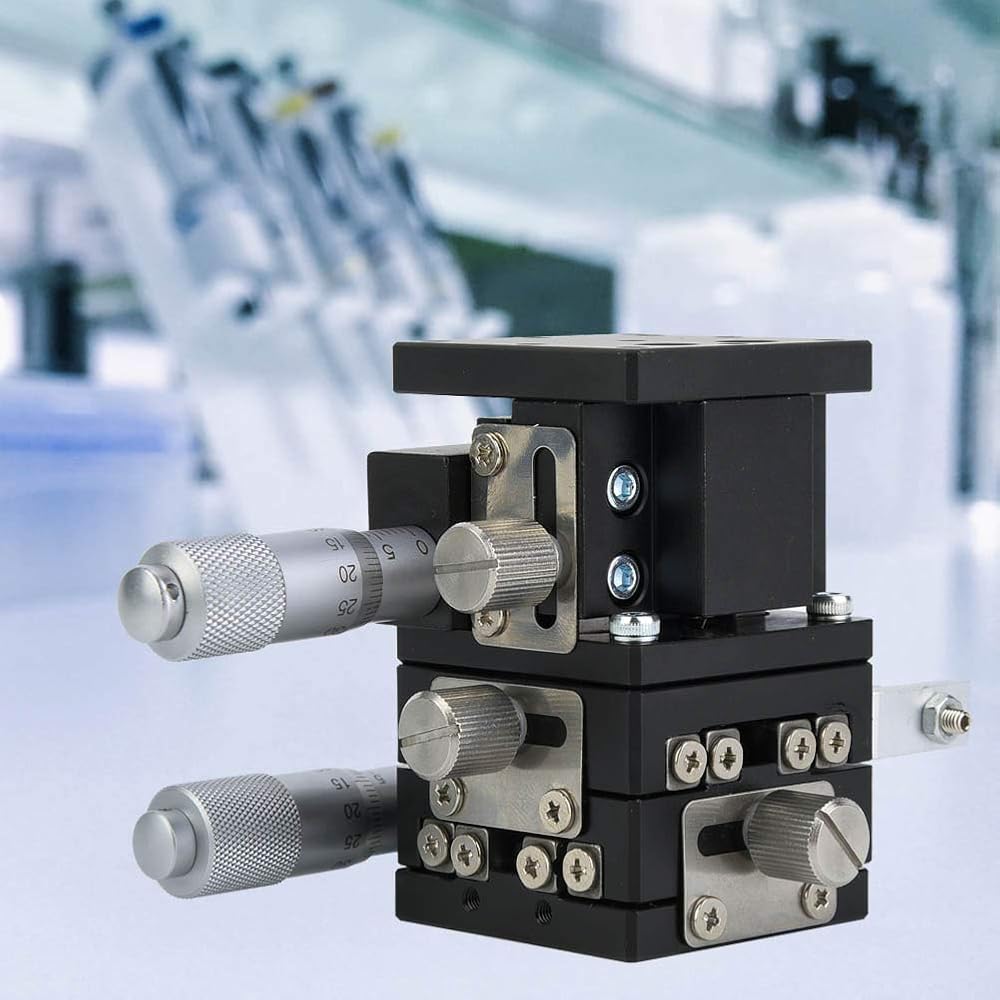

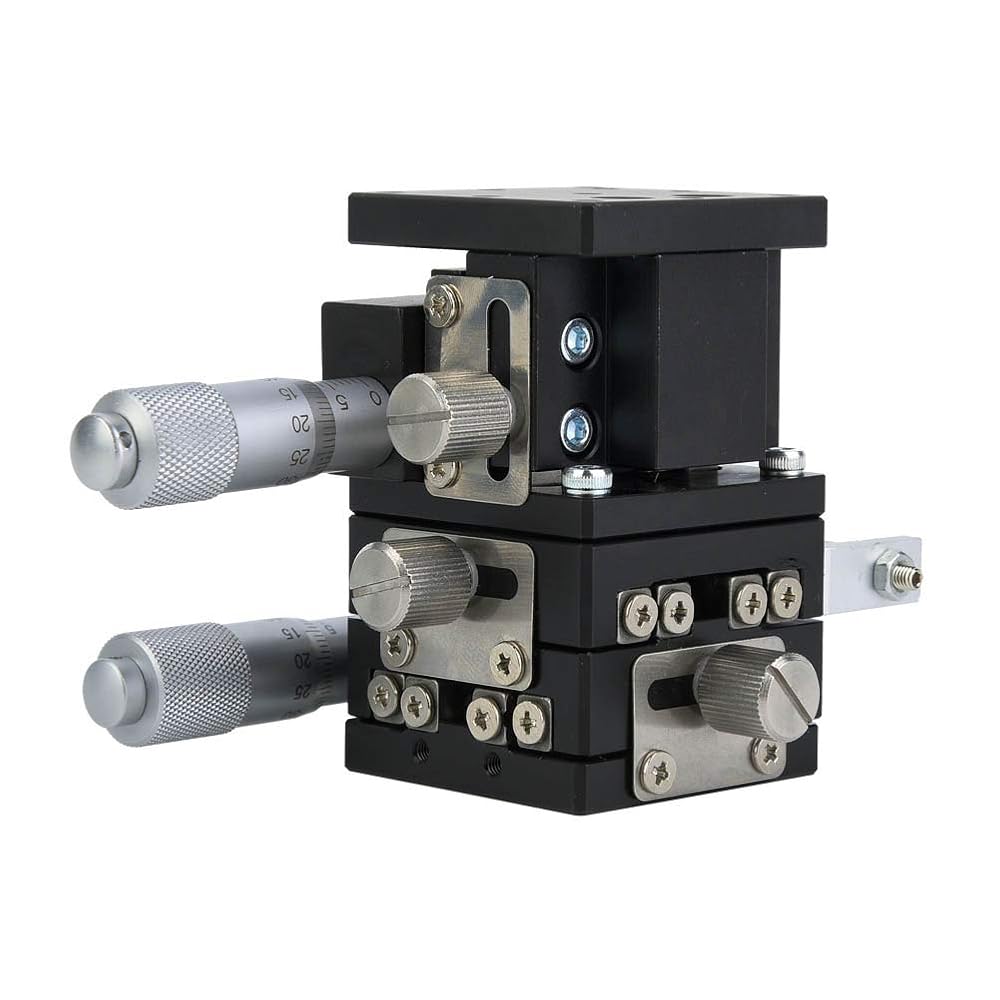

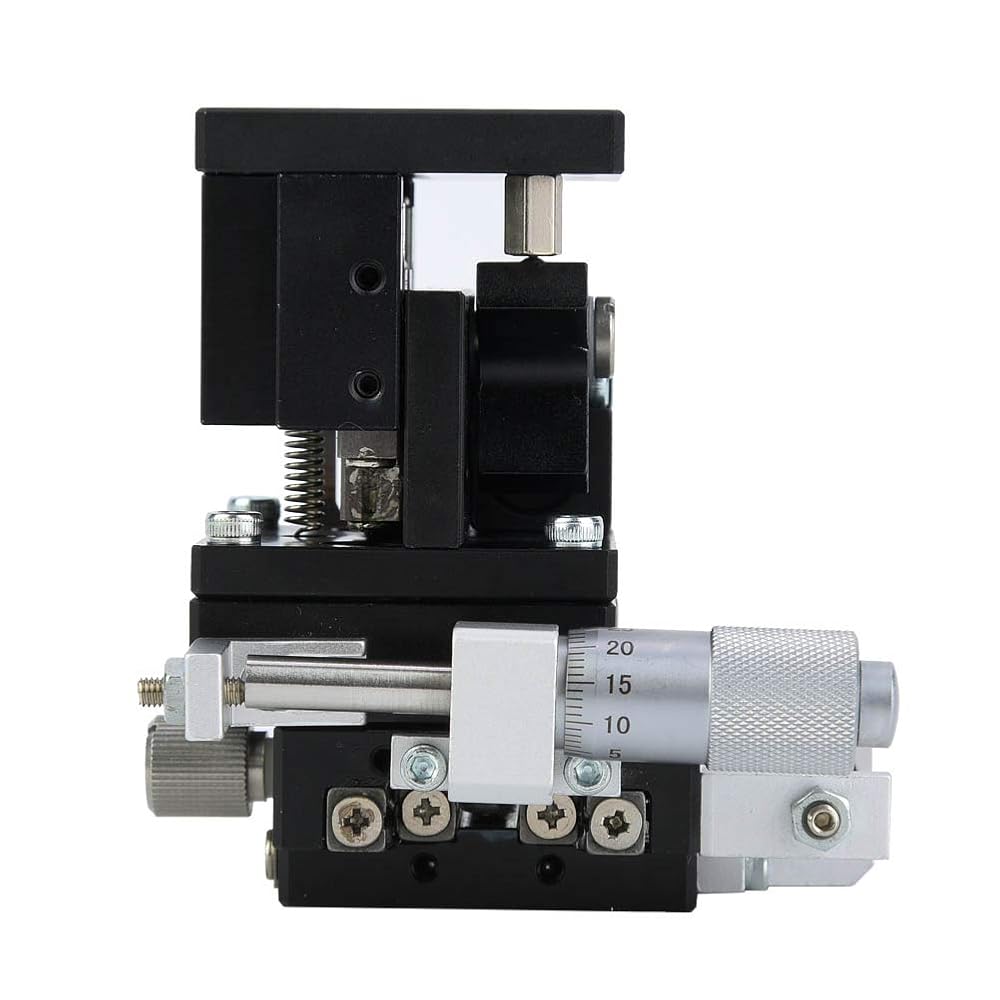

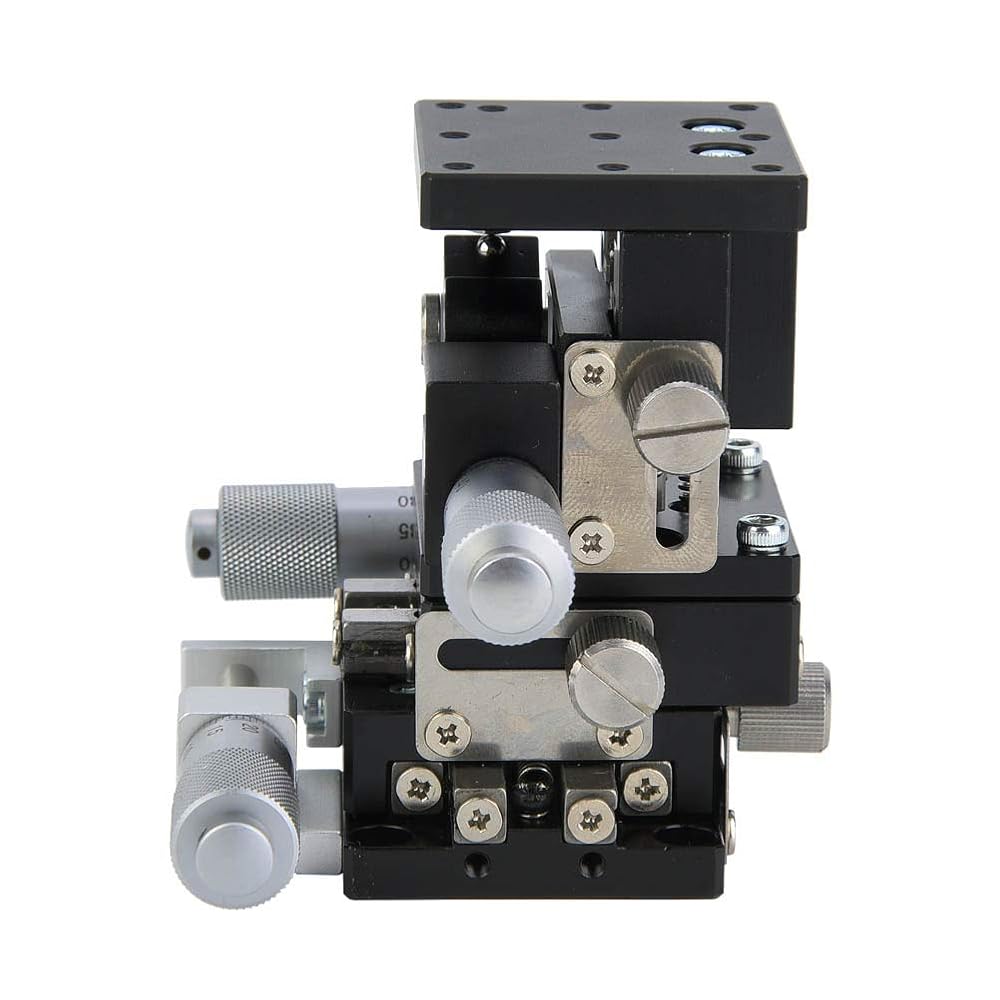

1. Accuracy: 3-Axes optical stage with micrometer heads for accurate position.
2. Durability: Made of aluminium alloy material with black anodized .
3. Using intersection roller for high accuracy,movement.
4. For movement, positioning, easy installation and removal.
5. Widely used in optical instruments and , measuring equipment, testing fixture, Semiconductor manufacturing equipment, testing machine, microscope, transporter, process machine, medical equipment, printing machine, etc

Specification:
Features:
Accuracy: 3-Axes optical stage with micrometer heads for accurate position.
Durability: Made of aluminium alloy material with black anodized .
Using intersection roller for high accuracy,movement.

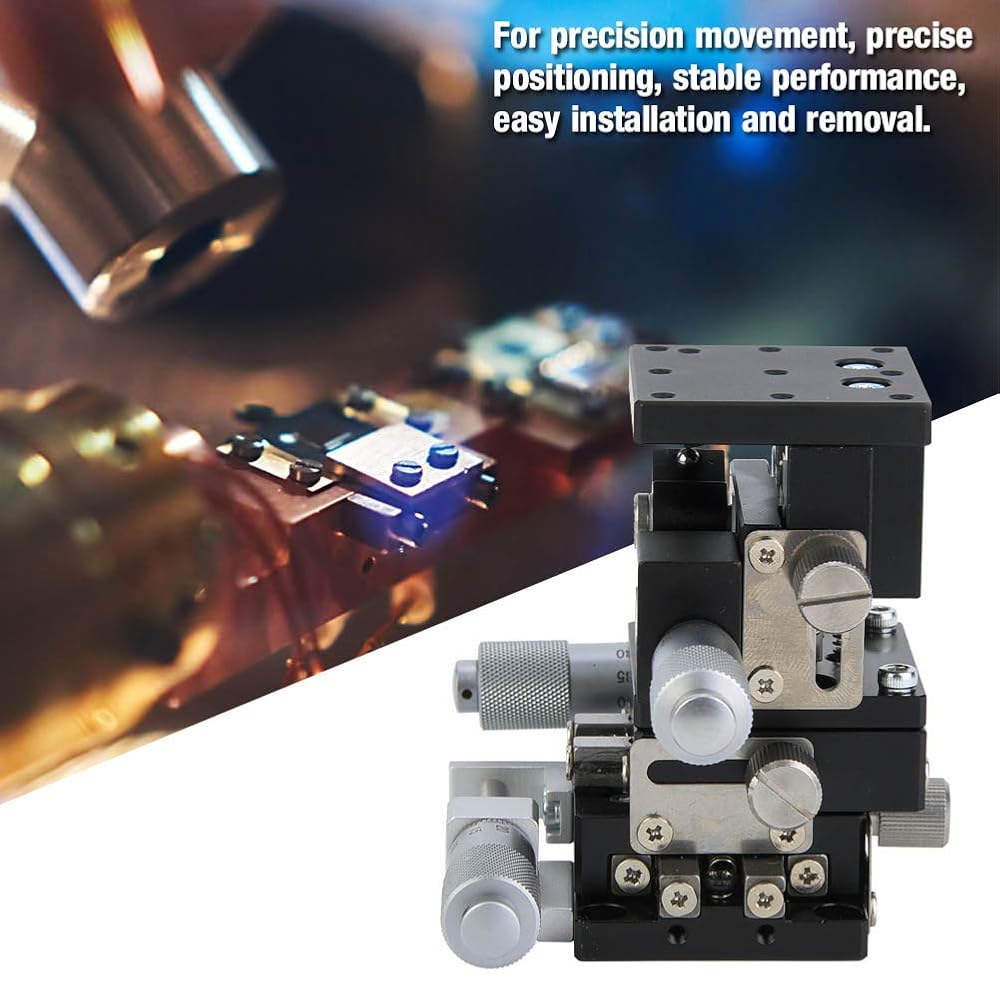

For movement, positioning, easy installation and removal.
Widely used in optical instruments and , measuring equipment, testing fixture, Semiconductor manufacturing equipment, testing machine, microscope, transporter, process machine, medical equipment, printing machine, etc
Specifications:
Condition:100% Brand New
Material: Aluminium alloy
Color: As shown in the picture
Model: LD40-LM

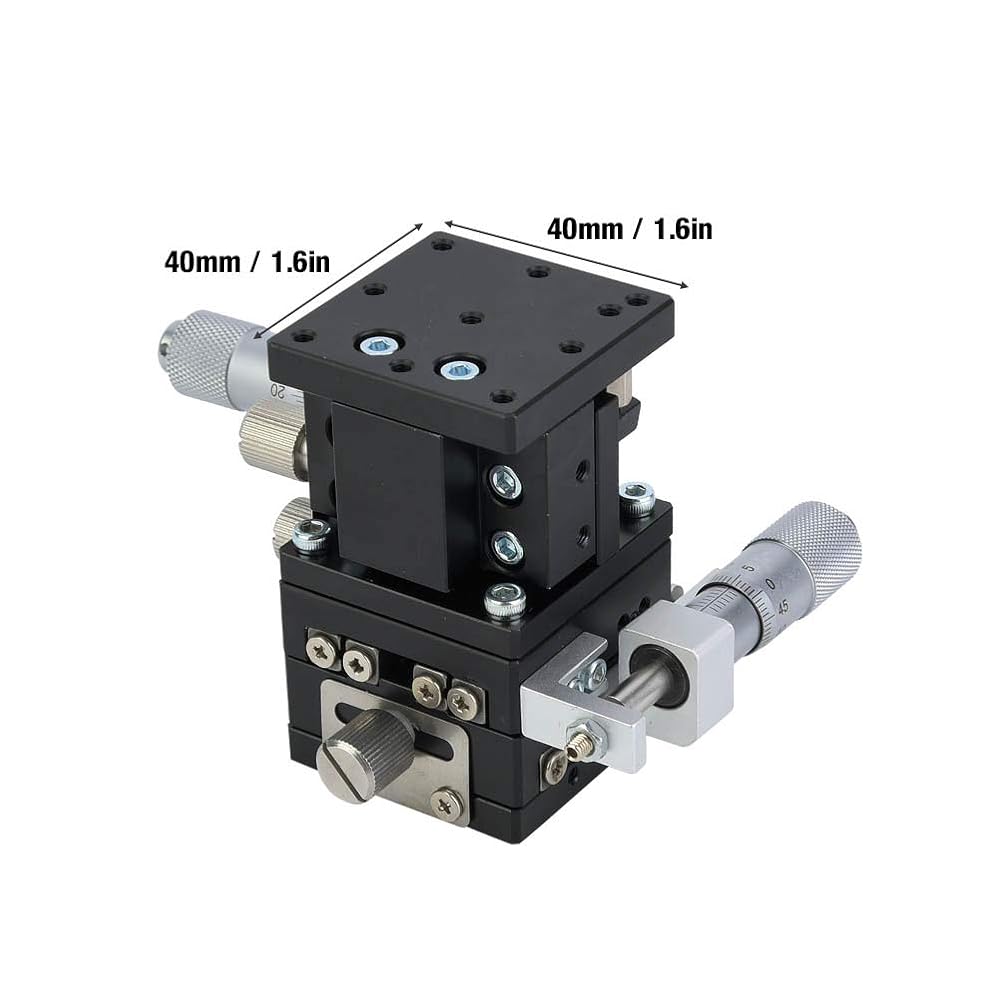

Workbench size: 40 * 40mm (1.57 inches)
Direction of movement: X, Y, Z axis
XY: ± 6.5 mm
Itinerary: Z: 10mm
Load: 19.2N (2kgf)
Minimum scale: 0.01mm
Accuracy: 0.02 mm
Parallel: 0.02 mm
Net weight: 0.44kg

Package List:
1*Manual Displacement
