Specification:

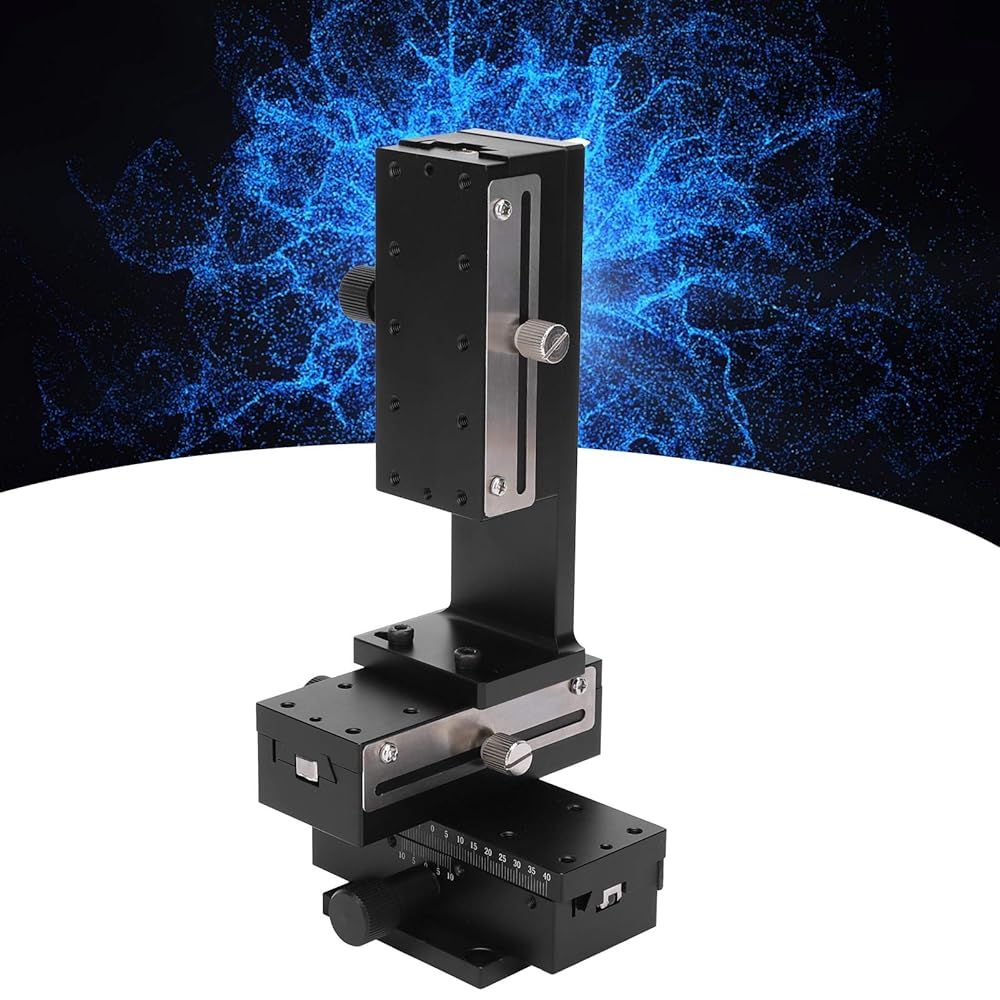

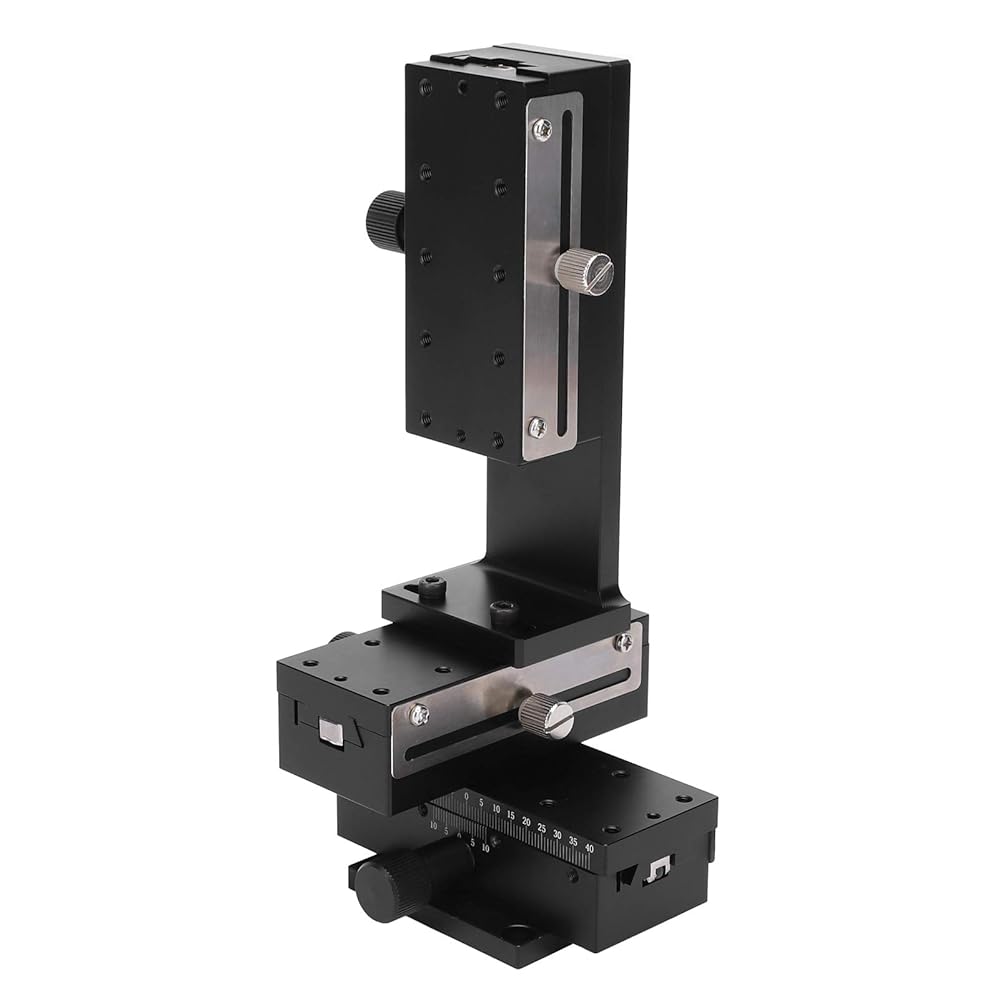

Item Type: Linear Translation Stage
Model: HF3-A90
Table Size: Approx. 40 x 90mm / 1.6 x 3.5in

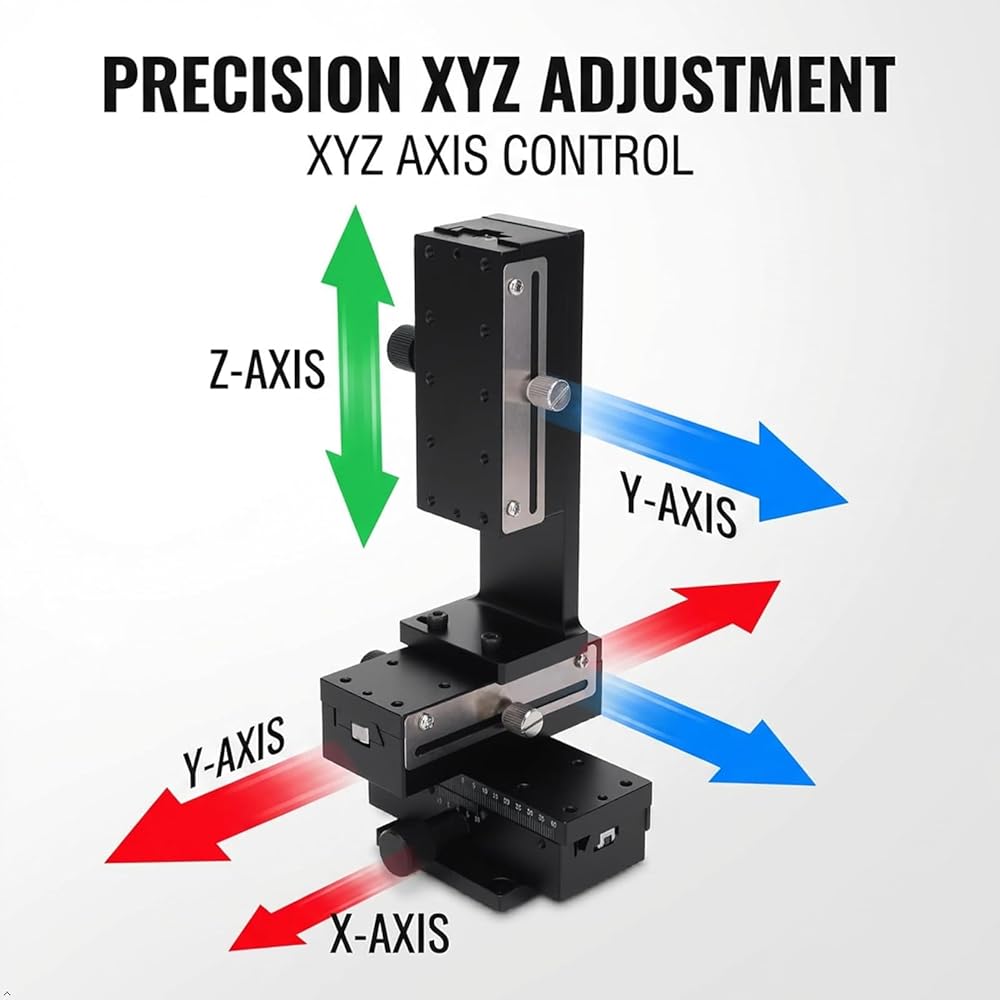

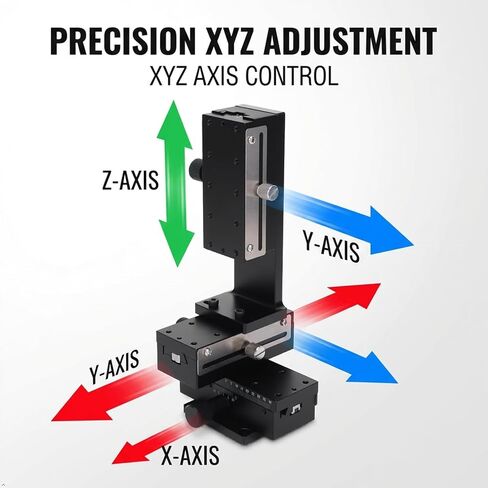

Movement Direction: 3 directions of XYZ axis

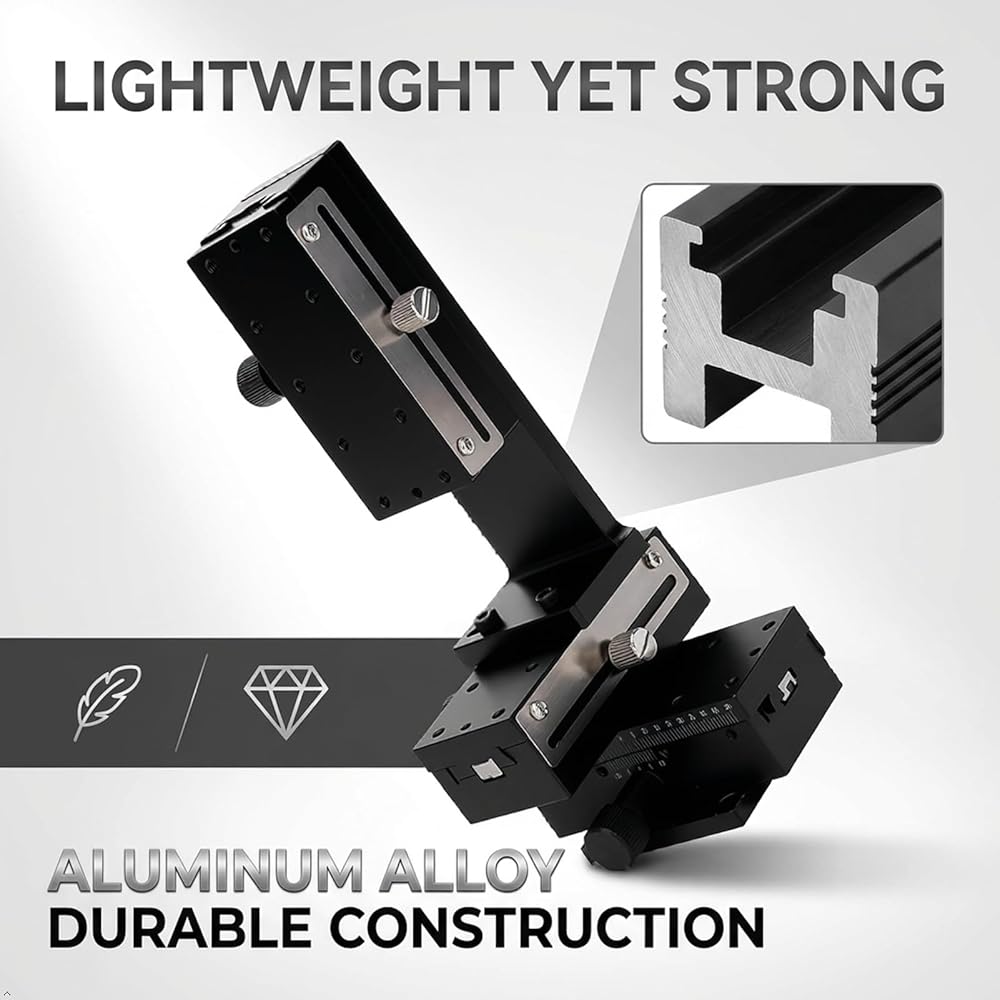

Body Material: Aluminum alloy (black anodized)

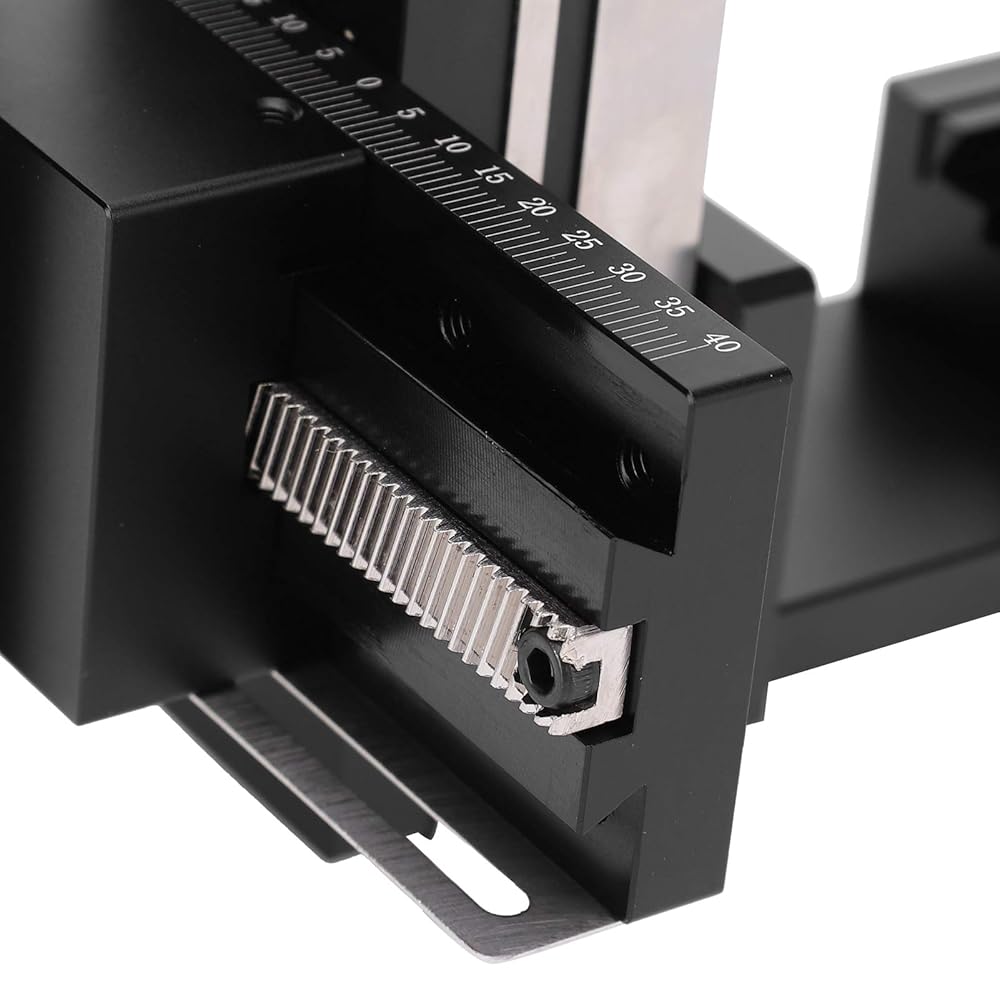

Drive Mode: Manually rotate the knob to advanced the gear drive (gear + rack)
Sliding Track: Gear ​​

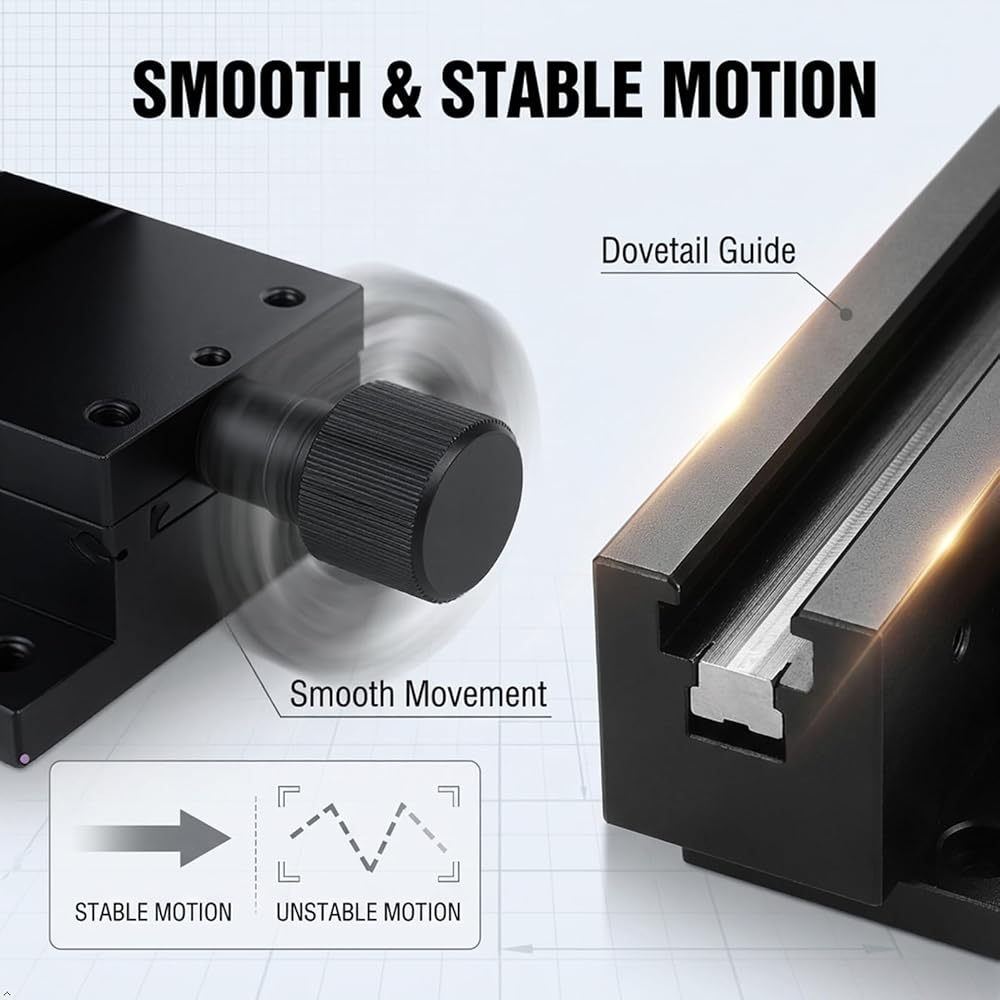

Rail Type: Dovetail grooves type
Number of Countertop Threaded Holes: 10
Threaded Hole Diameter: Approx. 4mm / 0.2in
Threaded Hole Depth: Approx. 6mm / 0.2in
Withstand Load: 98N (10Kgf)
Moving Stroke: ±Approx. 40mm / 1.6in
Minimum Scale: 0.01mm
Parallelism: 0.1mm
Moving parallelism≤0.1mm/60mm
Structure: Detachable

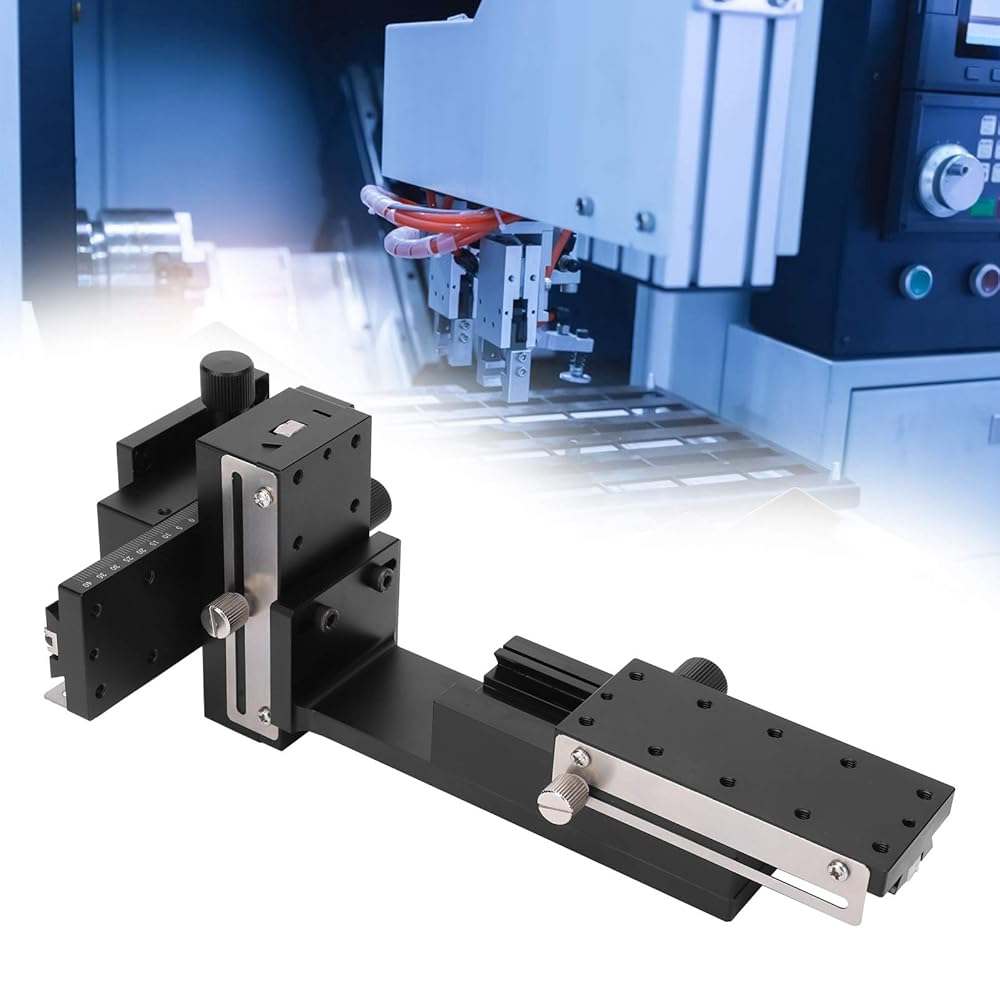

Scope of Application: Optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, handling machines, processing machines, printing machines and others.

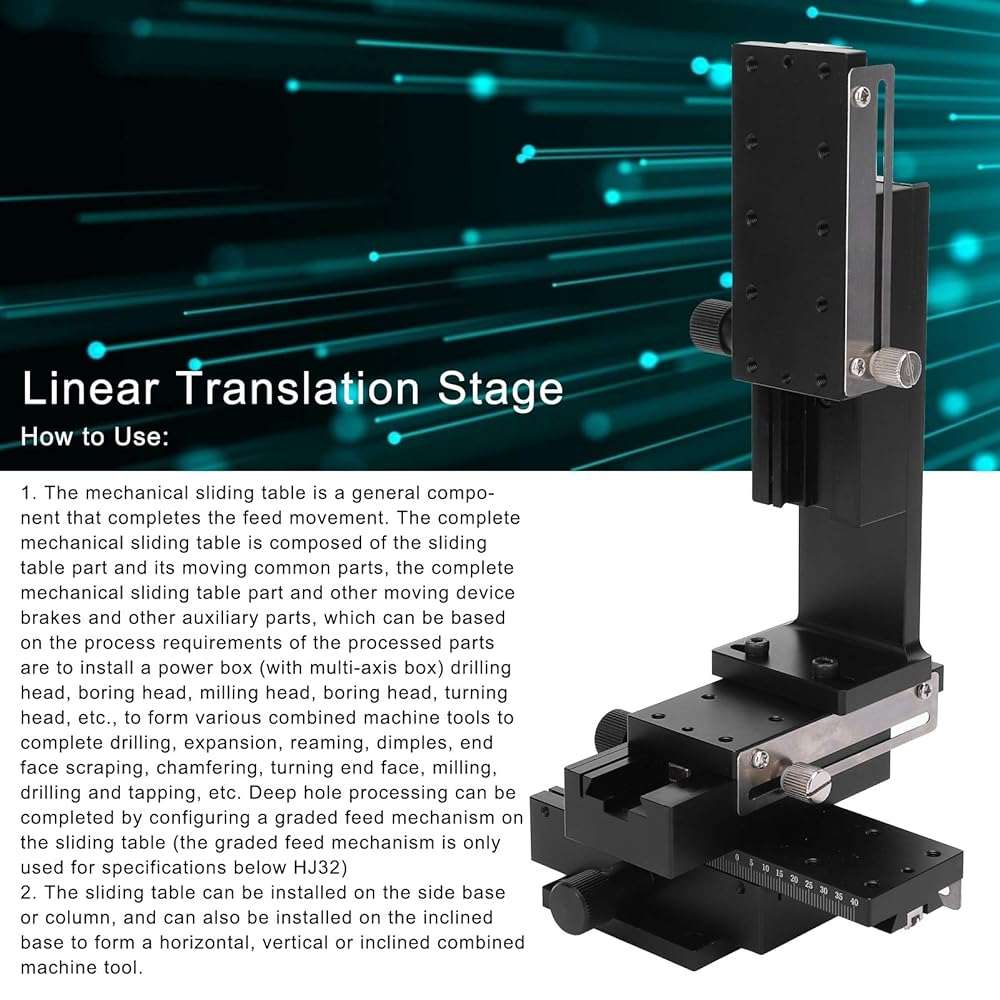

How to Use:
1. The mechanical sliding table is a general component that completes the feed movement. The complete mechanical sliding table is composed of the sliding table part and its moving common parts, the complete mechanical sliding table part and other moving device brakes and other auxiliary parts, which can be based on The process requirements of the processed parts are to install a power box (with multi-axis box) drilling head, boring head, milling head, boring head, turning head, etc., to form various combined machine tools to complete drilling, expansion, Reaming, dimples, end face scraping, chamfering, turning end face, milling, drilling and tapping, etc. Deep hole processing can be completed by configuring a graded feed mechanism on the sliding table (the graded feed mechanism is only used for specifications below HJ32)
2. The sliding table can be installed on the side base or column, and can also be installed on the inclined base to form a horizontal, vertical or inclined combined machine tool.

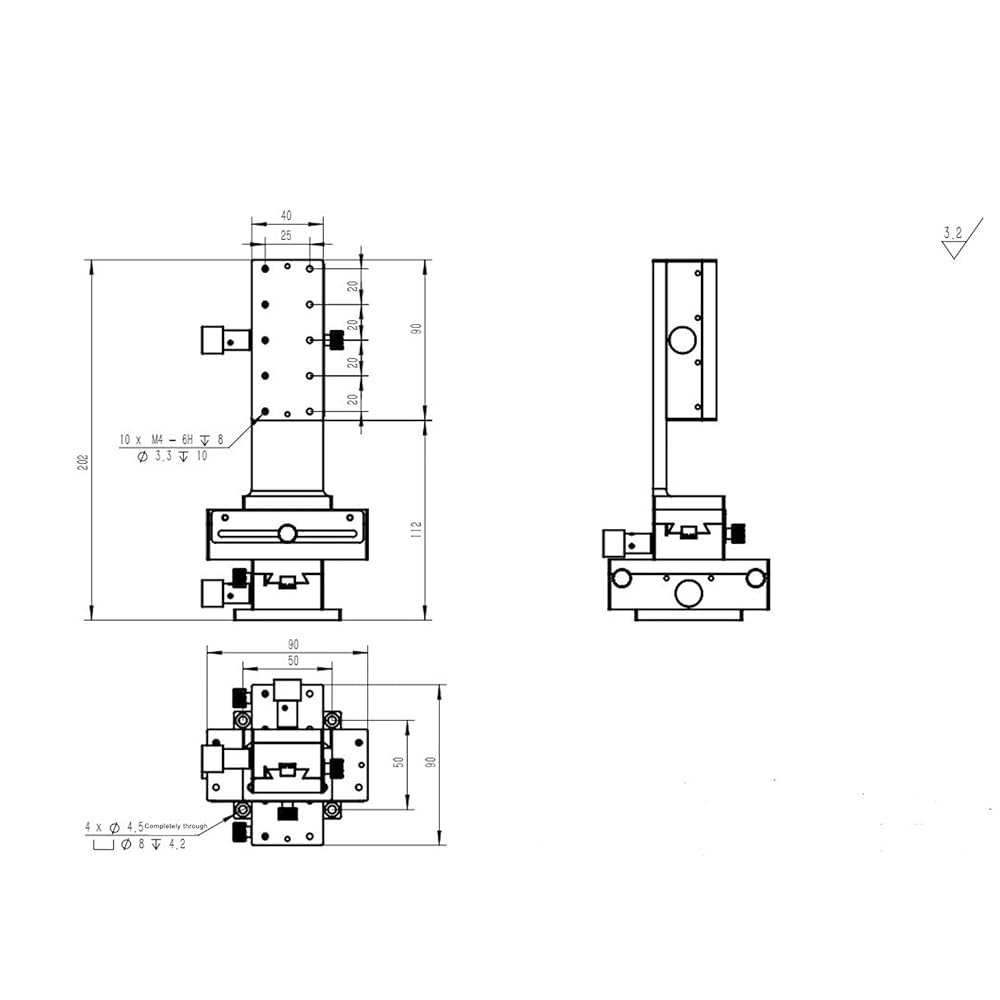

Size: Approx. 40mm / 1.6in
25mm /
