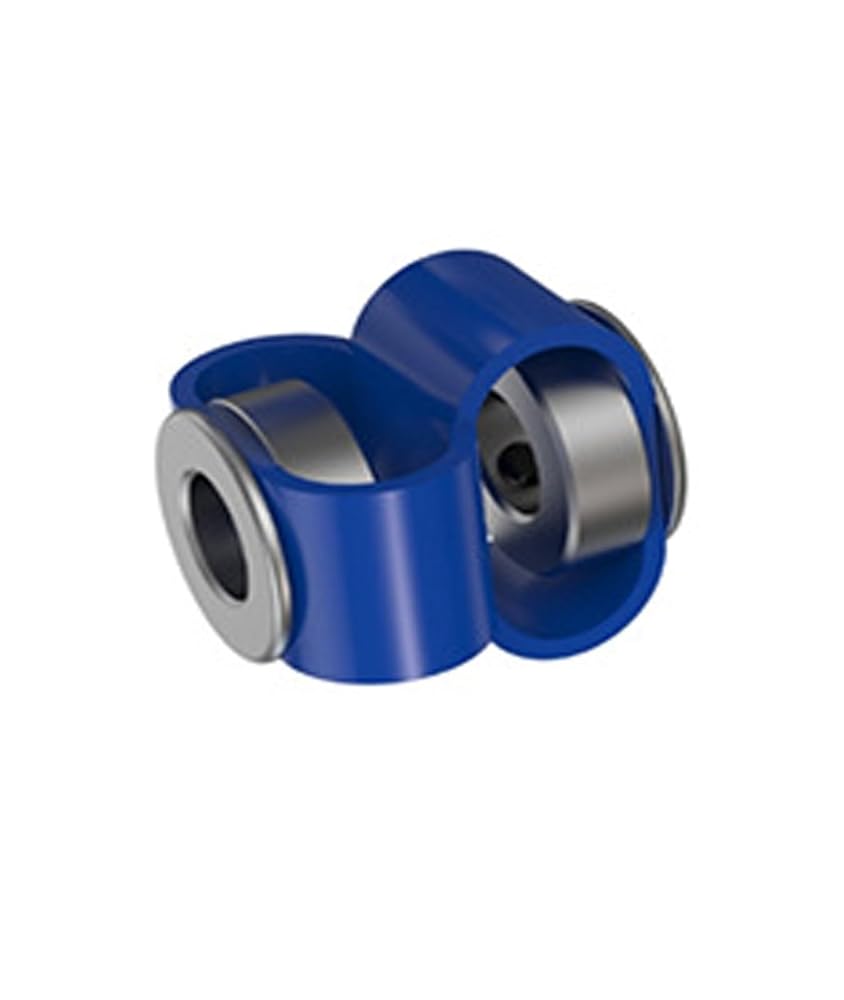

Figure-8 Encoder Coupling 1pc LS D D23L24 8 Font Encoder Coupling Double Loop Couple Flexible Aluminum Alloy(6mmX6mm) in Saudi Arabia

4mmX6mm

SAR 147
Brand
BARRINS
Weight
23 g
Color4MMX6MM
– 1 +

Special Features

  • 【Product Structure】: Heat-treated and electroplated for high hardness, enhancing the coupling's durability and ensuring long-term stable performance.
  • 【Simple Installation】: The shaft coupling securely fastens the shaft to a flat surface and allows easy installation of additional accessories onto the shaft.
  • 【Inner Hole H7】: Standard inner hole tolerance for a strong, secure lock.
  • 【Encoder-Specific Design】: Supports forward, reverse, and dual-direction mounting with complementary convex/concave structures for diverse machine configurations.
  • 【Primary Applications】: Suitable for connecting servo motors, stepper motors, encoders, and similar components.

Description

Standard or Nonstandard : Standard
Flexible or Rigid : Flexible
Model Number : LS-D-D23L24
Material : Aluminium
Structure : Universal
Origin : China
Certification : CE
Rated Torque : 0.15n.m
Max Torque : 0.3n.m
Max speed : 3000rpm
Moment of lnertia : 2.5*10-7kg.m2
Permissible parallel misalignment : 1mm
Permissible angular misalignment : 5 degree
Weight : 23g
Inner diameter : 3mm 4mm 5mm 6mm 7mm 8mm
