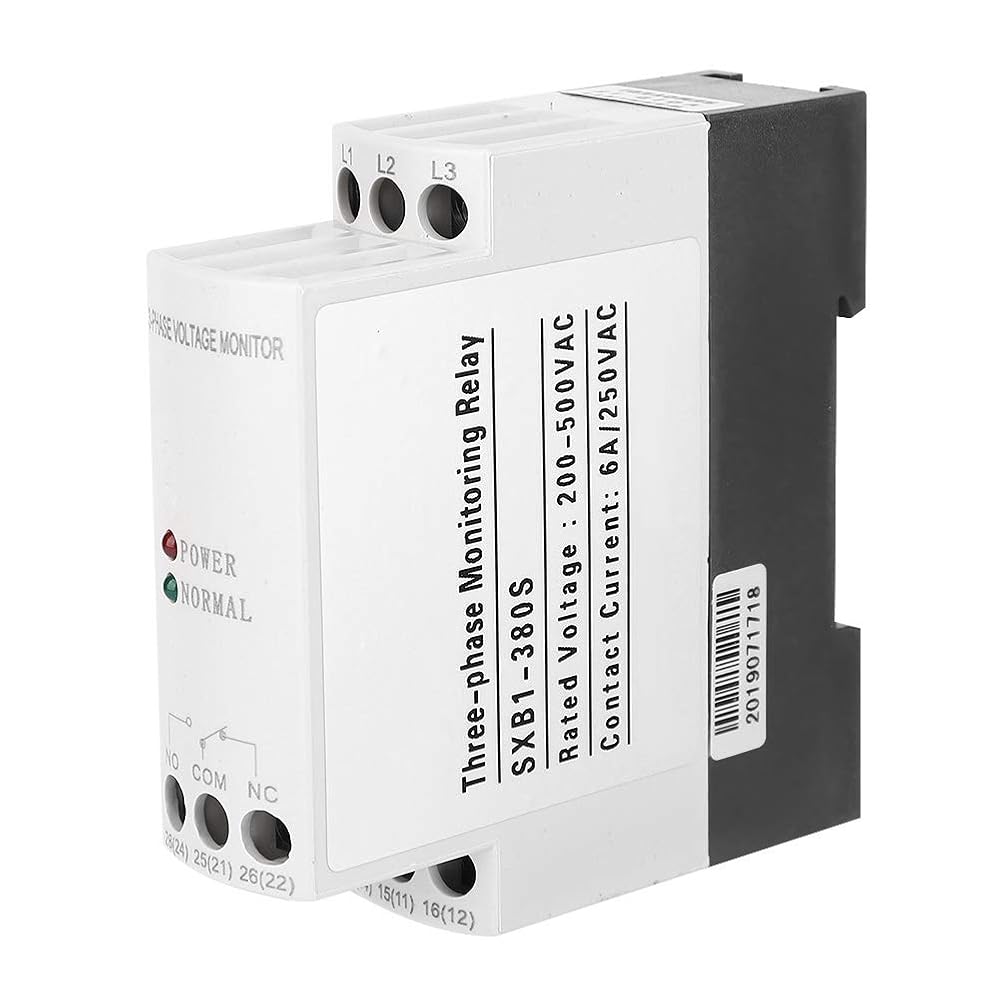

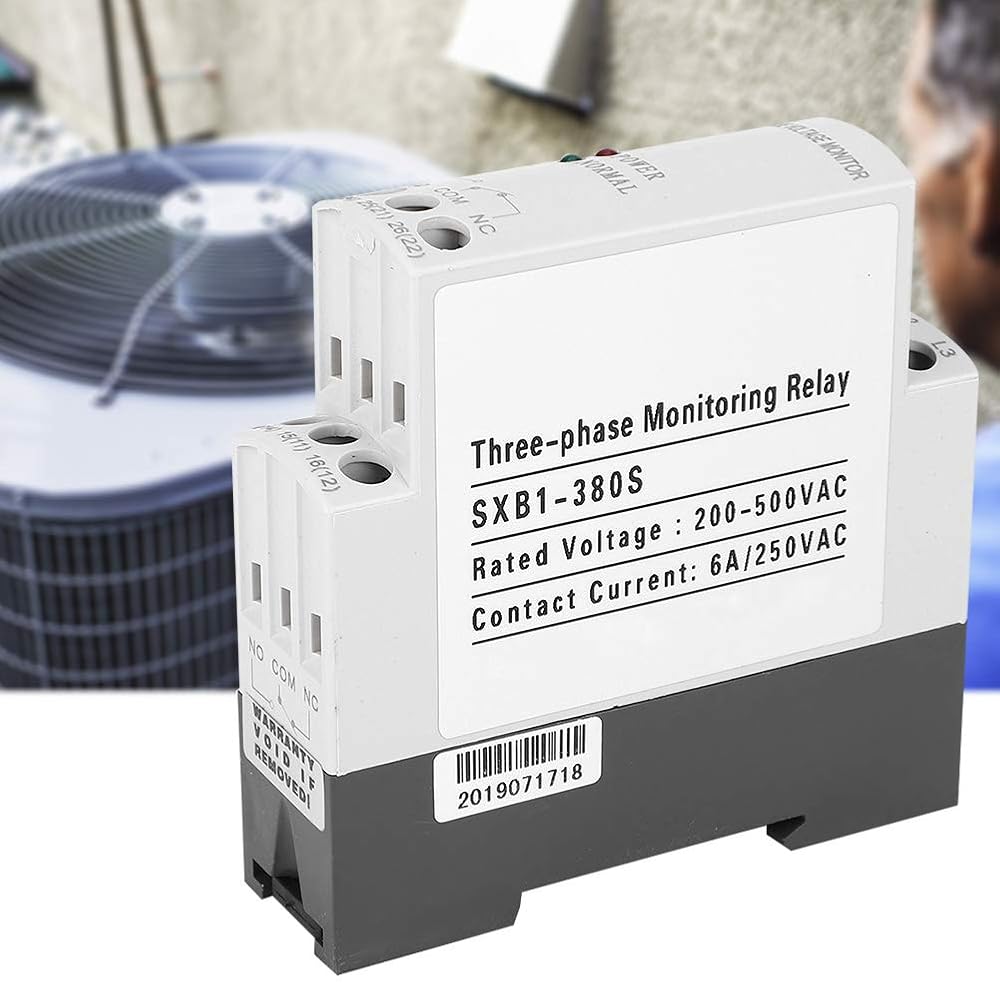

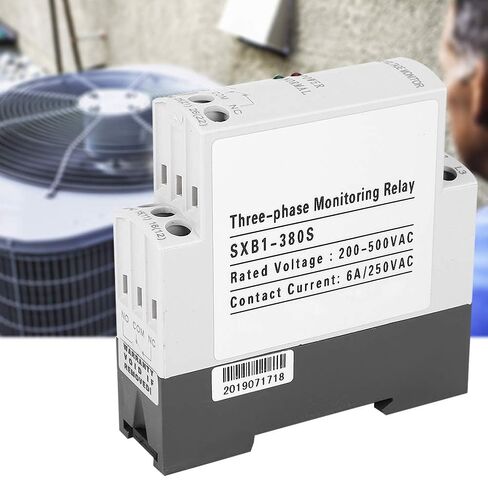

3 Phase Circuit Protection Voltage, Monitoring Relay Phase Failure Sequence Protector for Air Compressors, Electric Motors, Distribution Boxes, Water Pumps, Oil Pumps

SAR 147
– 1 +

Special Features

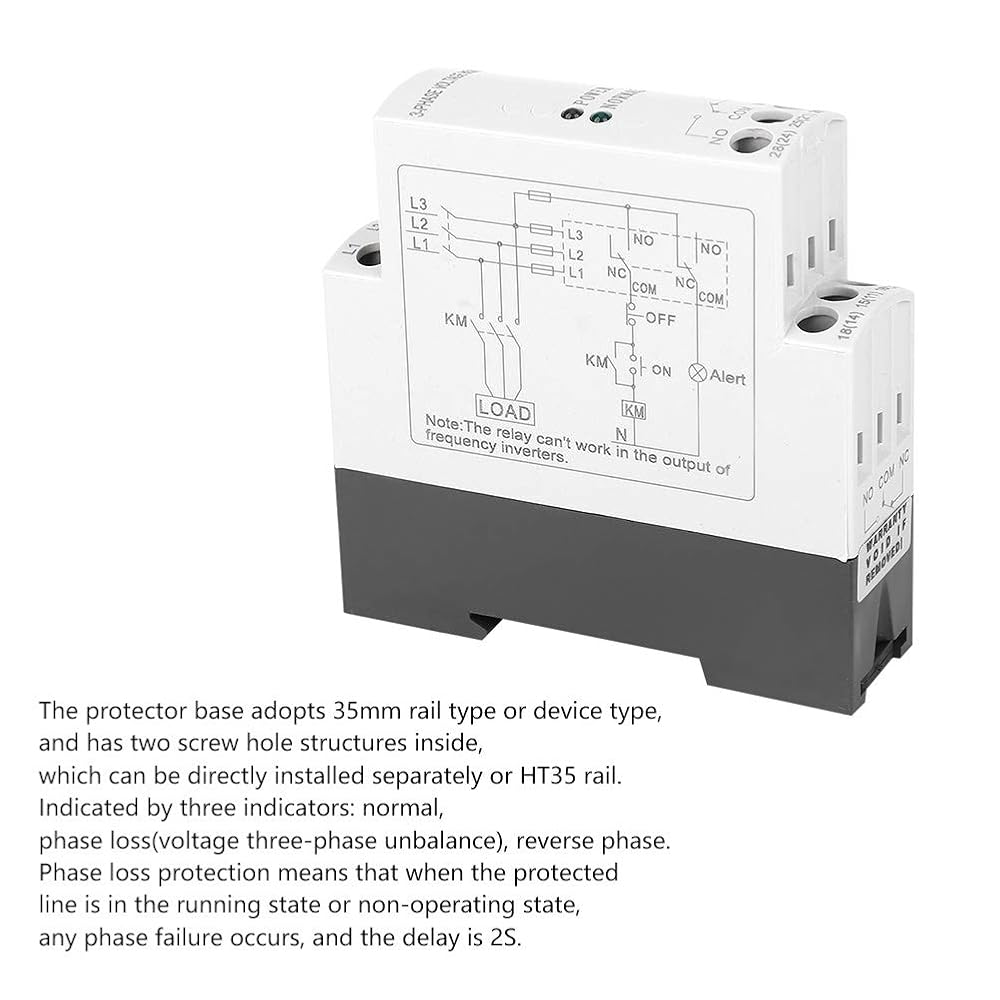

  • The protector base adopts 35mm rail type or device type, and has two screw hole structures inside, which can be directly installed separately or HT35 rail.

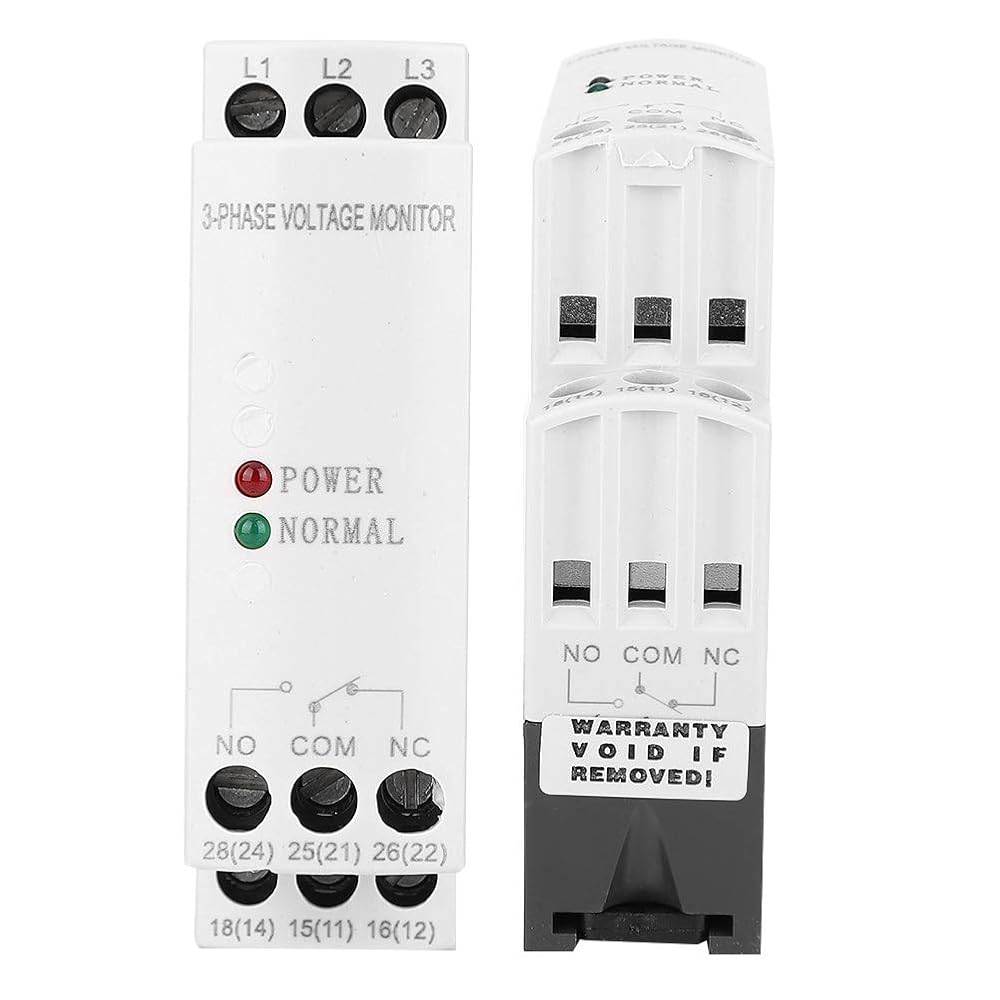

  • Indicated by three indicators: normal, phase loss(voltage three-phase unbalance), reverse phase.
  • Phase loss protection means that when the protected line is in the running state or non-operating state, any phase failure occurs, and the delay is 2S.
  • Reverse phase protection, a protection measure to prevent L1, L2, L3 three-phase AC phase sequence from being connected incorrectly, delay 2S action.
  • Voltage imbalance protection, which refers to a protective measure that will affect the safe operation of the line due to three-phase voltage imbalance.

Description

Specification:

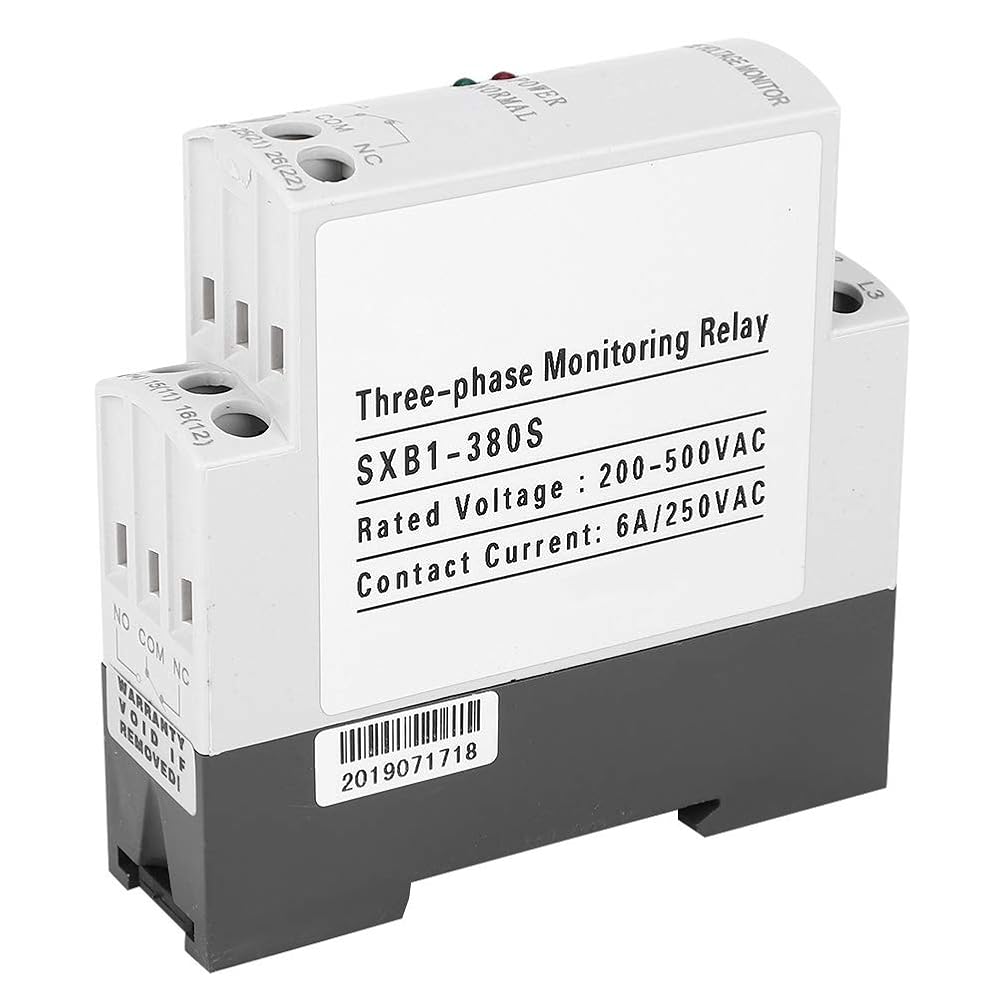

Rated Voltage: 200-500VAC, 50/60Hz
Protection Function: Phase failure and phase sequence
Display Mode: LED Indicates working status
Contact form: Two sets of normally open normally closed contacts
Contact Capacity: 6A AC250V (resistive)
Installation Method: 35mm Rail or device

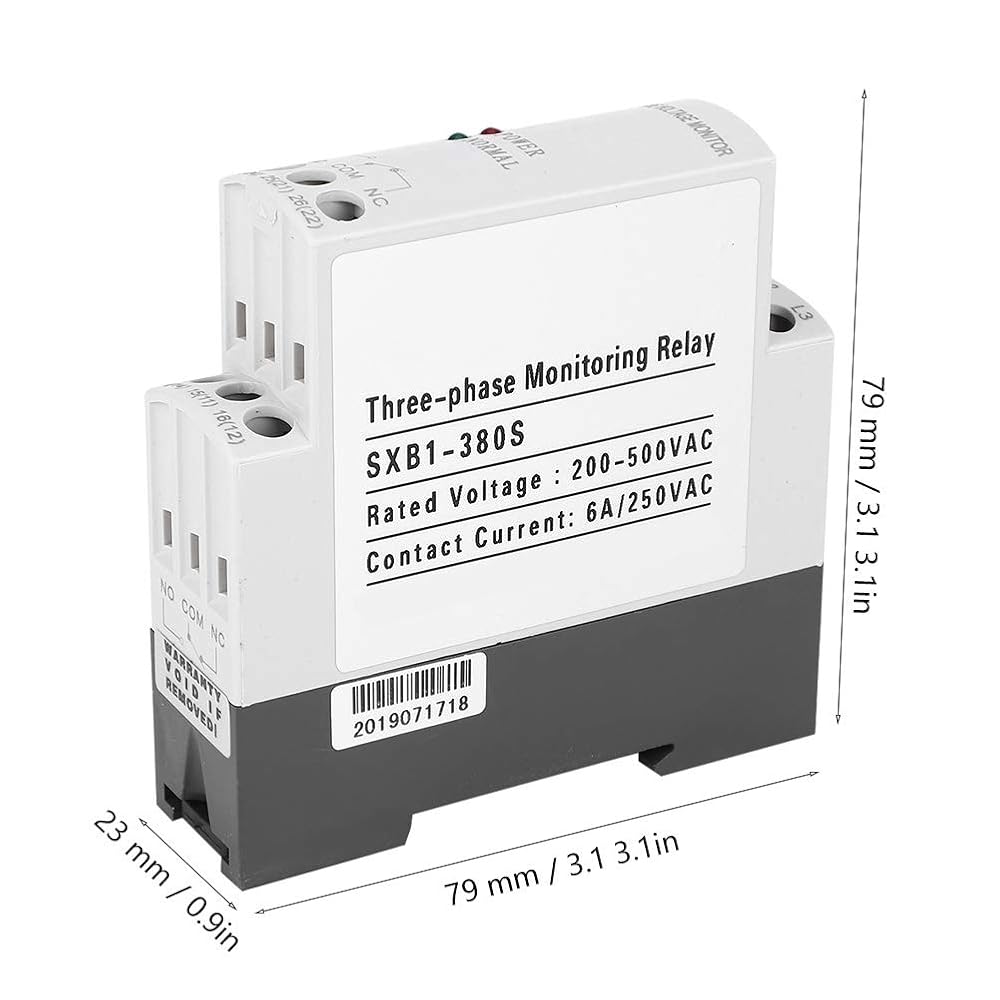

Size: Approx. 79 x 23 x 79mm / 3.1 x 0.9 x 3.1in

Package List:
1 x Protector

Warning:

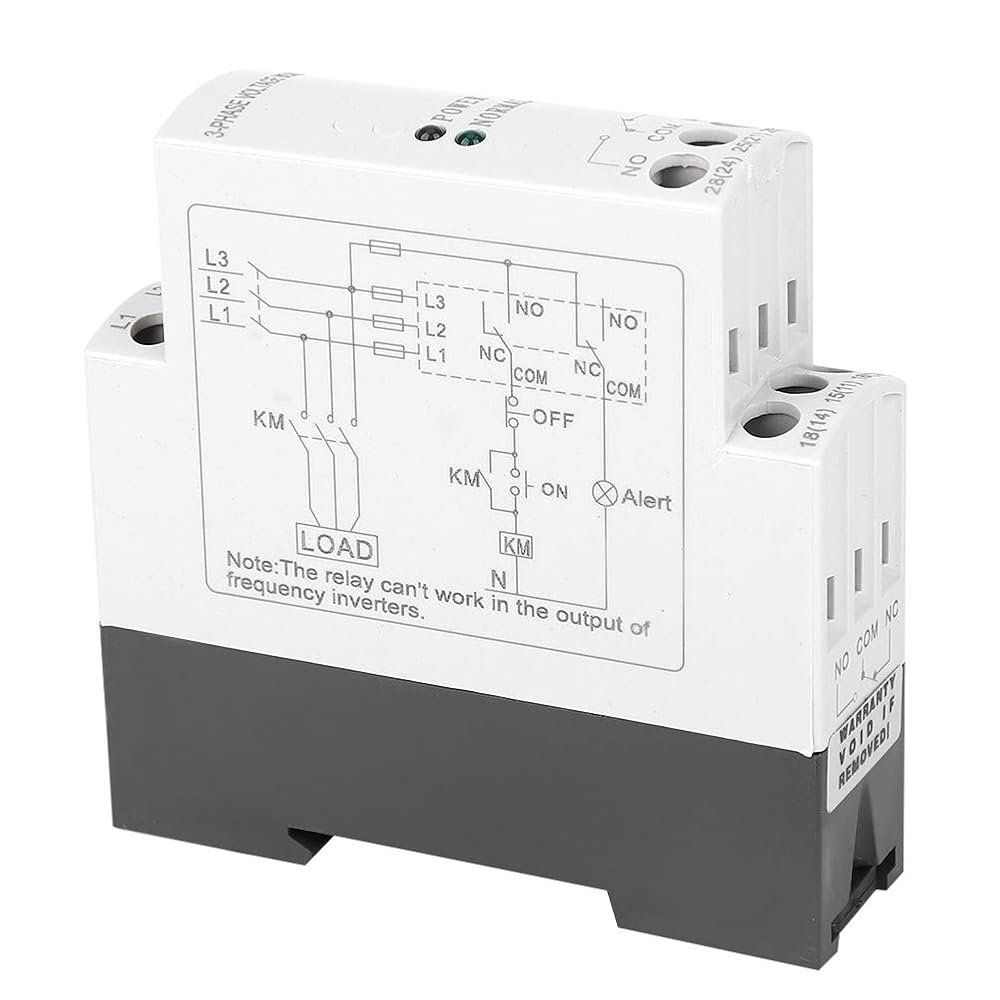

This product is generally sampled on the power side of the three-phase power supply and must not be installed on the output side of the variable current.
