bearings
Bearing
Type: F-1714
External materials: Chrome Steel
Inner Diameter: 17 mm
Outer Diameter: 23 mm
Thickness: 14 mm
Quantity:1 Item = 10 PCS
Weight:150 g
Roller needle type: Pointy roller needle
Type：F-1718
External materials: Chrome Steel
Inner Diameter: 17 mm
Outer Diameter: 23 mm
Thickness: 18 mm
Quantity:1 Item = 10 PCS
Weight:210 g
Roller needle type: Pointy roller needle
Type：F-1722
External materials: Chrome Steel
Inner Diameter: 17 mm
Outer Diameter: 23 mm
Thickness: 22 mm
Quantity:1 Item = 10 PCS
Weight:265 g
Roller needle type: Pointy roller needle
Type：F-2014
External materials: Chrome Steel
Inner Diameter: 20 mm
Outer Diameter: 26 mm
Thickness: 14 mm
Quantity:1 Item = 10 PCS
Weight:170 g
Roller needle type: Pointy roller needle
Type：F-2020
External materials: Chrome Steel
Inner Diameter: 20 mm
Outer Diameter: 26 mm
Thickness: 20 mm
Quantity:1 Item = 10 PCS
Weight:260 g
Roller needle type: Pointy roller needle
Type：F-2025
External materials: Chrome Steel
Inner Diameter: 20 mm
Outer Diameter: 26 mm
Thickness: 25 mm
Quantity:1 Item = 10 PCS
Weight:330 g
Roller needle type: Pointy roller needle

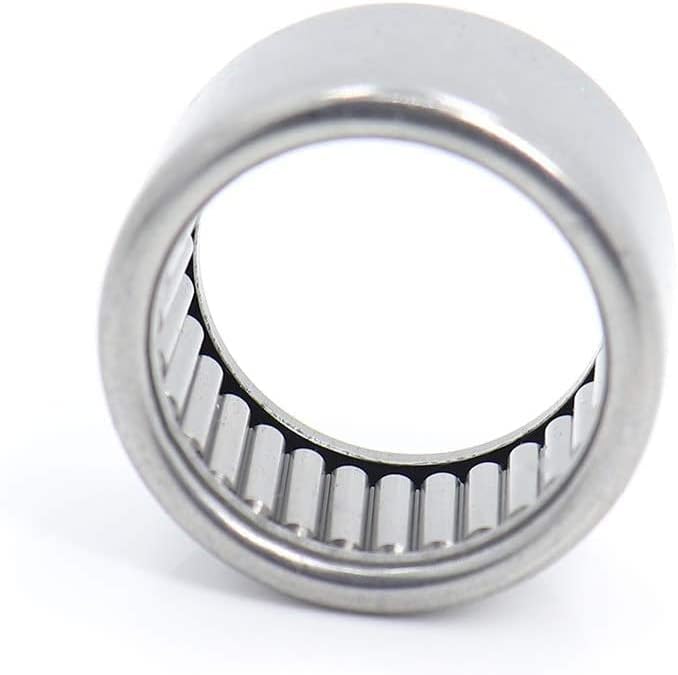

Drawn Cup Needle Bearing Series
The drawn cup needle roller bearing, employs a full complement of rollers. The full complement drawn cup bearing combines maximum capacity and low cost with the advantages of the drawn outer ring.
The inward turned lips of the cup are used to mechanically retain the full complement of needle rollers to provide positive radial retention of rollers even though it may be necessary to remove the shaft repeatedly during the servicing of the mechanism employing the bearing. Needle bearings need to run on harden shafting or harden inner rings.
