Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing).Suffix on the bearing just for differentiating between Sealed and Shield type of bearing.It would not affect the use of our product.
Deep Groove Ball Bearings are one of the most widely used rolling bearings.
Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance.
Single-row, pre-lubricated, normal accuracy.
Description
Selection Guide:
Shields(Designation Suffix Z/ZZ) - High speed.Protect from dirt and debris.
Sealed(Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant).Lower limit speed than Shield Bearings.
Specification:

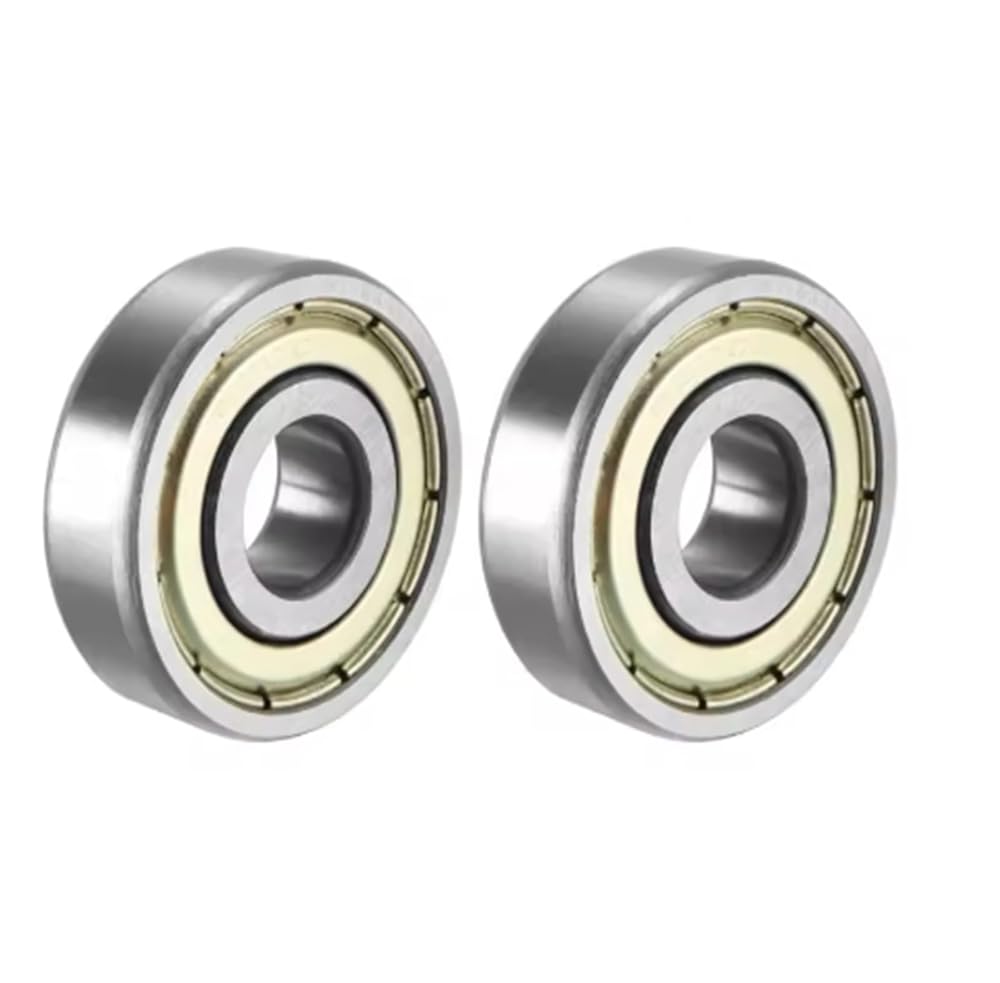

Model: 6200ZZ
Shield Type: Double Shield
Material: Chrome Steel
Heat Treatment: Quenching
Hardness: HRC50-55
Cage Material: Stamping Steel
Inner Diameter: 10mm
Outer Diameter: 30mm
Thickness (B): 9mm
Dynamic Load Rating (Cr): 5.1kN
Static Load Rating (Cor): 2.38kN
Accuracy Class: P0 (ABEC-1)
Noise Level: Z1
Number of Pack: 2 Pcs
Weight: 65g
High-concerned chemical : None
Material : Bearing Steel
Certification : None
