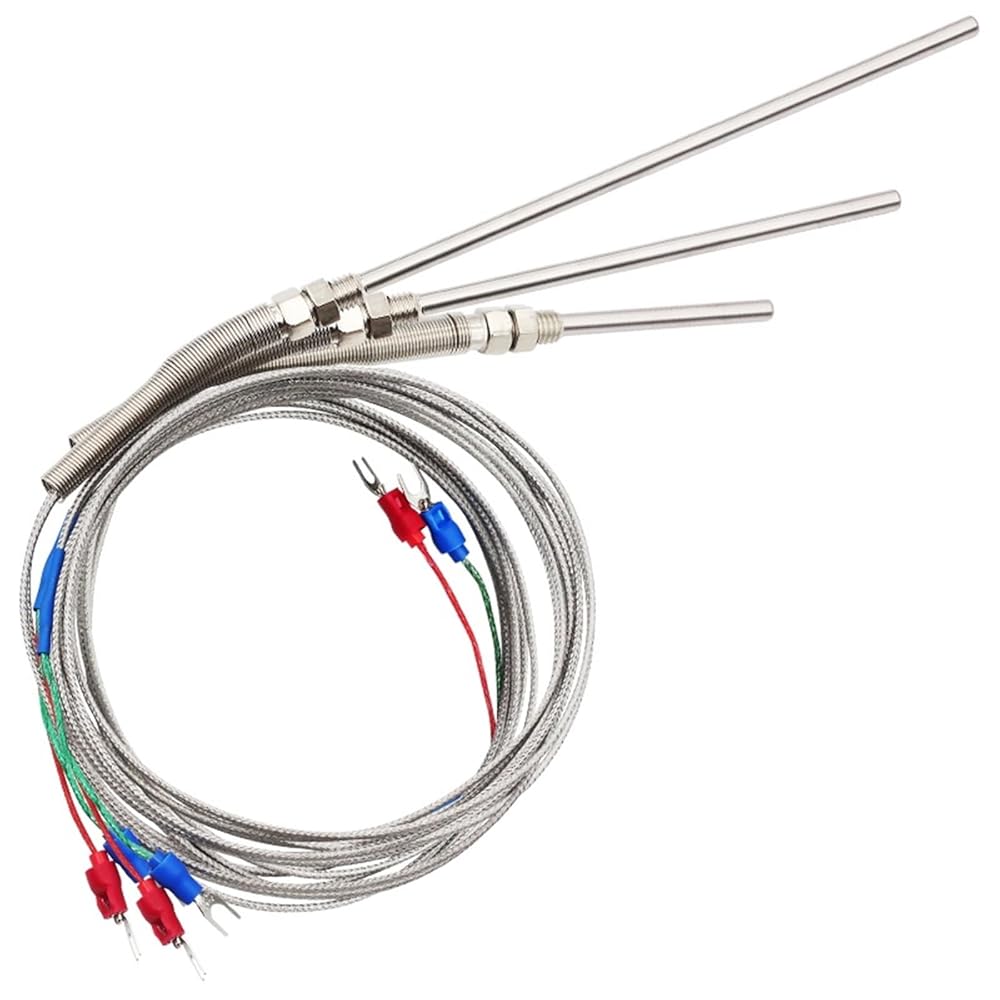

Thermocouple M8 0.5m 1m 2m 3.0m Type K J PT100 50mm 100mm 150mm 200mm Compression Spring Probe Temperature Sensor 0-400
HOW TO CHOOSE
K: 0~600 / J: 0~400 / PT100: -200~500
K and J have the same appearance, but different internal materials. The temperature range of type K is larger than that of type J. But the actual situation depends on your temperature display device. If the device is K, the sensor must be K and if the device is J, the sensor must be J.
K/J type has 2 terminals, PT100 type has 3 terminals,
Thread Diameter: M8*1.25
Probe Diameter: 5mm
Probe Length: 50mm/100mm/150mm/200mm
Wire length: 0.5m-5m
Note: The wire length includes probe length. If you buy 500mm thermocouple with 100mm probe, outer wire length = 500m-100mm = 400mm.
Measure Type : K
Screw : M8*1.25
Cable Length : 3.0M
Type : K
Theory : Thermocouple Thermometer
Max Measuring Temperature : 120°C & Above
Style : Wall Hanging
Use : Industrial
