TECHNICAL SPECS

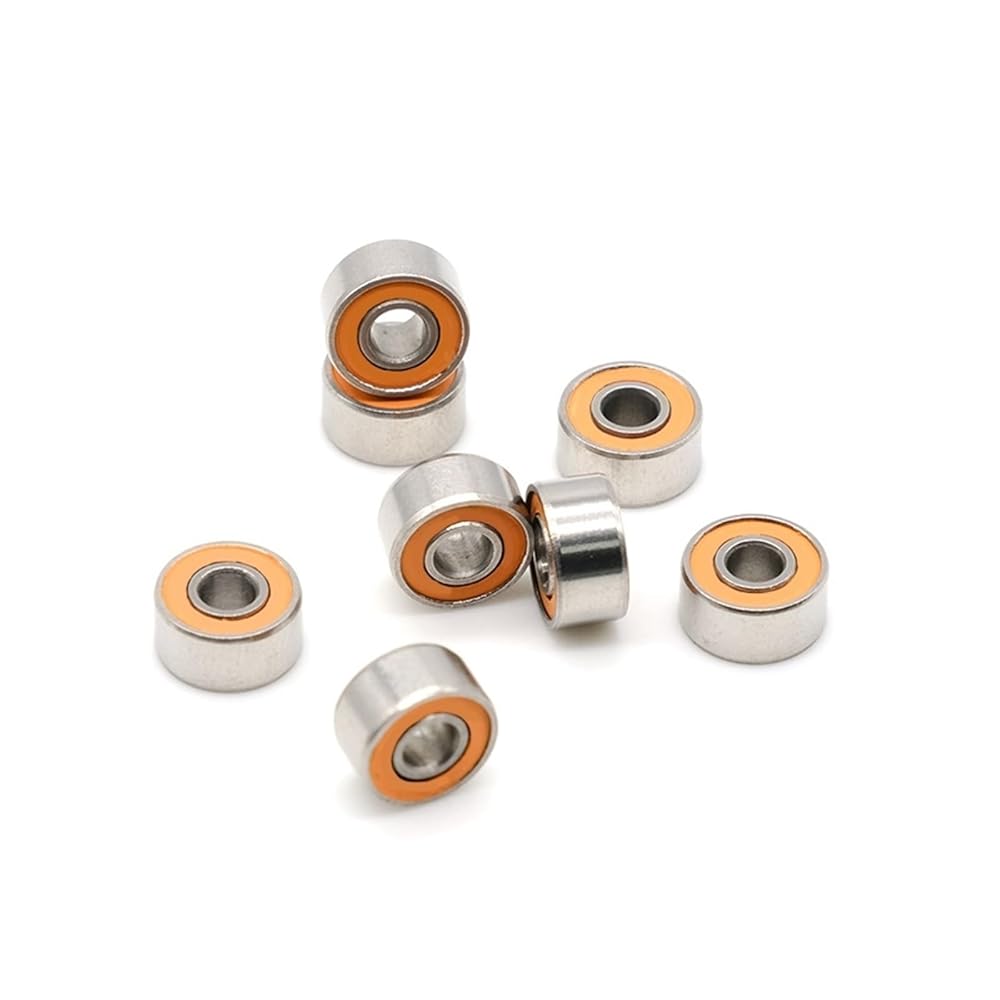

Item: S693RS CB
Structure: Deep Groove
Bearing Material: 440C Stainless Steel
Ball Material:Ceramic Si3N4
Bearing Type : Hybrid ceramic ball bearing
Bore Dia (d): 3 mm
Outer Dia (D): 8 mm
Width (B): 4 mm
Closures: Rubber Shielded(RS)
Lubrication: Free of Grease Free of Runing
Magnetic: little
Hardness: 58HRC
Corrosion Resistance: General
Clearance: C0
Bearing Grades: ABEC 7
Dynamic Load Rating (Cr) (Newtons): 474
Static Load Rating (Cor) (Newtons): 144
Ball Qty: 6
Ball Dia (Dw): 0.800 mm
Weight: 1.588 g
High-concerned chemical : None
is_customized : Yes
Material : Stainless Steel &Ceramic
Model Number : S693ZZ CB
Certification : None
Model Number : S693ZZ CB
Material : Hybrid Ceramic
Bearing Material : : Stainless Steel AISI440C
Ball Material : : Ceramic Si3N4
Bearing Sizes : : 3x8x4 mm
Inner Diameter : : 3 mm
Out Diameter : : 8 mm
Width : : 4 mm
Bearing Characteristics : : free of grease free running
Bearing Type : : Hybrid ceramic ball bearing
Application : : Fishing reel ,RC Race...and another high speed application
