Globe Valves

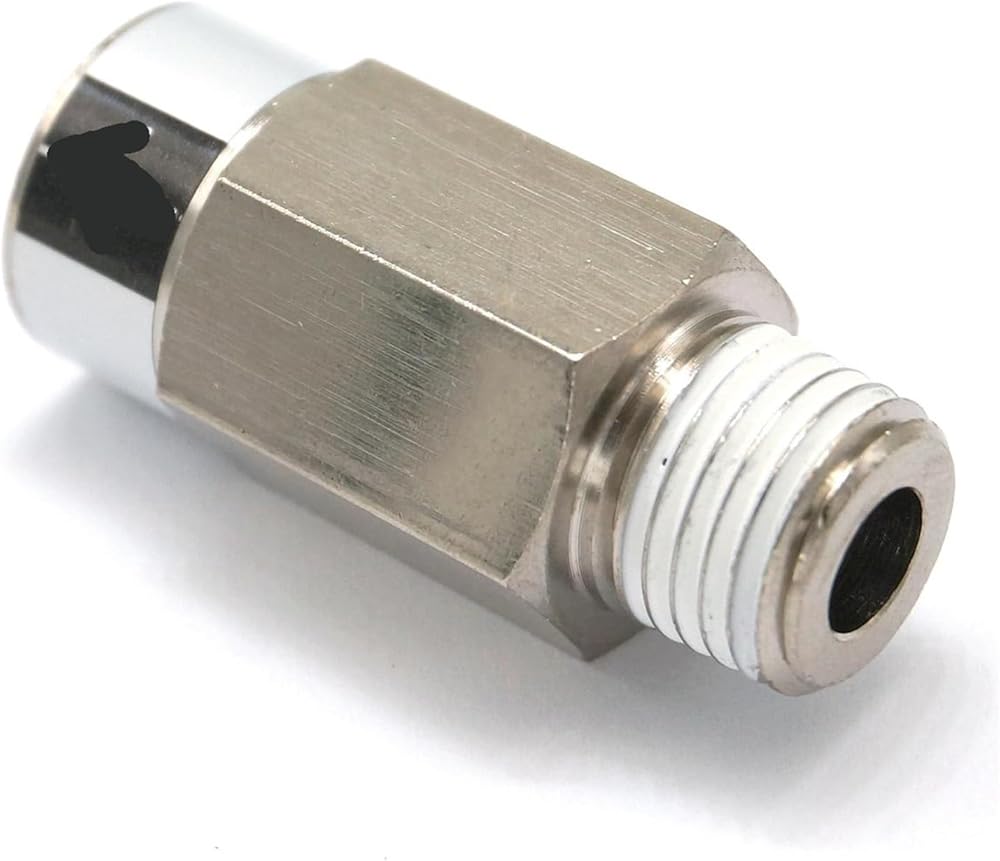

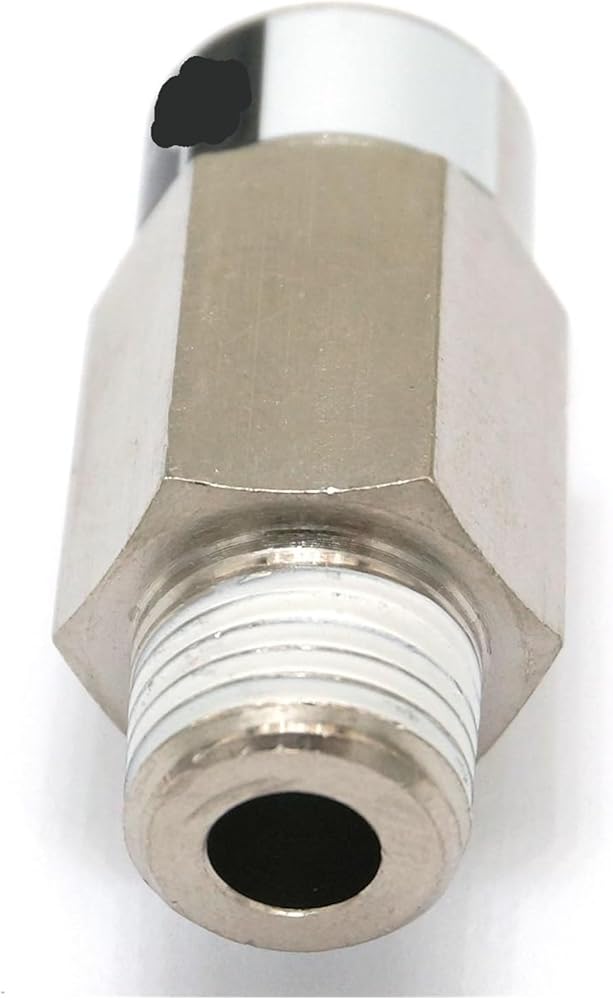

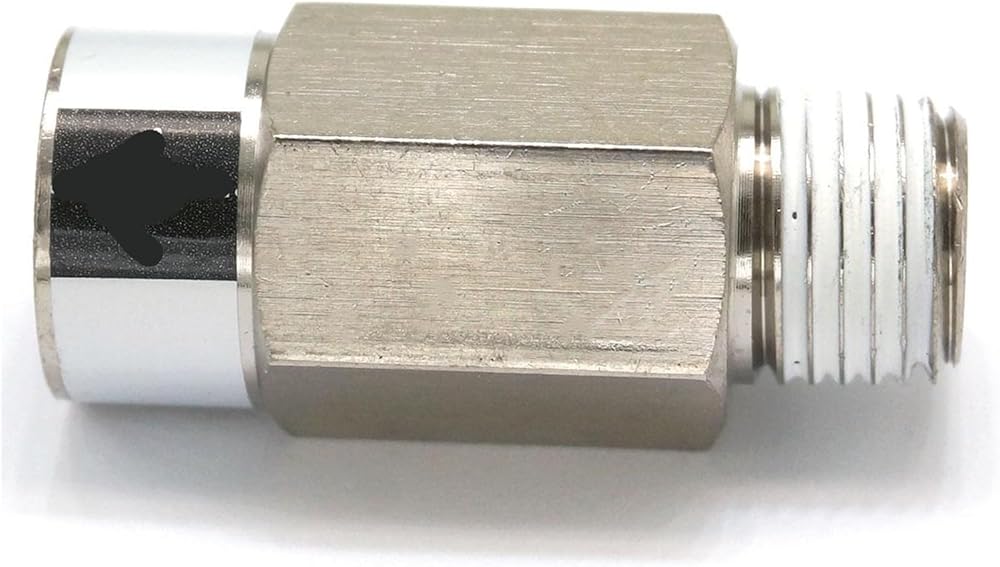

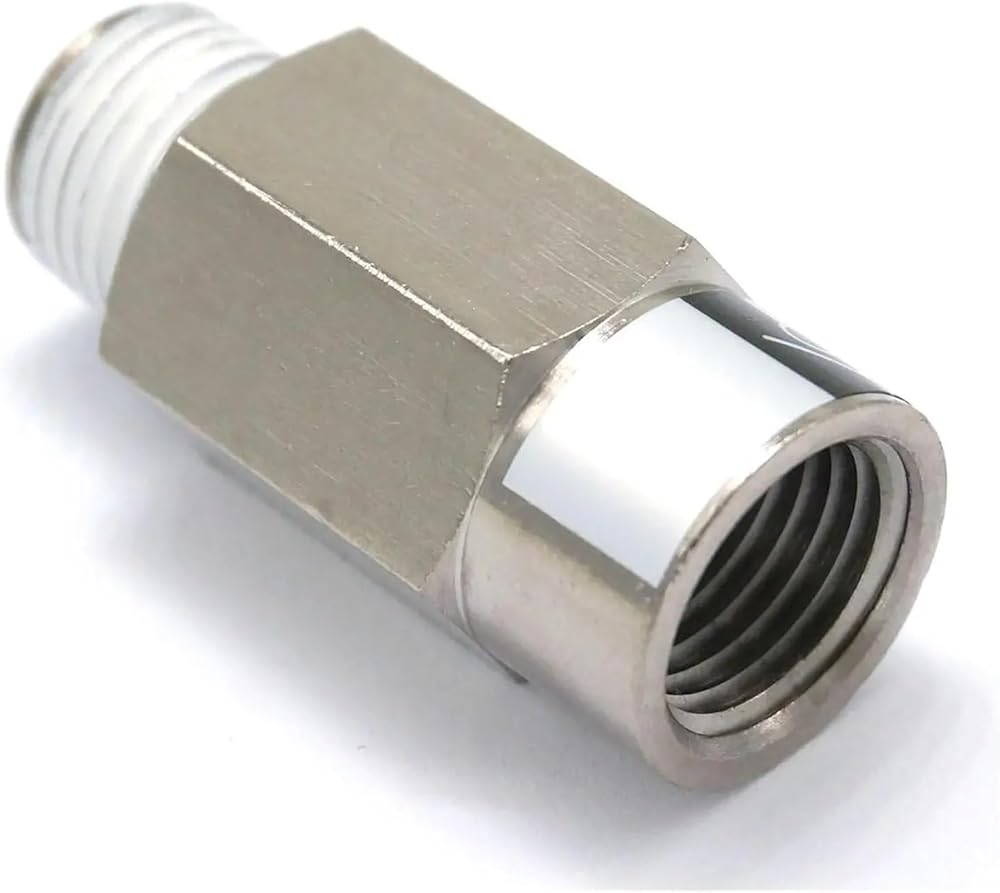

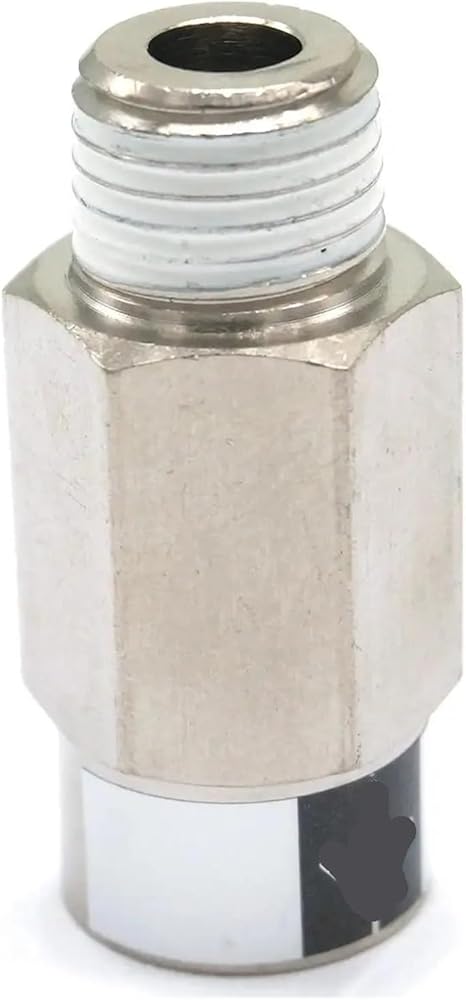

Product Model: AKB02B-02S Sleeve type check valve flow direction from internal thread to external thread type
Specification
Model: AKB02B-02S
S: with sealing ring (standard)
Type: Casing type
Body size: G1/4"
Check valve flow direction: B: from internal thread to external thread
Interface size: G1/4"
Fluid: Air
Pressure resistance: 1.5 MPa
Working pressure range: 100 kPa to 1 MPa
Opening pressure: 0.005MPa
Ambient temperature and fluid temperature: 5～60℃ (no freezing)
Applicable pipe materials: nylon, soft nylon, polyurethane
