مميزات خاصة

Central frequency: 902 MHz, Passband (1dB bandwidth): 890-915 MHz
load capacity: 100 mW (20 dBm), Interface: SMA-M, SMA-F
Interpolation loss: 2.0-2.5 (typical value: 2.2
The filter has a 1dB bandwidth of 25MHz and a cut-off characteristic. Used for GSM900 in 890 915 MHz frequency range, it can effectively filter out out-of-band reduce noise and increase dynamic range
Model: FBP-902s, Impedance: 50 Ohms

وصف

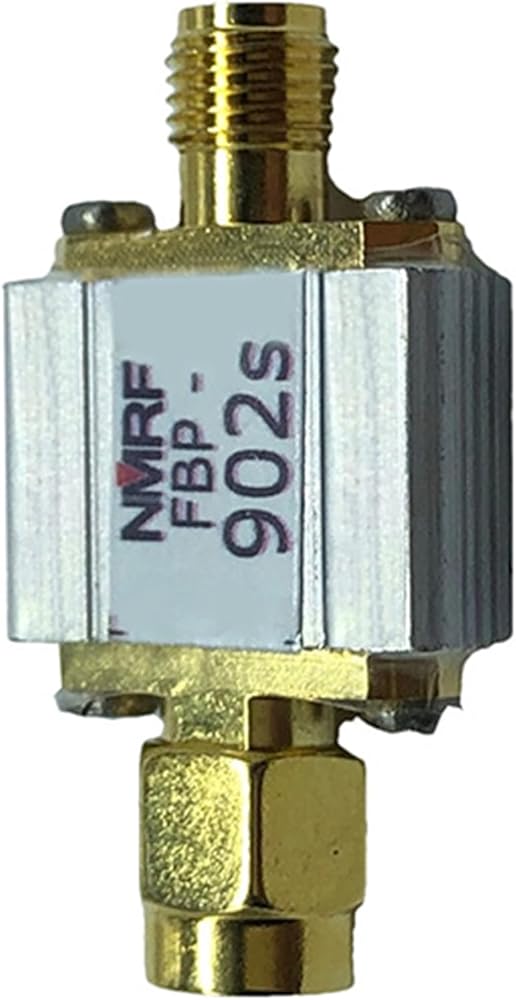

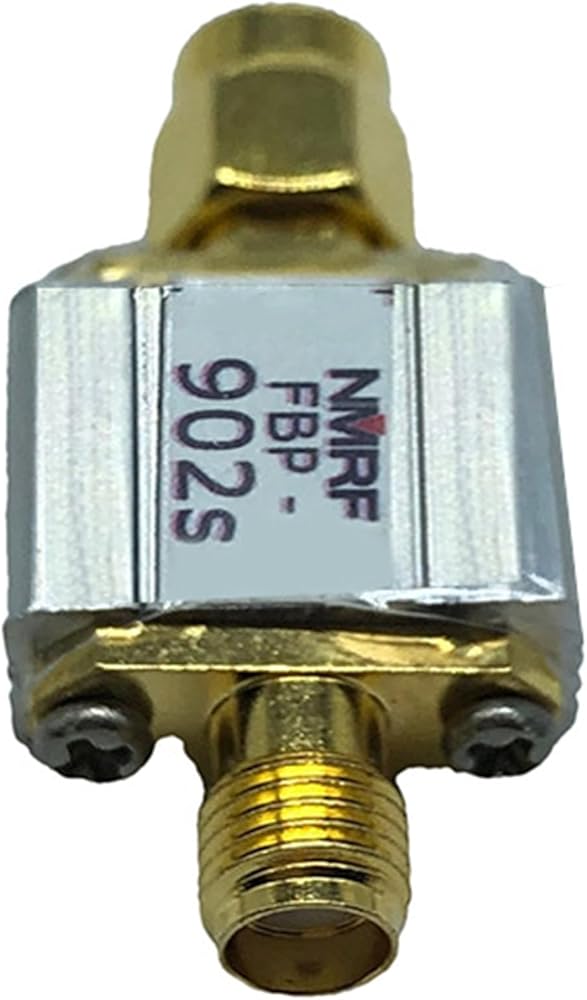

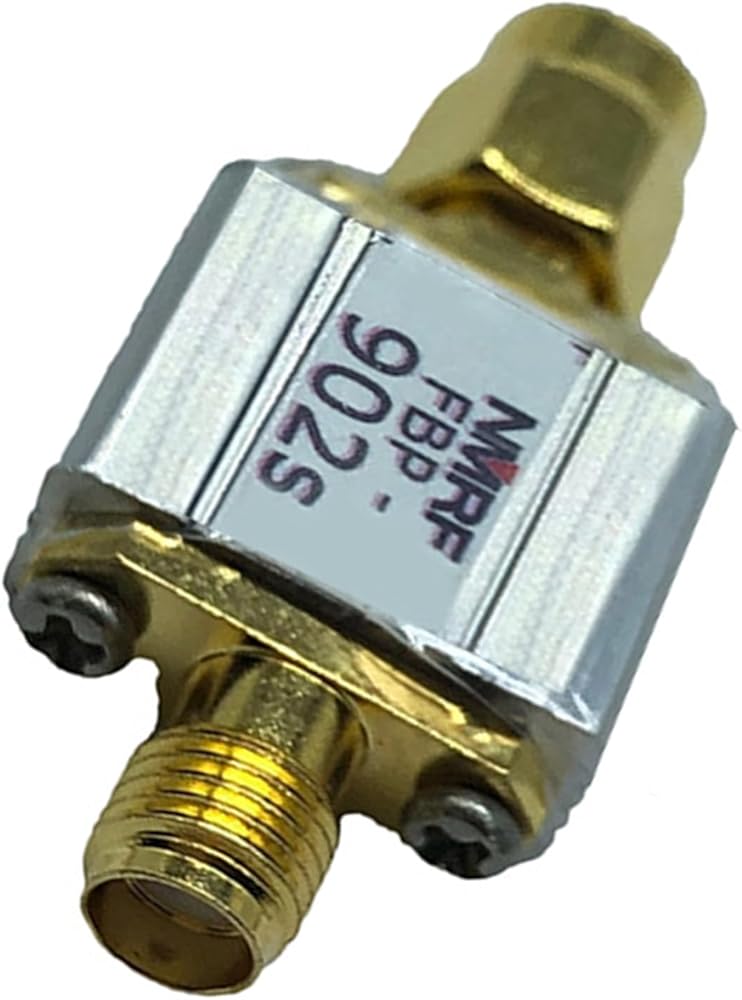

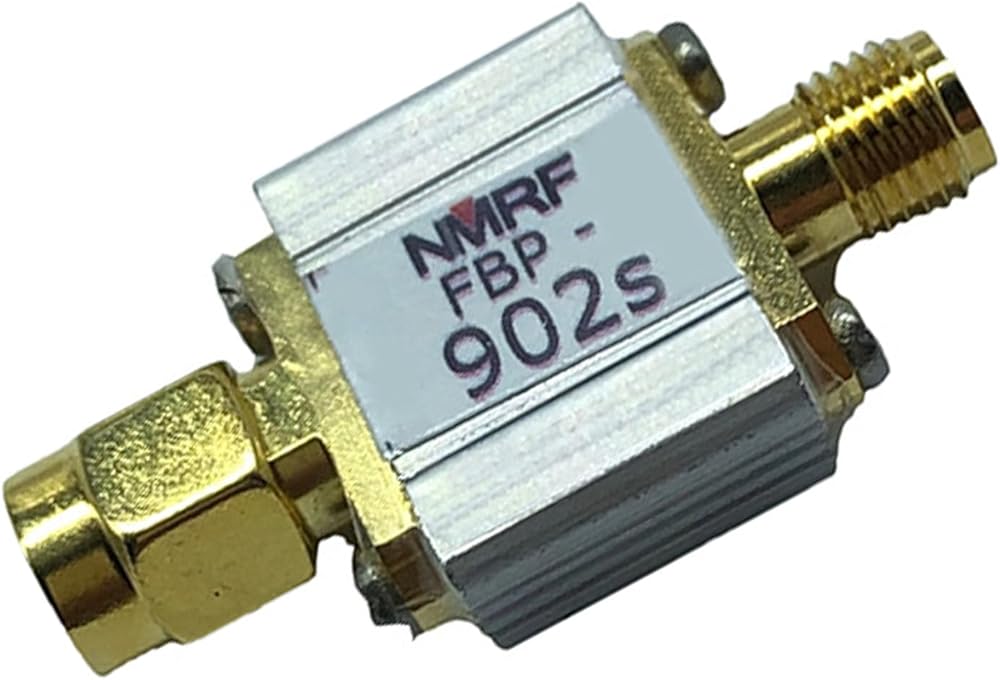

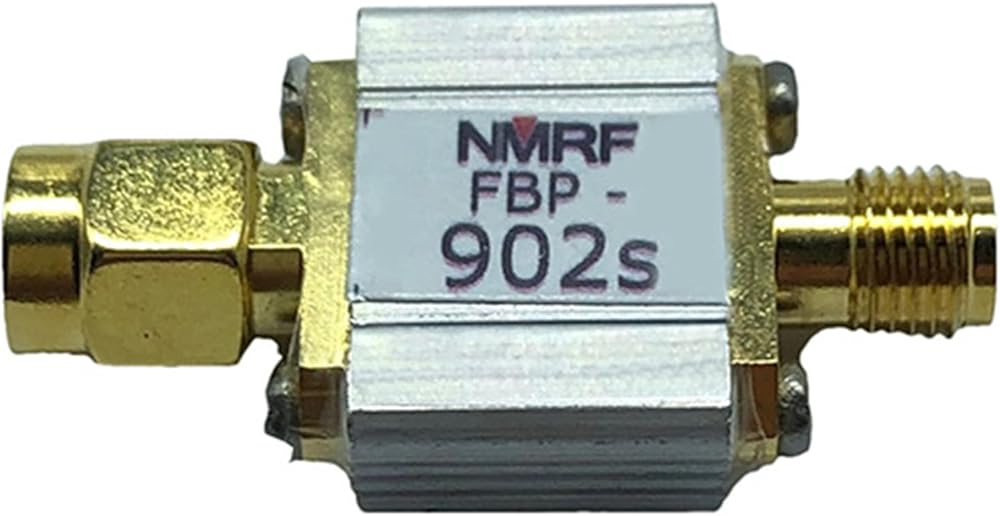

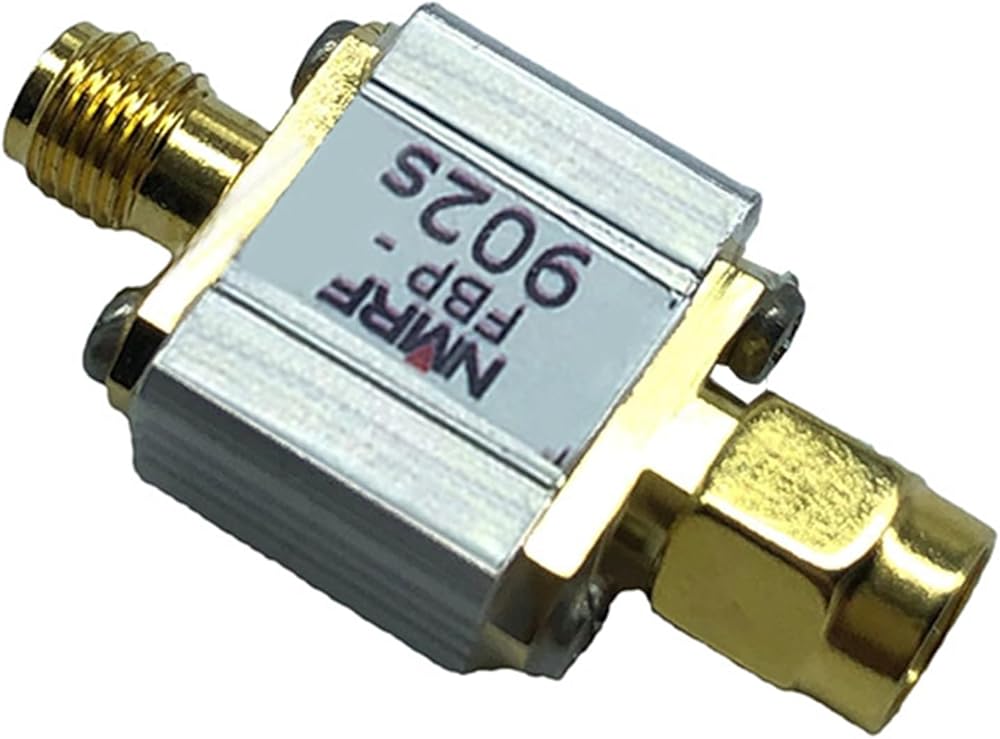

FBP-902s GSM900 Remote Bandpass Filter 890-915MHz 25MHz Bandwidth Power Tool Parts

Features:
The filter has a 1dB bandwidth of 25MHz and a cut-off characteristic. Used for GSM900 in 890 915 MHz frequency range, it can effectively filter out out-of-band reduce noise and increase dynamic range.
Model: FBP-902s, Impedance: 50 Ohms.
Central frequency: 902 MHz, Passband (1dB bandwidth): 890-915 MHz.
Interpolation loss: 2.0-2.5 (typical value: 2.2
load capacity: 100 mW (20 dBm), Interface: SMA-M, SMA-F.

Specifications:
Metal

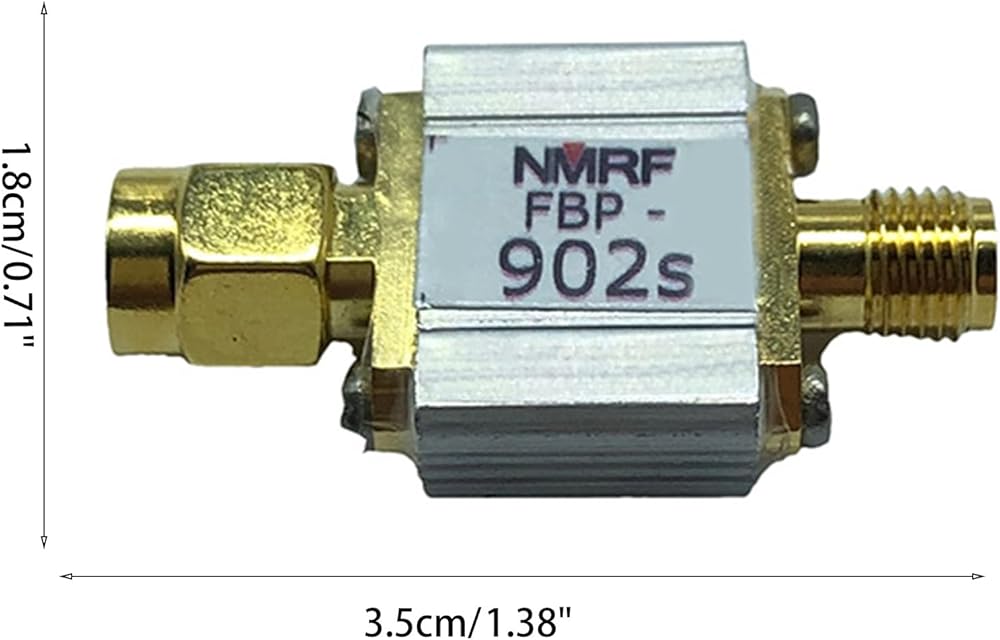

Size Approx.3.5x1.8cm 1.38x0.71in
Net Weight:10g

Package Includes:
1x Bandpass Filter

Note:
Please allow 1mm errors due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
